Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-19-10-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
1.9 in |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
122x1.5x1.2cm |
|
Weight: |
0.06kg |
Description

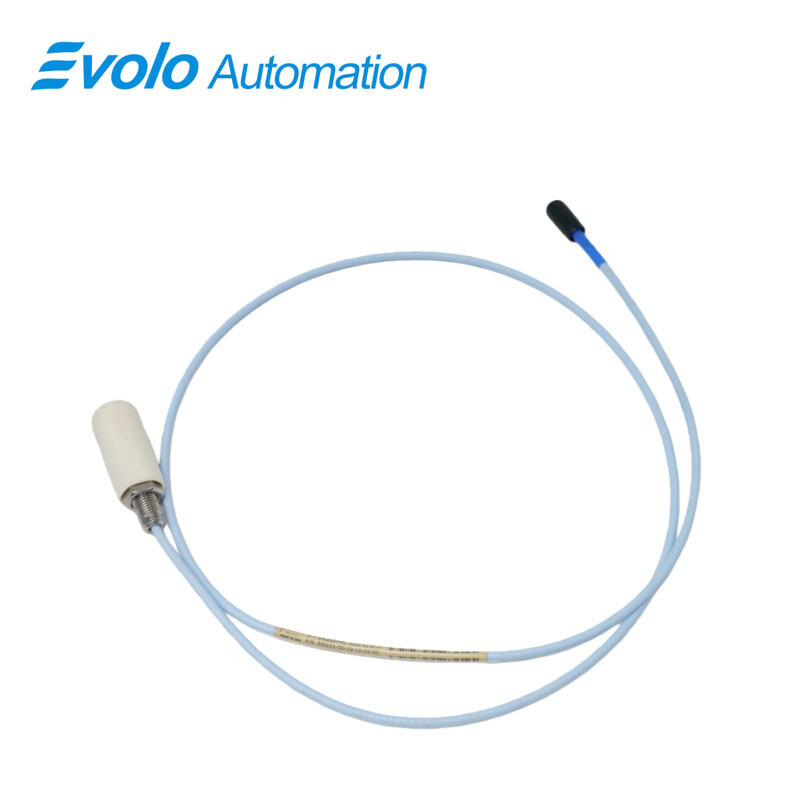

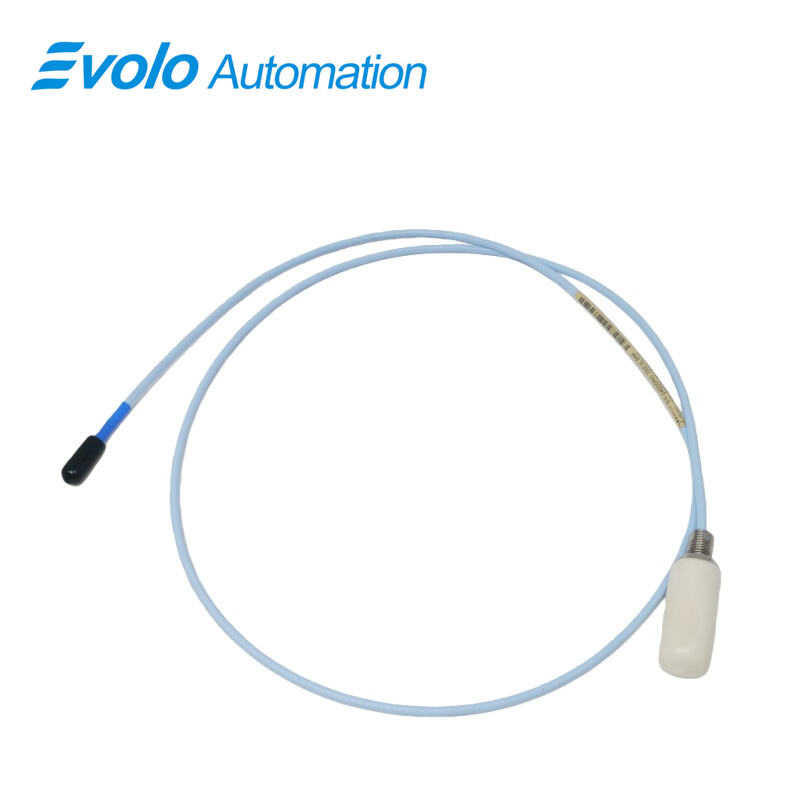

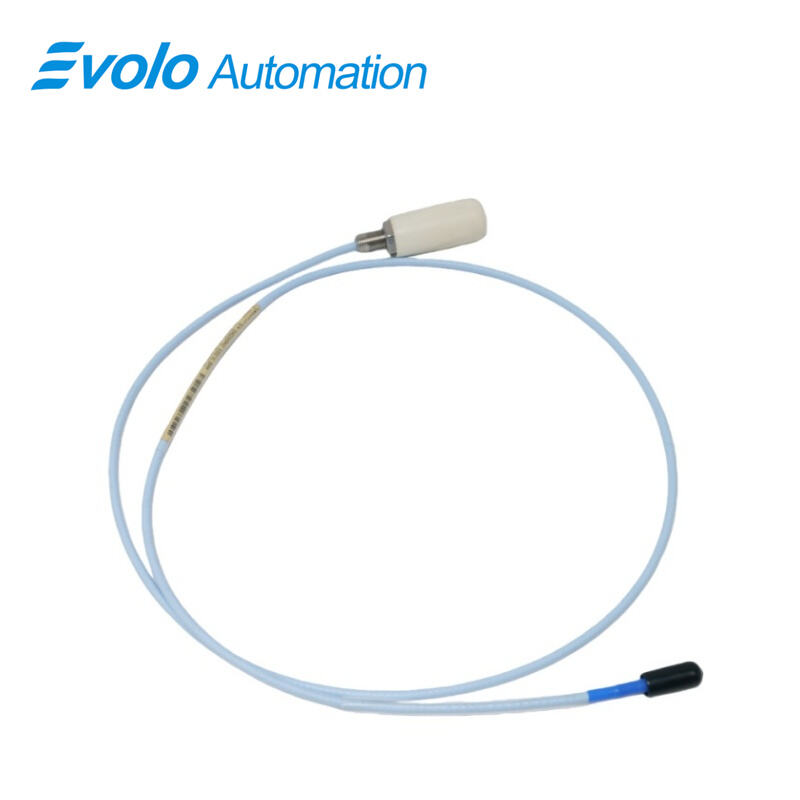

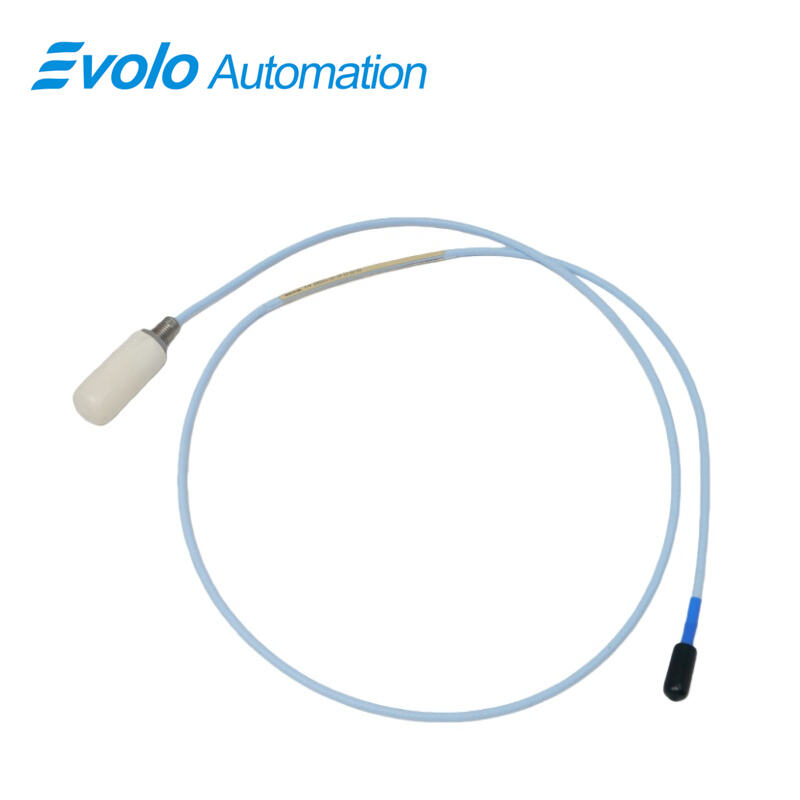

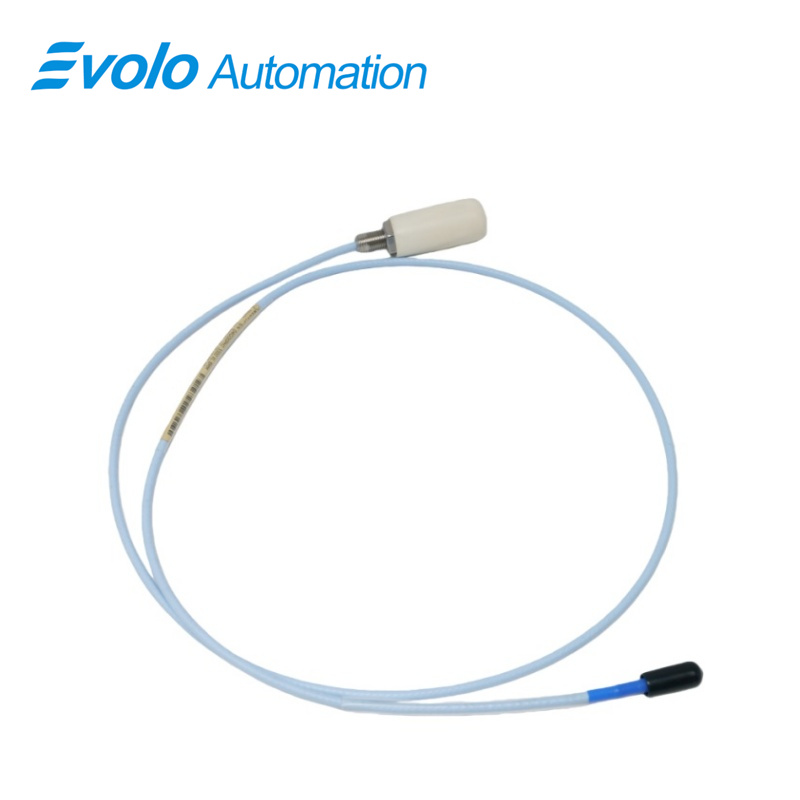

The 330101-00-19-10-02-00 3300 XL 8 mm Proximity Probe provides precise distance measurements between the probe tip and conductive surfaces, supporting both static position and dynamic vibration monitoring. With a 2 mm linear range (80 mils), 50 Ω output resistance, and 69.9 pF/m extension cable capacitance, the 330101-00-19-10-02-00 3300 XL 8 mm Proximity Probe operates from -52°C to +177°C and integrates with 0.2–1.5 mm² field wiring (16–24 AWG). The 1.9-inch case, 3/8-24 UNF thread, and 1-meter standard cable with Miniature ClickLoc connector enable fast installation in automated machinery. This probe generates voltage output proportional to shaft or rotor distance, allowing real-time feedback for speed, position, and vibration analysis in industrial automation systems.
Applications
Monitor Fluid-Film Bearings
The 330101-00-19-10-02-00 3300 XL 8 mm Proximity Probe measures shaft displacement on fluid-film bearings, using its 2 mm linear range (80 mils) and 50 Ω output resistance to detect minute position changes for automated vibration monitoring.
Keyphasor Reference Signal
The 330101-00-19-10-02-00 3300 XL 8 mm Proximity Probe generates precise Keyphasor pulses from the target shaft, supporting speed and position monitoring in automated turbine and generator control systems.
Vibration Detection on Rotating Machinery
Equipped with a 69.9 pF/m extension cable capacitance and field wiring of 0.2–1.5 mm², the 330101-00-19-10-02-00 3300 XL 8 mm Proximity Probe detects high-frequency shaft vibrations, feeding real-time data into predictive maintenance algorithms.
High-Temperature Process Monitoring
Operating from -52°C to +177°C, the 330101-00-19-10-02-00 3300 XL 8 mm Proximity Probe can be used in high-heat automated environments such as turbines and compressors without recalibration.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Precision Linear Measurement
With a 2 mm linear range (80 mils) and 50 Ω output resistance, the 330101-00-19-10-02-00 3300 XL 8 mm Proximity Probe delivers accurate position and vibration readings suitable for automated feedback control.
Enhanced Cable and Connector Design
The 1-meter standard cable with Miniature ClickLoc connector ensures secure integration; the 330101-00-19-10-02-00 3300 XL 8 mm Proximity Probe can be quickly mounted into automation systems with minimal setup.
Patented TipLoc and CableLoc Technology
The 330101-00-19-10-02-00 3300 XL 8 mm Proximity Probe features TipLoc molding and CableLoc with 330 N pull strength to maintain probe alignment and prevent disconnections in automated machinery.
FluidLoc Optional Protection
Optional FluidLoc on the 330101-00-19-10-02-00 3300 XL 8 mm Proximity Probe prevents oil leakage through the cable, keeping automated systems running uninterrupted.
Broad Environmental Range
The 330101-00-19-10-02-00 3300 XL 8 mm Proximity Probe performs in extreme conditions, from -52°C to +177°C, and handles 16–24 AWG field wiring with 69.9 pF/m capacitance for reliable signal transmission in automation networks.
