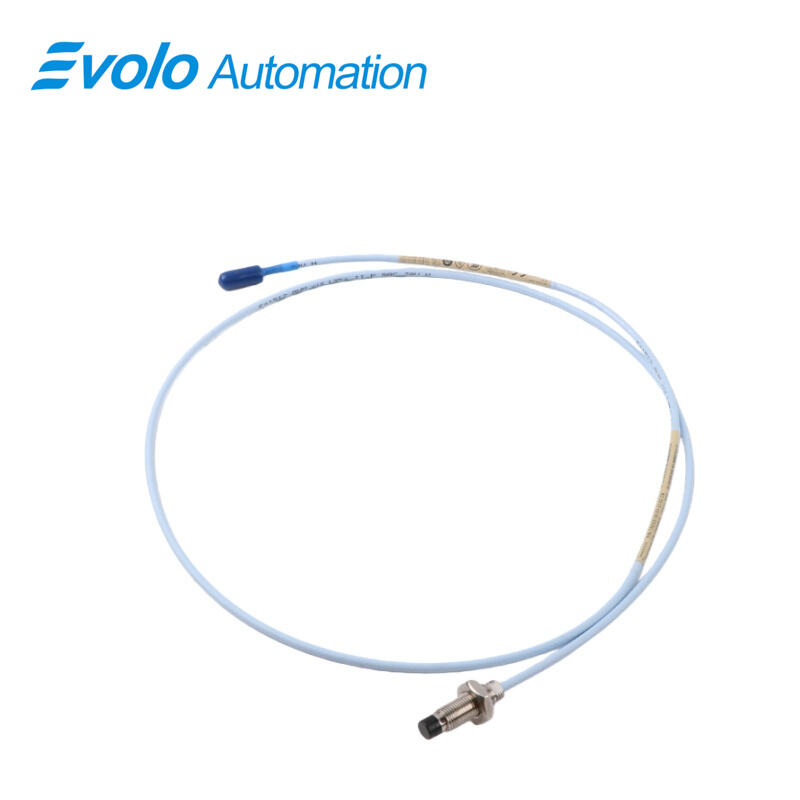

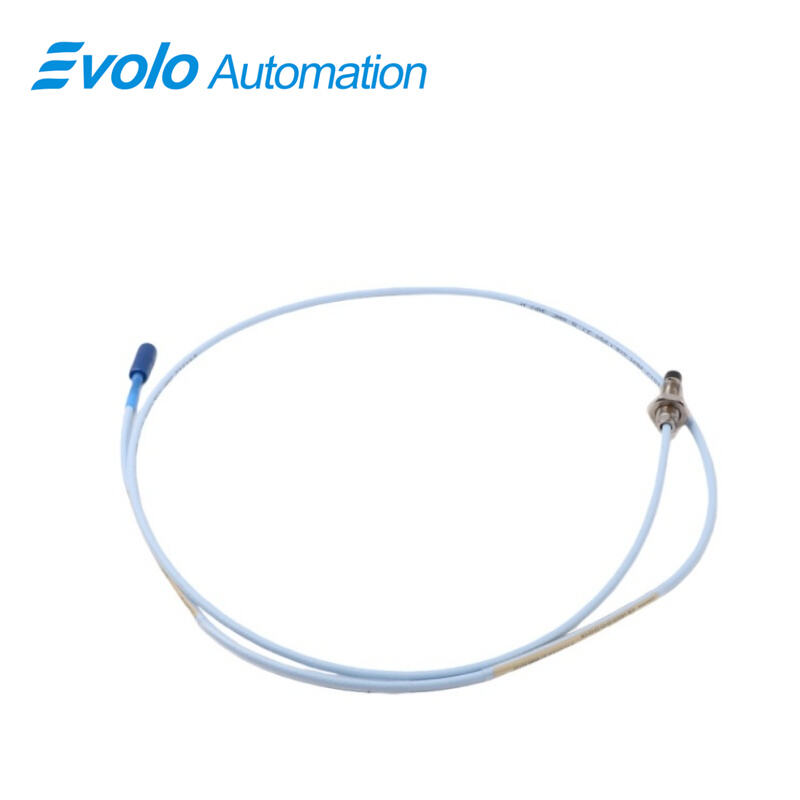

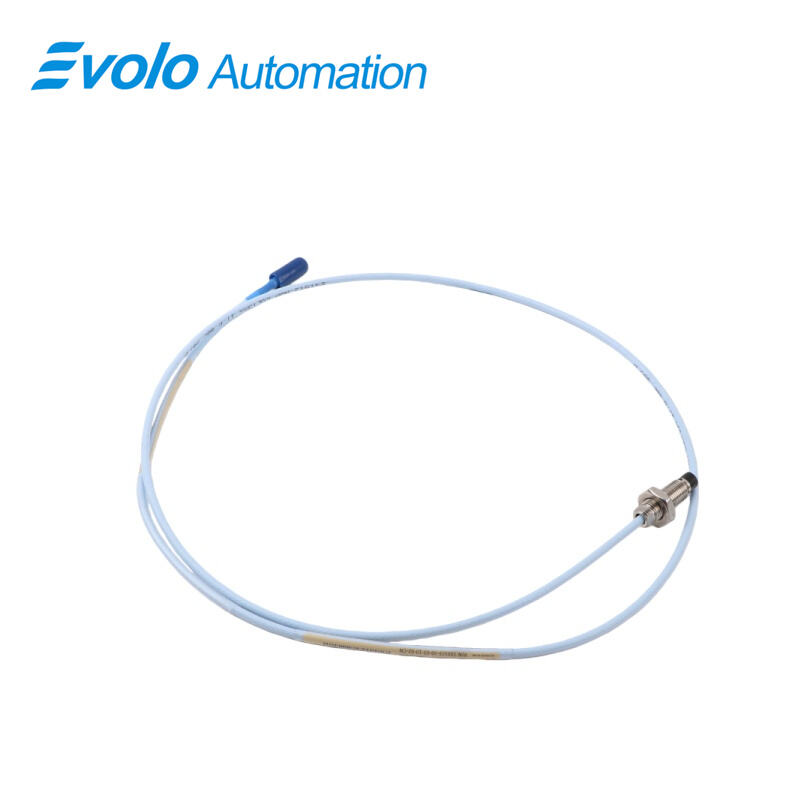

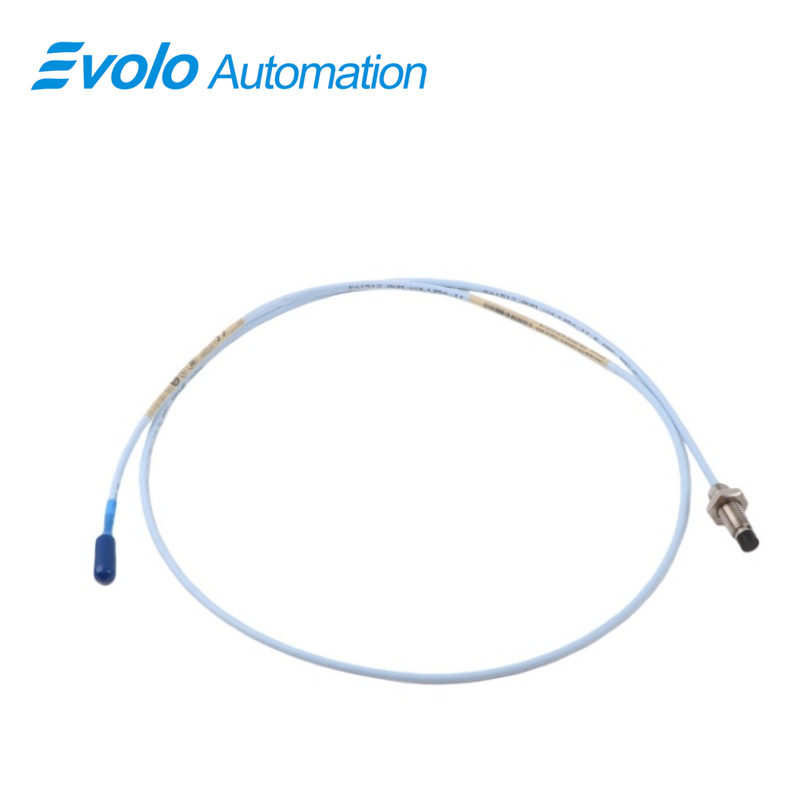

330103-00-03-10-02-CN 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-03-10-02-CN
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-03-10-02-CN 3300 XL 8 mm Proximity Probe is a precision automation sensor designed for real-time vibration and position monitoring in fluid-film bearing machinery. Featuring a compact 30 mm case with M10x1 threaded probe and 1.0-meter (3.3 feet) miniature coaxial ClickLoc connector cable, it provides high-fidelity measurements with a linear range of 2 mm (80 mils). Its robust design includes a patented TipLoc molded probe tip and CableLoc cable attachment, delivering 330 N (75 lbf) pull strength for secure installation. Operating across extreme temperatures from -52°C to +177°C (-62°F to +350°F), the probe maintains stability and reliability in harsh automation environments. With low supply sensitivity (<2 mV per volt change) and a standard output resistance of 50 Ω, the probe ensures accurate, repeatable data transmission. Fully compatible with 3300 XL and legacy 3300 series extension cables and Proximitor sensors, the 3300 XL 8 mm Proximity Probe supports flexible system upgrades, optional FluidLoc cable for fluid sealing, and compliance with CSA, ATEX, and IECEx approvals, making it ideal for critical automated monitoring applications.

Applications

1. Vibration Analysis in Turbomachinery
Used in automated monitoring of compressors, turbines, and pumps, the probe measures high-speed shaft vibration within its 2 mm linear range, detecting axial and radial displacement to prevent equipment failure.

2. Precision Shaft Position Monitoring
In fluid-film bearing systems, the probe provides real-time shaft position data. Its 30 mm compact case allows installation in tight spaces while maintaining high accuracy for automation control loops.

3. Keyphasor Signal Generation
The probe transmits precise shaft speed and phase data for Keyphasor systems, with 50 Ω output resistance and minimal voltage sensitivity ensuring reliable automated speed and synchronization measurements.

4. High-Temperature Industrial Automation
With an operating range from -52°C to +177°C (-62°F to +350°F), the probe supports automated monitoring in extreme environments such as petrochemical, offshore, or heavy manufacturing facilities.

5. System Upgrades and Retrofitting
Backward compatible with 3300 XL extension cables and Proximitor sensors, the probe simplifies automation system upgrades, reducing installation time while maintaining accurate data capture across legacy machinery.

Specifications

Competitive Advantage

1. Industrial-Grade Compliance
Certified under CSA, ATEX, and IECEx, ensuring safe and reliable performance in hazardous automated environments.

2. Enhanced Mechanical Strength
Patented TipLoc and CableLoc designs provide 330 N (75 lbf) pull strength, minimizing risk of probe or cable detachment in automated machinery operations.

3. High-Fidelity Data Transmission
Low supply sensitivity (<2 mV per volt change) and 50 Ω output resistance deliver stable and precise measurements for critical automation control systems.

4. Extreme Temperature Resilience
Reliable operation across -52°C to +177°C, enabling automation monitoring in both freezing and high-temperature industrial processes.

5. Optional Fluid Sealing
The FluidLoc cable option prevents oil or lubricant leakage, protecting both the probe and surrounding automated electronics from contamination and maintaining system integrity.
