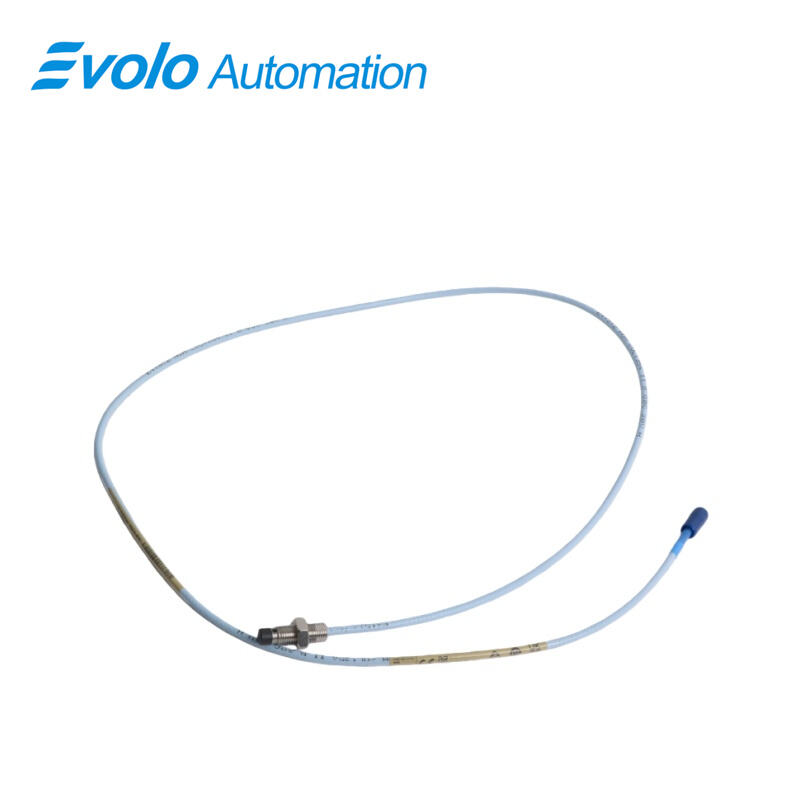

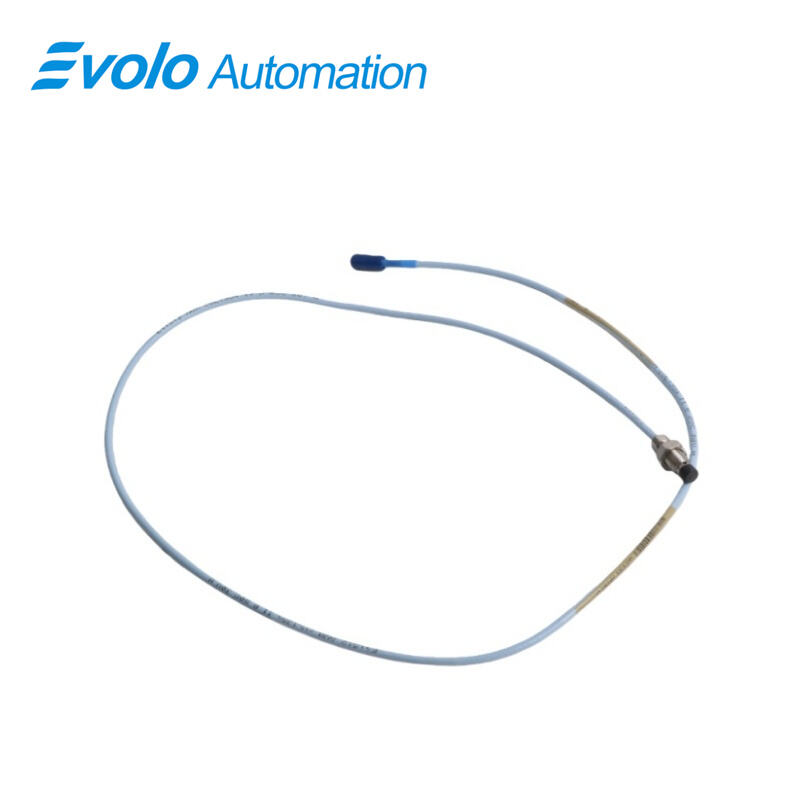

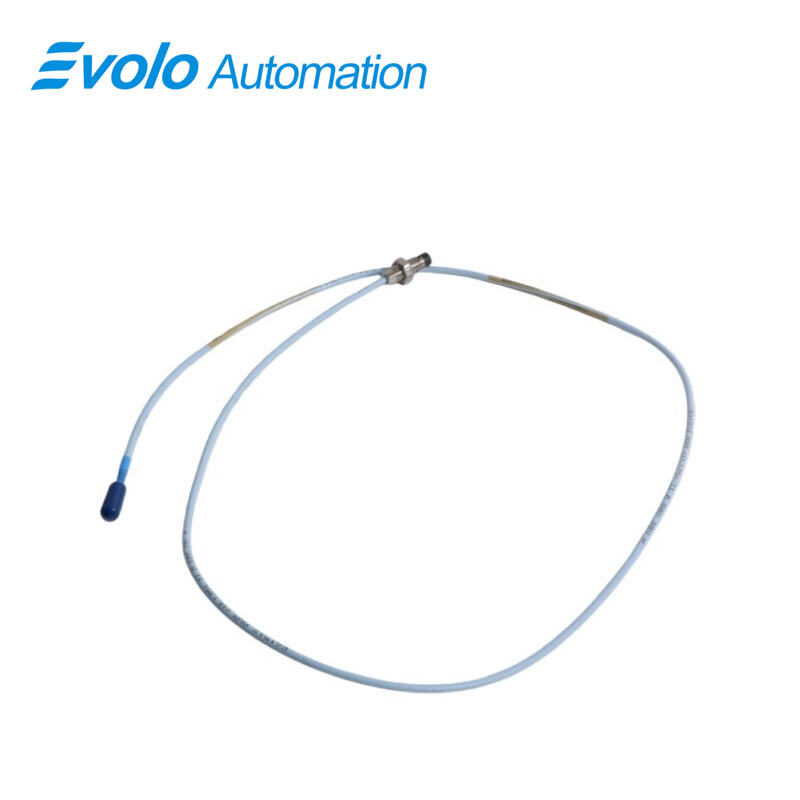

330101-00-10-10-02-CN 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-10-10-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-10-10-02-CN 3300 XL 8 mm Proximity Probe measures shaft vibration and position with high precision in automated machinery. Its 2 mm linear range and 50 Ω output resistance deliver accurate readings for dynamic and static measurements. The probe features a 1-meter total length, 3/8-24 UNF threaded stainless steel case, and miniature coaxial ClickLoc connector for secure installation. Supply sensitivity is less than 2 mV per volt, and extension cable capacitance is 69.9 pF/m, allowing reliable signal transmission through 16–24 AWG field wiring. The 330101-00-10-10-02-CN 3300 XL 8 mm Proximity Probe supports integration with 3300 XL extension cables and Proximitor sensors, generating Keyphasor reference pulses for rotor speed monitoring. Operating from -52°C to +177°C, it functions in high-temperature, oil-exposed, or vibration-intensive environments. The probe incorporates TipLoc and CableLoc designs, providing 330 N pull strength and secure probe-cable attachment. Optional FluidLoc cables prevent fluid leakage, maintaining measurement integrity. The 330101-00-10-10-02-CN 3300 XL 8 mm Proximity Probe is ideal for automated monitoring of pumps, compressors, turbines, and other fluid-film bearing machines, ensuring precise position and vibration control in demanding industrial applications.

Applications

Measure Turbine Rotor Displacement
The 330101-00-10-10-02-CN 3300 XL 8 mm Proximity Probe monitors rotor shaft position with 0–2 mm precision for automated control.

Detect Pump Vibration in Fluid-Film Bearings
Using frequency response up to 10 kHz, the 330101-00-10-10-02-CN 3300 XL 8 mm Proximity Probe captures dynamic vibrations to trigger automated maintenance.

Generate Keyphasor Signals
With precise tip-to-target sensing, the 330101-00-10-10-02-CN 3300 XL 8 mm Proximity Probe provides high-resolution timing pulses for automation systems.

Track Compressor Shaft Clearance
The 330101-00-10-10-02-CN 3300 XL 8 mm Proximity Probe measures clearance changes to optimize automated process adjustments.

Monitor High-Speed Spindle Motion
The 330101-00-10-10-02-CN 3300 XL 8 mm Proximity Probe supports CNC spindle monitoring, integrating directly with industrial control networks.

Specifications

Competitive Advantage

Extended Frequency Response
Supports 0–10 kHz range, allowing the 330101-00-10-10-02-CN 3300 XL 8 mm Proximity Probe to detect high-speed vibrations in real time.

Extreme Temperature Operation
Works between -52°C and +177°C, enabling the 330101-00-10-10-02-CN 3300 XL 8 mm Proximity Probe to perform in furnaces, turbines, and outdoor automation systems.

High Pull Strength and Cable Protection
Patented TipLoc and CableLoc designs provide 330 N pull force; optional FluidLoc prevents fluid ingress, keeping measurements reliable.

Signal Accuracy over Long Wiring
With 69.9 pF/m cable capacitance and low supply sensitivity (<2 mV/V), the 330101-00-10-10-02-CN 3300 XL 8 mm Proximity Probe maintains data integrity across long field wiring.
