Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-10-10-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
1.0 in |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
1.4x1.2x116cm |
|
Weight: |
0.06kg |
Description

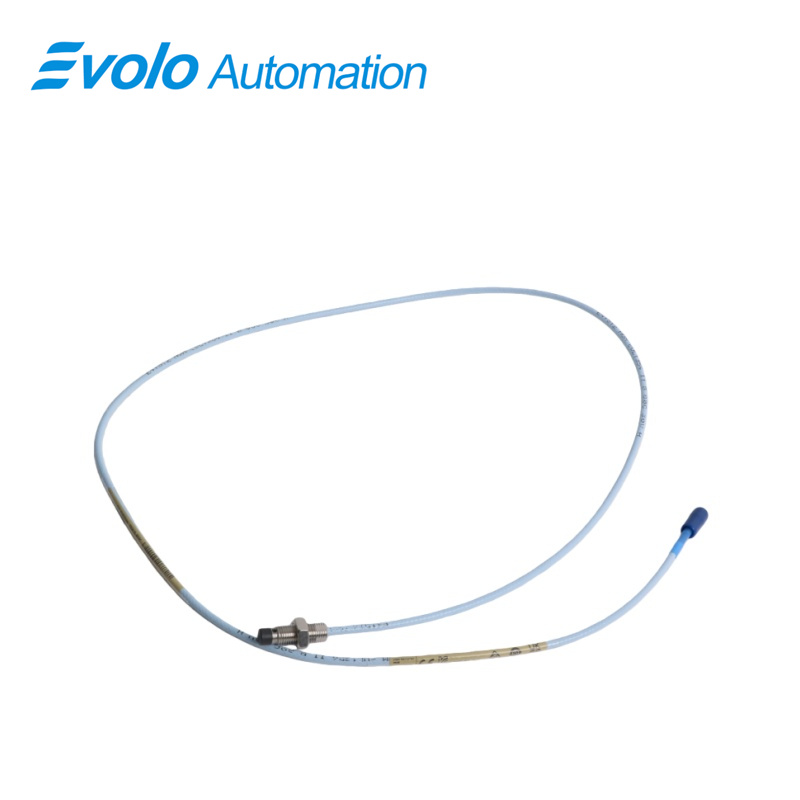

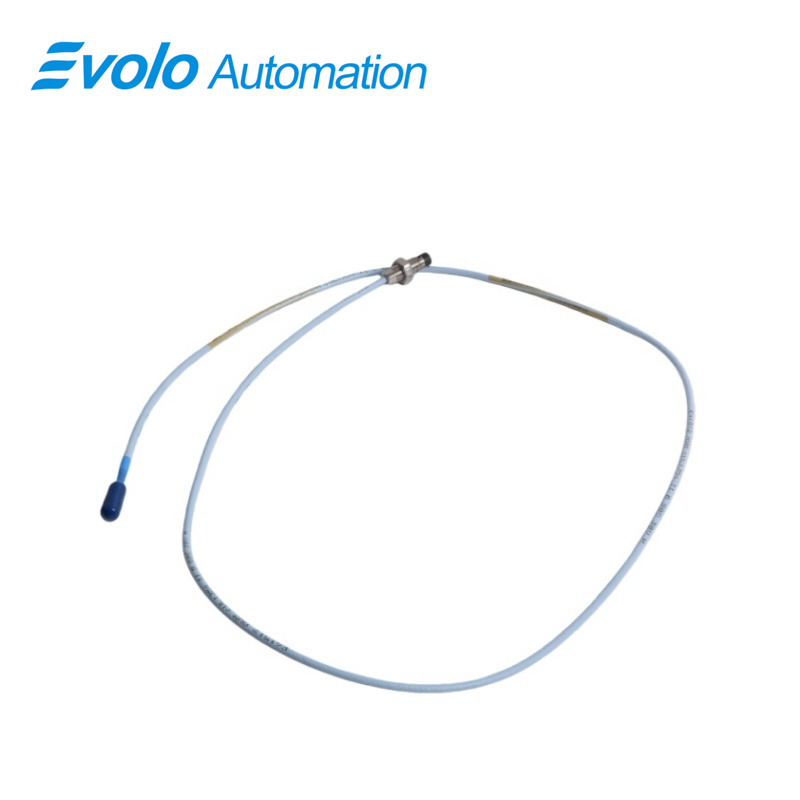

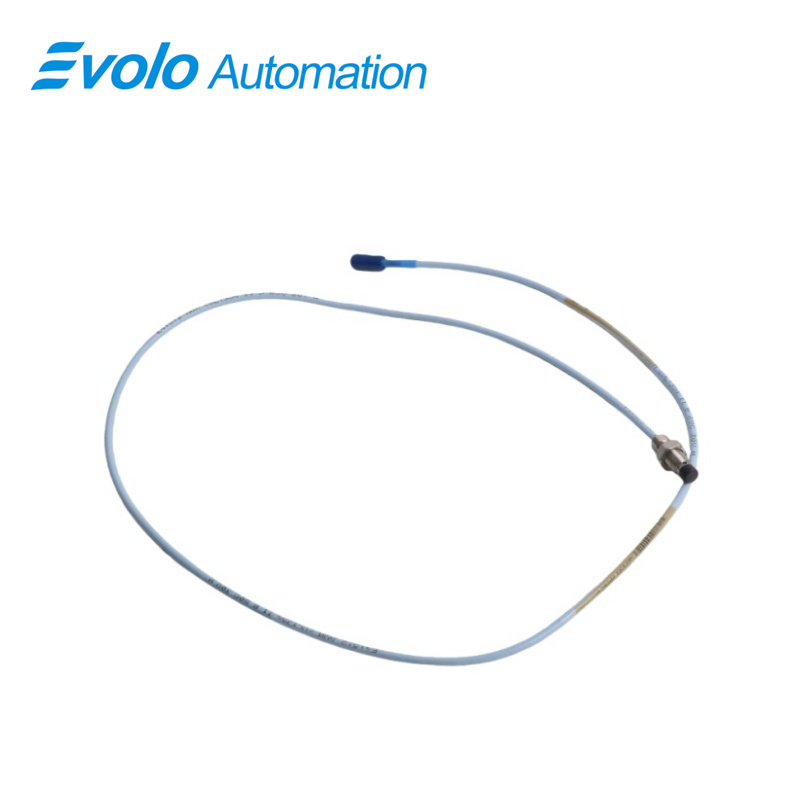

The 330101-00-10-10-02-00 3300 XL 8 mm Proximity Probe delivers precise position and vibration measurements in automated machinery. With a 2 mm linear range and a 50 Ω output resistance, the 330101-00-10-10-02-00 3300 XL 8 mm Proximity Probe converts small shaft movements into accurate voltage signals. Its 1-meter total length and 3/8-24 UNF threaded stainless steel case allow secure installation in fluid-film bearing machines, turbines, and pumps. The probe operates from -52°C to +177°C and supports 16–24 AWG field wiring. Equipped with a miniature coaxial ClickLoc connector and standard cable, the 330101-00-10-10-02-00 3300 XL 8 mm Proximity Probe integrates seamlessly with 3300 XL extension cables and Proximitor sensors. Extension cable capacitance of 69.9 pF/m ensures signal integrity over long runs. Designed to comply with API 670 mechanical and linear range standards, the 330101-00-10-10-02-00 3300 XL 8 mm Proximity Probe enables real-time monitoring, Keyphasor reference generation, and speed measurements in automated systems. Optional FluidLoc cables prevent oil leakage, enhancing field performance.
Applications
Monitor Shaft Vibration
The 330101-00-10-10-02-00 3300 XL 8 mm Proximity Probe measures vibration on rotating shafts in fluid-film bearings. Its 2 mm linear range and 50 Ω output resistance allow precise detection of small displacement changes for automated machinery control.
Measure Shaft Position
Use the 330101-00-10-10-02-00 3300 XL 8 mm Proximity Probe to monitor shaft clearance and alignment in pumps, compressors, and turbines. Its 1-meter total length and 3/8-24 UNF threaded stainless steel case allow secure mounting in tight spaces.
Keyphasor Signal Generation
The 330101-00-10-10-02-00 3300 XL 8 mm Proximity Probe can generate Keyphasor reference pulses for real-time speed measurement and rotor synchronization in automated systems.
Harsh Environment Monitoring
The 330101-00-10-10-02-00 3300 XL 8 mm Proximity Probe operates between -52°C and +177°C, allowing it to function in high-temperature or oil-exposed industrial environments.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
High-Precision Measurement
The 330101-00-10-10-02-00 3300 XL 8 mm Proximity Probe provides accurate 2 mm linear range measurement, converting small shaft movements into voltage signals with minimal supply sensitivity (<2 mV per volt).
Rugged Construction
Its stainless steel case and PEEK probe tip allow the 330101-00-10-10-02-00 3300 XL 8 mm Proximity Probe to endure mechanical stress, vibration, and oil contact in industrial automation setups.
Easy Installation
The 330101-00-10-10-02-00 3300 XL 8 mm Proximity Probe features a 3/8-24 UNF threaded case and miniature coaxial ClickLoc connector, enabling fast installation with standard 3300 XL extension cables.
Long Cable Support
Extension cable capacitance of 69.9 pF/m in the 330101-00-10-10-02-00 3300 XL 8 mm Proximity Probe allows reliable signal transmission over distances up to 1 meter or more without signal loss.
