Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330100-50-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Product Name	3300 XL Proximitor Sensor
Total Length Option	50 = 5.0 metres (16.4 feet)
Agency Approval Option	00 = Not required
Measurement Capabilities	Capable of Static (Position) and Dynamic (Vibration) measurements
Static Measurement	Measures absolute target position; ideal for rotor position or alignment monitoring
Dynamic Measurement	Measures vibration to monitor machinery health and detect faults such as imbalance, misalignment, or wear
Keyphasor Application	Provides reference pulse for phase and speed measurement; tracks rotational velocity and synchronizes vibration data
Speed Measurement	Enables accurate rotational speed monitoring for operational efficiency and safety
Dimension:	8x6x5cm
Weight:	0.28kg

Description

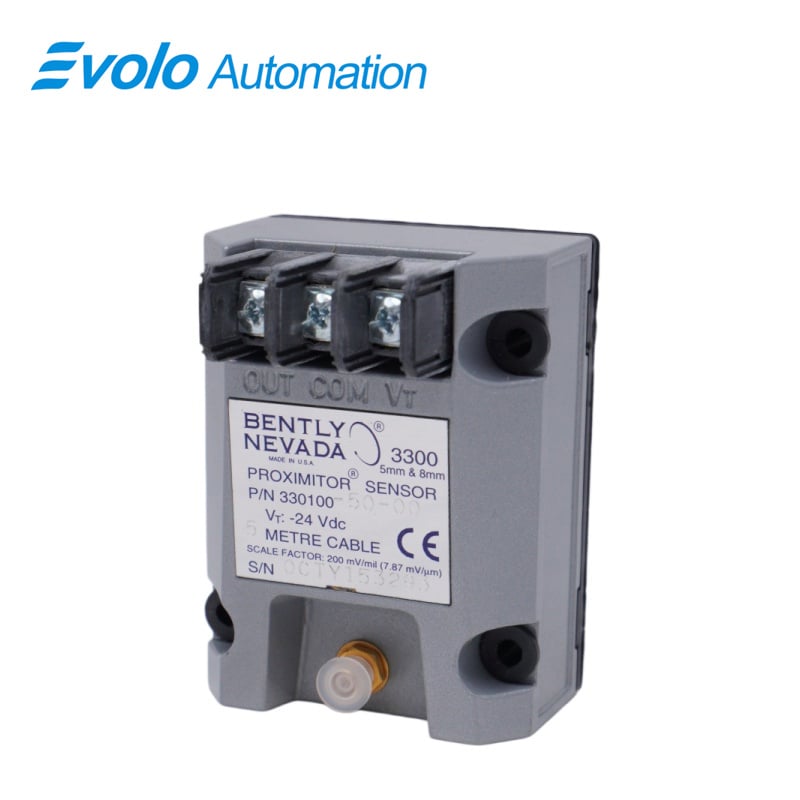

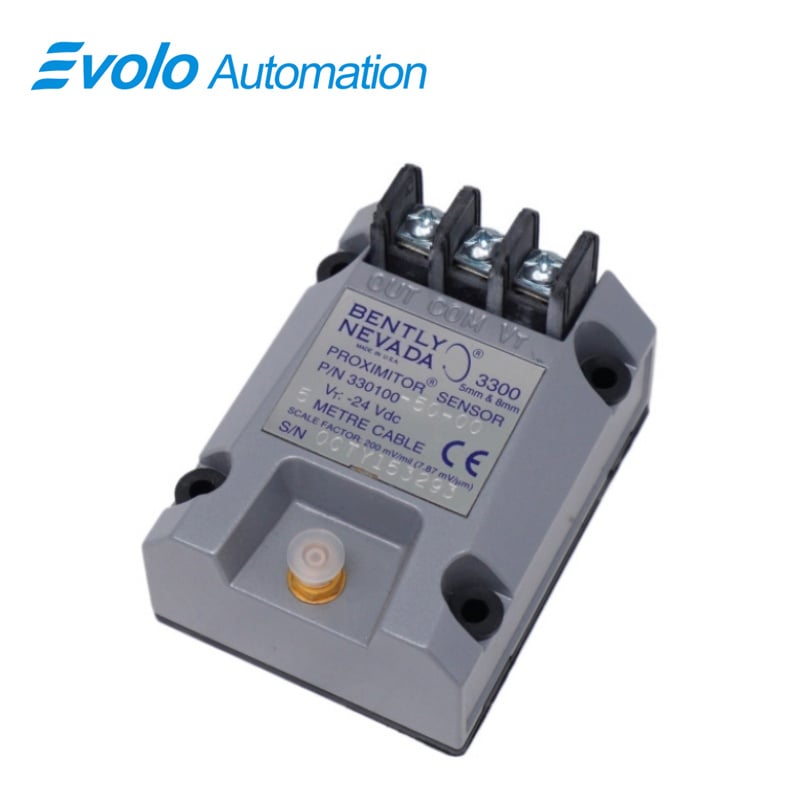

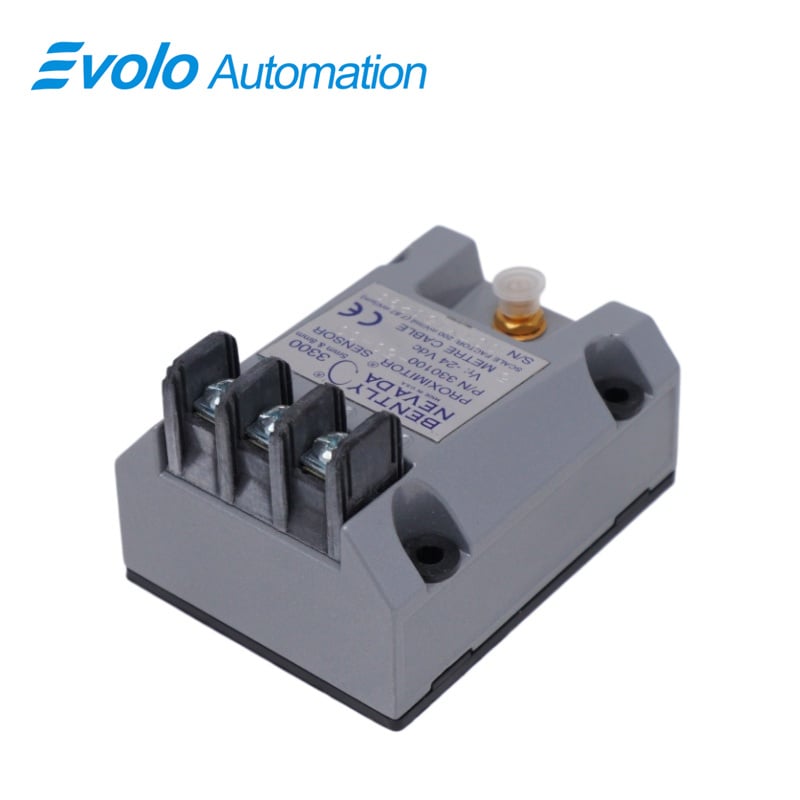

330100-50-00 Proximitor Sensor delivers precise rotor position and vibration measurements for automated monitoring systems. With a 5.0 m (16.4 ft) total length, the 330100-50-00 Proximitor Sensor captures both static position and dynamic vibration data, enabling rotor alignment, Keyphasor pulse generation, and rotational speed monitoring. The sensor outputs a stable voltage signal with ±0.1% linearity over temperatures from -40°C to +120°C, supporting automation of machinery diagnostics. Installation is flexible, supporting high-density DIN-rail or 4-hole panel mounts, while maintaining electrical isolation to minimize noise and prevent ground loops. Retrofit-friendly, the 330100-50-00 Proximitor Sensor matches previous Proximitor mounting footprints, allowing direct replacement without new hardware. This sensor integrates seamlessly with 3300 series monitoring systems, providing accurate data for speed, vibration, and rotor position measurement in industrial automation.

Applications

Monitor Rotor Alignment
The 330100-50-00 Proximitor Sensor measures absolute rotor position using static signals, allowing operators to track rotor alignment within ±0.1% linearity.

Vibration Monitoring for Fault Detection
Dynamic measurement captures rotor vibration up to 10 kHz, helping detect machinery issues such as imbalance, misalignment, or wear in real-time.

Keyphasor Pulse Generation
Provides a reference pulse for phase and speed monitoring, enabling synchronization of vibration data for automated control systems.

Rotational Speed Measurement
Generates accurate speed outputs from 1 rpm to 99,999 rpm, allowing integration with 3300 series Tachometers and control systems for operational efficiency.

Retrofit and High-Density Installation
Supports both DIN-rail and 4-hole panel mount, permitting direct replacement of older sensors without modifying existing control hardware.

Specifications

Signal Output	Accurate and stable over a wide temperature range; reliable even in extreme high or low temperatures

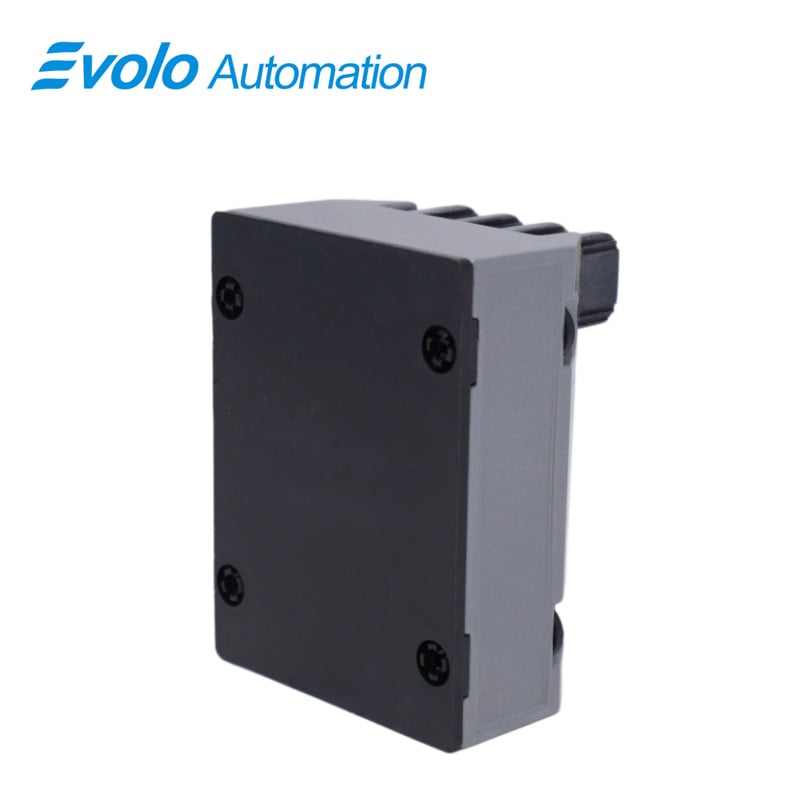

Installation	Supports high-density DIN-rail installation for compact control panels; also compatible with traditional 4-hole panel mount footprint
Retrofit-Friendly	Identical mounting footprint to older Proximitor Sensor designs; simplifies replacement without new hardware
Electrical Isolation	Mounting base provides electrical isolation; reduces electrical noise and prevents ground loop issues
Ideal Applications	Keyphasor, speed measurement, rotor alignment, vibration monitoring
Environmental Adaptability	Stable and precise performance across broad temperature range; suitable for harsh industrial environments

Competitive Advantage

High Measurement Precision
The 330100-50-00 Proximitor Sensor delivers ±0.1% linearity over its full 5.0 m probe length, ensuring accurate static rotor position readings and dynamic vibration signals up to 10 kHz. This precision allows automated systems to detect rotor misalignment within 0.01 mm and vibration deviations as small as 0.02 mm.

Wide Environmental Range
The 330100-50-00 Proximitor Sensor operates effectively between -40°C and +120°C, maintaining accurate output over extreme temperatures. This capability supports continuous industrial automation operations in environments ranging from sub-zero outdoor facilities to high-temperature turbine housings.

Electrical Isolation for Clean Signals
With built-in electrical isolation, the 330100-50-00 Proximitor Sensor minimizes electrical noise and prevents ground loop issues. Signal output remains within ±0.5% accuracy, providing reliable inputs for 3300 series monitors and reducing false alarms in automated control systems.

Seamless 3300 Series Integration
The 330100-50-00 Proximitor Sensor is fully compatible with all 3300 series monitors and Tachometers, supporting voltage outputs of 0–12 Vdc and current outputs of +4 to +20 mA across 0–600 Ω load resistance. This ensures plug-and-play installation without calibration adjustments.
