3300/46 3300/46-46-04-02-01 Ramp Differential Expansion Monitor , China 3300/46 3300/46-46-04-02-01 Ramp Differential Expansion Monitor Manufacturers, Suppliers, Factory

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	3300/46 3300/46-46-04-02-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Full-scale Range Option	0-50 mm
Transducer Input Option	35 mm
Alarm Relay Option	Hermetically-sealed
Agency Approval Option	CSA/NRTL/C
Product Name	Dual Proximity Probe Monitor
Signal Inputs	Accepts two proximity probe transducer signals
Input Impedance	10 kΩ
Signal Scale Factor	Jumper-selectable: 100 mV/mil (4 V/mm), 20 mV/mil (0.787 V/mm), or 10 mV/mil (3.92 V/mm)
Power Consumption	Nominal 1.5 W
Signal Conditioning Accuracy	±0.33% typical, ±1% maximum at +25°C (+77°F)
Output Impedance (Voltage Outputs)	100 Ω; minimum load resistance 10 kΩ
Voltage Compliance (Current Outputs)	0 to +12 Vdc; load resistance 0–600 Ω with +4 to +20 mA option
Buffered Transducer Outputs	One coaxial connector per transducer (front) and one terminal per channel (rear); short-circuit protected
Buffered Output Impedance	100 Ω
Dimension:	5.1x32.4x20.4cm
Weight:	1kg

Description

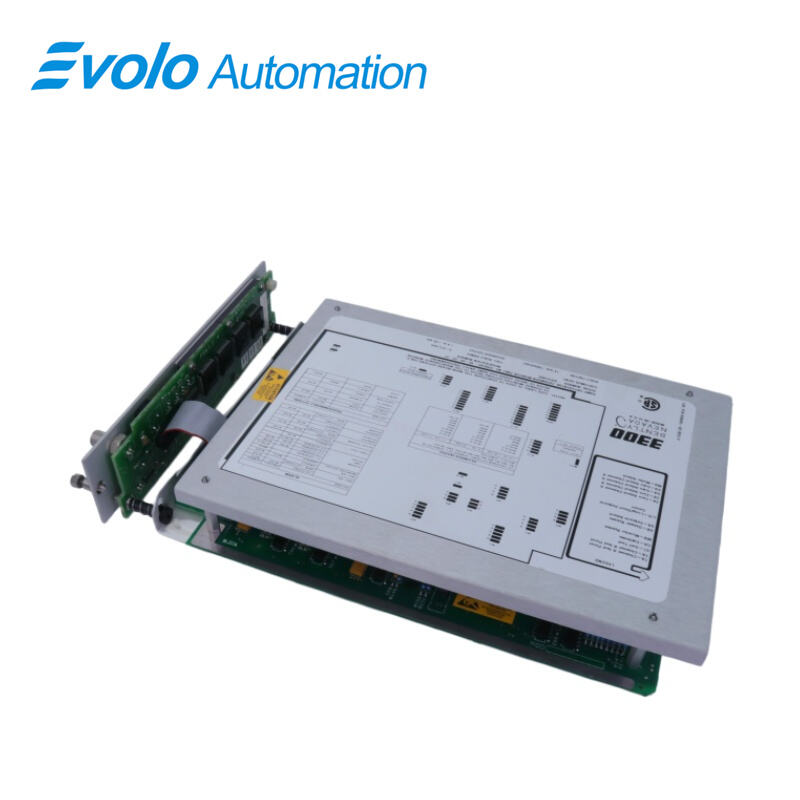

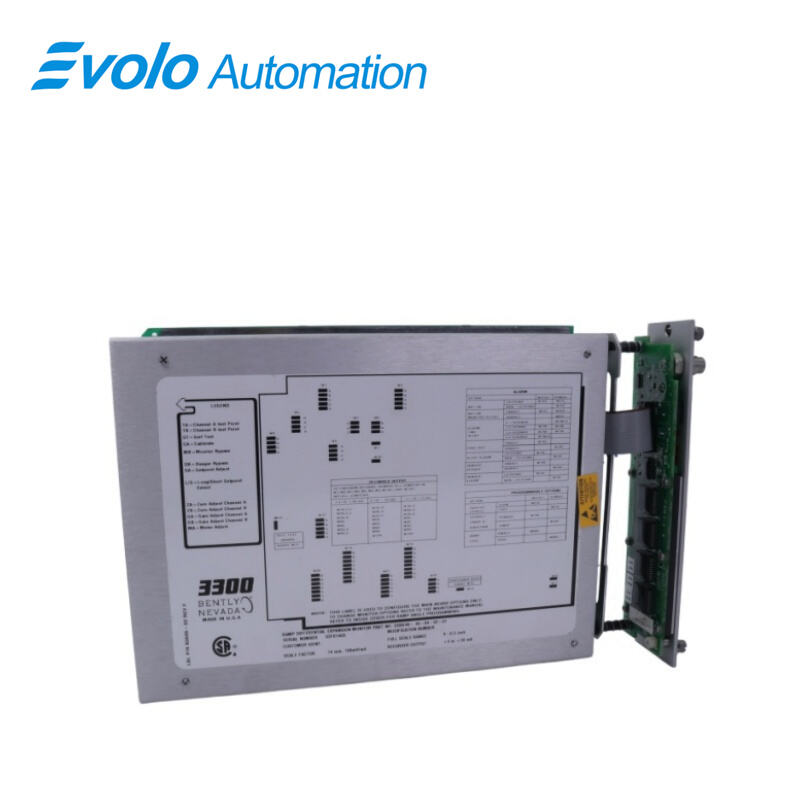

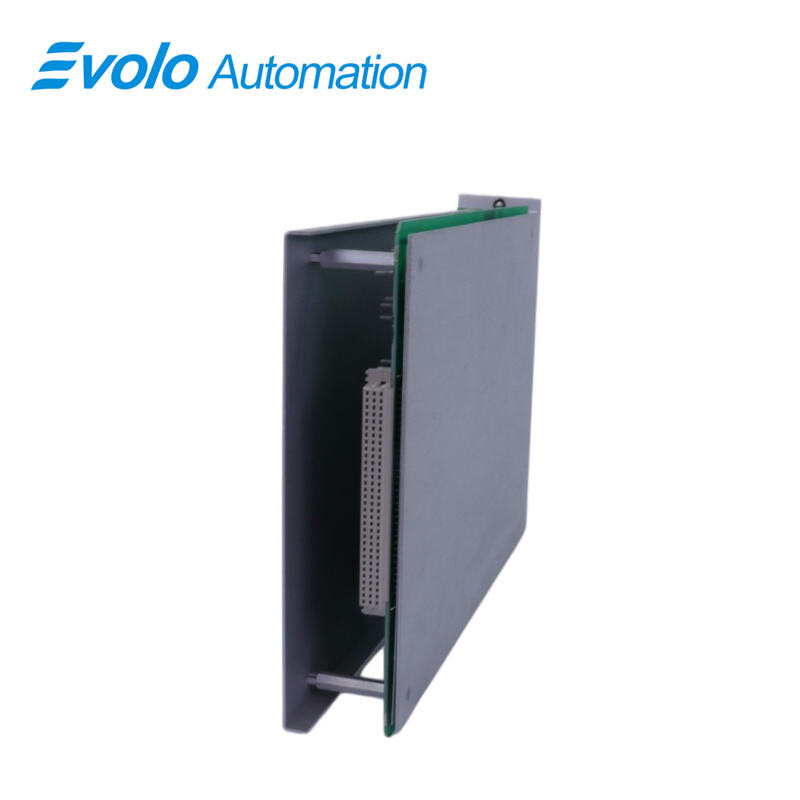

The 3300/46 3300/46-46-04-02-01 Ramp Differential Expansion Monitor measures differential expansion on large machinery using two proximity probes mounted on rotor ramp surfaces, providing one channel of measurement with increased range up to 50 mm. The 3300/46 Ramp Differential Expansion Monitor 3300/46-46-04-02-01 accepts two transducer signals with 10 kΩ input impedance and jumper-selectable scale factors of 100 mV/mil, 20 mV/mil, or 10 mV/mil. Signal conditioning accuracy is ±0.33% typical and ±1% maximum at 25°C.

The 3300/46 3300/46-46-04-02-01 Ramp Differential Expansion Monitor outputs voltage (0–+12 Vdc) and current (+4 to +20 mA) signals with 100 Ω output impedance and provides front coaxial and rear terminal buffered outputs. A non-multiplexing 83 mm vertical bargraph LCD displays magnitude and direction of differential expansion with ±1.6% resolution. Four alarm setpoints (two over, two under) and LED indicators for OK, Alert, Danger, and Bypass allow automated monitoring and alarm signaling. Operating temperature is 0°C to +65°C, storage -40°C to +85°C, and power consumption is 1.5 W. The 3300/46 3300/46-46-04-02-01 Ramp Differential Expansion Monitor is ideal for automated differential expansion monitoring in turbines, generators, and other large industrial rotating machinery.

Applications

Measure differential expansion on turbine rotors
The 3300/46 Ramp Differential Expansion Monitor 3300/46-46-04-02-01 uses two proximity probes on rotor ramps to detect expansion up to 50 mm, providing precise monitoring for large turbines.

Trigger automated over/under expansion alarms
With four digitally adjustable alarm setpoints, the 3300/46 Ramp Differential Expansion Monitor 3300/46-46-04-02-01 signals automated Alert and Danger conditions to control systems for rotor protection.

Provide real-time expansion data to PLCs or DCS systems
The 3300/46 Ramp Differential Expansion Monitor 3300/46-46-04-02-01 outputs 0–+12 Vdc or +4 to +20 mA signals, allowing integration into automated control and monitoring networks.

Specifications

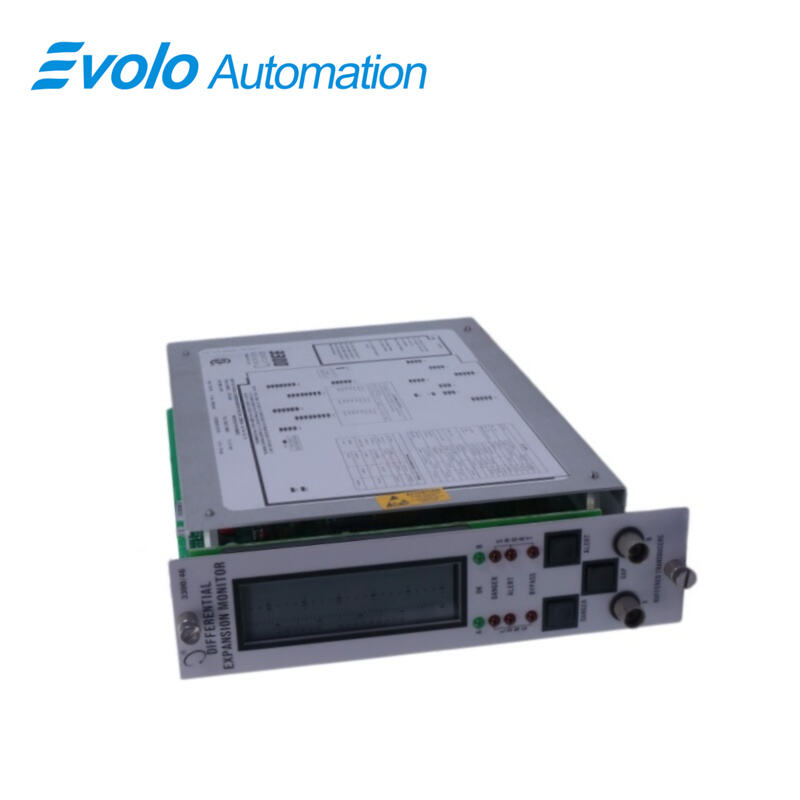

Display Type	Nonmultiplexing vertical bargraph LCD; 63 individual segments per channel; center scale indicates Probe Gap; shows error codes and ADJUST mode
Display Resolution	Within ±1.6% of monitor full-scale
Display Size	83 mm (3.2 in), vertical dimension
LED Indicators OK	One constant green LED per channel; OFF = NOT OK or channel bypassed; flashing 1 Hz = transducer was NOT OK but now OK; flashing 5 Hz = error codes stored
LED Indicators Alarm	Two red LEDs per channel for Alert and Danger; flashing = First Out
LED Indicators Bypass	Two red LEDs indicate Danger Bypass and Rack/Channel Bypass per channel
Operating Temperature	0°C to +65°C (+32°F to +150°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Relative Humidity	Up to 95%, non-condensing
Compliance	CE Mark: EMC Directive, Low Voltage Directive

Competitive Advantage

Extended monitoring range with small transducers
The 3300/46 Ramp Differential Expansion Monitor 3300/46-46-04-02-01 achieves up to 50 mm measurement using 35 mm proximity probes, reducing the need for large transducers while maintaining accuracy.

High-resolution LCD with direction indication
The 3300/46 Ramp Differential Expansion Monitor 3300/46-46-04-02-01 shows both magnitude and direction of differential expansion on an 83 mm vertical bargraph LCD with ±1.6% resolution.

Buffered outputs for safe integration
Front coaxial and rear terminal buffered outputs with 100 Ω impedance on the 3300/46 Ramp Differential Expansion Monitor 3300/46-46-04-02-01 provide short-circuit protection and easy connection to control systems.

Low-power operation for rack installations
Consuming only 1.5 W, the 3300/46 Ramp Differential Expansion Monitor 3300/46-46-04-02-01 allows multiple monitors to operate efficiently in automation racks without exceeding power limits.
