Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
31000-27-05-15-040-03-02 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Probe with Connector: |
3300 XL NSv probe, multiple approvals |
|
Probe Cable Length: |
0.5 m (20 in) |
|
Standoff Adapter Length (Option C Dimension): |
Minimum length 1.5 in (38 mm) |
|
Probe Penetration Option (Option D Dimension): |
4.0 in |
|
Fittings: |
Two plugs, one 3/4-14 NPT fitting One 3/4-14 to 1/2-14 NPT SST reducer One cable seal grip with grommets for the following cable sizes: • 1/8 to 3/16 inches • 1/4 to 5/16 inches • 5/16 to 3/8 inches |
|
Mounting Thread Option: |
3/4-14 NPT (Required if ordering Standoff Adapter Option). |
|
Dimension: |
37x9x8cm |
|
Weight: |
1.5kg |
Description

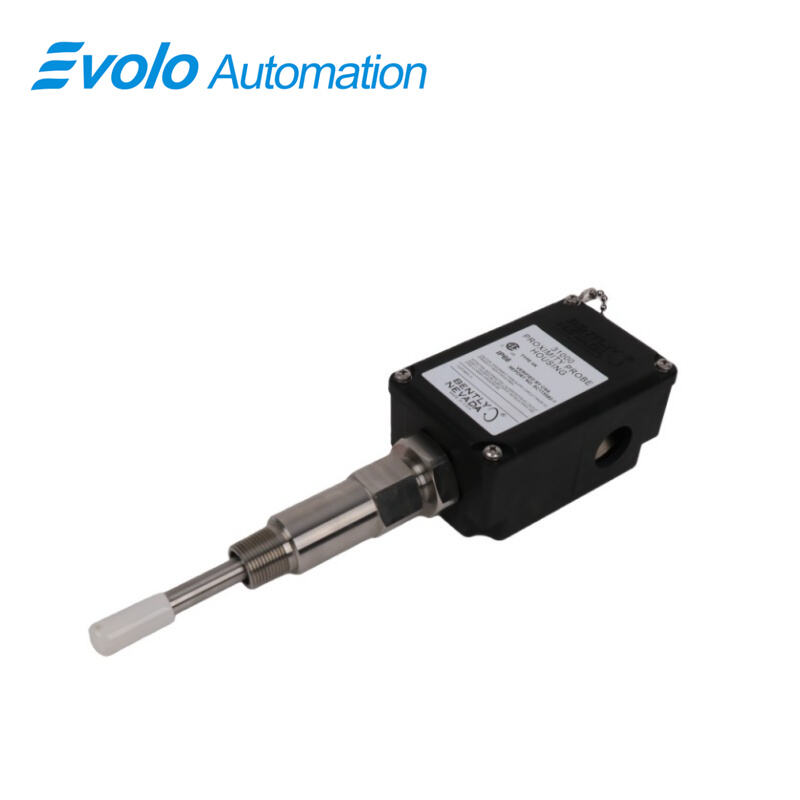

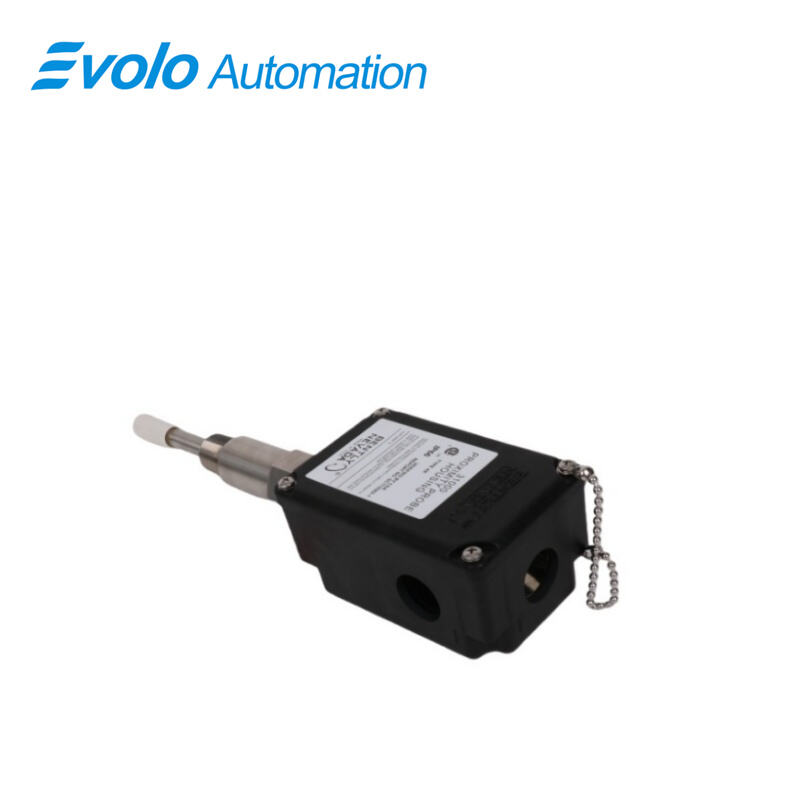

The 31000-27-05-15-040-03-02 Proximity Probe Housing Assembly is a robust solution designed for automated industrial monitoring systems requiring precise radial vibration or Keyphasor measurements. Specifically engineered for 3300 XL NSv Proximity Probes, this assembly allows secure mounting through machine casings while providing external access to the probe and extension cable for effortless gap adjustments or probe replacement without disassembling machinery. Constructed from glass-reinforced PPS thermoplastic with conductive fibers, combined with AISI 304/303 stainless steel sleeves and fasteners, the housing offers exceptional chemical and corrosion resistance. Certified to CSA Type 4X and tested by BASEEFA for impact strength under extreme temperatures (-39°C to 115°C), it ensures reliable operation in harsh industrial environments. The assembly includes multiple conduit fittings, cable seal grips for 1/8 to 3/8-inch cables, and a standoff adapter option with 3/4-14 NPT mounting, meeting API 670 standards for externally mounted proximity probe housings in automated machinery.
Applications
Radial Vibration Monitoring in Compressors
Enables installation of 3300 XL NSv probes for precise radial vibration measurements on centrifugal or refrigeration compressors, supporting predictive maintenance automation.
Keyphasor Signal Acquisition
Provides reliable Keyphasor and phase reference measurements for rotor synchronization in high-speed rotating machinery, ensuring accurate automated control.
Intrinsically Safe Hazardous Area Operation
When paired with approved transducer systems and I.S. barriers, the housing assembly can be deployed in explosive or hazardous zones, enhancing safety in automated process environments.
Gap Adjustment and Probe Replacement Without Disassembly
Facilitates maintenance and calibration without stopping production, allowing automation systems to maintain continuous monitoring with minimal downtime.
Mounting in Constrained Industrial Spaces
Compact standoff adapter and customizable fittings enable installation in tight, side-view, or rear-access locations, supporting automated vibration monitoring in compact machinery layouts.
Specifications
|
Protection Ratings : |
Type 4X rating certified by Canadian Standards Association (CSA) |
|
Housing Material: |
Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers |
|
Sleeve Material and Retaining Chain: |
AISI 304 stainless steel |
|
Outer Sleeve and Exterior Screws: |
AISI 303 stainless steel |
|
O-Ring Material : |
Neoprene |
|
Recommended Torque(retaining nut) : |
29.4 N·m (260 in·lb) |
|
Housing Strength (typical): |
Outer sleeve was mounted on a test stand with its axis parallel to horizontal and the housing mounted on the outer sleeve through an end hole |
|
Housing Impact Strength: |
Certified by BASEEFA to withstand two separate 4 Joule (3.0 ft·lb) impacts at -39°C (-38°F) and at 115°C (239°F) |
Competitive Advantage
High-Strength Thermoplastic Construction
Glass-reinforced PPS housing ensures chemical, thermal, and corrosion resistance, extending probe lifecycle in harsh automation and industrial process environments.
Robust Stainless Steel Components
AISI 304/303 sleeves, retaining chains, and screws provide superior mechanical durability and secure mounting under high vibration conditions.
Certified Protection and Impact Resistance
CSA Type 4X certification and BASEEFA-tested impact resistance (-39°C to 115°C) guarantee reliable operation in extreme temperature and hazardous conditions.
Flexible Cable and Conduit Integration
Includes multiple conduit fittings and cable seal grips compatible with 1/8 to 3/8-inch cables, allowing seamless integration with automation wiring and monitoring networks.
API 670 Compliance for Industrial Automation
Meets industry standards for externally mounted probe housings, ensuring compatibility with automated monitoring systems and predictive maintenance protocols.
