Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	24701-28-05-20-040-03-02
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Probe with Connector:	3300 XL 8mm, with approval option
Probe Cable Length:	20 in (0.5 m)
Standoff Adapter (Option C Dimension):	2.0 in
Probe Penetration (Option D Dimension) :	4.0 in
Fittings :	One 3/4-14 NPT plug One 3/4-14 to 1/2-14 NPT reducer One cable seal grip with grommets for the following cable sizes: • 1/8 to 3/16 inches • 1/4 to 5/16 inches • 5/16 to 3/8 inches
Mounting Thread:	3/4-14 NPT (see note [1] below)
Dimension:	38x7.8x7.8cm
Weight:	2.22kg

Description

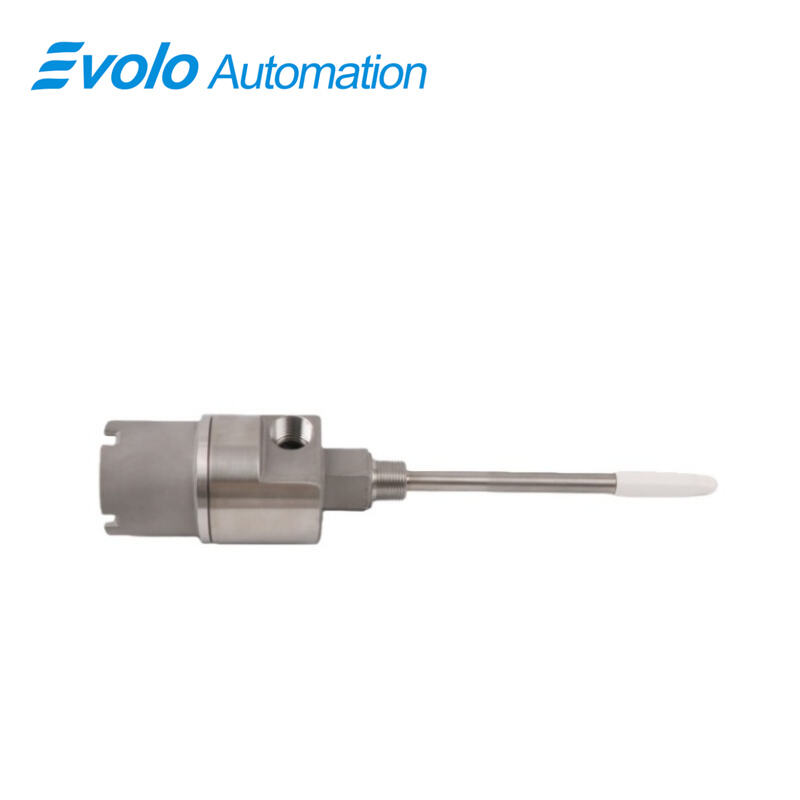

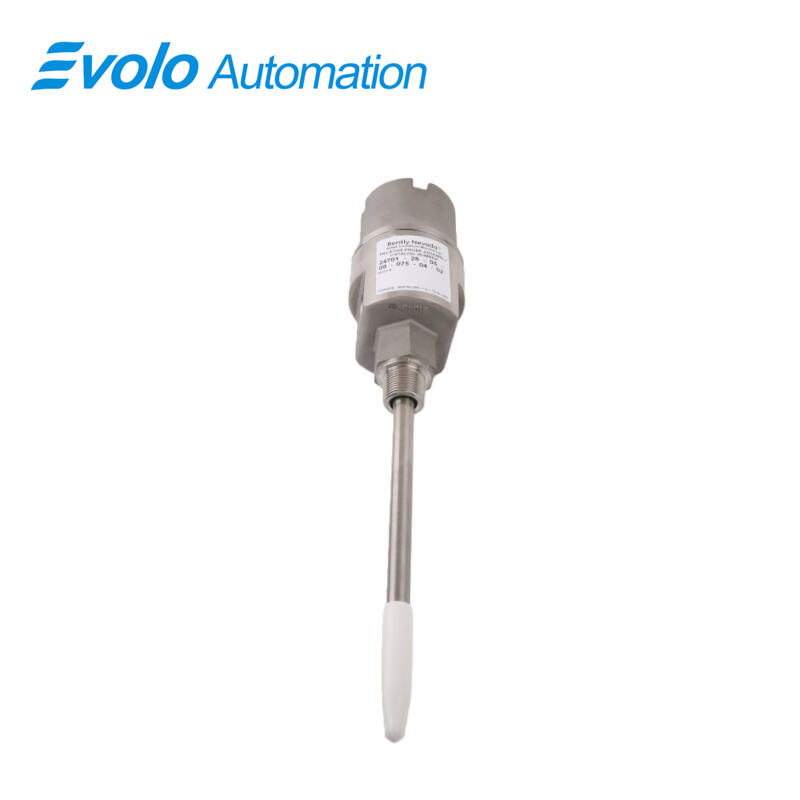

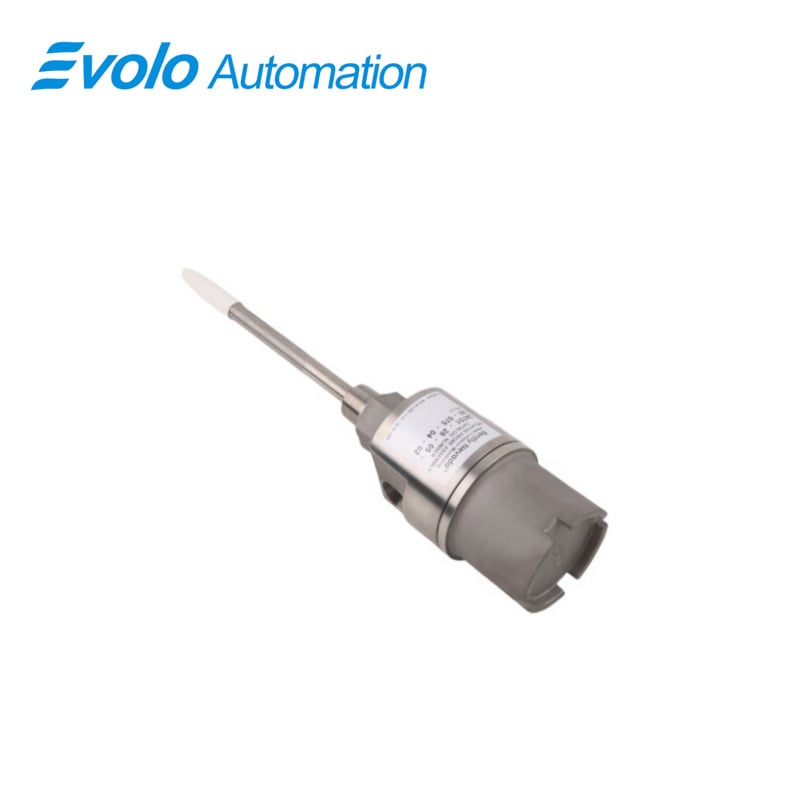

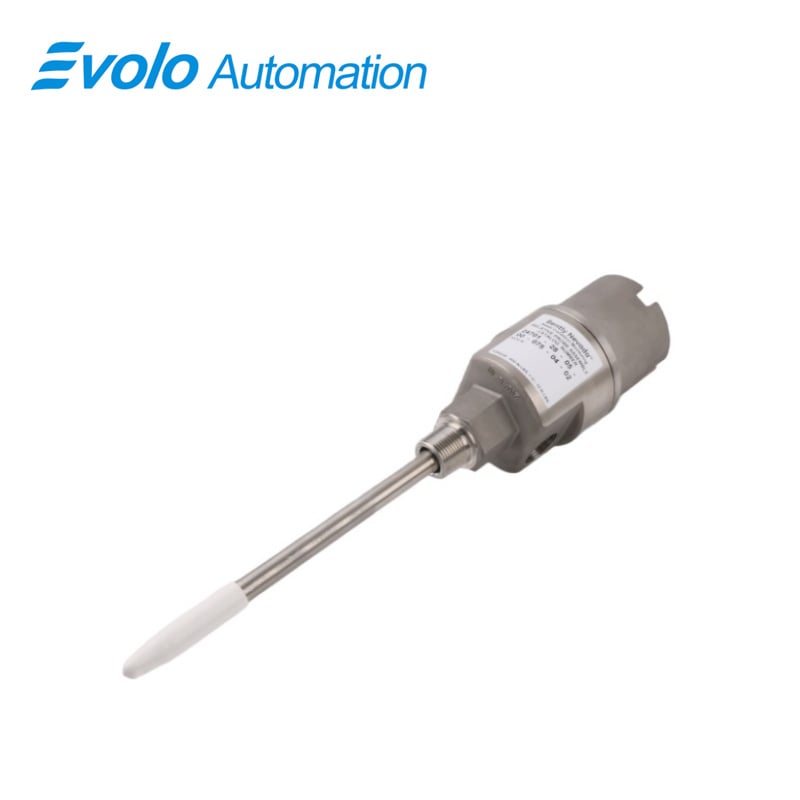

The 24701-28-05-20-040-03-02 Proximity Probe Housing Assemblies provide secure mounting for 3300 XL 8mm probes with approval option in automated monitoring systems. With a 0.5 m (20 in) probe cable, 2.0 in standoff adapter, and 4.0 in probe penetration, 24701-28-05-20-040-03-02 enables precise radial vibration measurement in compact shaft setups. Its aluminum body with 304 stainless steel sleeve, 3/4-14 NPT mounting thread, and conduit-ready ports allow fast integration into industrial automation systems. CSA-certified and explosion-proof, 24701-28-05-20-040-03-02 supports optional sleeve extensions for shafts over 12 in, reducing vibration displacement by up to 70% and ensuring accurate automated monitoring alignment.

Applications

Mount Probes in Confined Shafts

The 24701-28-05-20-040-03-02 housing allows 3300 XL 8mm probes to be installed in shafts with limited clearance, using a 2.0 in standoff adapter and 4.0 in penetration sleeve.

Connect to Industrial Automation Systems

3/4-14 NPT mounting thread and conduit-ready ports enable 24701-28-05-20-040-03-02 to integrate into existing automated monitoring and control systems quickly.

Support Long Shafts with Sleeve Extensions

Optional sleeve supports for 24701-28-05-20-040-03-02 reduce vibration displacement by up to 70% for shafts exceeding 12 in, keeping measurement alignment precise.

Hazardous Area Installation

CSA-certified and explosion-proof, 24701-28-05-20-040-03-02 can be deployed in automated monitoring systems located in hazardous areas safely.

Specifications

Material:	Aluminum body with 304 stainless steel sleeve
Mass (Weight):	1.1 kg (2.4 lb) typical, without fittings

Competitive Advantage

Compact Shaft Installation

The 24701-28-05-20-040-03-02 with 2.0 in standoff adapter fits tight spaces, enabling probe placement where other housings cannot.

Reduce Vibration Displacement

Optional sleeve supports for 24701-28-05-20-040-03-02 lower peak-to-peak vibration displacement by 70%, improving radial measurement repeatability.

Durable Materials

Aluminum body and 304 stainless steel sleeve of 24701-28-05-20-040-03-02 provide wear resistance and support accurate alignment over long-term operation.

Quick Automation Integration

Conduit-ready ports and 3/4-14 NPT mounting thread allow 24701-28-05-20-040-03-02 to connect rapidly to automated monitoring systems without custom modifications.
