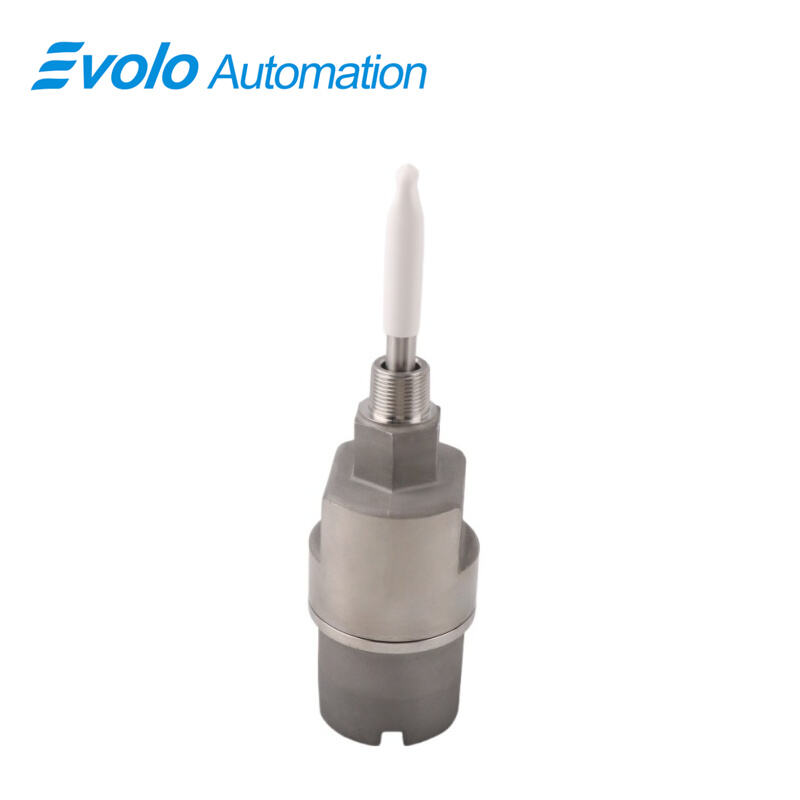

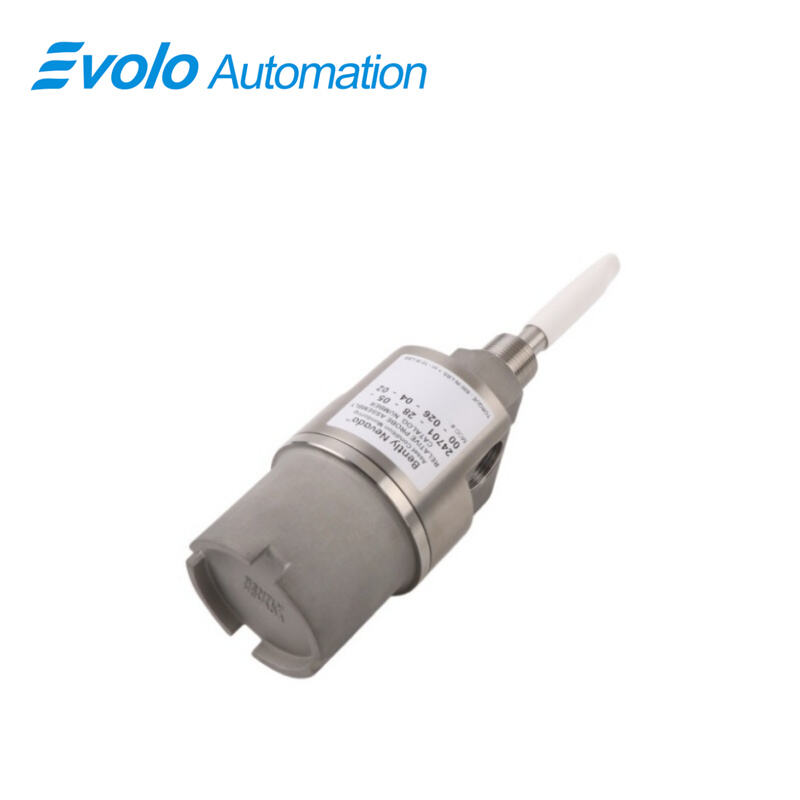

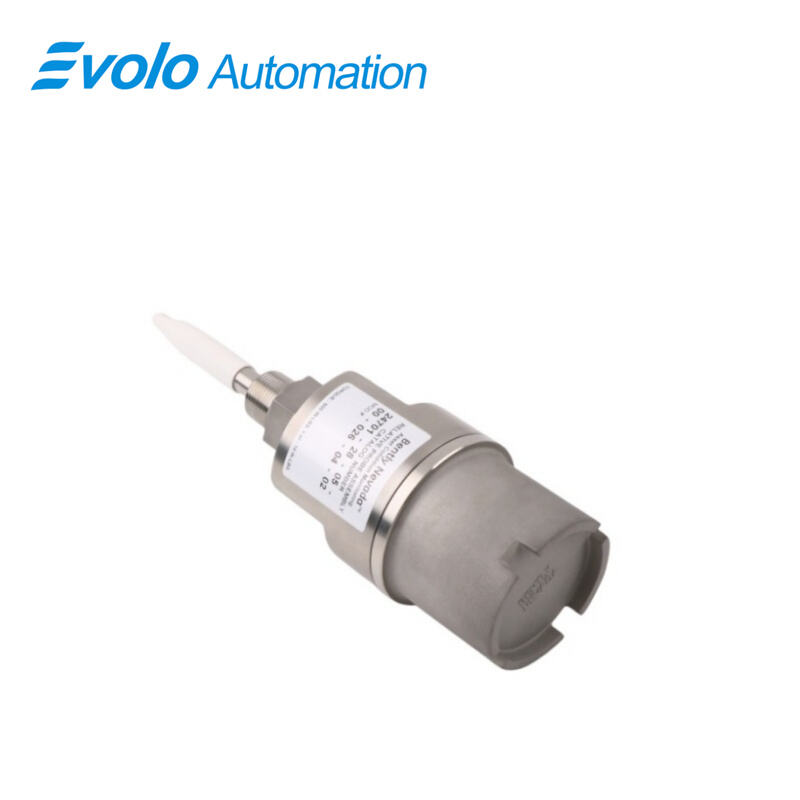

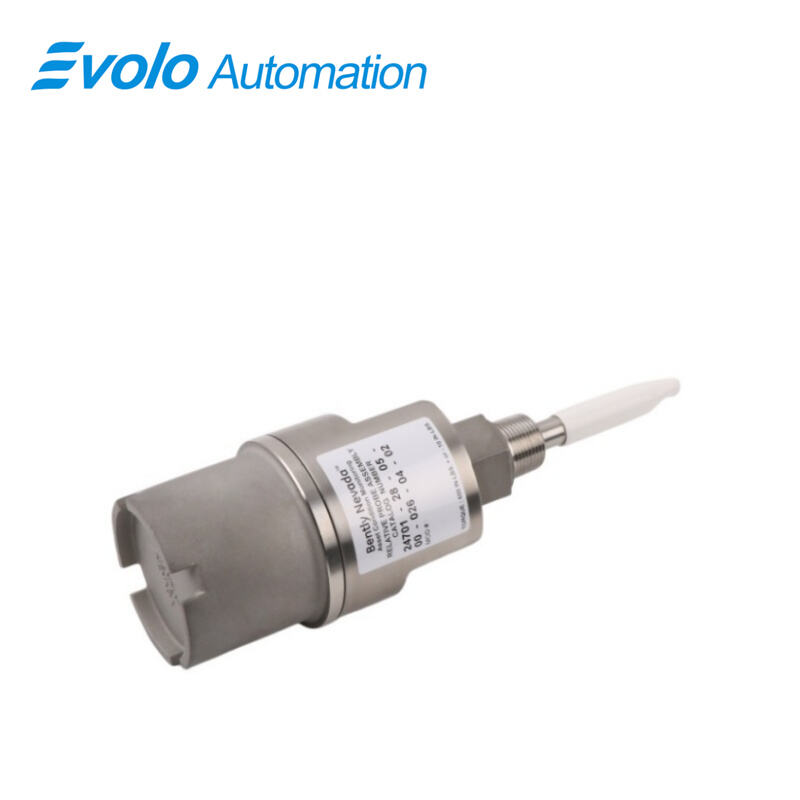

24701-28-05-20-024-03-02 Proximity Probe Housing Assemblies

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	24701-28-05-20-024-03-02
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 24701-28-05-20-024-03-02 Proximity Probe Housing Assemblies provide secure, explosion-proof mounting for 3300 XL 8mm probes with approval option in automated monitoring systems. Featuring a 0.5 m (20 in) probe cable, 2.0 in standoff adapter, and 2.4 in probe penetration, 24701-28-05-20-024-03-02 allows accurate radial vibration measurement on short shafts. Its aluminum body with 304 stainless steel sleeve, 3/4-14 NPT mounting thread, and cable grips for 1/8–3/8 in wires enable quick installation and signal loss below 0.05 V/mm. CSA-approved and API 670 compliant, 24701-28-05-20-024-03-02 supports optional sleeve extensions, reducing vibration-induced measurement error from 0.8% to 0.2% of full scale while integrating into automated industrial systems.

Applications

Install Probes on Short Shafts

The 24701-28-05-20-024-03-02 housing positions 3300 XL probes with 2.4 in penetration, allowing accurate radial vibration readings on shafts under 12 in.

Integrate with Automated Monitoring Systems

With a 0.5 m cable and cable grips for 1/8–3/8 in wires, 24701-28-05-20-024-03-02 maintains signal attenuation below 0.05 V/mm, supporting continuous automated measurements.

Mount in Hazardous Locations

The 3/4-14 NPT threaded mounting and aluminum body with 304 stainless steel sleeve allow 24701-28-05-20-024-03-02 installation in CSA-certified hazardous areas without additional modifications.

Enable Optional Sleeve Support

Optional sleeve extensions for 24701-28-05-20-024-03-02 reduce peak-to-peak vibration by 75%, ensuring probe readings remain within ±0.2% full scale error.

Specifications

Competitive Advantage

CSA-Certified Explosion-Proof Housing

The 24701-28-05-20-024-03-02 is CSA-approved and rated for hazardous areas, enabling automated monitoring in extreme industrial conditions.

Accurate Radial Vibration Detection

2.4 in probe penetration and 0.5 m cable allow 24701-28-05-20-024-03-02 to deliver repeatable readings within ±0.2% full scale, meeting API 670 requirements.

Flexible Installation

Standoff adapter and threaded mounting enable 24701-28-05-20-024-03-02 to fit compact layouts or shaft housings while maintaining precise probe alignment.

Durable Aluminum and Stainless Construction

The aluminum body and 304 stainless steel sleeve of 24701-28-05-20-024-03-02 resist corrosion and mechanical wear, keeping probe positioning within 0.1 mm over time.

Custom Layout Support

Optional sleeve supports allow 24701-28-05-20-024-03-02 to be installed through inner bearing housings while keeping cumulative measurement error under 0.6% of full scale.
