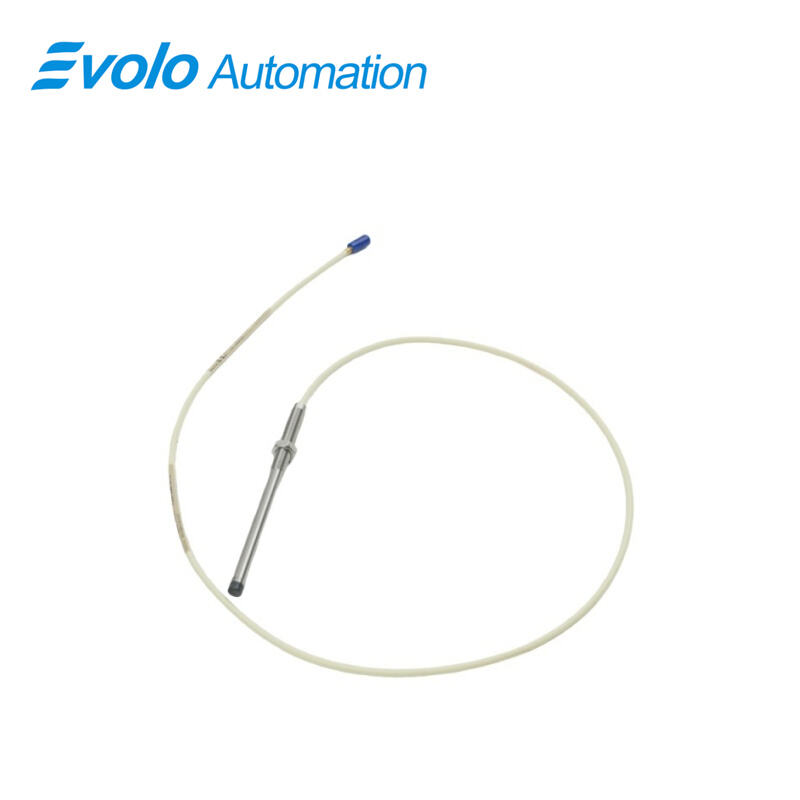

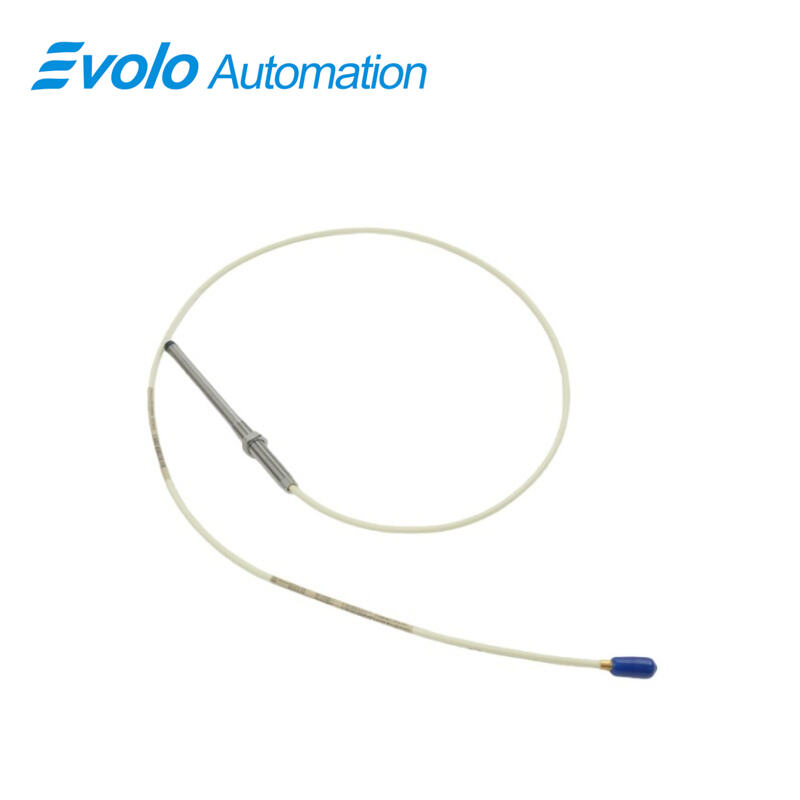

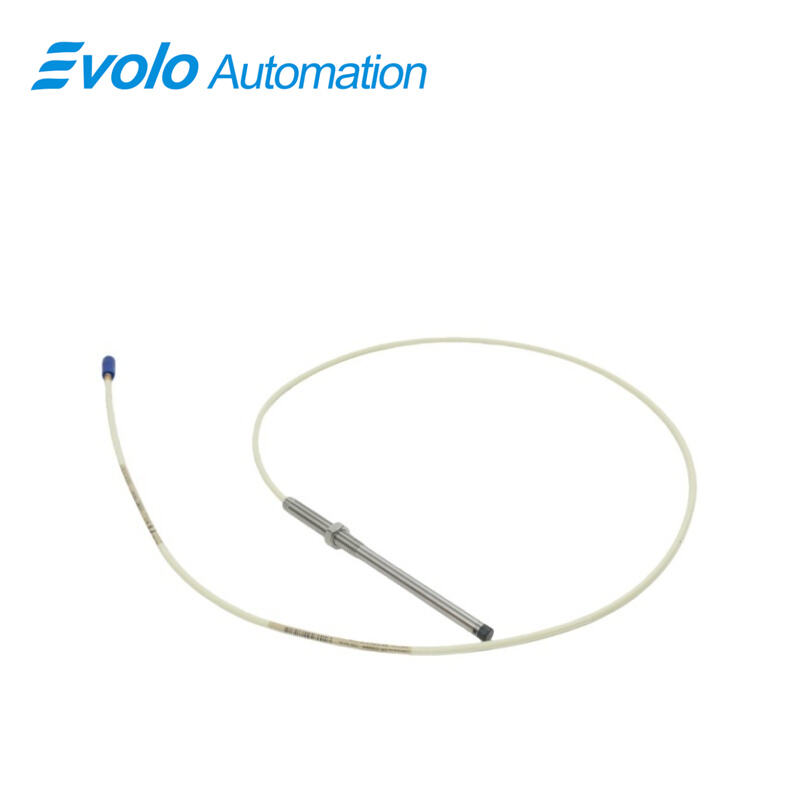

21504-32-56-10-02 Standard Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	21504-32-56-10-02
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 21504-32-56-10-02 Standard Mount Probe is an 8 mm diameter proximity sensor designed for precise machinery monitoring in automated systems. Constructed with AISI 304 stainless steel, the 21504-32-56-10-02 features a PPS tip and an M10 x 1 threaded mount, providing a 25 mm unthreaded length and maximum 15 mm thread engagement. Its linear range of 2 mm and recommended 1 mm gap setting ensure accurate position detection. The 21504-32-56-10-02 operates reliably from -52°C to +177°C, with a total cable length of 1.5 m and miniature Coaxial ClickLoc connector. With 50 Ω output resistance and 70 pF/m extension cable capacitance, the 21504-32-56-10-02 Standard Mount Probe integrates seamlessly into automation control loops. Suitable for field wiring of 0.2–1.5 mm² (16–24 AWG), this probe carries CSA, ATEX, and IECEx approvals, ensuring compliance in industrial environments. The 21504-32-56-10-02 delivers precise, repeatable measurements for motor shafts, turbines, and rotating machinery in automated systems, supporting real-time monitoring and control.

Applications

Measure Motor Shaft Displacement with the 21504-32-56-10-02
Install the 21504-32-56-10-02 on motor shafts to detect movement using its 2 mm linear range and 1 mm recommended gap. Accurate readings feed automation systems for speed and position control.

Monitor Turbine Rotor Vibration Using the 21504-32-56-10-02
The 21504-32-56-10-02 can be mounted on turbine rotors to measure vibration under -52°C to +177°C conditions. Its stainless steel case and PPS tip maintain precise contact in extreme temperatures.

Check Conveyor Gear Alignment with the 21504-32-56-10-02
Attach the 21504-32-56-10-02 to gears in automated conveyor lines. Use its M10 x 1 thread and 15 mm engagement for secure mounting and reliable displacement measurement.

Provide Real-Time CNC Spindle Feedback with the 21504-32-56-10-02
Integrate the 21504-32-56-10-02 into CNC machines to track spindle movement. Its 50 Ω output resistance and 1.5 m miniature Coaxial ClickLoc cable ensure accurate signal transmission.

Specifications

Competitive Advantage

High-Precision Linear Measurement with the 21504-32-56-10-02
The 21504-32-56-10-02 delivers accurate readings with a 2 mm linear range and 1 mm gap, improving automation loop performance in rotating machinery.

Operate in Extreme Temperatures Using the 21504-32-56-10-02
With a -52°C to +177°C operating range, the 21504-32-56-10-02 performs reliably on turbines, motors, and conveyors in harsh industrial environments.

Quick Integration into Automation Loops with the 21504-32-56-10-02
The 21504-32-56-10-02 features a 1.5 m miniature Coaxial ClickLoc cable, allowing fast installation and direct connection to monitoring and control systems.

Use in Hazardous Zones with the 21504-32-56-10-02
CSA, ATEX, and IECEx approvals make the 21504-32-56-10-02 suitable for automated systems in explosive or hazardous areas.

Extend Machinery Operation Life with the 21504-32-56-10-02
Durable stainless steel construction and PPS tip of the 21504-32-56-10-02 withstand continuous operation, reducing downtime in industrial automation setups.
