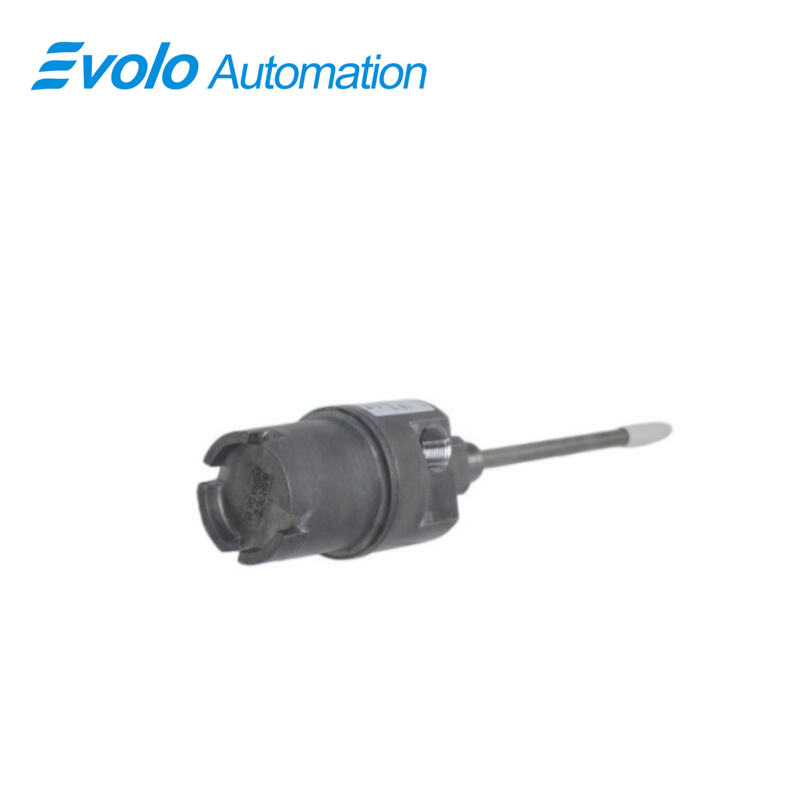

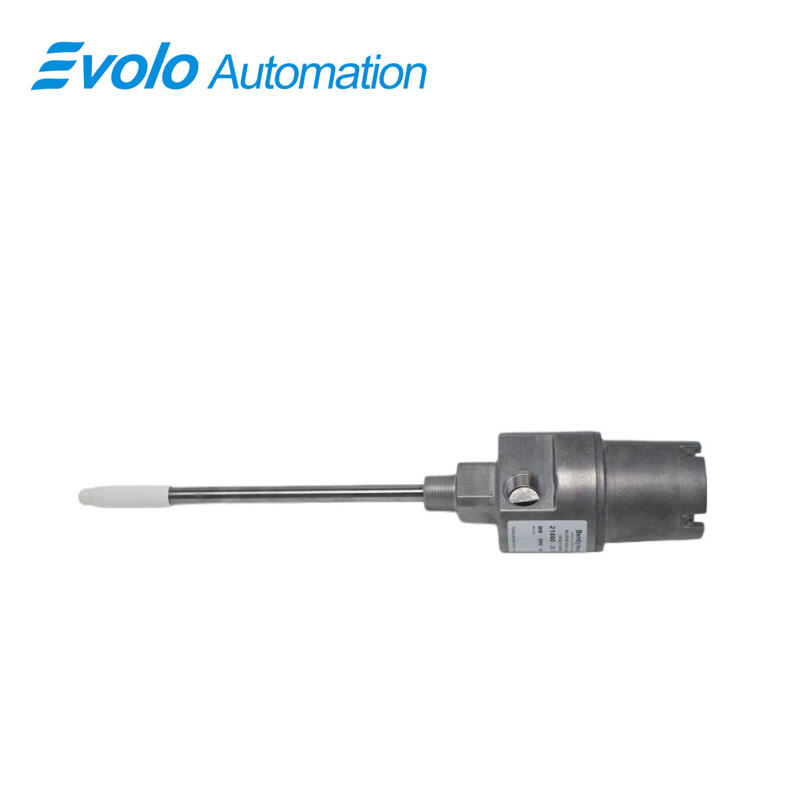

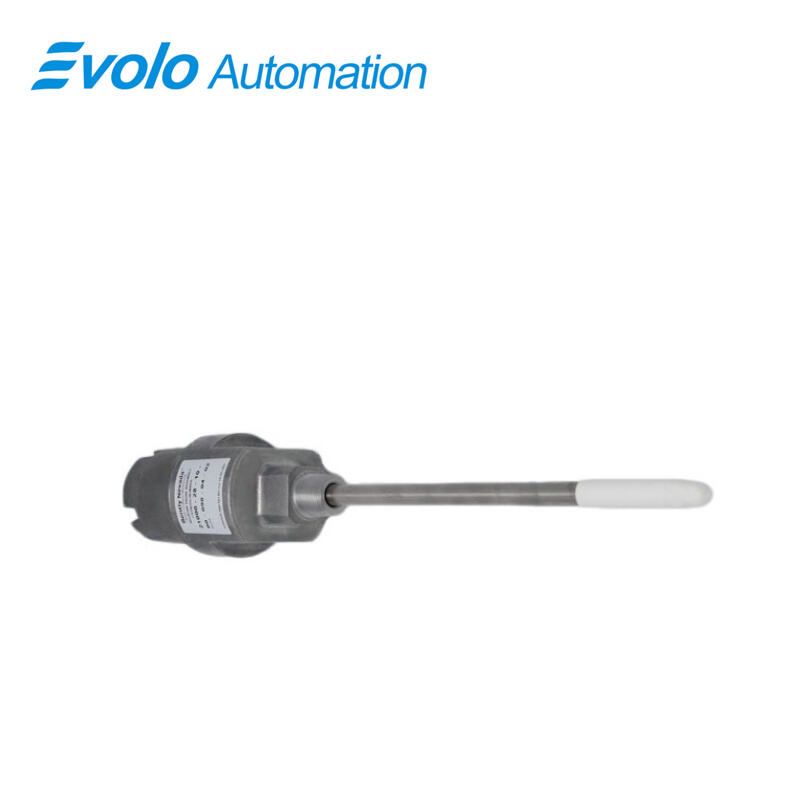

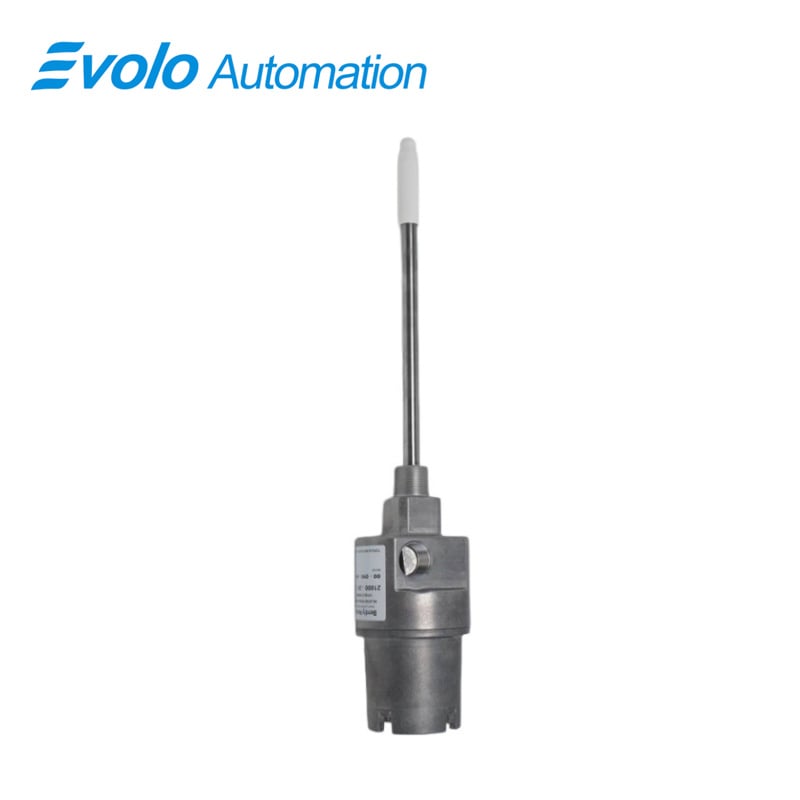

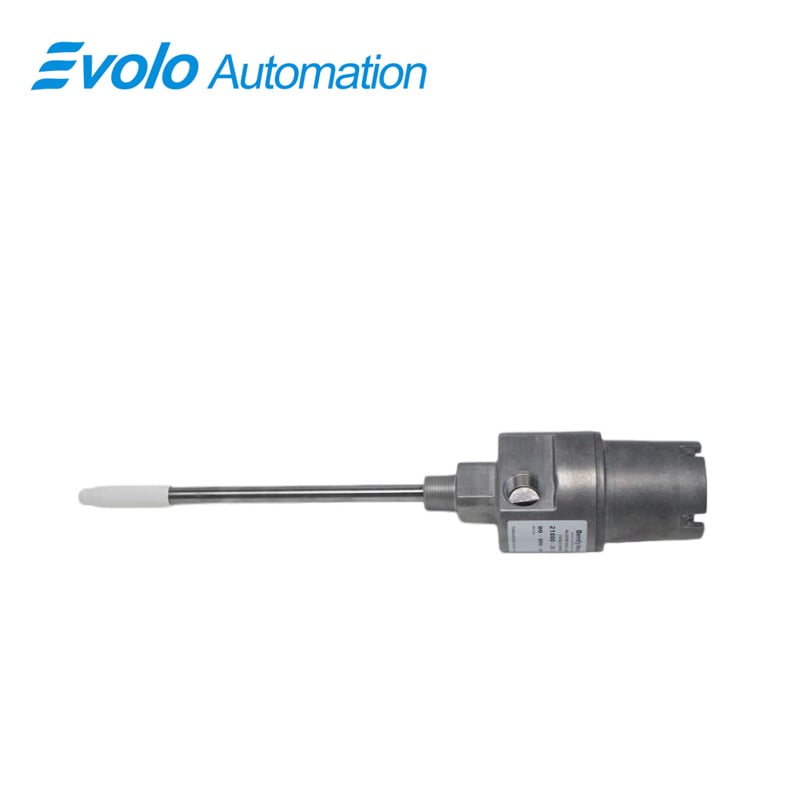

21000-28-10-00-098-04-02 Proximity Probe Housing Assemblies

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	21000-28-10-00-098-04-02
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 21000-28-10-00-098-04-02 Proximity Probe Housing Assembly features a 3300 XL 8 mm probe with selectable hazardous area approvals and a 1.0 m (39 in) coaxial cable. Probe penetration is 9.8 in with no standoff adapter, mounted using a 3/4-14 NPT thread. The aluminum body with 304 stainless steel sleeve measures 8.5×8.5×44.5 cm and weighs 1.16 kg. The 21000-28-10-00-098-04-02 includes a 3/4-14 NPT plug and delivers a linear measuring range of 2 mm (80 mils) with ±0.01 mm resolution. Designed for automated industrial monitoring, the 21000-28-10-00-098-04-02 provides precise gap-to-voltage data for shaft position and vibration detection on turbines, compressors, pumps, and motors. Compatible with 3300 and 9000 monitoring systems, the 21000-28-10-00-098-04-02 enables real-time shaft movement tracking, vibration amplitude monitoring, and automated alerts when deviations exceed 0.05 mm, supporting predictive maintenance and operational control.

Applications

Shaft Position Tracking
The 21000-28-10-00-098-04-02 measures static and dynamic shaft positions with 2 mm range and ±0.01 mm resolution, detecting misalignment exceeding 0.05 mm on turbines and compressors.

Pump and Compressor Vibration Monitoring
The 21000-28-10-00-098-04-02 captures vibration amplitudes above 0.05 mm using its 9.8 in probe penetration for precise tip-to-shaft distance measurement.

Automated Load and Speed Adjustment
The 21000-28-10-00-098-04-02 provides real-time gap-to-voltage data to 3300 and 9000 systems, enabling automated load or speed control when shaft displacement exceeds 1 mm.

Electric Motor Monitoring
The 21000-28-10-00-098-04-02 tracks shaft movement and vibration in motors and generators, generating automated alerts when deviations exceed 0.05 mm.

Specifications

Competitive Advantage

High-Precision Measurement
The 21000-28-10-00-098-04-02 delivers ±0.01 mm resolution over a 2 mm linear range, providing actionable data for automated machinery control.

Compact Hazardous-Area Probe
With selectable hazardous area approvals, the 21000-28-10-00-098-04-02 can be deployed in high-risk industrial environments safely.

Durable Construction
The aluminum body with 304 stainless steel sleeve and 1.16 kg weight ensures the 21000-28-10-00-098-04-02 withstands mechanical stress in industrial operations.

Simplified Installation and Cable Management
The 21000-28-10-00-098-04-02 supports 3/4-14 NPT mounting with cable seals for 1/8 in to 3/8 in cables, ensuring low-noise signal transmission for automated systems.
