21000-28-05-00-092-03-02 Proximity Probe Housing Assemblies

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	21000-28-05-00-092-03-02
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

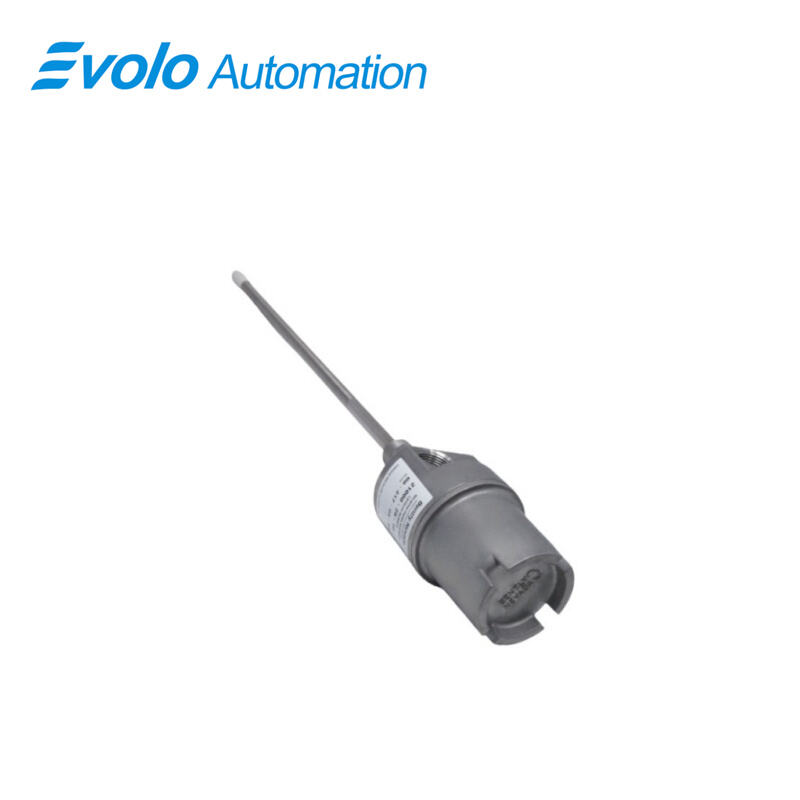

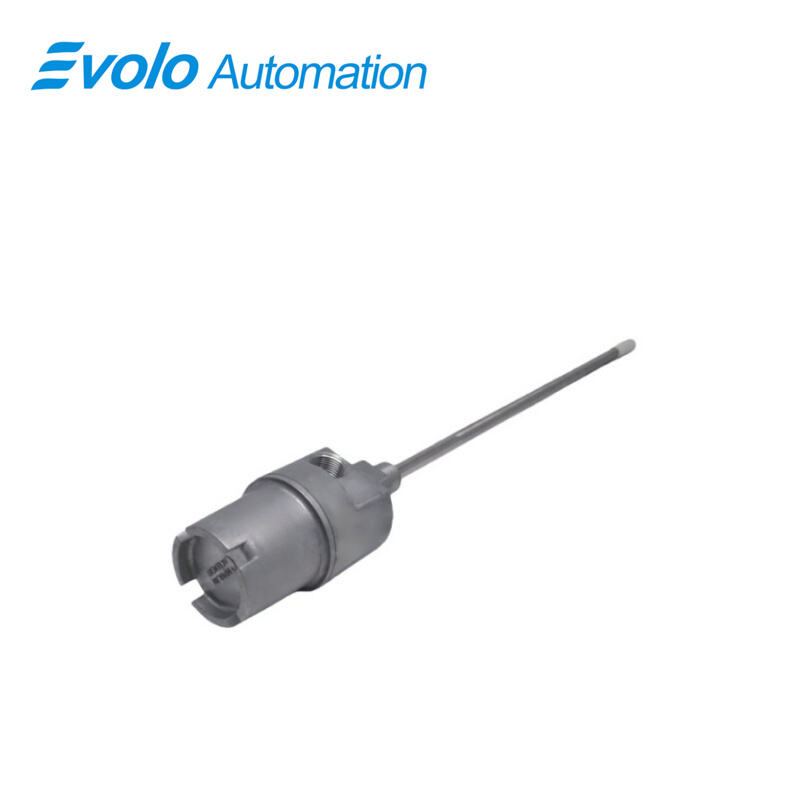

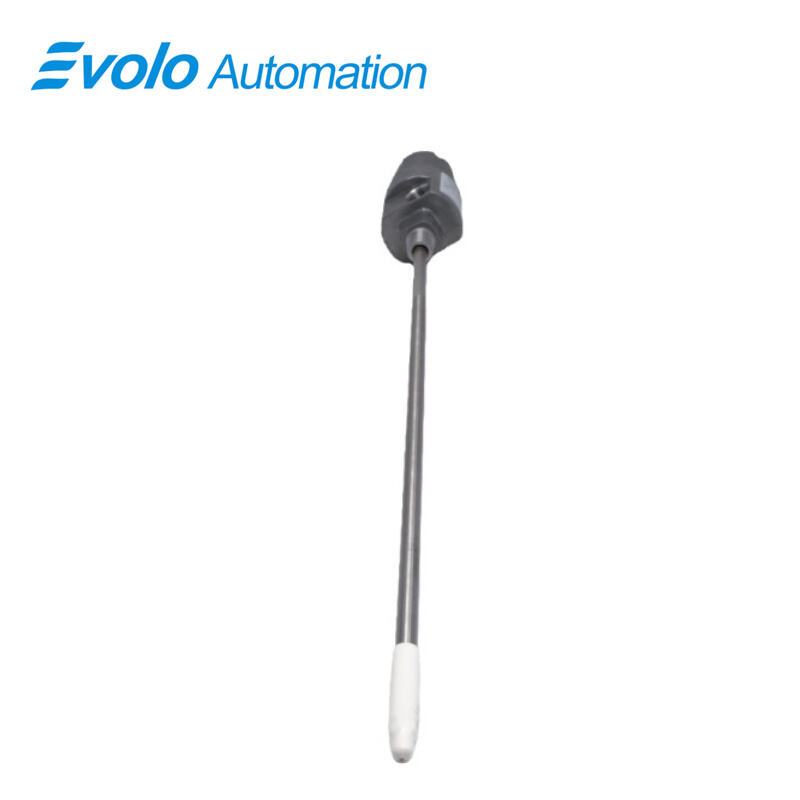

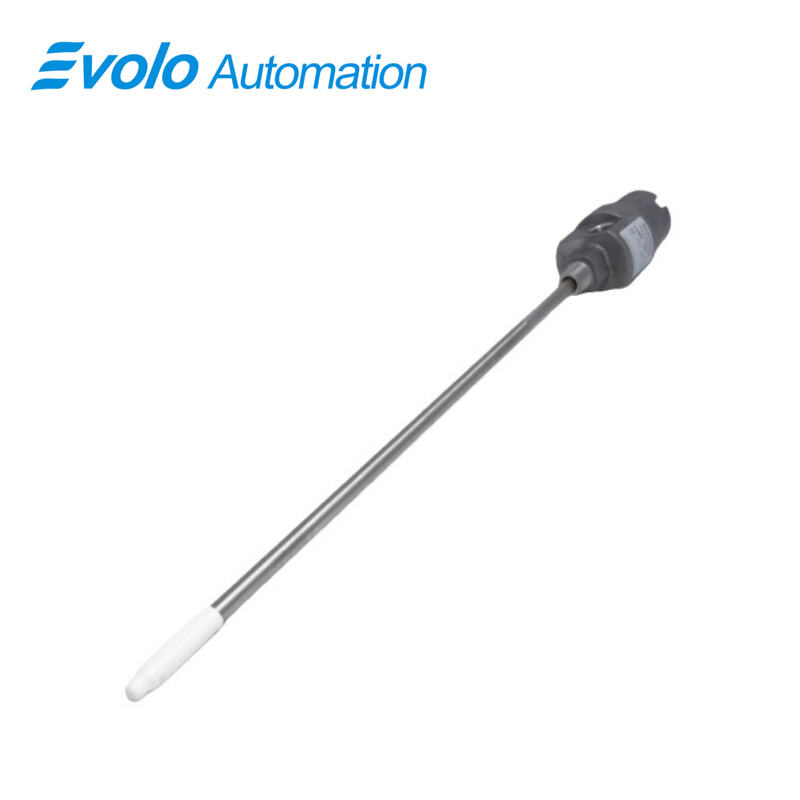

21000-28-05-00-092-03-02 Proximity Probe Housing Assemblies are designed for external installation of 3300 XL 8 mm probes, supporting selectable hazardous area approvals. Each 21000-28-05-00-092-03-02 assembly includes an aluminum body with 304 stainless steel sleeve, a dome cover, threaded ports for conduit connections, O-rings, and optional conduit fittings. The assembly accommodates probe penetration of 9.2 in and probe cable length of 0.5 m (20 in). The 3/4-14 NPT mounting thread ensures secure installation, while cable seal grips support cables from 1/8 to 3/8 inches. The 21000-28-05-00-092-03-02 Proximity Probe Housing Assemblies are CSA-approved and explosion-proof for hazardous environments, meeting API 670 requirements for externally mounted proximity probes. Sleeve length can be customized based on installation location, and optional standoff adapters are available. For sleeves longer than 304 mm (12 inches), additional support is recommended to prevent vibration of the probe tip, using available support kits or custom designs. The 21000-28-05-00-092-03-02 Proximity Probe Housing Assemblies integrate seamlessly with 3300 XL 8 mm probes, providing a reliable, automated solution for turbine, compressor, and motor monitoring in industrial environments.

Applications

External Turbine Vibration Monitoring
The 21000-28-05-00-092-03-02 Proximity Probe Housing Assemblies house 3300 XL 8 mm probes for turbine shafts, providing 9.2 in probe penetration to measure vibration and shaft displacement in high-temperature environments.

Compressor Shaft Position Measurement
With 3/4-14 NPT mounting threads and robust cable seal grips, the 21000-28-05-00-092-03-02 allows precise positioning of 3300 XL 8 mm probes for continuous shaft alignment monitoring in centrifugal compressors.

Hazardous Area Proximity Sensing
The 21000-28-05-00-092-03-02 Proximity Probe Housing Assemblies are CSA-rated and explosion-proof, enabling use of 3300 XL 8 mm probes in intrinsically safe applications without modifying industrial automation setups.

Specifications

Competitive Advantage

Secure Probe Mounting
Patented design of the 21000-28-05-00-092-03-02 Proximity Probe Housing Assemblies ensures firm attachment of 3300 XL 8 mm probes via 3/4-14 NPT mounting threads and O-ring seals, preventing misalignment or movement in high-vibration equipment.

Explosion-Proof Design
The 21000-28-05-00-092-03-02 is CSA-approved and rated for hazardous areas, allowing 3300 XL 8 mm probes to operate safely in chemical, petrochemical, and power-generation plants.

Customizable Sleeve Support
Optional standoff adapters and sleeve supports for 21000-28-05-00-092-03-02 Proximity Probe Housing Assemblies enable installation of 3300 XL 8 mm probes with sleeves longer than 304 mm, minimizing measurement errors due to probe vibration.

API 670 Compliance
Each 21000-28-05-00-092-03-02 assembly meets API 670 standards for externally mounted probes, guaranteeing linear range accuracy and consistent voltage output when paired with 3300 XL 8 mm probes.

Lightweight Aluminum Construction
The 1.1 kg (2.4 lb) aluminum housing of 21000-28-05-00-092-03-02 Proximity Probe Housing Assemblies supports easy handling and fast installation of 3300 XL 8 mm probes, even in tight or elevated industrial areas.
