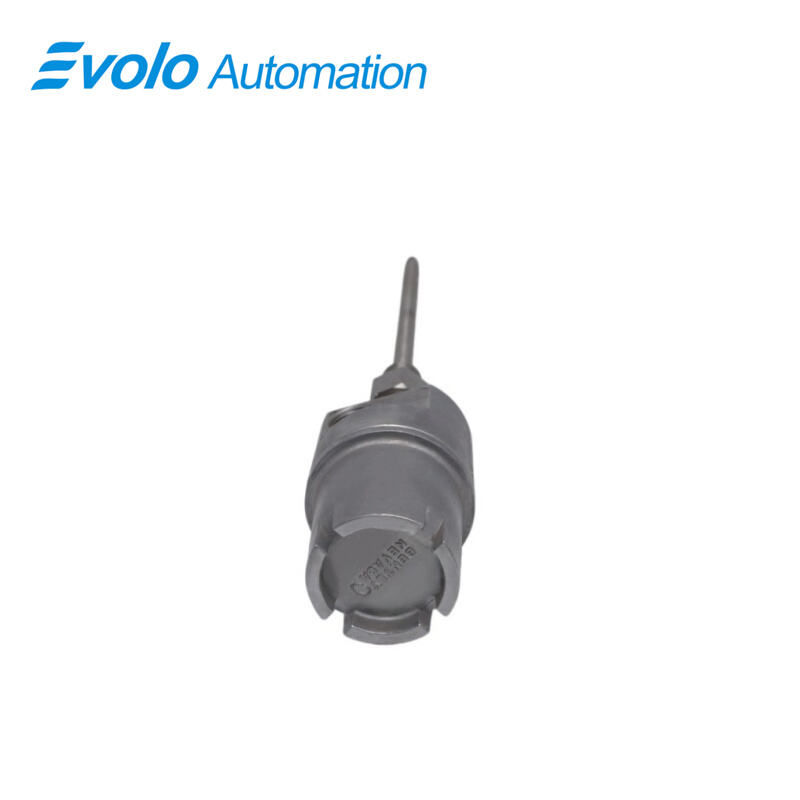

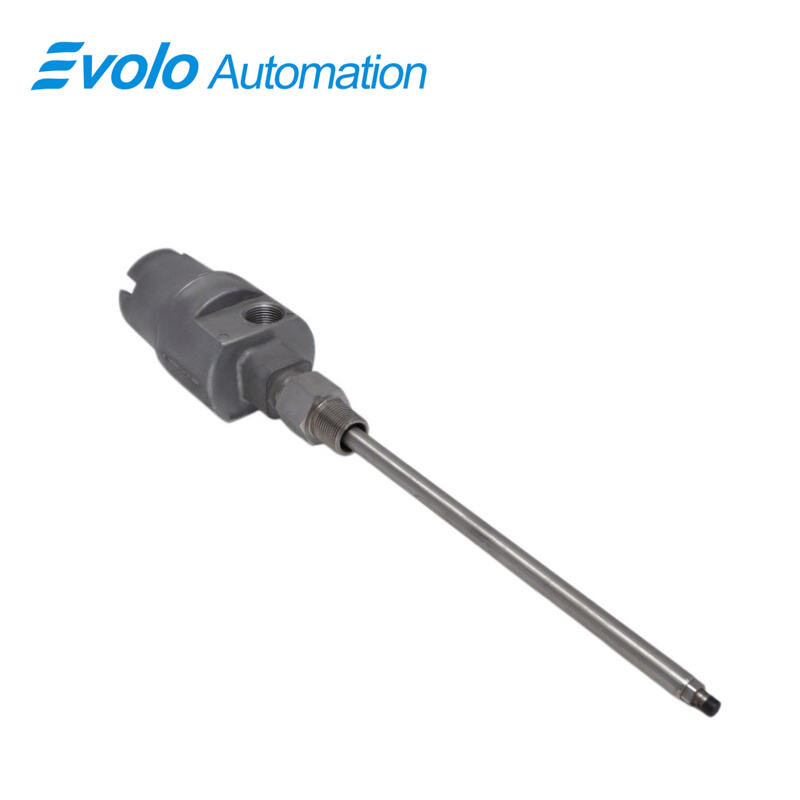

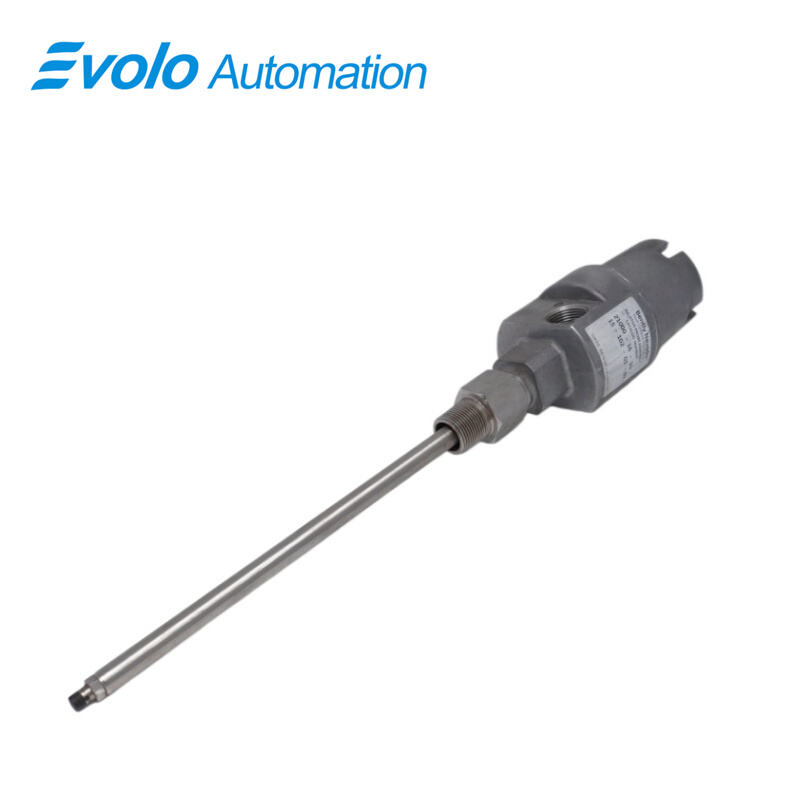

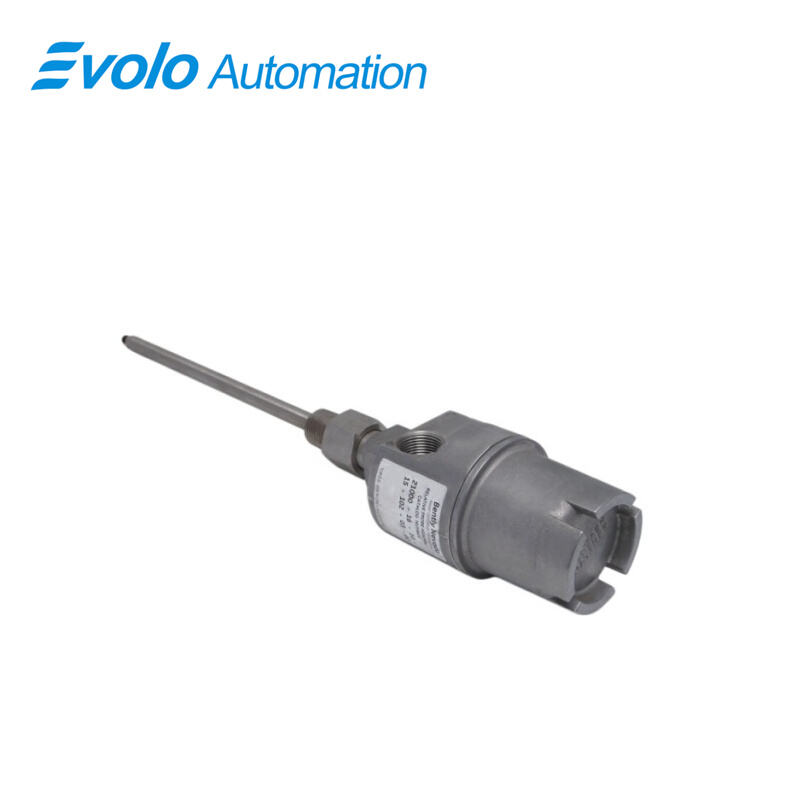

21000-16-10-15-102-03-02 Proximity Probe Housing Assemblies

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	21000-16-10-15-102-03-02
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 21000-16-10-15-102-03-02 Proximity Probe Housing Assembly integrates a 3300 XL 8 mm probe with a 1.0 m (39 in) coaxial cable. Probe penetration is 10.2 in with a 1.5 in standoff adapter, mounted using a 3/4-14 NPT thread. The aluminum body with 304 stainless steel sleeve weighs 1.1 kg (2.4 lb) without fittings. The 21000-16-10-15-102-03-02 includes fittings for 3/4-14 NPT, 3/4-14 to 1/2-14 NPT reducer, and cable seal grips for 1/8 in to 3/8 in cables. With a 2 mm (80 mils) linear measuring range and ±0.01 mm resolution, the 21000-16-10-15-102-03-02 provides precise, noncontacting gap-to-voltage measurements for shaft position and vibration monitoring. Compatible with 3300 and 9000 monitoring systems, the 21000-16-10-15-102-03-02 supports automated detection of misalignment, vibration amplitudes above 0.05 mm, and real-time monitoring of turbines, compressors, pumps, and electric motors. Its extended 10.2 in probe penetration ensures accurate distance measurement even on large-diameter machinery.

Applications

Shaft Position Measurement
The 21000-16-10-15-102-03-02 measures static and dynamic shaft positions with 2 mm linear range and ±0.01 mm resolution, detecting misalignment greater than 0.05 mm for turbines, compressors, and pumps.

Vibration Monitoring of Rotating Machinery
The 21000-16-10-15-102-03-02 captures vibration amplitudes exceeding 0.05 mm. Its 10.2 in probe penetration ensures precise tip-to-shaft distance measurements even on large-diameter shafts.

Automated Turbine and Compressor Control
The 21000-16-10-15-102-03-02 provides real-time gap-to-voltage signals to 3300 and 9000 monitoring systems, allowing automated load or speed adjustments when shaft displacement exceeds 1 mm.

Industrial Motor Monitoring
The 21000-16-10-15-102-03-02 tracks shaft position and vibration in electric motors and generators up to 2 mm range, enabling automated alerts when deviations exceed 0.05 mm.

Specifications

Competitive Advantage

High-Precision Measurement
The 21000-16-10-15-102-03-02 provides ±0.01 mm resolution over 2 mm range, delivering accurate data for automated monitoring and control systems.

Durable Industrial Construction
Aluminum body with 304 stainless steel sleeve and 1.1 kg mass allows the 21000-16-10-15-102-03-02 to withstand vibration and mechanical stress in industrial environments.

Flexible Mounting Options
The 21000-16-10-15-102-03-02 supports 3/4-14 NPT mounting, optional 1/2-14 reducer, and 1.5 in standoff, enabling installation on a variety of machinery types.

Integrated Cable Management
The 21000-16-10-15-102-03-02 accommodates 1/8 in to 3/8 in cables via seal grips, ensuring secure connections and low-noise signal transmission.
