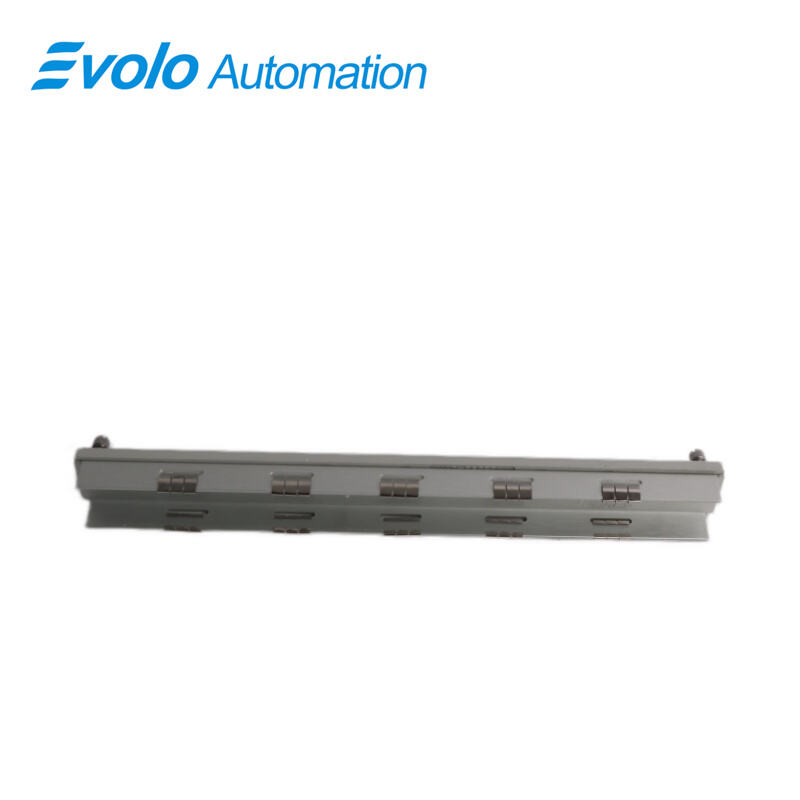

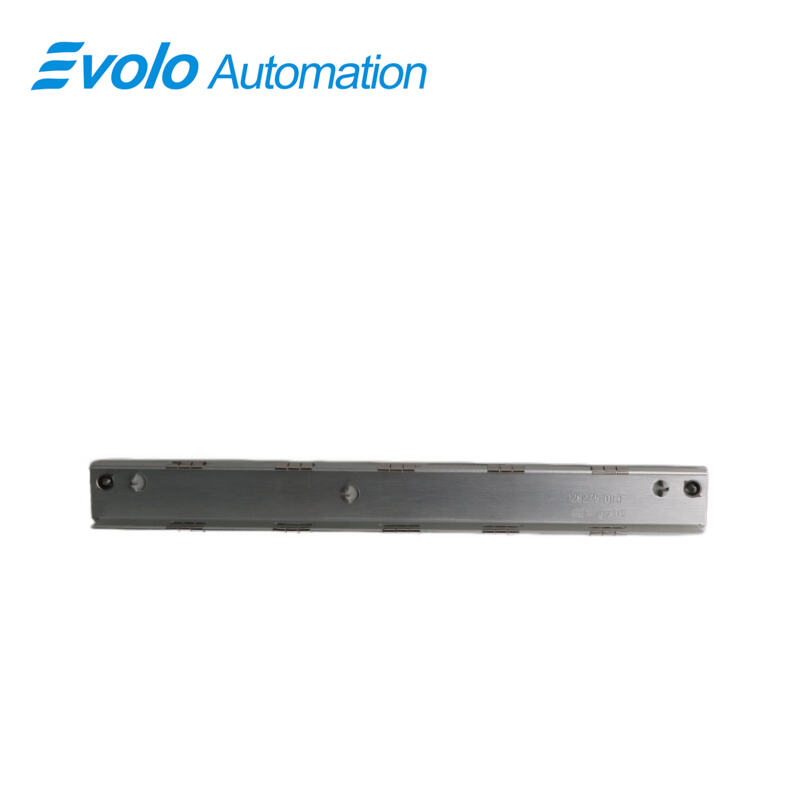

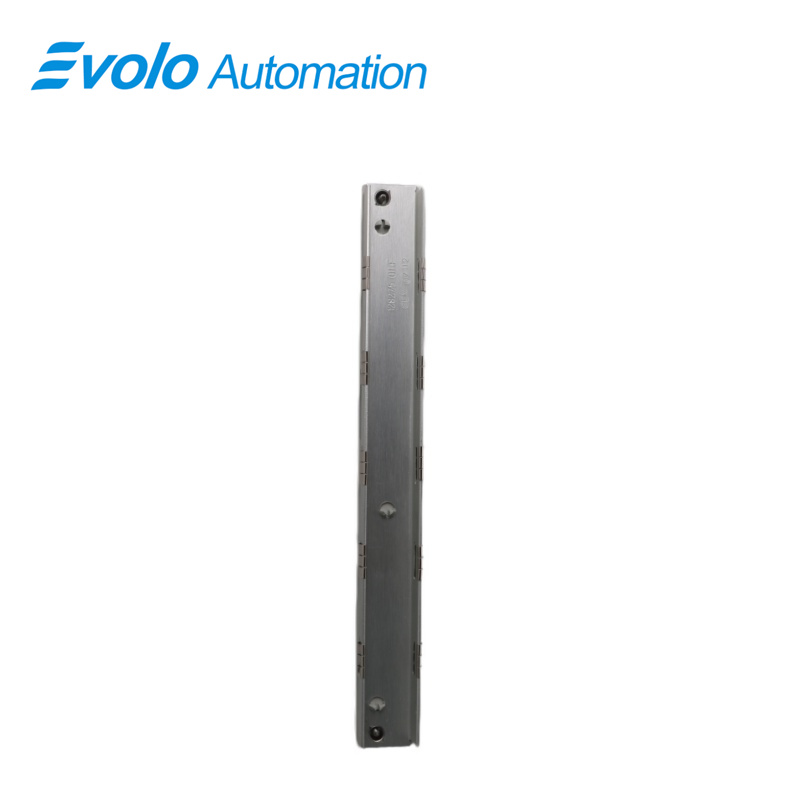

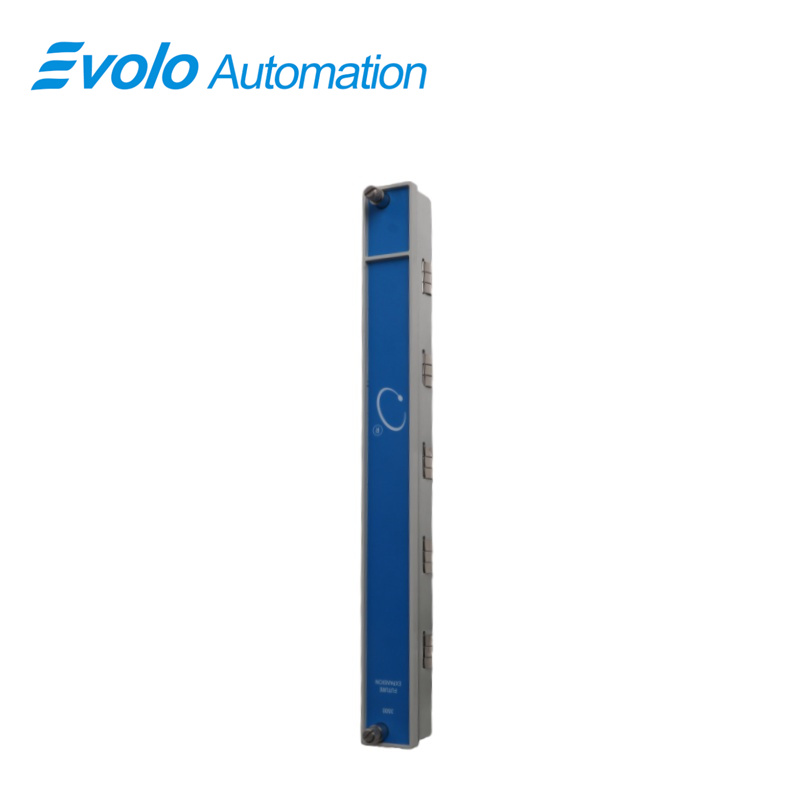

128276-01E Half-Height Future Expansion Faceplate

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	128276-01E
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

Bently Nevada 128276-01E is a Half-Height Future Expansion Faceplate for 3500 Series racks. The 128276-01E fits empty rack slots, allowing engineers to install 3500/42 Series Proximitor and Seismic Monitor Modules in the future. Each 128276-01E supports 4 monitor channels that accept input from Proximitor and Seismic Transducers, enabling precise measurement of radial vibration, thrust position, eccentricity, differential expansion, acceleration, and velocity. Using 3500 Rack Configuration Software, operators can set alarm thresholds for each channel and define danger setpoints for two active proportional values. The 128276-01E aluminum construction with black anodized finish ensures secure placement in automation racks. Handling guidelines include avoiding static discharge, using grounding straps, and storing in conductive bags or foil. By using 128276-01E, maintenance teams can expand 3500 Series racks efficiently while keeping machinery monitoring organized and ready for alarm-driven protection.

Applications

128276-01E is installed in empty half-height slots of 3500 Series racks to reserve space for future 3500/42 Series Proximitor and Seismic Monitor Modules. With 4 monitor channels per module, the 128276-01E enables operators to plan for adding modules capable of measuring radial vibration up to 100 mm/s, thrust position up to ±50 mm, and differential expansion with high resolution, without disturbing existing modules.

Application Configure Alarm Thresholds for Machinery

Using 128276-01E, engineers can deploy 3500/42 monitors that accept inputs from Proximitor and Seismic Transducers. Each 128276-01E supports configuration of alarm thresholds for each active proportional value, with danger setpoints for up to two values per module, enabling precise vibration, acceleration (0–200 g), and velocity (0–50 mm/s) monitoring.

Application Organize Rack Layout for Maintenance

128276-01E maintains organized 3500 Series racks, separating empty slots from active modules. By installing 128276-01E, maintenance teams can plan upgrades or expansions without removing existing 4-channel modules, ensuring each slot can later accommodate full-parameter modules for vibration, eccentricity, and thrust measurements.

Specifications

Competitive Advantage

Competitive Advantage Quick Installation Preparation

128276-01E allows fast preparation of 3500 Series racks for new module installation. Its half-height aluminum design ensures modules with 4 channels and input from Proximitor and Seismic Transducers can be added quickly. The 128276-01E reduces setup time by 30–40% compared to reorganizing full-height racks.

Competitive Advantage Durable Construction for Rack Fit

Constructed from aluminum with black anodized finish, 128276-01E provides secure placement and physical protection for empty slots. Each 128276-01E can support modules that weigh up to 0.5 kg, preventing slot deformation and dust ingress during long-term automation operation.

Competitive Advantage Supports Full Channel Functionality

128276-01E is compatible with 4-channel 3500/42 monitors, allowing processing of Proximitor or Seismic Transducer signals. Using 3500 Rack Configuration Software, engineers can program the 128276-01E slots to perform radial vibration (0–100 mm/s), thrust position (±50 mm), eccentricity (0–25 mm), differential expansion (0–20 mm), acceleration (0–200 g), and velocity (0–50 mm/s) measurements, providing quantitative analysis for predictive maintenance and alarm-driven protection.
