Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	126599-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Signal	Accepts 1 to 4 signals from interface modules (86517, 86497), velomitors, and accelerometers
Power Consumption	7.7 Watts, typical
Input Impedance - Aero GT I/O	>95 kΩ (Proximitor and acceleration inputs)
Input Impedance - Prox/Velom I/O and Multimode	10 kΩ for Prox/Accel, 3.5 MΩ for Velomitor
Sensitivity - Aeroderivative	3.94 mV/(mm/s) (100 mV/in/s) or 5.71 mV/(mm/s) (145 mV/in/s)
Sensitivity - Aeroderivative2 & Multimode	3.94 mV/(mm/s), 5.71 mV/(mm/s), 10.19 mV/(m/s²) (100 mV/g), 2.55 mV/(m/s²) (25 mV/g), 1.02 mV/(m/s²) (10 mV/g)
OK LED	Indicates monitor is operating properly
TX/RX LED	Indicates communication with other 3500 Rack modules
Bypass LED	Indicates monitor is in Bypass Mode
Buffered Transducer Outputs	One coaxial connector per channel, short-circuit protected
Output Impedance	550 Ω
Dimension:	2.3x11x24.1cm
Weight:	0.4kg

Description

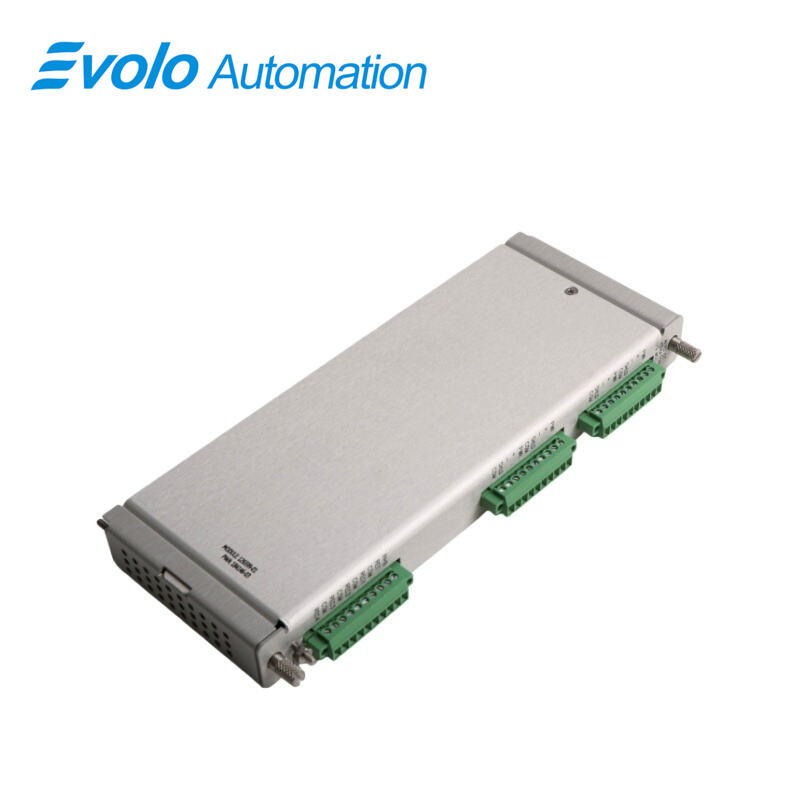

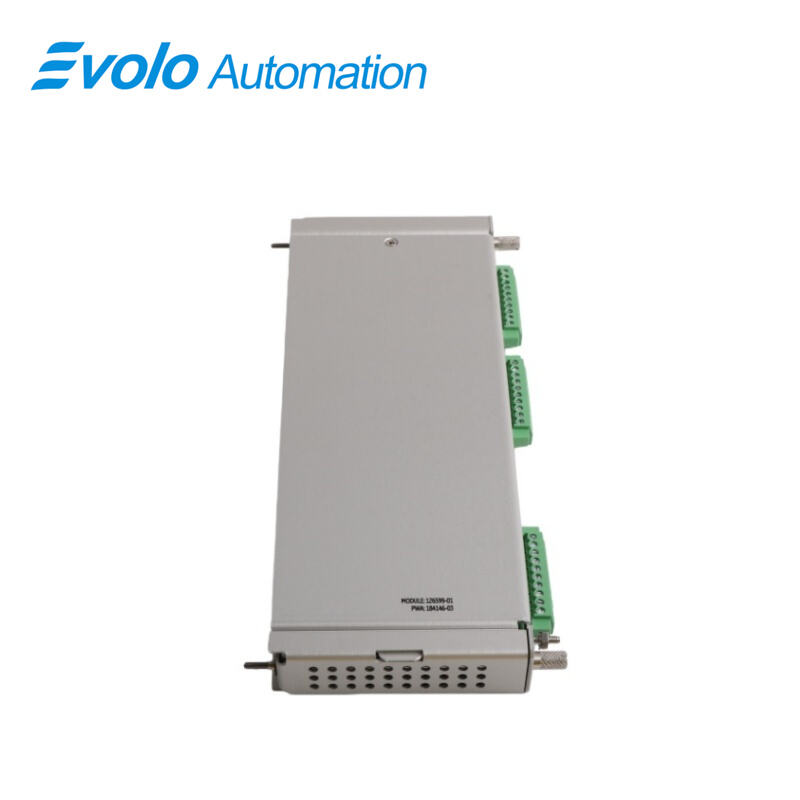

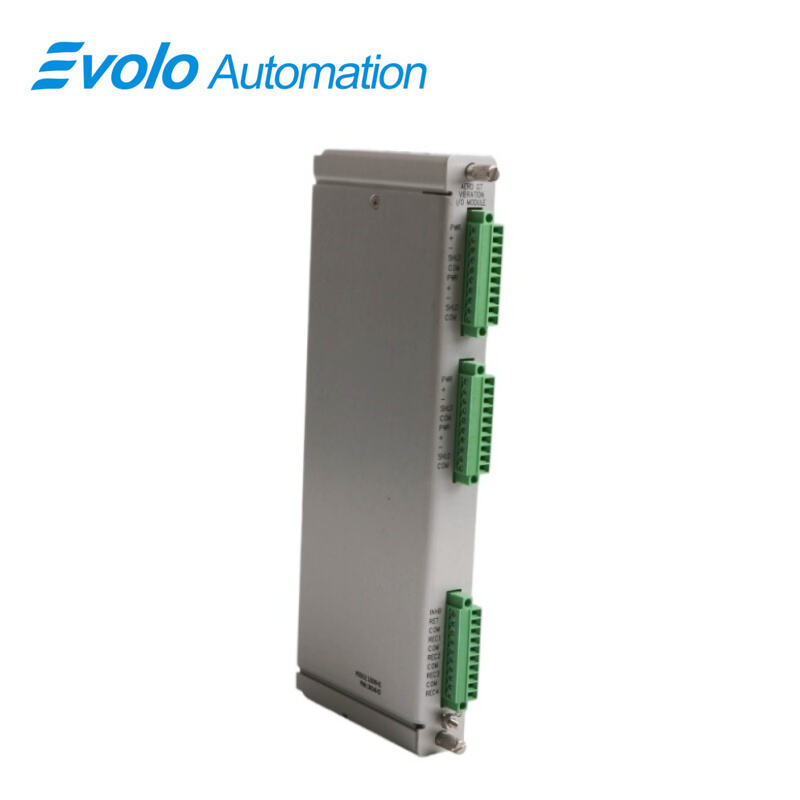

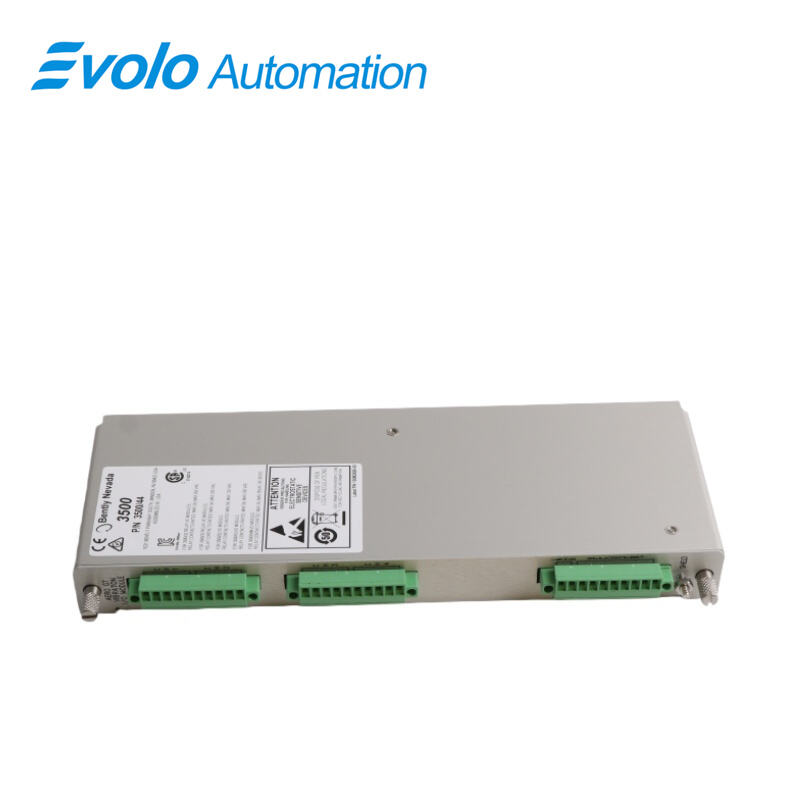

The 126599-01 Aero GT I/O Module is a full-height Bently Nevada 3500/44M module designed for aeroderivative gas turbine automation. 126599-01 accepts 1 to 4 signals from interface modules (86517, 86497), velomitors, and accelerometers, providing precise vibration monitoring. The module supports input impedance >95 kΩ for Proximitor and acceleration inputs, with sensitivity up to 10.19 mV/(m/s²). 126599-01 supplies 23 Vdc at 43 mA per transducer, outputs 0–12 Vdc with 550 Ω load, and updates signals every 100 ms. OK, TX/RX, and Bypass LEDs provide operational status. Using 3500 Rack Configuration Software, 126599-01 allows filter options including signal integration, 1X vibration tracking, and band-pass vibration. The module supports two Keyphasor signals per channel pair and up to eight alarm sets with configurable alert/danger setpoints and time delays from 0.1 to 60 seconds. 126599-01 occupies 1 full-height rear slot and delivers automation-ready vibration monitoring for turbine operations and maintenance.

Applications

Monitor Turbine Vibration Signals

126599-01 receives 1–4 signals from Proximitor, Velomitor, or accelerometers to continuously measure turbine vibration levels in automation systems.

Trigger Alarms for Operational Modes

Using up to eight configurable alarm sets, 126599-01 can alert operators to alert or danger conditions with time delays from 0.1–60 seconds for mode-specific operations.

Interface with Keyphasor Signals

126599-01 supports two Keyphasor inputs per channel pair, enabling synchronization with rotating shafts and turbine events for speed or phase analysis.

Provide Filtered Vibration Data

Signal integration, 1X amplitude, and band-pass filters allow 126599-01 to provide processed vibration signals for turbine control and maintenance decision-making.

Specifications

Transducer Power Supply	23 Vdc nominal at 43 mA max
Voltage Compliance (Current Output)	0 to +12 Vdc, load resistance 0 to 600 Ω
Resolution	0.3662 µA per bit, ±0.25% error at room temperature, ±0.7% error over temperature range
Update Rate	100 ms or less
Alarm Accuracy	Within 0.13% of desired value
Alarm Modes - Aeroderivative	Direct, 1X Amplitude, Bandpass
Alarm Modes - Aeroderivative2	Direct, Bandpass, 1X Amplitude, 1X Phase Lag
Alarm Modes - Multimode Aeroderivative	Direct, Direct-B, Bandpass, Bandpass-B, 1X Ampl, 1X Ampl-B, 1X Phase Lag
Alarm Time Delay - Alert	1 to 60 seconds in 1 second intervals
Alarm Time Delay - Danger	0.1 seconds or 1 to 60 seconds in 1 second intervals

Competitive Advantage

Deliver High-Sensitivity Vibration Monitoring

126599-01 supports sensitivities up to 10.19 mV/(m/s²), capturing fine vibration details for aeroderivative turbines.

Support Multi-Channel Data Acquisition

Processing 1–4 signals per module allows 126599-01 to monitor multiple points simultaneously, reducing the need for extra modules.

Enable Configurable Alarm Timing

With alert/danger time delays from 0.1–60 seconds, 126599-01 adapts alarms to turbine operating modes, providing precise operational feedback.

Provide Near Real-Time Updates

Signal updates every 100 ms allow 126599-01 to feed near real-time data to automation systems, supporting rapid response to changing conditions.

Integrate Keyphasor and Vibration Data

126599-01 accepts two Keyphasor signals per channel pair, combining rotational and vibration data for advanced turbine monitoring and automation control.
