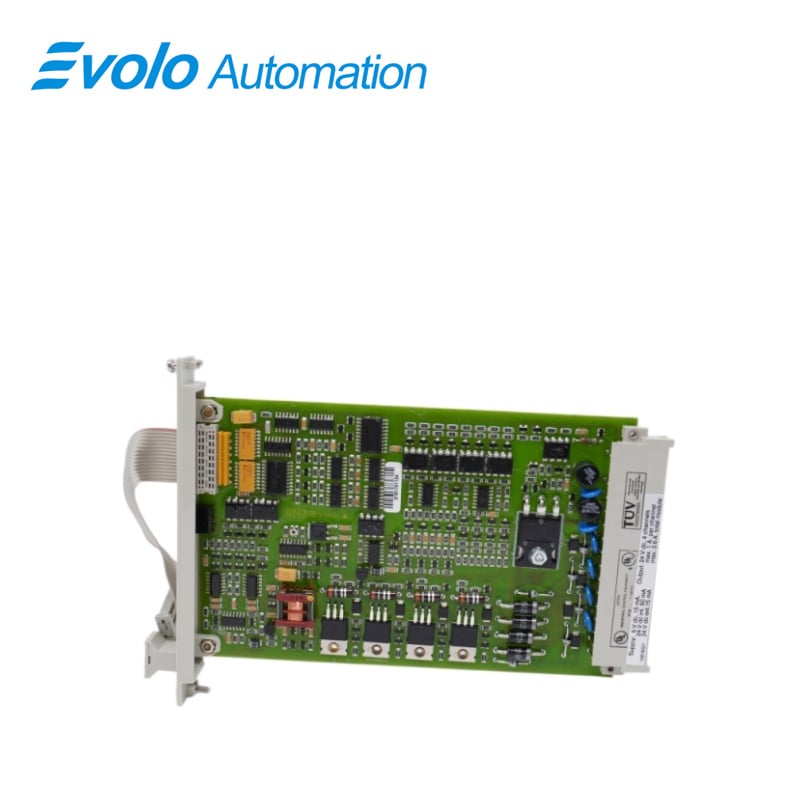

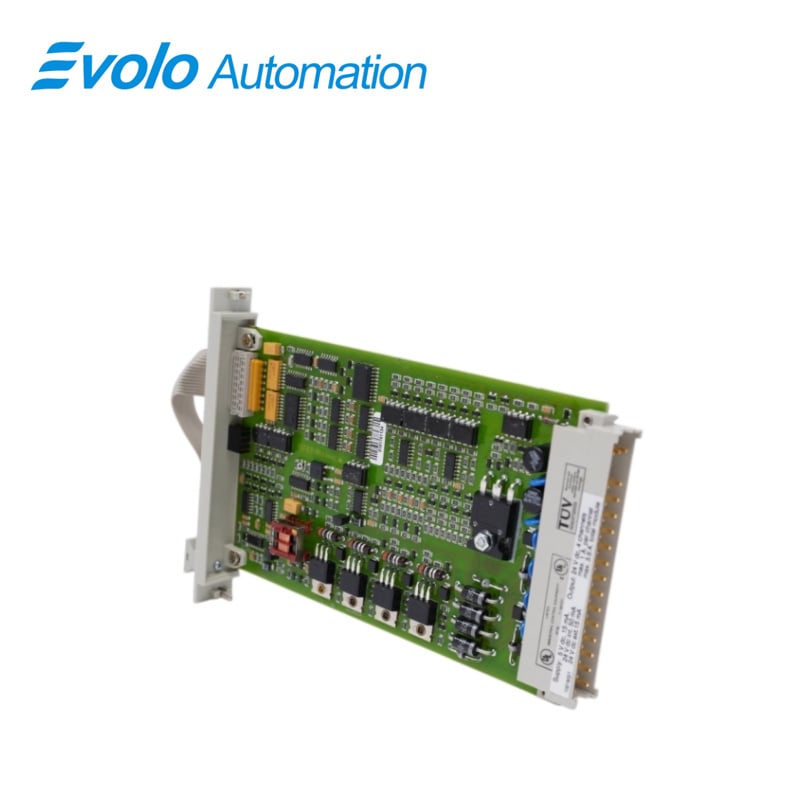

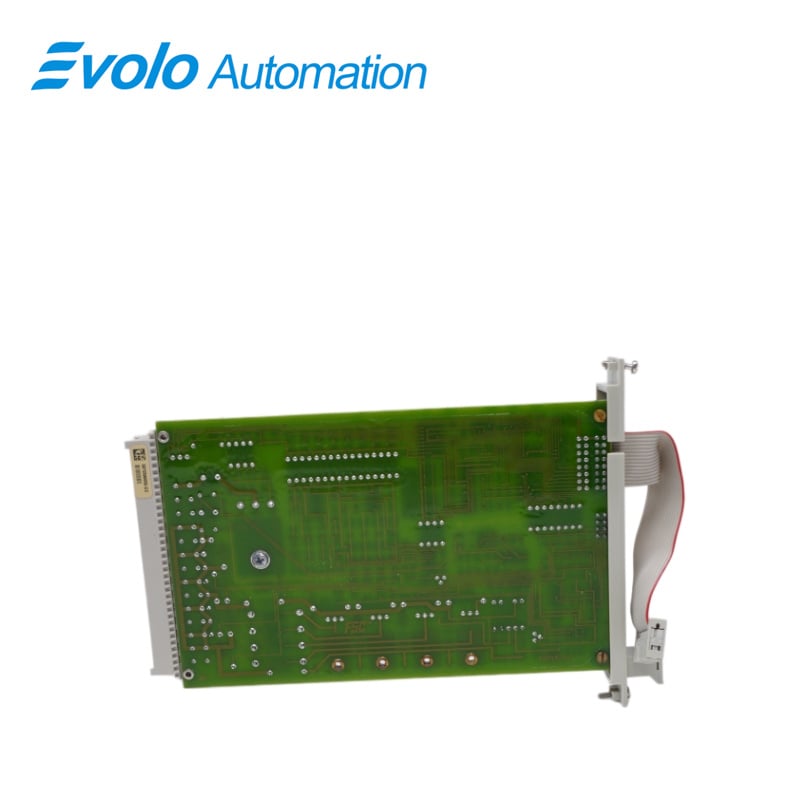

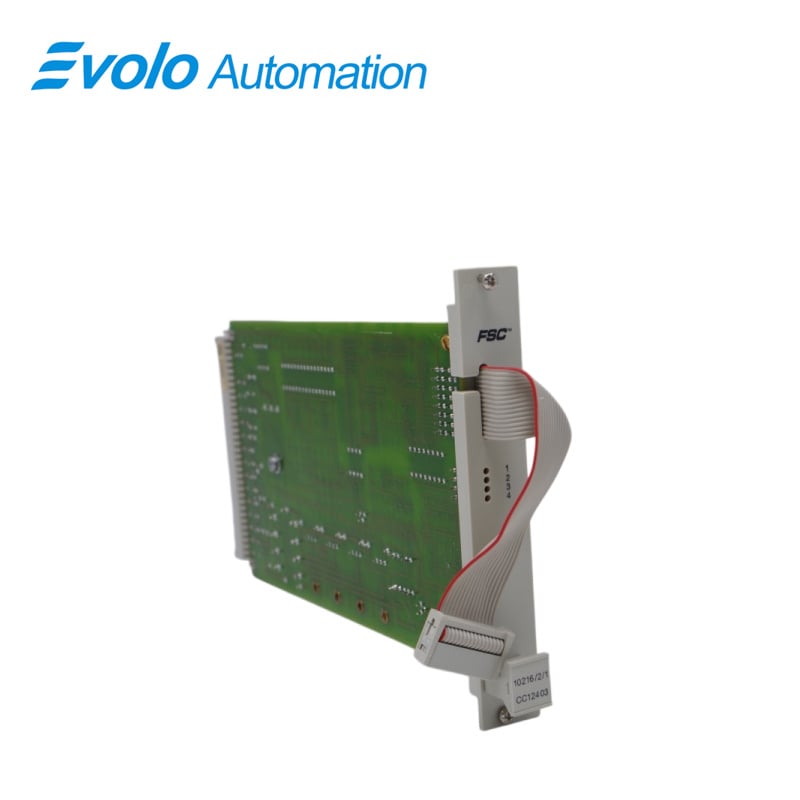

Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
10216/2/1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Description |
Specification |
|
Model |
10216/2/1 |
|
Part name |
Fail-safe loop-monitored digital output module |
|
Dimensions |
2.5x20.3x12.7cm |
|
Weight |
0.2 kg |
|
Approvals |
CE, TÜV, UL |
|
Software versions |
≥ 3.00 |
|
Space requirements |
4 TE, 3 HE (4 HP, 3U) |
|
Power requirements (5 V DC) |
15 mA |
|
Power requirements (24 V DC internal) |
50 mA |
|
Power requirements (24 V DC external) |
15 mA (without output load) |
|
Number of output channels |
4 |
|
Output specification |
24 V DC solid-state source, short-circuit proof |
|
Maximum channel current |
1 A |
|
Maximum total module load |
3.6 A (module dissipation limit) |
|
Maximum load inductance |
0.5 H |
|
Maximum load capacitance |
1 µF |
|
Overload detection threshold |
>10 Ω |
|
Cold resistance lamp |
>20 Ω |
|
Voltage drop |
<1.3 V at 1 A |
|
Off current |
<0.1 mA |
|
Current sense voltage drop |
<1 V at 1 A |
|
WDG input current |
4 mA |
|
Module code (key coding) |
Holes A13, C9 |
|
Rack code (key coding) |
Large pins A13, C9 |
Description
The 10216/2/1 is a fail-safe loop monitoring digital output module. This module not only transmits control commands to field devices but also senseS the wiring status from the module's output to the terminal actuator (such as solenoid valves and audible/visual alarms) in real time, automatically identifying potential faults such as short circuits, open circuits, or impedance anomalies.
Applications
Chemical plant: Drive reactor solenoid valves, using loop current monitoring to detect cable or coil faults.
Refinery: Control emergency shutdown valves in distillation units, supervising output circuits to prevent short-circuit failure.
LNG plant: Drive tank emergency vent valves, monitoring circuit integrity to avoid release failure.
Power plant: Control boiler fuel safety shut-off valves, checking actuator loops to ensure closure commands execute properly.
Test
The outputs are tested for:
ability to de-energize,
ability to de-energize via the secondary means,
crosstalk between outputs,
function of the suppression diodes,
lead breakage in the (external) output wiring, and
short circuit of the outputs.
FAQ
Q: For module 10216/2/1, how many output channels does it have and what is the single-channel current?
A: 4 channels, single-channel maximum current 1 A.
Q: What is the maximum total load current allowed for module 10216/2/1?
A: Maximum total load 3.6 A (limited by module power dissipation).
Q: What is the voltage drop of module 10216/2/1 at 1 A current?
A: Voltage drop < 1.3 V, current sensing drop < 1 V.
Q: What are the maximum load inductance and capacitance allowed for module 10216/2/1?
A: Maximum inductance 0.5 H, maximum capacitance 1 µF.
Q: What is the anti-misplug coding and rack mounting size of module 10216/2/1?
A: Coding A13 and C9, occupying 4 HP, 3U space.
