330101-00-77-20-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-77-20-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

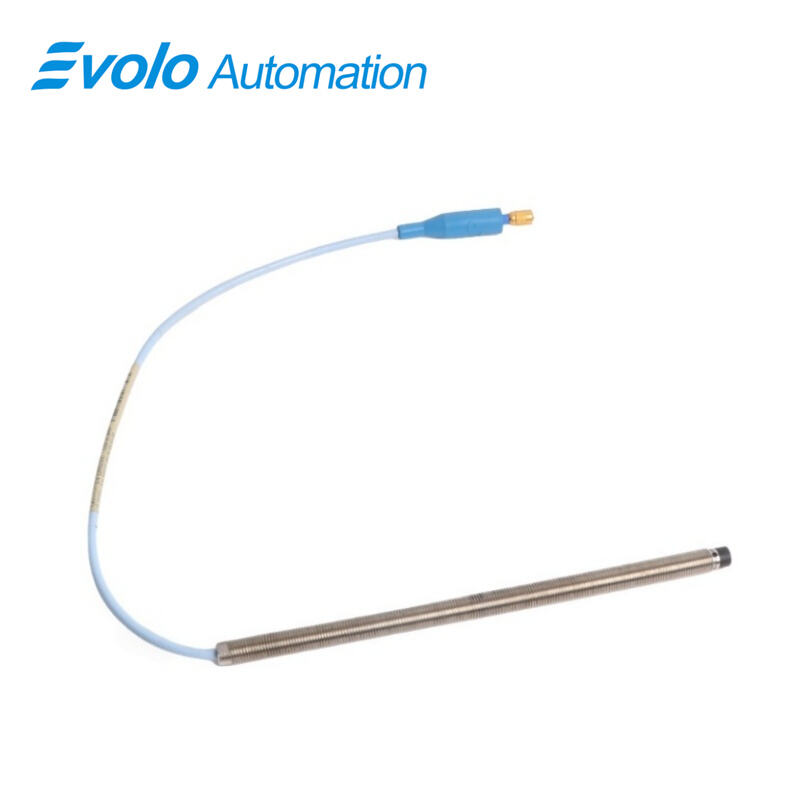

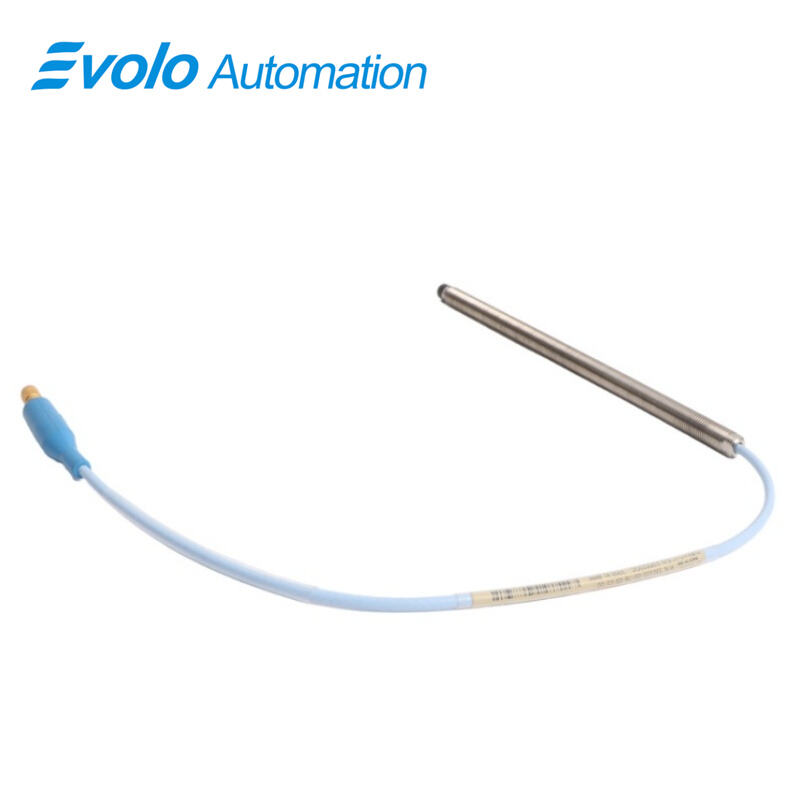

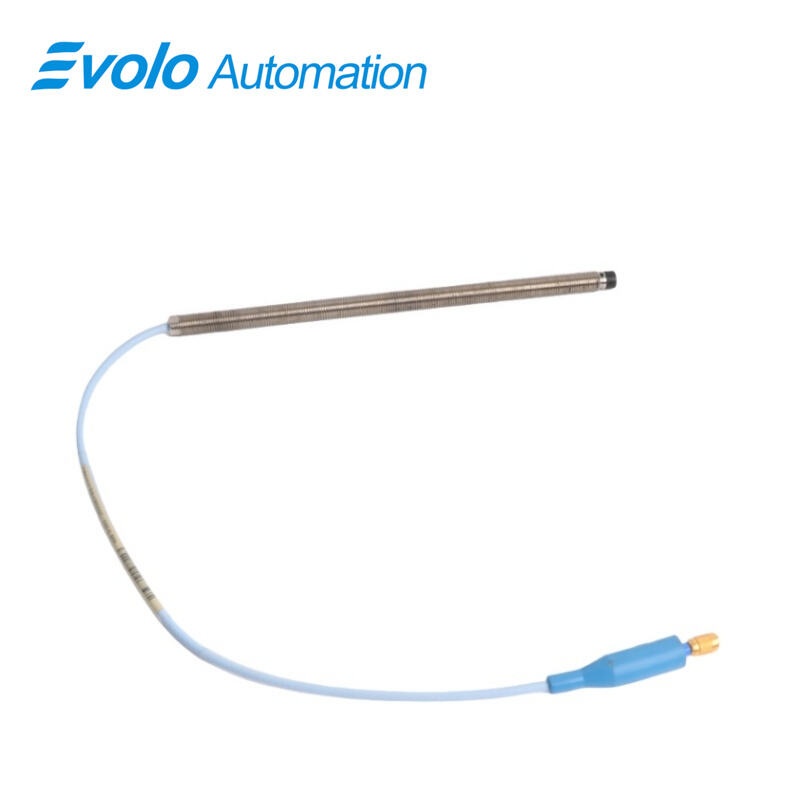

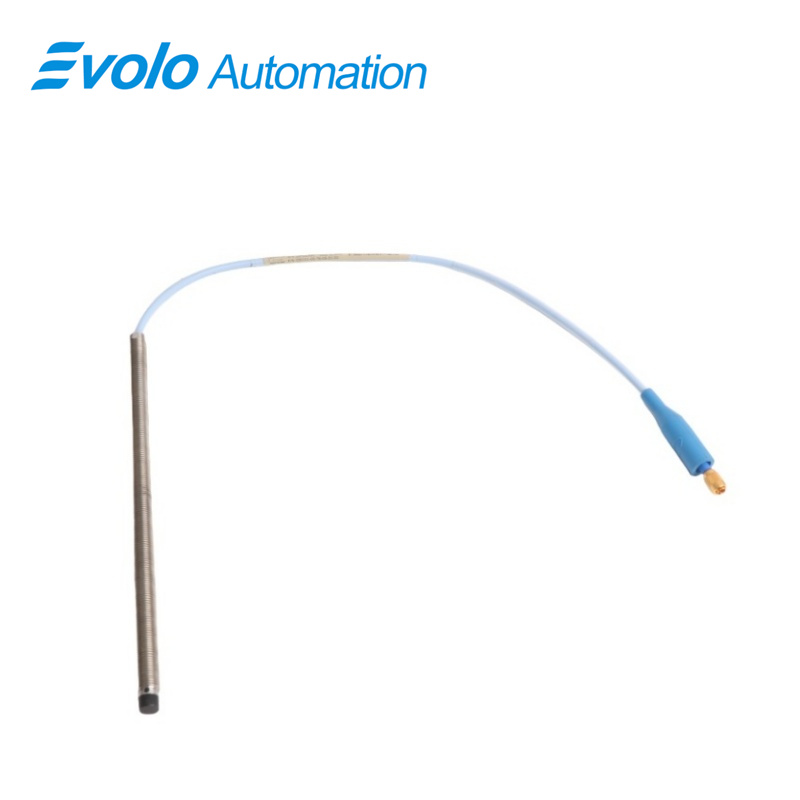

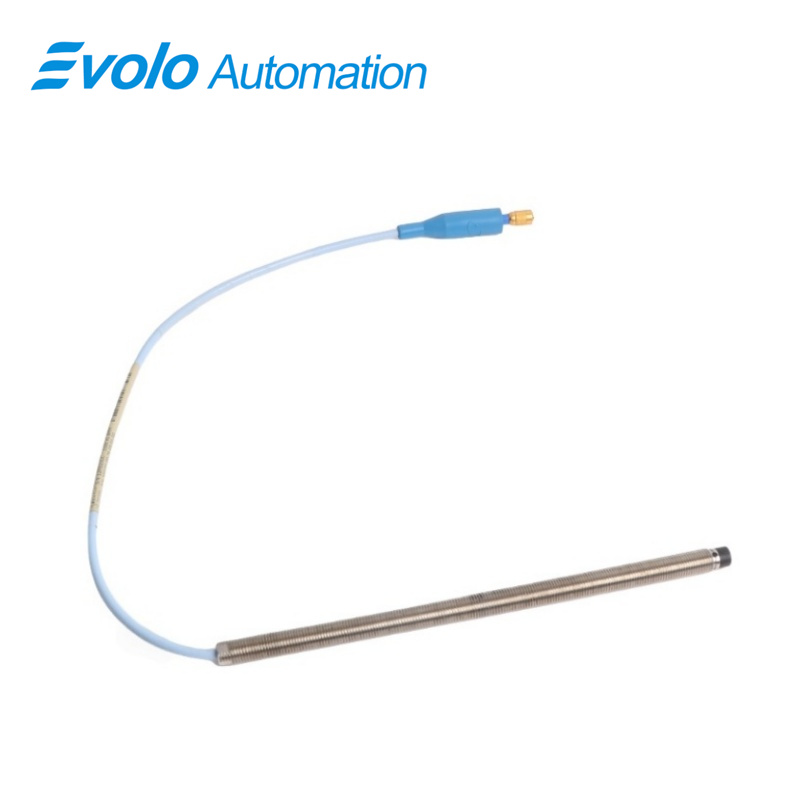

The 330101-00-77-20-02-00 3300 XL 8 mm Proximity Probe is a precision eddy-current transducer designed for advanced industrial automation and condition monitoring systems. It delivers an output voltage directly proportional to the distance between the probe tip and the conductive target surface, allowing accurate static position and dynamic vibration measurements. With an overall case length of 7.7 inches and a 2.0-meter miniature coaxial ClickLoc cable, this probe ensures secure connectivity and robust performance in high-speed rotating machinery and automated monitoring systems.

The 3300 XL 8 mm probe operates reliably across extreme temperatures from -52°C to +177°C (-62°F to +350°F). It features a linear measurement range of 2 mm (80 mils), output resistance of 50 Ω, and supply sensitivity below 2 mV per volt, providing high-fidelity readings under fluctuating industrial power conditions. Enhanced structural integrity is achieved through TipLoc molding for a secure probe tip bond and CableLoc design delivering 330 N (75 lbf) pull strength. Optional FluidLoc cable protection prevents oil or other liquids from leaking through the probe, supporting safe and reliable automated operations. The probe is fully compatible with other 3300 series probes, extension cables, and Proximitor sensors, enabling fast replacement and maintenance without recalibration in automated systems.

Applications

1. High-Speed Turbine Vibration Monitoring
Monitors radial and axial vibrations in turbines with high precision, enabling automated predictive maintenance to reduce unscheduled downtime.

2. Automated Compressor Shaft Positioning
Measures shaft displacement in compressors with 2 mm linear range, allowing precise automated control and alignment verification.

3. Keyphasor Reference for Rotational Speed
Provides accurate phase reference signals for automated speed measurement and vibration analysis in industrial machinery.

4. Extreme Temperature Process Control
Maintains consistent operation between -52°C and +177°C, suitable for automated monitoring in petrochemical, power generation, and high-temperature industrial processes.

5. Maintenance-Free Probe Replacement
Supports rapid probe and extension cable replacement in automated systems without the need for recalibration, improving overall efficiency.

Specifications

Competitive Advantage

1. High Measurement Accuracy
Linear range of 2 mm with supply sensitivity below 2 mV/V, ensuring reliable static and dynamic measurement for automated systems.

2. Structural Integrity and Durability
TipLoc and CableLoc designs provide superior bond strength and cable pull resistance (330 N / 75 lbf) to withstand high-vibration industrial conditions.

3. Fluid Protection for Industrial Safety
Optional FluidLoc feature prevents liquid leaks from the machine, protecting automated control systems from contamination.

4. Full Interchangeability
Backward compatible with all 3300 XL and standard 3300 series components, facilitating automated maintenance and quick component swaps.

5. Industry Compliance
Meets API 670 standards for linearity, mechanical robustness, and temperature stability, ensuring dependable performance in automated and high-reliability applications.
