Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
10014/F/F |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Description |
Specification |
|
Model |
10014/F/F |
|
Part name |
Dual-Port Communication Module |
|
Dimensions |
4x18.5x12.8cm |
|
Weight |
0.36 kg |
|
Number of ports |
2 |
|
Communication ports |
Two independent ports (Port A and Port B) |
|
Supported protocols |
Modbus RTU, ASCII, RS-485, CANopen |
|
Configuration options |
Customizable baud rate, parity, stop bits, flow control |
|
Operating temperature range |
-25°C to +60°C |
|
Power requirements |
5 V DC 35 mA; 24 V DC 35 mA |
|
Certification |
CE |
Description

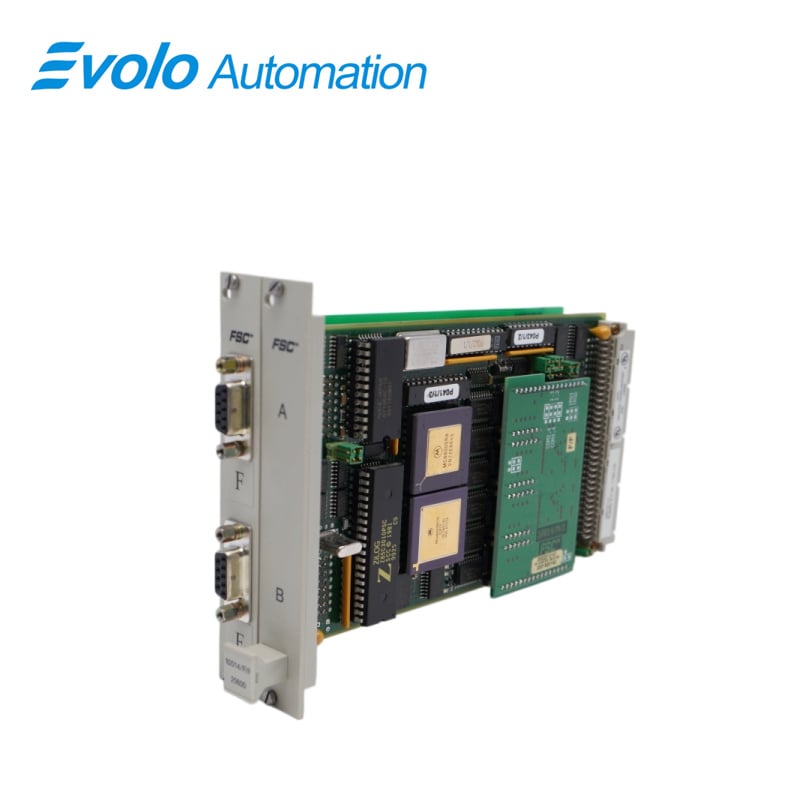

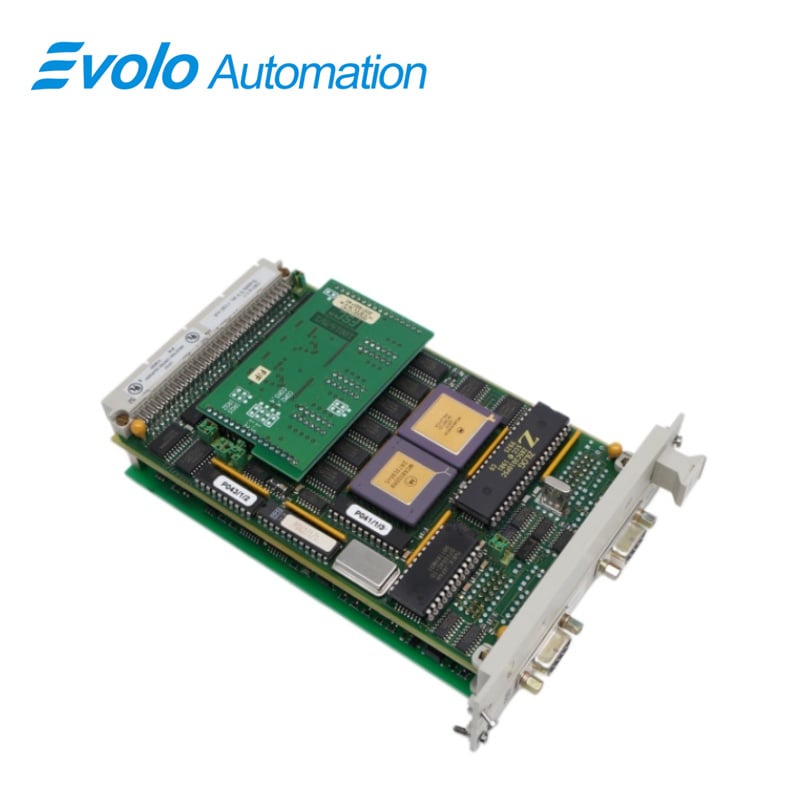

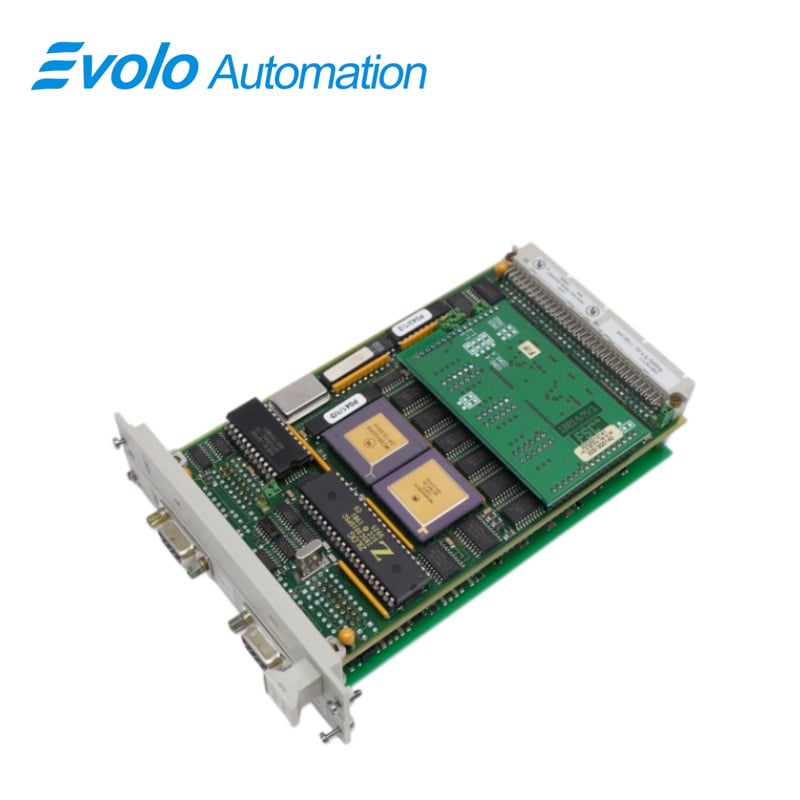

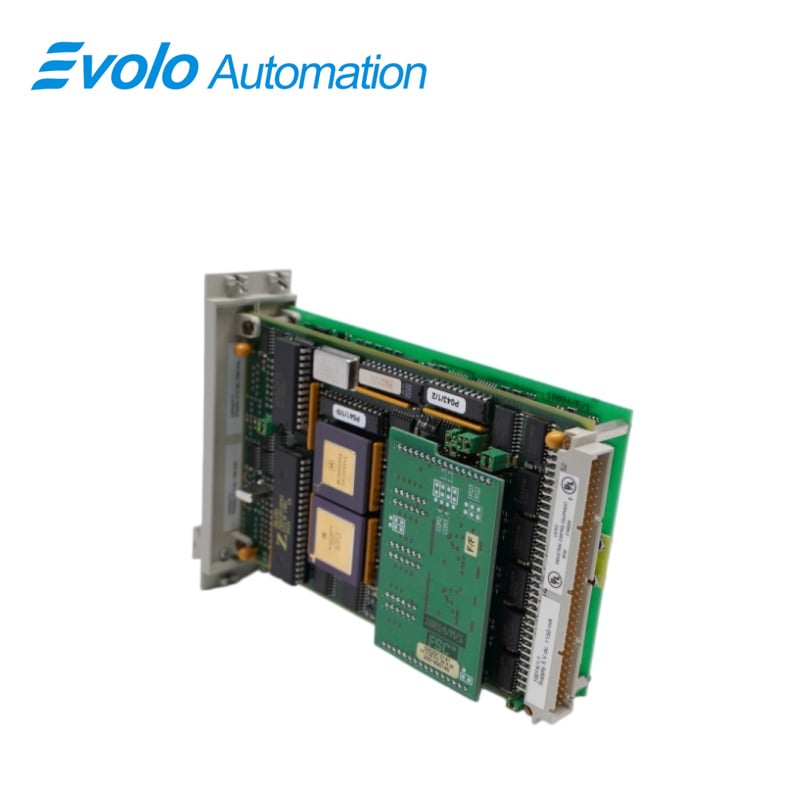

10014/F/F is a Dual-Port Communication Module. The module is configured with two independent physical communication ports. It connects different network nodes, bidirectionally distributing production data between the controller, field instruments, and operator workstations, enabling peer-to-peer data exchange between various hardware units.
Applications
Chemical plants: Reactor temperature link and valve command transfer.
Refineries: Distillation pressure and flow data synchronization.
Power plants: Generator status and steam parameter exchange.
Steel plants: Blast furnace temperature signals and rolling speed network.
Cement plants: Kiln control connection and grinding machine status data.
Features
Dual-Port Configuration: With two independent communication ports (Port A and Port B), the module enhances data throughput and system connectivity.
Customizable Communication Settings: Adjust settings for baud rate, parity, stop bits, and flow control to meet the needs of different systems.
Ruggedized Design: The module is engineered to handle industrial shock and vibration. It performs reliably in extreme temperatures, meeting stringent industrial standards.
Environmental Versatility: Designed for a wide range of environments, including manufacturing facilities, outdoor installations, and transportation applications.
FAQ
Q: How many ports does the 10014/F/F dual-port communication module have and how does it operate?
A: It has 2 ports, consisting of two fully independent A and B ports.
Q: Which industrial communication protocols does the 10014/F/F module support?
A: Supports Modbus RTU, ASCII, RS-485, and CANopen.
Q: Which serial configuration parameters can be customized on the 10014/F/F module?
A: Baud rate, parity bit, stop bit, and flow control can be customized.
Q: What are the power supply requirements for the 10014/F/F module?
A: 5 V DC 35 mA and 24 V DC 35 mA.
Q: What operating temperature range can the 10014/F/F withstand?
A: Operating temperature range is -25°C to +60°C.
