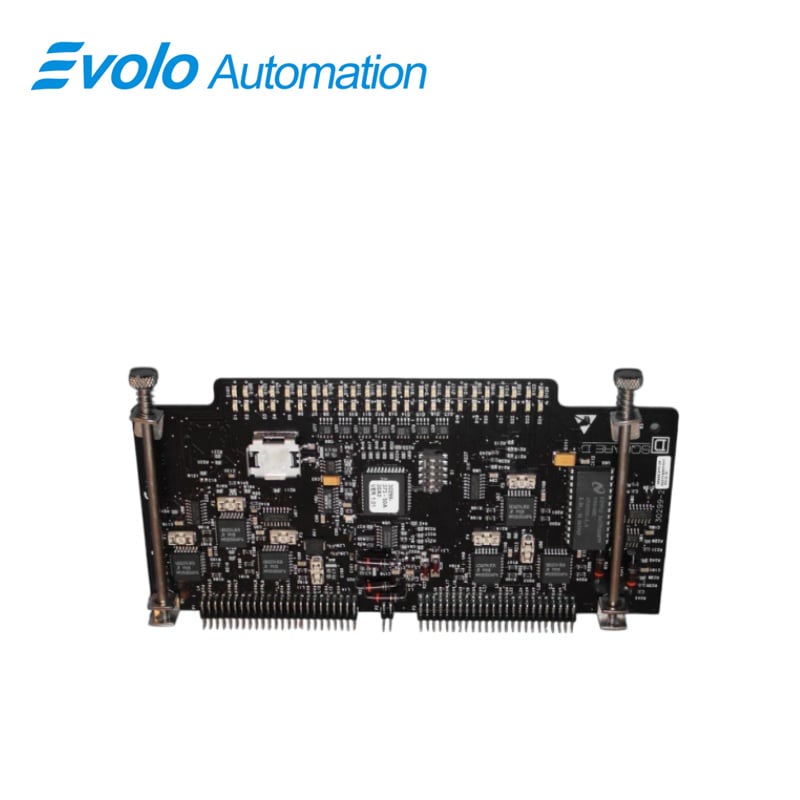

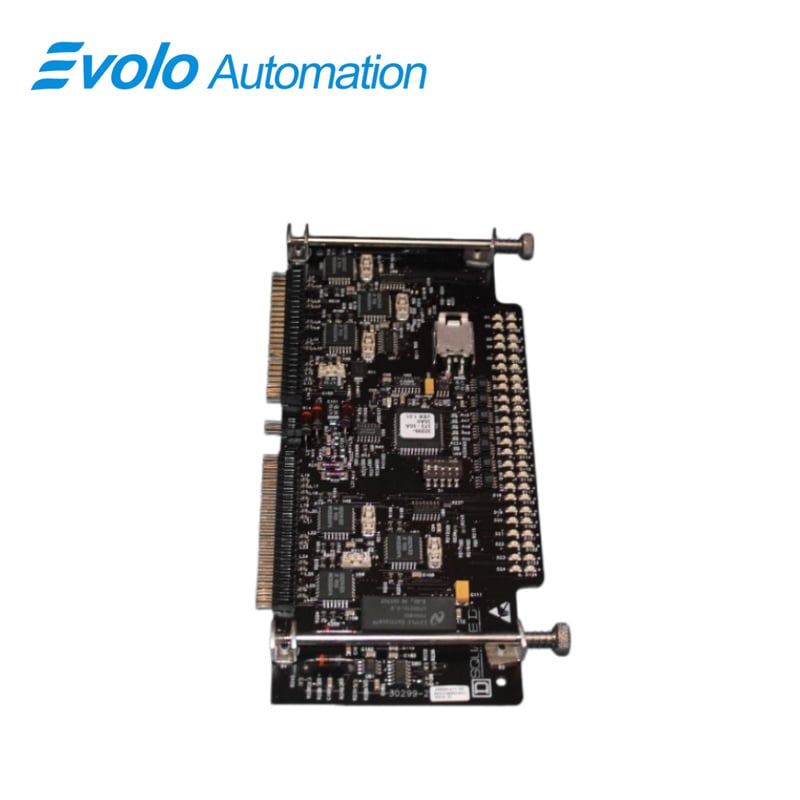

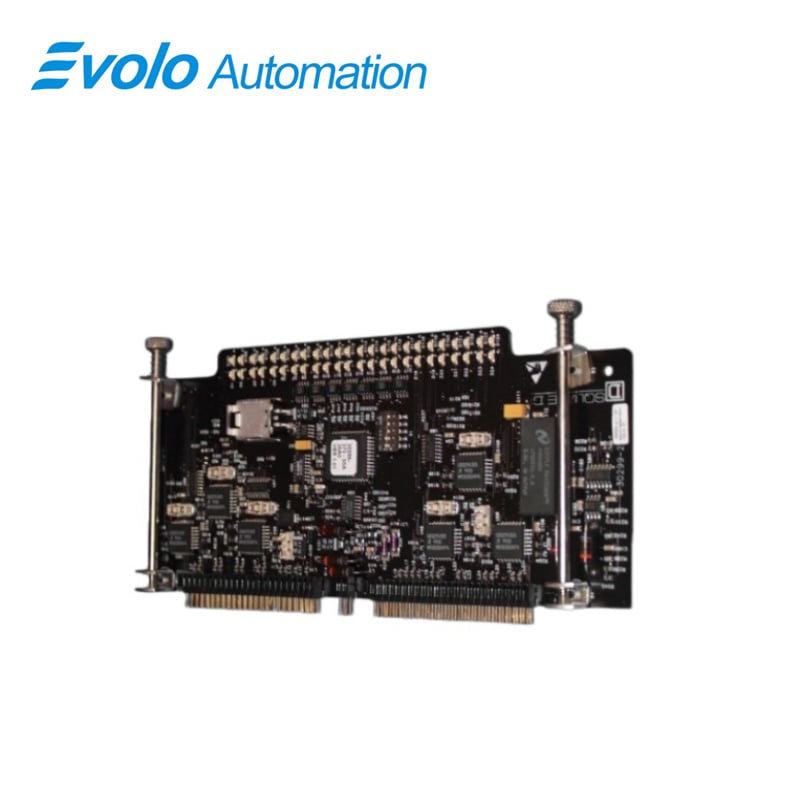

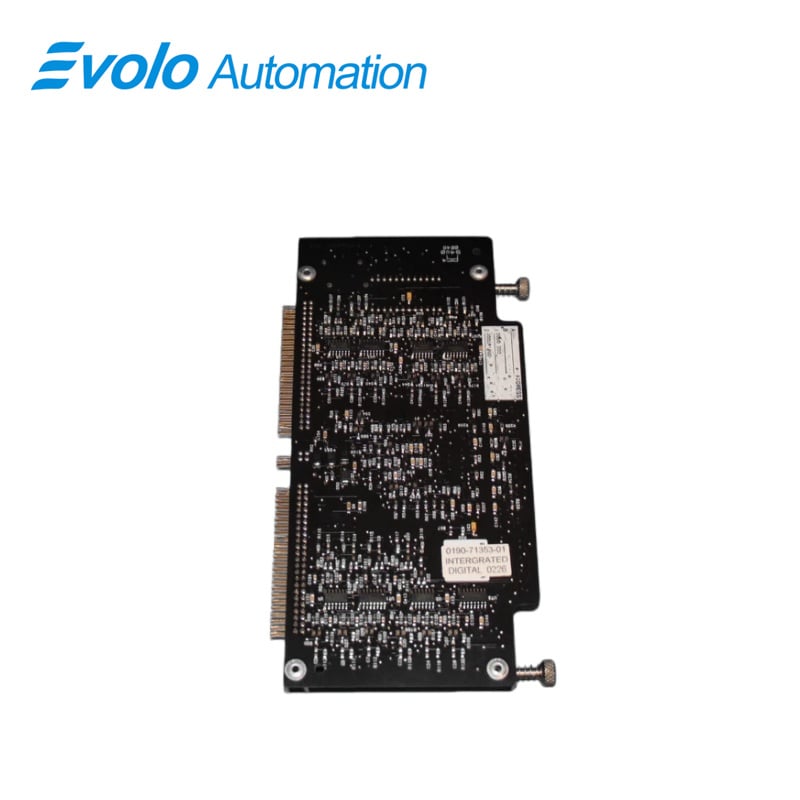

0190-713 Integrated digital board

Overview

Place of Origin:	USA
Brand Name:	AMAT
Model Number:	0190-713
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 0190-713 Integrated Digital Board is a high-performance automation module designed for precise digital control and signal processing. Operating at +5 VDC / +12 VDC with power consumption ≤ 5 W, the 0190-713 supports TTL/CMOS logic levels and digital input frequencies ≥ 100 kHz. Each channel delivers ≥ 8 mA output drive, and software/logic isolation ensures reliable signal management. The 0190-713 board fits standard PCB slots with lightweight construction (50–150 g) and operates in temperatures from 0 °C to 55 °C, with storage up to -20 °C to 85 °C. Humidity tolerance ranges 10–90 % RH (non-condensing), and mounting is via plug-in backplane or screw installation. With integrated digital I/O and fast signal processing, the 0190-713 board delivers precise automation control for industrial systems, enabling real-time process monitoring and multi-channel digital operations. This module ensures consistent operation in automation workflows while maintaining compact dimensions and low power requirements.

Applications

Application 1: Multi-Channel Digital Signal Control
Use the 0190-713 board to read and control multiple digital input and output channels simultaneously. The high-speed input frequency ≥ 100 kHz allows precise timing for automated machinery operations.
Application 2: Real-Time Process Monitoring
Integrate the 0190-713 into industrial automation systems to monitor digital signals in real time. Each channel’s ≥ 8 mA output ensures accurate signal transmission for process triggers.
Application 3: PLC and Backplane Integration
The 0190-713 connects to standard PCB slots and backplanes, enabling fast signal exchange with PLCs or main controllers. Plug-in or screw mounting simplifies installation and maintenance.
Application 4: Digital Automation Modules
Deploy the 0190-713 as part of a modular automation setup for assembly lines, robotics, or process control, where multiple digital I/O modules must operate synchronously.

Specifications

Competitive Advantage

Competitive Advantage 1: High-Speed Digital Performance
The 0190-713 supports input frequencies ≥ 100 kHz, ensuring rapid digital signal processing for automated operations without delays.
Competitive Advantage 2: Low Power Consumption
With ≤ 5 W power usage, the 0190-713 reduces energy requirements while maintaining full functionality for multi-channel digital operations.
Competitive Advantage 3: Flexible Installation
The board mounts via plug-in backplane or screws, allowing easy replacement or expansion in industrial automation setups.
Competitive Advantage 4: Wide Environmental Range
Operating from 0 °C to 55 °C and storage from -20 °C to 85 °C, the 0190-713 can be deployed in diverse industrial environments without additional cooling or heating systems.

FAQ

Is seriplex 0190-713 brand new or refurbished?

seriplex 0190-713 is brand new and come with a one-year warranty.

How long will it take for the seriplex 0190-713 to arrive after I place an order?

Once payment is confirmed, we ship immediately. Delivery typically takes 3-5 days from China to your location.

Do you offer any discounts?

Yes! For discounts on seriplex 0190-713, please contact John for the best offer.

Do you have it in stock?

Yes, right now we have seriplex 0190-713 in stock ready for shipment, we can support video inspection.

Do you provide warranty as standard?

We provide a full 12-month warranty for the seriplex 0190-713. So, if you have any problems within 12 months from the date of delivery, then you can contact our Team who will be happy to help and explain what your next steps should be.
