Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
TC-IXR061 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Model |
TC-IXR061 |
|
Product Type |
Experion Analog Input Module |
|
Number of Points |
6 galvanically isolated channels |
|
Signal Input Ranges |
1–487 Ω; 2–1000 Ω; 4–2000 Ω; 8–4020 Ω |
|
Sensors Supported |
Resistance sensors: Pt (100/200/500/1000 Ω, α=0.00385 & 0.003916); Ni (120 Ω α=0.00672; 100/120/200/500 Ω α=0.00618); Cu 10 Ω |
|
Resolution |
16 bits across each input range |
|
Resolution Detail |
7.7 mΩ/bit (low ranges); 15 mΩ/bit; 30 mΩ/bit; 60 mΩ/bit depending on range |
|
Accuracy |
±0.1% FS @ 25°C |
|
Module Update Rate |
50 ms (all channels) |
|
Settling Time (<5%) |
<80 ms |
|
Open Wire Detection Time |
<5 seconds |
|
Common Mode Rejection |
120 dB @ 60 Hz; 100 dB @ 50 Hz |
|
Channel Bandwidth |
DC to 15 Hz (-3 dB) |
|
Normal Mode Noise Rejection |
60 dB @ 60 Hz |
|
RFI Immunity |
Error <2.0% FS at 10 V/m (27–1000 MHz) |
|
Input Offset Drift |
10 mΩ/°C typical |
|
Gain Drift |
50 ppm/°C typical |
|
Power Dissipation |
4.3 W max |
|
Isolation Voltage (Channel to Channel) |
2546 VDC for 1 second (100% tested) |
|
Isolation Voltage (User to System) |
2546 VDC for 1 second (100% tested) |
|
Terminal Block |
TC-TBNH, 20-position |
Description

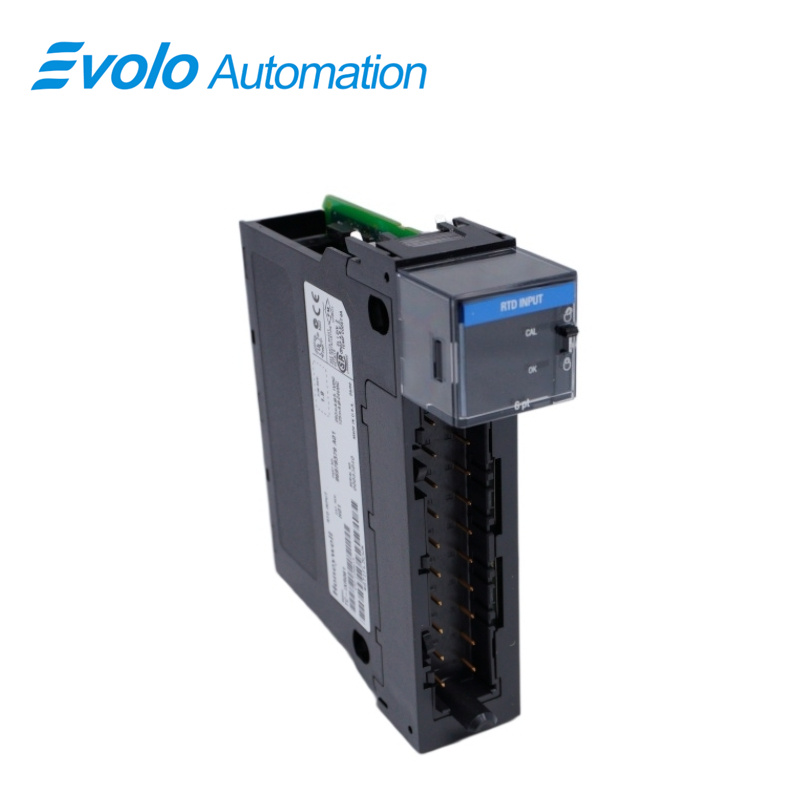

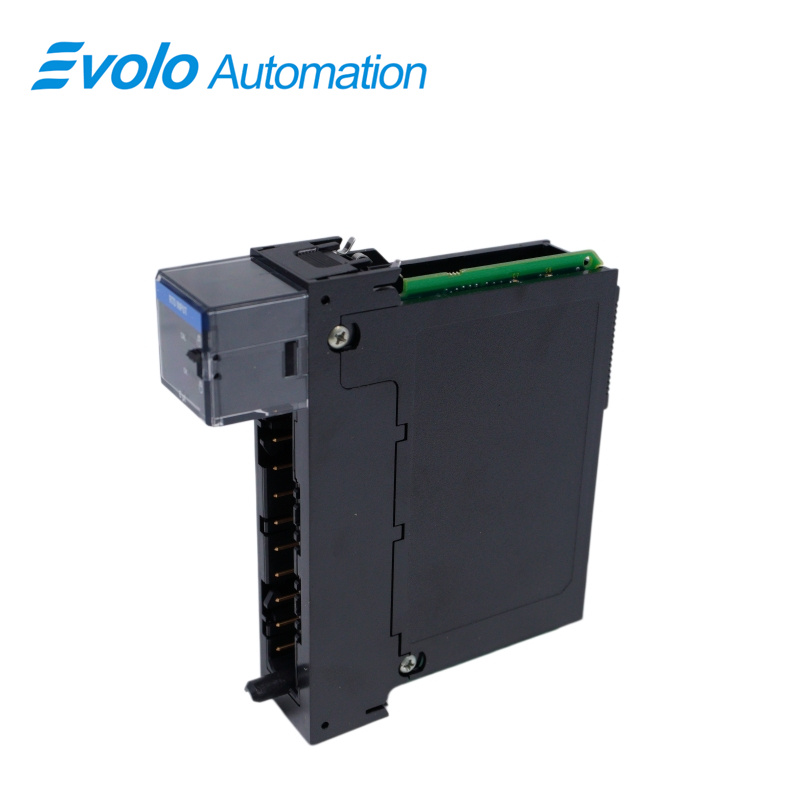

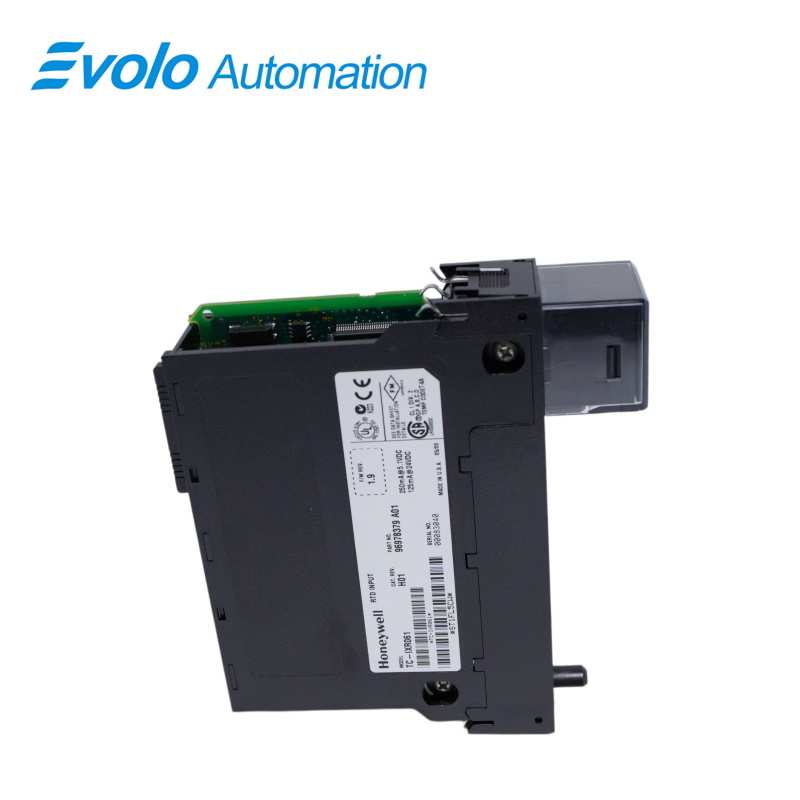

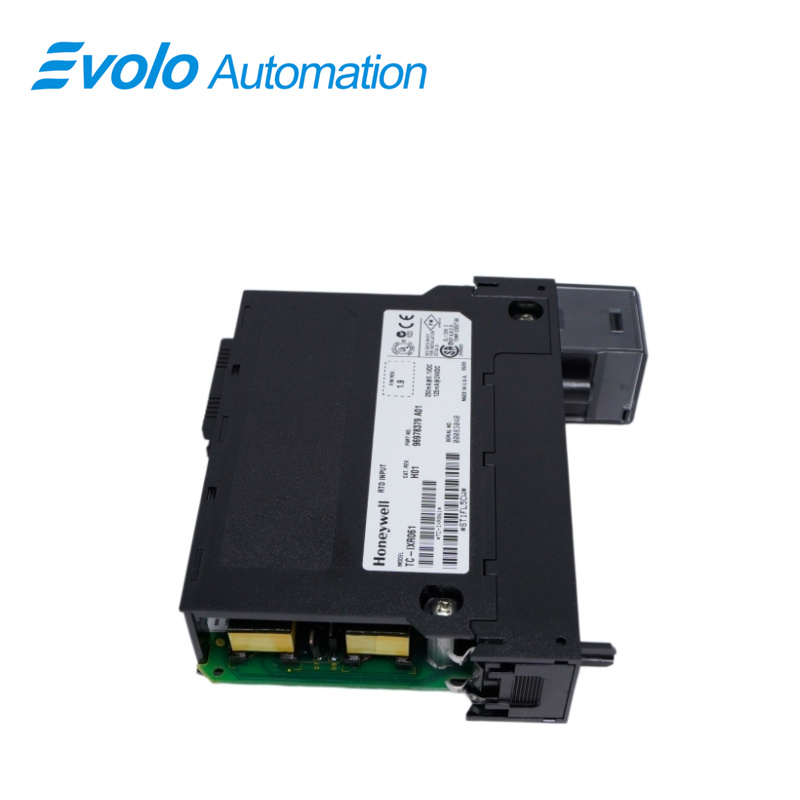

The TC-IXR061 is a high-precision 6-channel Experion analog input module used for advanced temperature and resistance measurement applications in industrial process control systems. It provides fully isolated input channels that support a wide range of RTD sensor types, including platinum, nickel, and copper resistance temperature detectors, as well as standard resistance-based sensing devices.
Applications
Refineries: Monitor temperature and pressure in refining processes.
Chemical Plants: Control flow and temperature in reactors.
Power Plants: Monitor boiler water level and turbine parameters.
Paper Mills: Regulate pulp concentration and drying systems.
Steel Mills: Monitor blast furnace and cooling water systems.
Troubleshooting
“Out of range” or sudden jumps: Usually caused by loose or broken sensor wiring. Check RTD wiring and terminal connections; module will detect open circuit quickly.
Periodic fluctuation with power equipment: Verify single-point grounding of shielded cable. If interference is strong, improve shielding or separate from high-voltage drives.
Fixed measurement offset: Confirm correct RTD type configuration and check long cable lead resistance; apply system compensation if needed.
FAQ
Q: How many isolated channels does TC-IXR061 have?
A: It has 6 electrically isolated channels.
Q: What is the resolution of TC-IXR061 across all input ranges?
A: The resolution is 16 bits.
Q: What is the module update rate of TC-IXR061 for all channels?
A: The module update rate is 50 ms.
Q: What is the wire-break detection time of TC-IXR061?
A: The wire-break detection time is less than 5 seconds.
Q: What is the maximum power consumption of TC-IXR061?
A: The maximum power consumption is 4.3 W.
