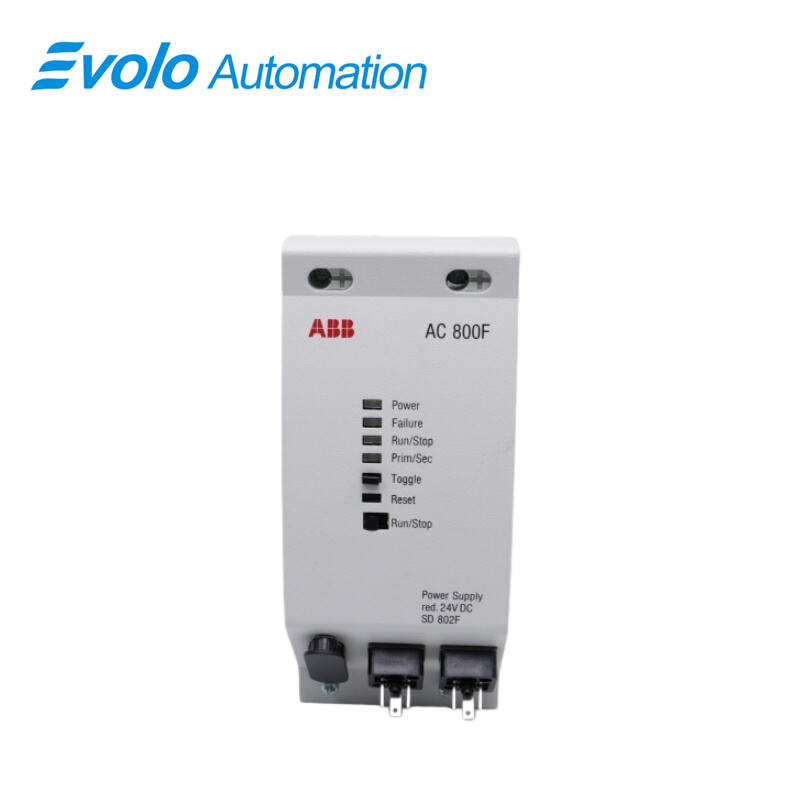

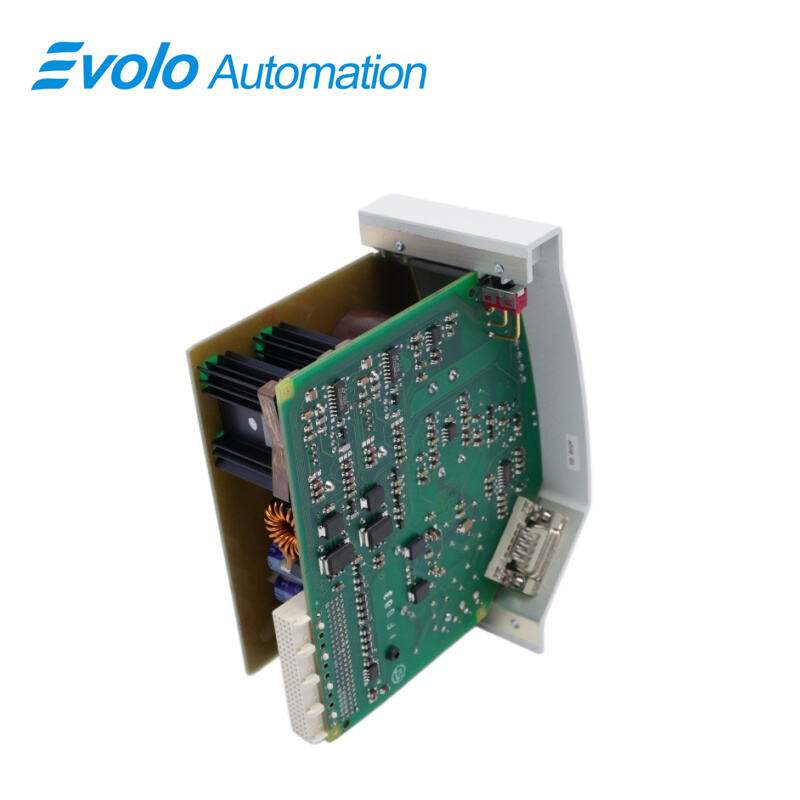

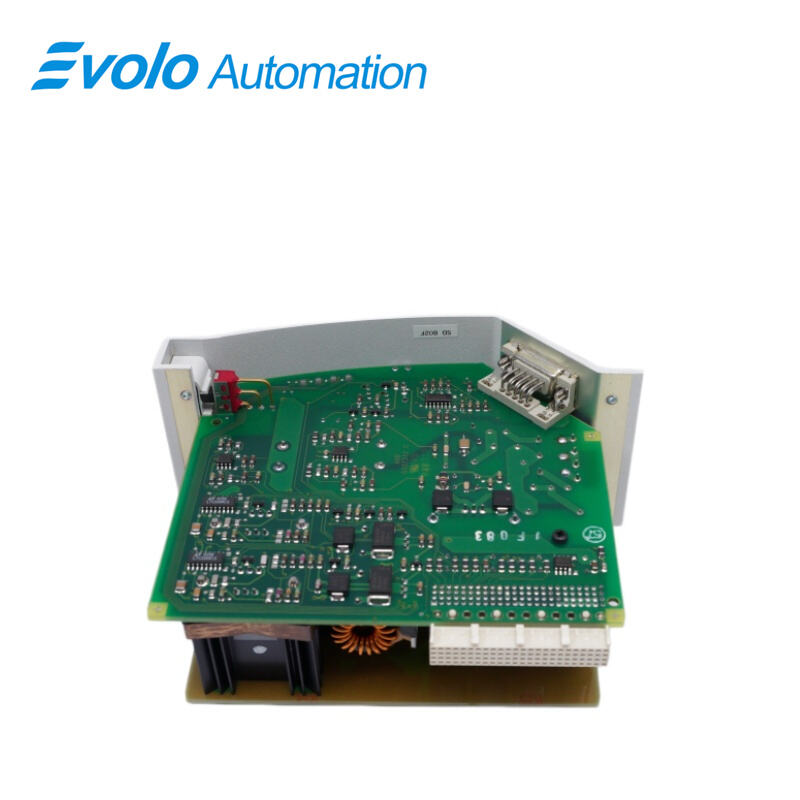

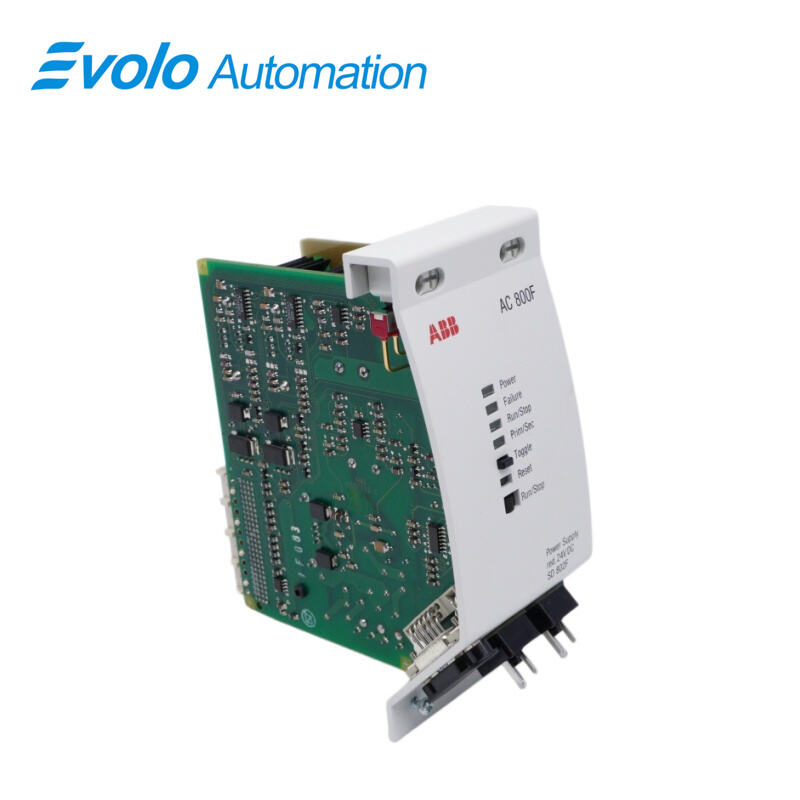

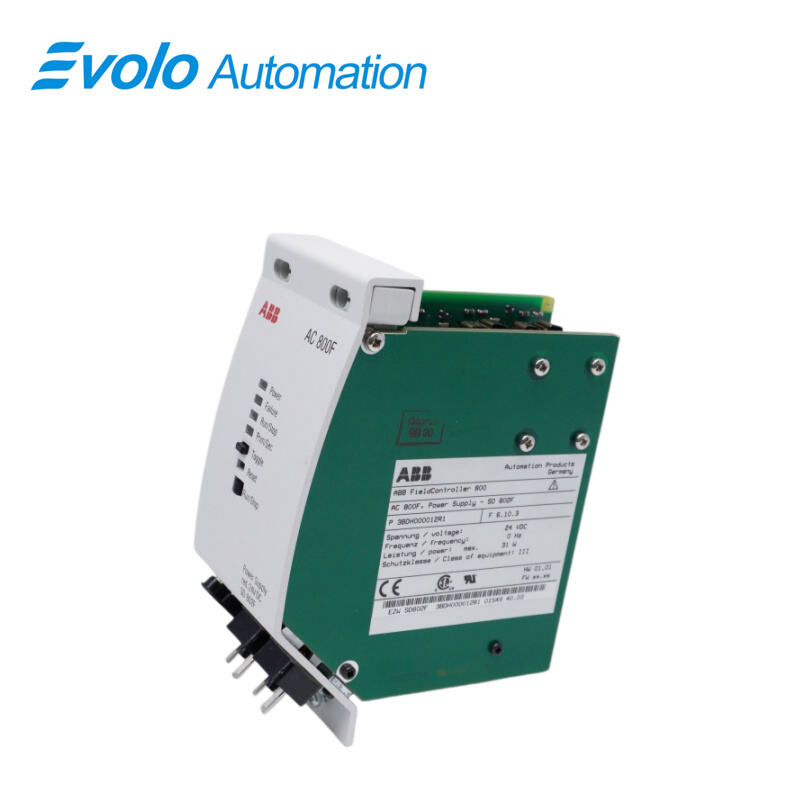

SD802F 3BDH000012R1 Power Supply

Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	SD802F 3BDH000012R1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

The ABB SD802F 3BDH000012R1 is a critical power supply module in the Freelance AC 800F distributed control system. This module is specifically designed to provide reliable 24V DC power to the AC 800F controller and its fieldbus communication module. Its redundant design allows for parallel configuration to ensure uninterrupted system operation in the event of mains power failure, significantly improving the continuity and safety of industrial process control.

Applications

Oil and Gas Plants: Distributed power supply for wellhead control and oil pipelines.

Chemical Processing Plants: Provides redundant power for distillation towers and reactor control systems.

Power Plants: Monitors key controllers in generator sets and substation automation systems.

Water Treatment Plants: Integrates signal acquisition and feedback in pumping stations and water treatment processes.

Food Packaging Plants: Supports switch input/output processing for production line control, packaging machinery, and palletizing systems.

Features

Redundancy: Provides backup power to ensure continuous operation during a primary power failure.

High Efficiency: Operates at 906 efficiency, minimizing energy usage and heat output.

Wide Input Voltage Range: Suitable for a broad range of input voltages, enhancing

compatibility with different industrial systems.

Compact Design: Space-efficient for easy installation within control cabinets.

Robust Construction: Engineered to perform reliably in demanding industrial environments.

FAQ

Q: Does the SD802F 3BDH000012R1 include a built-in CPU?
A: No. It is a pure power/interface module and requires the AC 800F main controller.

Q: Can the SD802F 3BDH000012R1 operate in a 110V DC environment?
A: Yes, its input supports a wide voltage range of 110-300V DC.

Q: How can I check the operating status of the SD802F 3BDH000012R1 power module?
A: The module panel is equipped with LED indicators that display the operating status and power failure warnings in real time.

Q: Can the SD802F 3BDH000012R1 be mounted on a DIN rail?
A: Yes, it is designed to support standard DIN rail mounting or specific frame mounting.

Q: Can the SD802F 3BDH000012R1 be used if a 5A current output is required?
A: A single SD802F has a nominal output of 2A. For higher requirements, please consult ABB to see if parallel expansion is supported or to select a higher power model.
