Overview
Place of Origin: |
Sweden |
Brand Name: |
ABB |
Model Number: |
SB512 3BSE002098R1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Model |
SB512 3BSE002098R1 |
|
Product Type |
Power Supply Module |
|
Input Voltage |
110/230 V AC or DC |
|
Output Voltage |
19–25 V DC (adjustable / field power) |
|
Output Current |
Max 1 A (up to 2 A in specific configurations) |
|
Rated Power |
20–25 W |
|
Weight |
0.85 kg |
|
Operating Temperature Range |
+5°C to +55°C (standard) / -25°C to +70°C (extended) |
Description

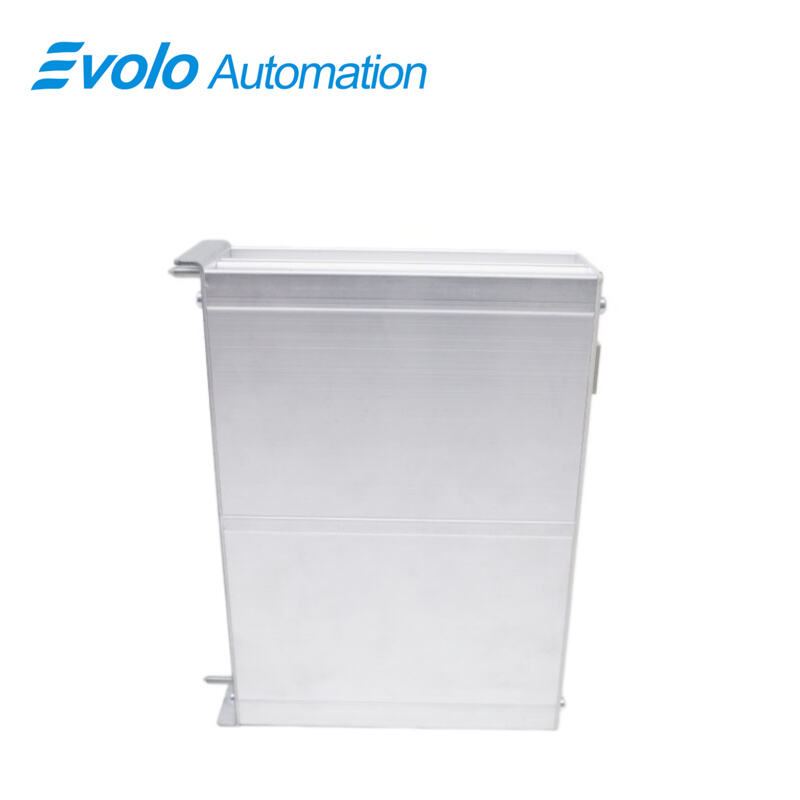

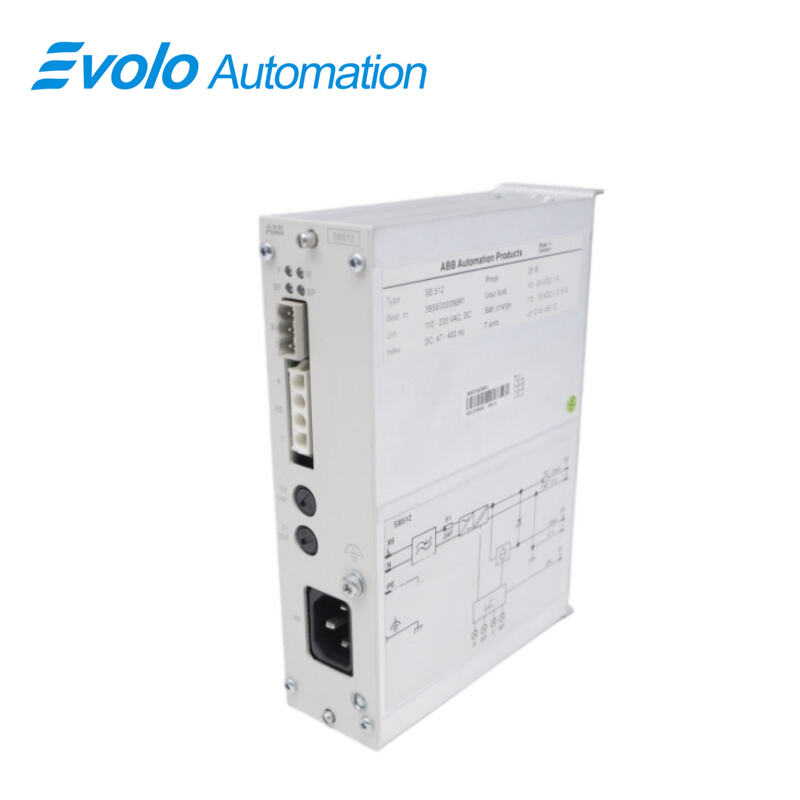

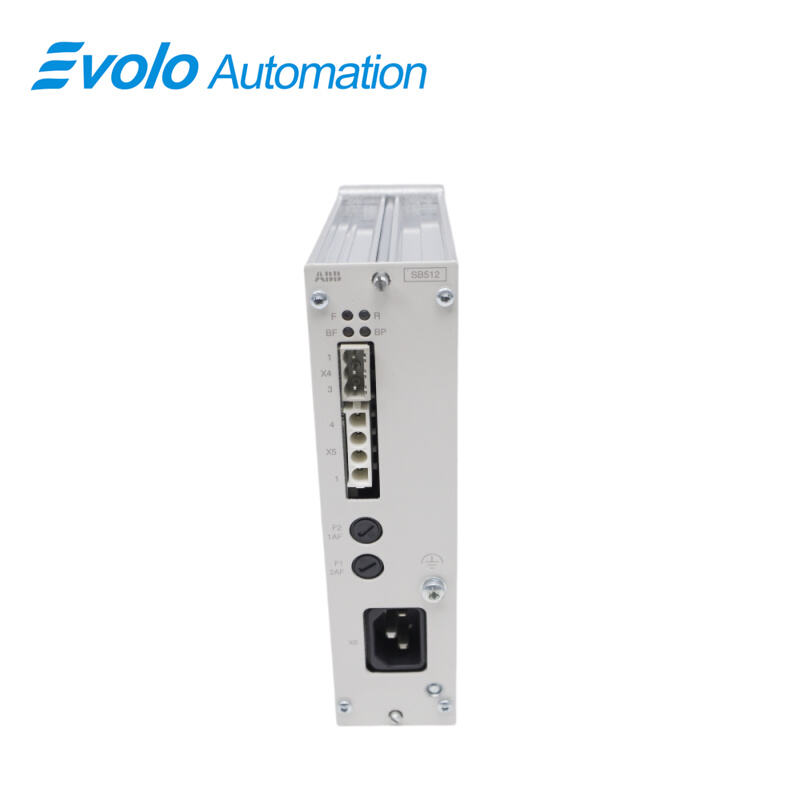

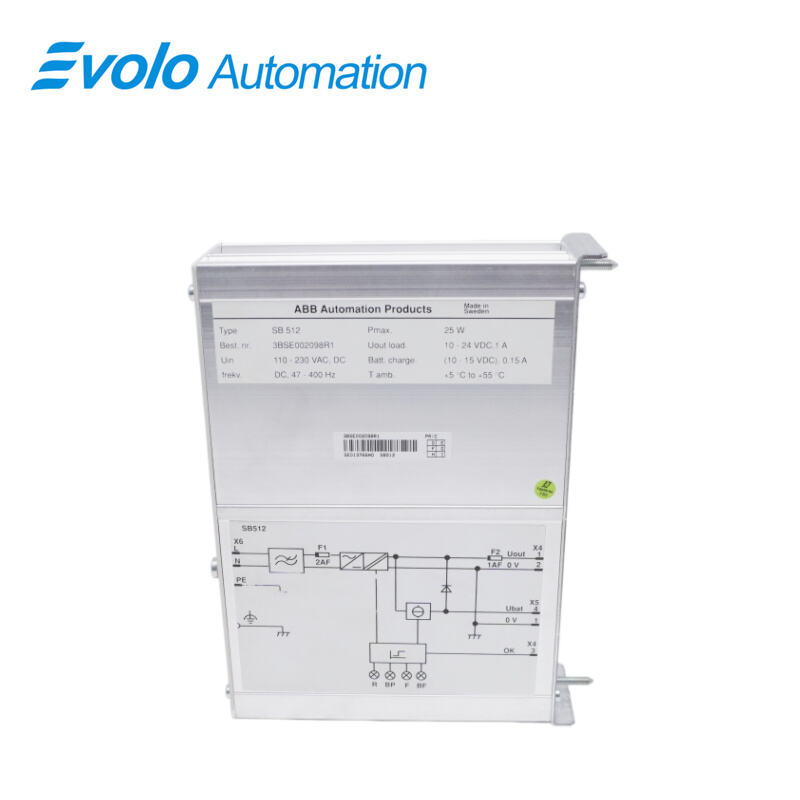

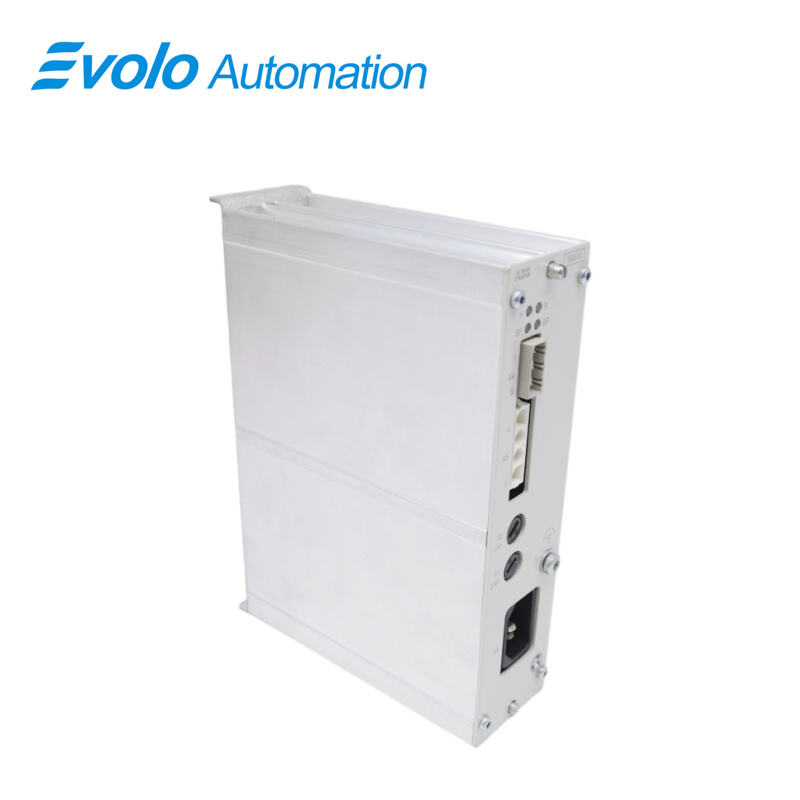

The ABB SB512 3BSE002098R1 is a high-reliability power supply module designed specifically for the Advant Controller 400 series and Advant OCS systems. This module supports 110/230 V AC/DC input and provides stable power to components in the Advant Fieldbus 100 (AF100) network, ensuring the security of communication links and the continuity of data transmission in industrial automation systems.
Applications
Petrochemical refining and chemical production plants: Ensure stable communication of the Advant fieldbus in the DCS system.
Pulp and paper mills: Provide distributed I/O power for large paper machine drive control systems.
Power generation plants: Ensure data communication between the controller and the host computer in the control system.
Faults and Maintenance
If the TC625 modem malfunctions, check if the output voltage is between 19-25V. Preventative maintenance is recommended within its 5-10 year lifespan, depending on the aging of electronic components, and regular checks of the heat dissipation around the mounting board are also advised.
Competitive Advantage
This module typically achieves a conversion efficiency exceeding 85%, is custom-designed for the Advant OCS architecture, seamlessly interfaces with the CI526 interface board, and supports low-temperature storage down to -40°C.
FAQ
Q: What is SB512 3BSE002098R1 SB512 3BSE002098R1 primarily used to power?
A: It is primarily used to provide field power to TC625, TC512, or TC516 modems in the Advant Fieldbus 100 network.
Q: If I need 2A of current, can SB512 3BSE002098R1 SB512 3BSE002098R1 support it?
A: The standard output of this module is 1A, but in specific parallel or special system configurations, the peak output can reach 2A.
Q: Can SB512 3BSE002098R1 SB512 3BSE002098R1 operate in extremely cold environments?
A: Yes, its extended operating temperature limit is -25°C.
Q: Does SB512 3BSE002098R1 SB512 3BSE002098R1 have self-protection functions?
A: Yes, it has built-in automatic protection mechanisms for overload and short circuits.
Q: Are there any requirements for the input voltage during installation of SB512 3BSE002098R1 SB512 3BSE002098R1?
A: It is very flexible and can be connected to 110V or 230V AC or DC power supplies.
