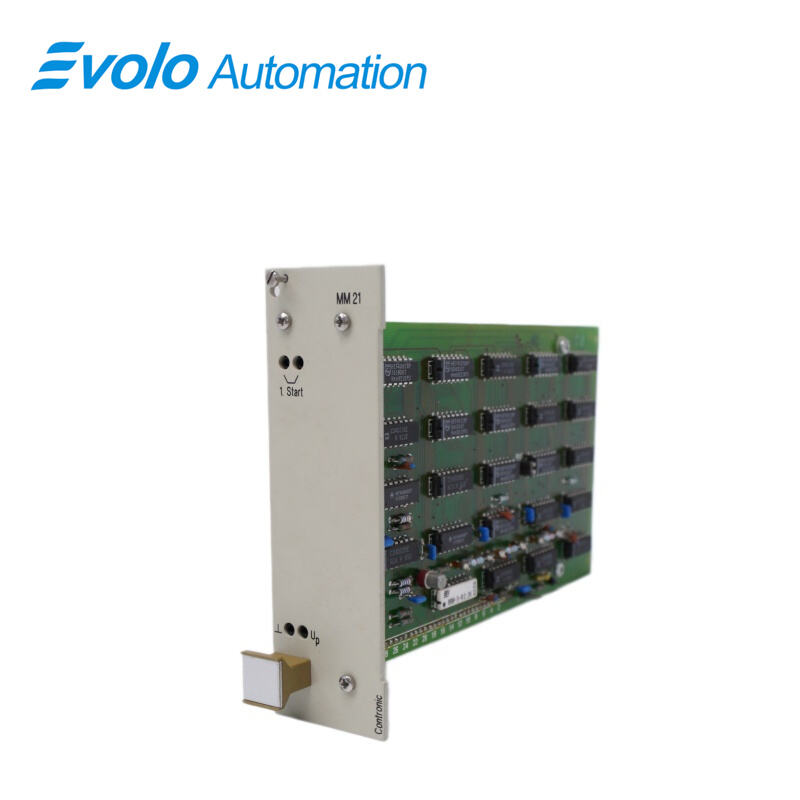

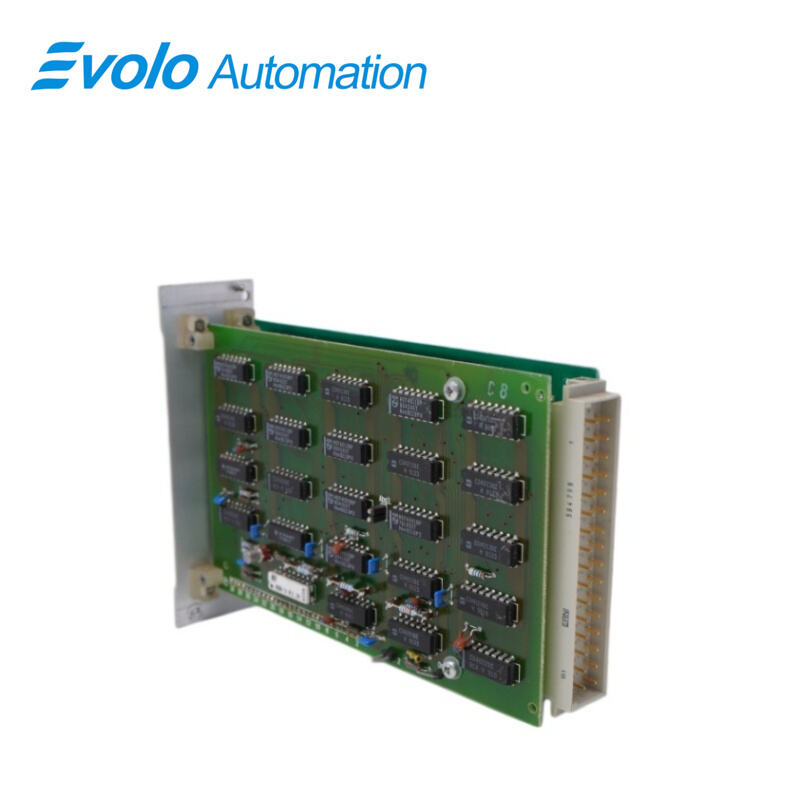

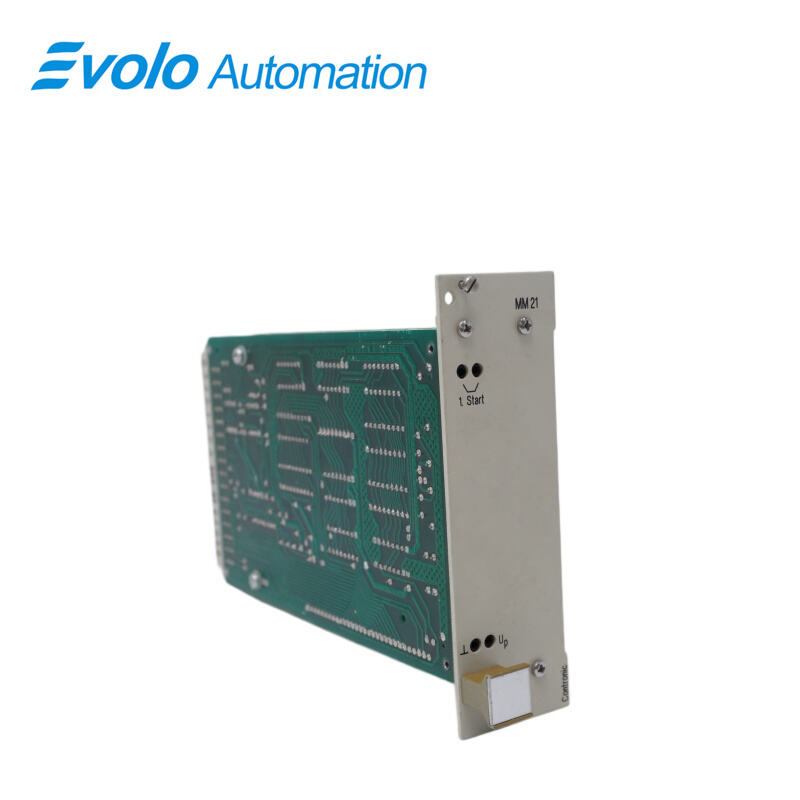

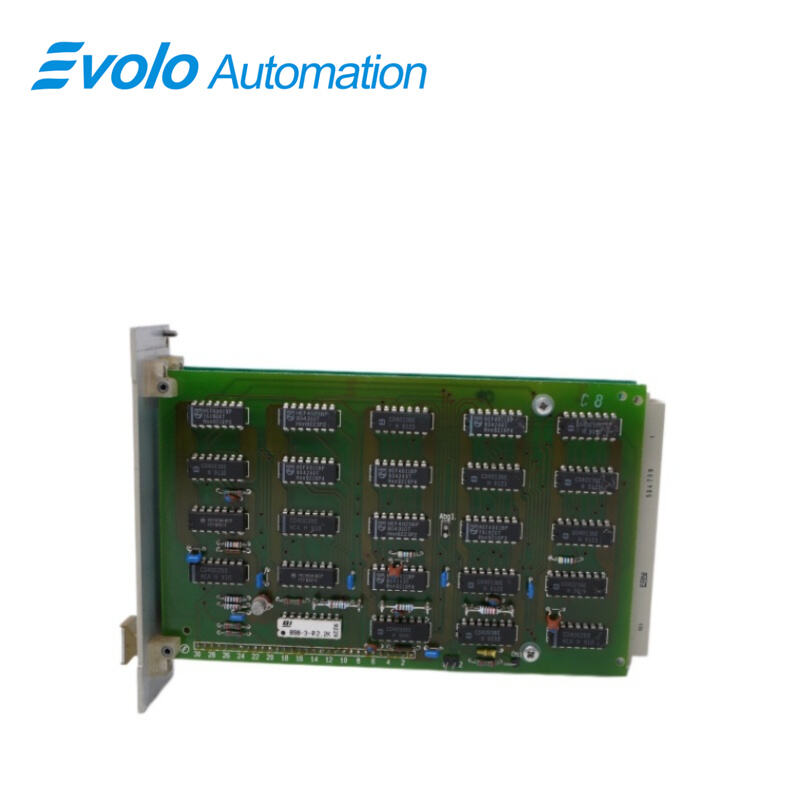

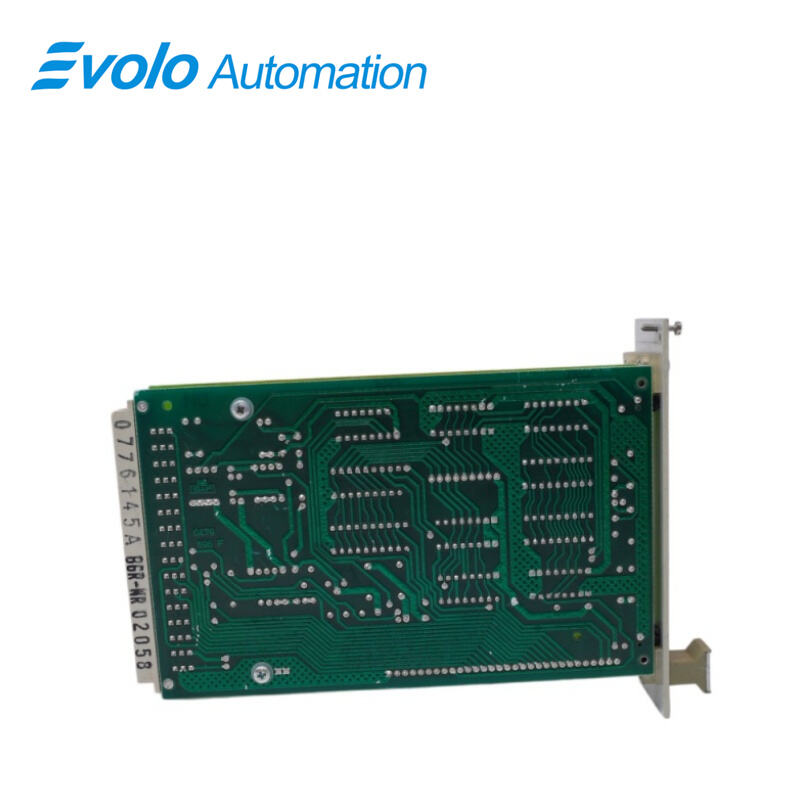

MM21 MM 21 H&B contronic Control Module, China MM21 MM 21 H&B contronic Control Module Manufacturers, Suppliers, Factory

Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	MM21 MM 21
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Part Number	MM21 MM 21
Product Type	H&B Contronic Control Module
Dimensions	4.1×18.6×12.9 cm
Weight	0.22 kg
Operating Voltage	24 VDC (main); 100–240 VAC / 48–250 VDC wide-range compatible
Power Consumption	Approx. 5–130 W
Power Protection	Overvoltage, overcurrent, reverse polarity protection
Signal Types	Analog (AI/AO) and digital (DI/DO) mixed channels
Analog Signals	4–20 mA / 0–10 V, 16-bit resolution
Digital Signals	Dry contact / active input, relay / transistor outputs
Channel Configuration	Multi-channel configuration
Mounting Method	Control cabinet slot / panel mounting
Protection Rating	IP20 (cabinet installation)
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Humidity	5%–95% RH (non-condensing)

Description

The H&B Contronic MM21 MM 21 is a high-performance Control Module engineered for the H&B contronic automation platform . This versatile module serves as the central intelligence for complex process loops, offering a hybrid architecture that supports both analog (AI/AO) and digital (DI/DO) signal processing.

Applications

Large-scale chemical plants: Used for precise closed-loop control of temperature and pressure signals in reactors to achieve complex process logic.

Coal power plants: Deployed in the Base of Production (BOP) control system to monitor the analog status and interlocking of pumps and fans.

Steel and iron smelting plants: Handling sensor data acquisition and actuator driving in high-temperature environments in blast furnaces and continuous casting production lines.

Paper and packaging plants: Suitable for tension control of paper machine drive systems and high-speed processing of multiple digital signals.

Urban water supply plants: Managing the frequency conversion scheduling of distributed pumping stations, utilizing 16-bit high resolution to achieve precise flow regulation.

Troubleshooting and Maintenance

Troubleshooting:

Signal Jumping or Error: Check the shielding grounding of the 16-bit analog channel for integrity. If the error persists, check if the 24V DC power supply is affected by harmonic interference from high-power frequency converters.

Module Failure to Start: Verify that the wide-voltage input is within the 48–250V DC or AC range, and check if the power supply protection circuit is triggered by instantaneous current overload.

Maintenance Recommendations:

Temperature and Humidity Monitoring: Although it supports up to 95%RH, in high humidity environments, a cabinet dehumidifier should be used to prevent non-condensation droplets from affecting IP20-rated circuit boards.

Terminal Tightness: Regularly check the wiring of the relay output terminals. Frequent relay operation may cause loose wiring, affecting the continuity of system control.

FAQ

Q: How does MM21 MM 21 configure analog/digital mixed signals?
A: Uses multi-channel design; channels can be set via Contronic software for I/O modes.

Q: Does MM21 MM 21 need forced cooling at 130W power?
A: Yes. Near full load at 60°C, forced airflow is recommended to maintain IP20 thermal stability.

Q: Can MM21 MM 21 directly drive high-power AC contactors?
A: No direct drive recommended; use intermediate relays to protect against inductive surge.

Q: What does 16-bit resolution bring to MM21 MM 21 control?
A: Higher precision in 4-20mA signal capture, improving PID smoothness and reducing oscillation.

Q: Will data be lost at -20°C on MM21 MM 21?
A: No. It operates down to -20°C and stores data safely with non-volatile memory (-40°C storage support).
