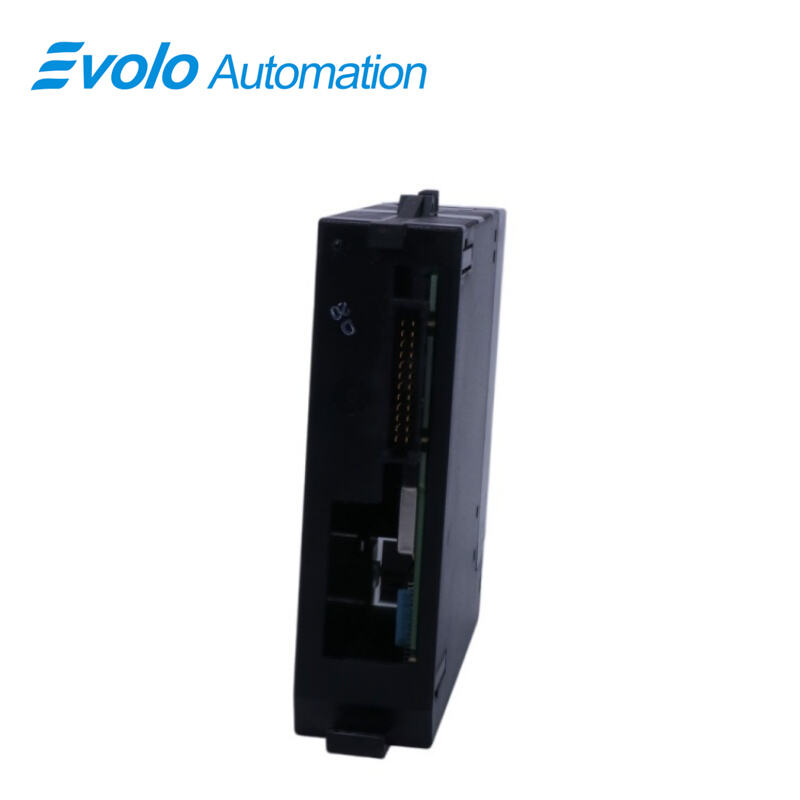

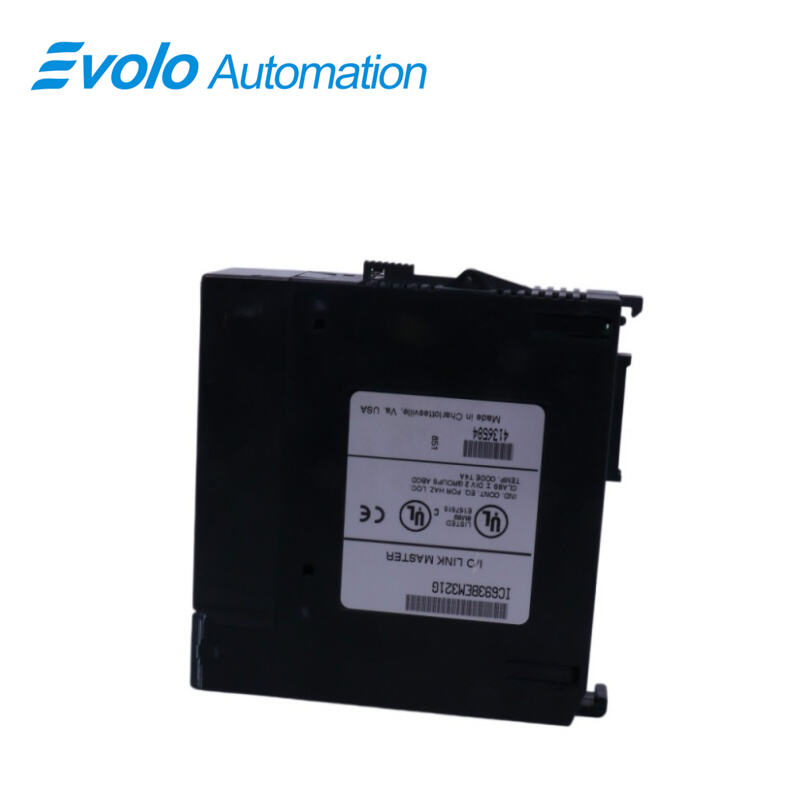

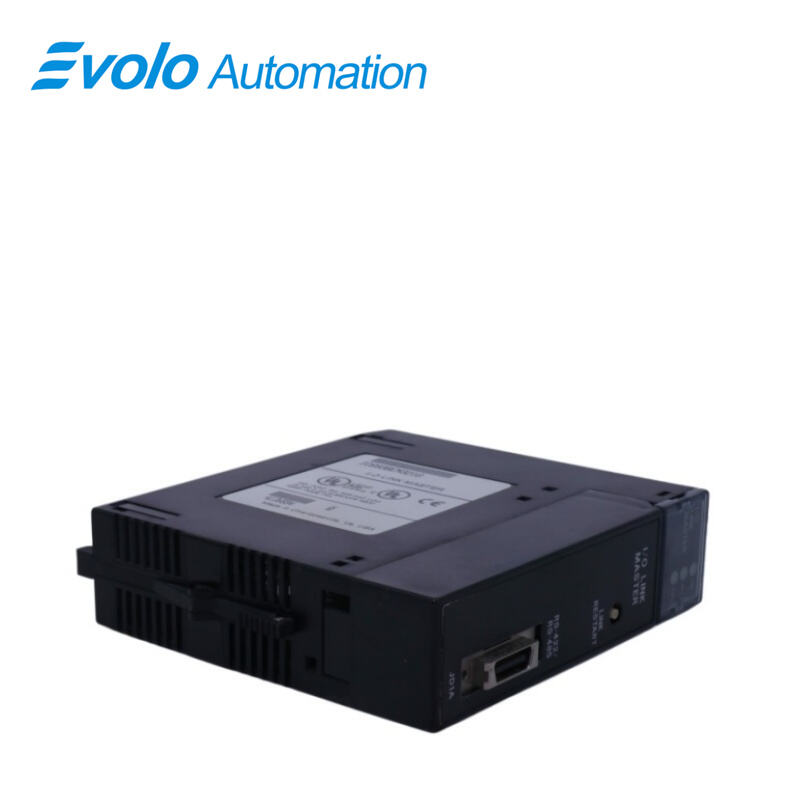

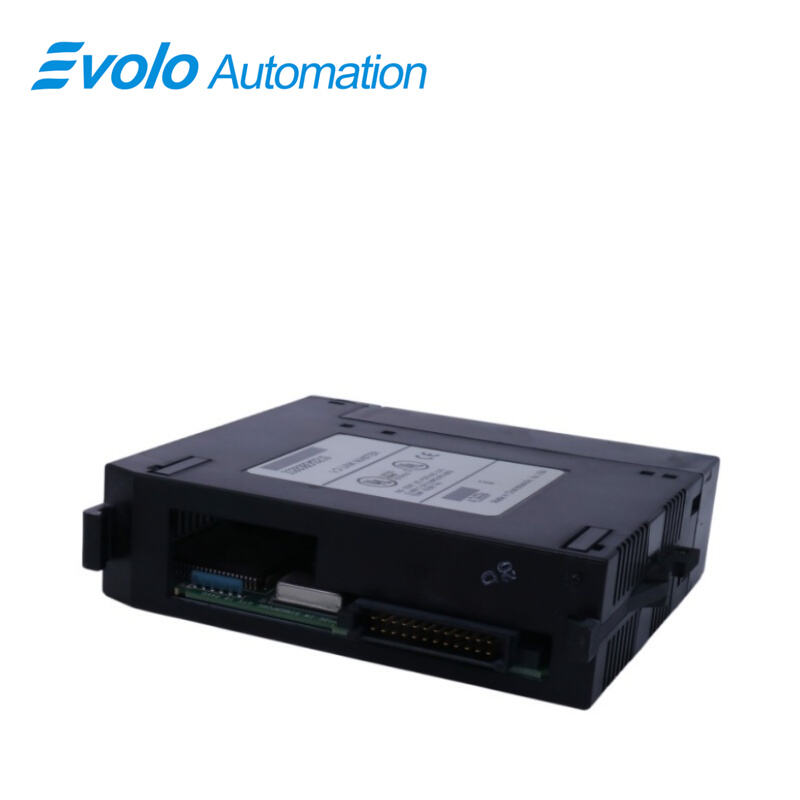

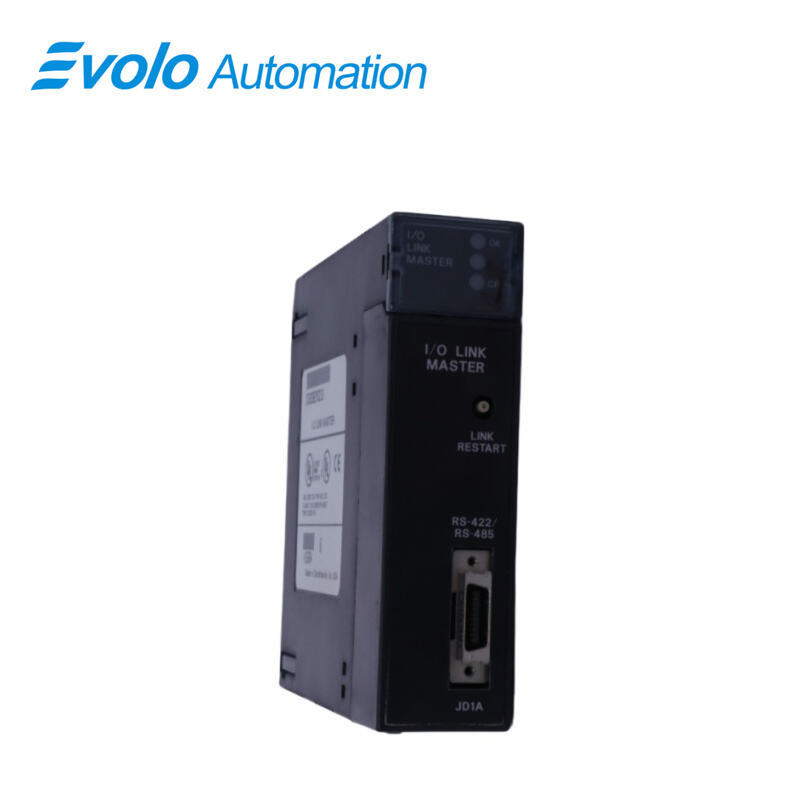

IC693BEM321 Series 90-30 I/O LINK Master Module

Overview

Place of Origin:	USA
Brand Name:	GE
Model Number:	IC693BEM321
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

The Series 90-30 I/O LINK Master Module (IC693BEM321) allows a Series 90-30 PLC to act as a master on a proprietary Fanuc I/O LINK. The Fanuc I/O LINK is a serial interface which provides high-speed exchange of I/O data between the master and up to 16 slaves. The master can receive 1024 discrete inputs from slaves, and send up to 1024 discrete outputs. The illustration above shows a simple I/O LINK system: a Series 90-30 PLC used as a master, a Series 90-30 Hand-held Programmer, an I/O LINK, and one slave. In the illustration, the slave is a Power Mate CNC. Other devices that can be used as slaves include the Series 90-70 PLC, the Series 90-30 PLC, the Fanuc Series 0 CNC, Fanuc Connection Units, and Fanuc Operator Panels. The module can be configured using a Series 90-30 Hand-held Programmer (HHP) or the configuration software.

Applications

CNC machine tool manufacturing plant: Used for data exchange between the Series 90-30 PLC and FANUC 0i/16i/18i/21i CNC systems, transmitting tool status, machining commands, and coordinate interlock signals.

Automotive powertrain workshop: Connects the PLC to remote I/O stations distributed throughout the machine tools via I/O Links on large automated machining lines.

Robot integration unit: The PLC acts as a host computer, controlling the peripheral I/O of FANUC robots through this module.

Metalworking and die-casting plant: Provides highly interference-resistant serial communication in complex machining center environments.

Compatibility

The Series 90-30 I/O LINK Master Module is compatible with the following devices:

1 Host CPU

Series 90-30 CPU models 311, 313, 321, 323, 331, and 341 release 4.4 or later, and all

versions of the CPU models 350, 351, 352, 360, 363, and 364.

Series 90-30 Hand-held Programmer (HHP)

2 Programmer

Hand-Held Programmer

Logicmaster 90-30 Programming Software Configurator, release 4.5 or later.

VersaPro Software.

Control programming software, Version 2.0 or later.

Logic Developer-PLC software

3 Slave Units

Power Mate models A, C, D, and E

Series 0 CNC

Fanuc Operator Panel Unit

Fanuc Connection Unit 1

Fanuc Connection Unit 2

Series 90-30 PLC with 90-30 I/O LINK Slave Module

Series 90-70 PLCs with 90-70 I/O LINK Interface Module set up as slave

FAQ

Q: What is an IC693BEM321?

A: The IC693BEM321 is an I/O Link Interface Master Module from the GE Fanuc 90-30 Series.

Q: What does IC693BEM321 do for the 90-30 system?

A: This module allows a 90-30 controller to act as a master on a proprietary Fanuc I/O Link.

Q: How does the IC693BEM321 relate to the slaves?

A: This module provides I/O Link communications with up to 16 slaves. The master can receive 1024 discrete inputs from slaves and send up to 1024 discrete outputs.

Q: How many modules can be located in the main PACSystems 90-30 backplane?

A: The maximum number of master modules installed on the backplane depends on the power that is available from the power supply.

Q: Where must IC693BEM321 be located?

A: IC693BEM321 can be installed in any available backplane slot except the CPU slot.
