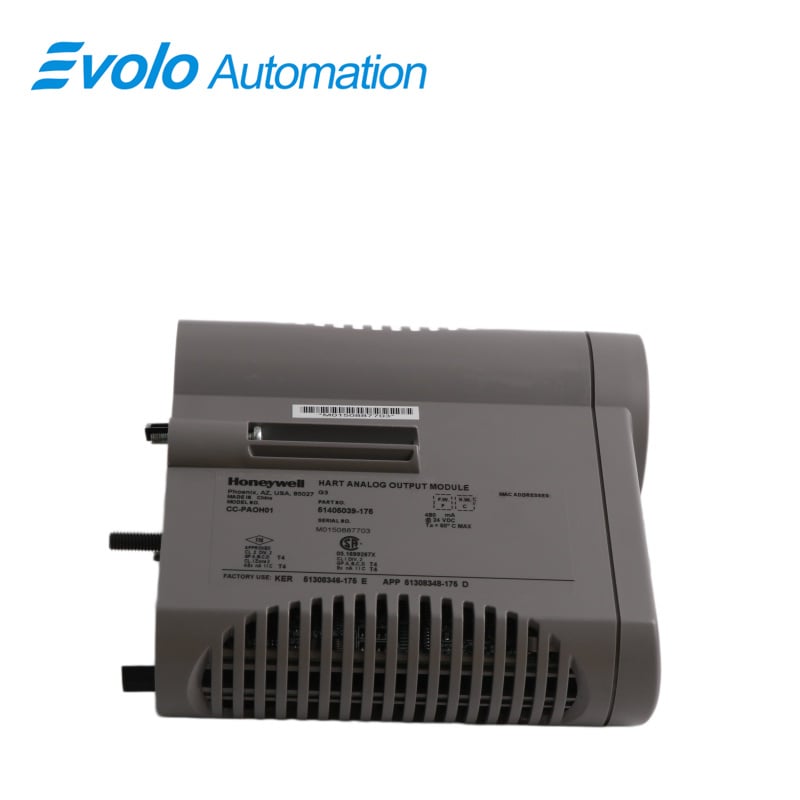

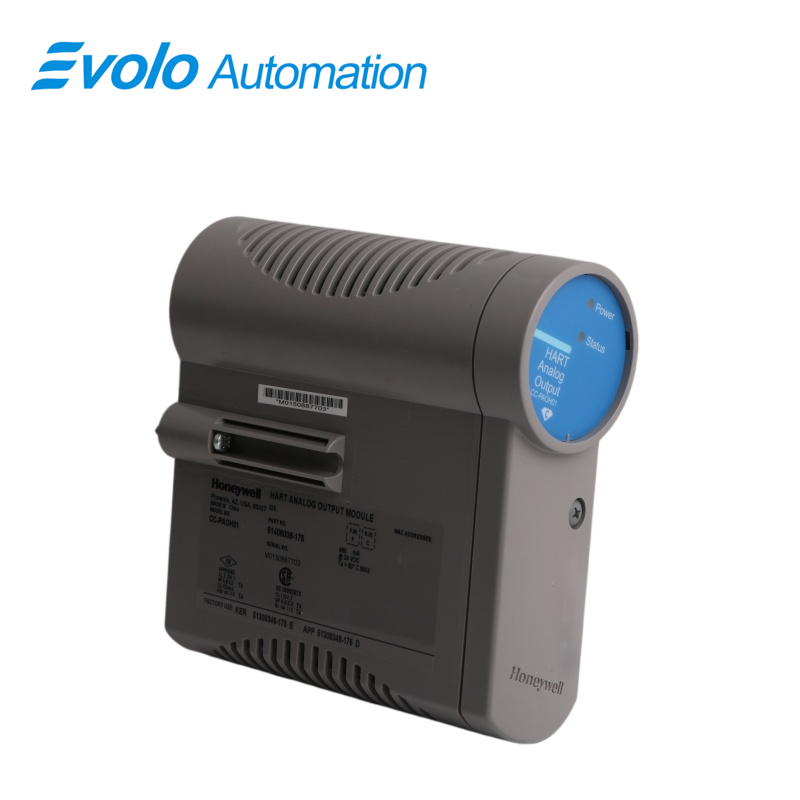

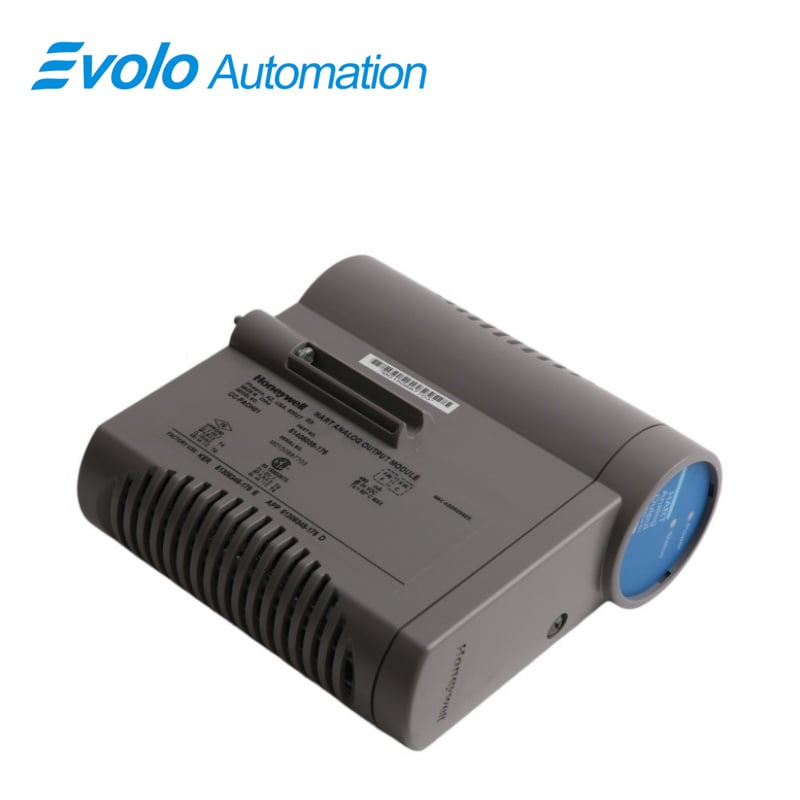

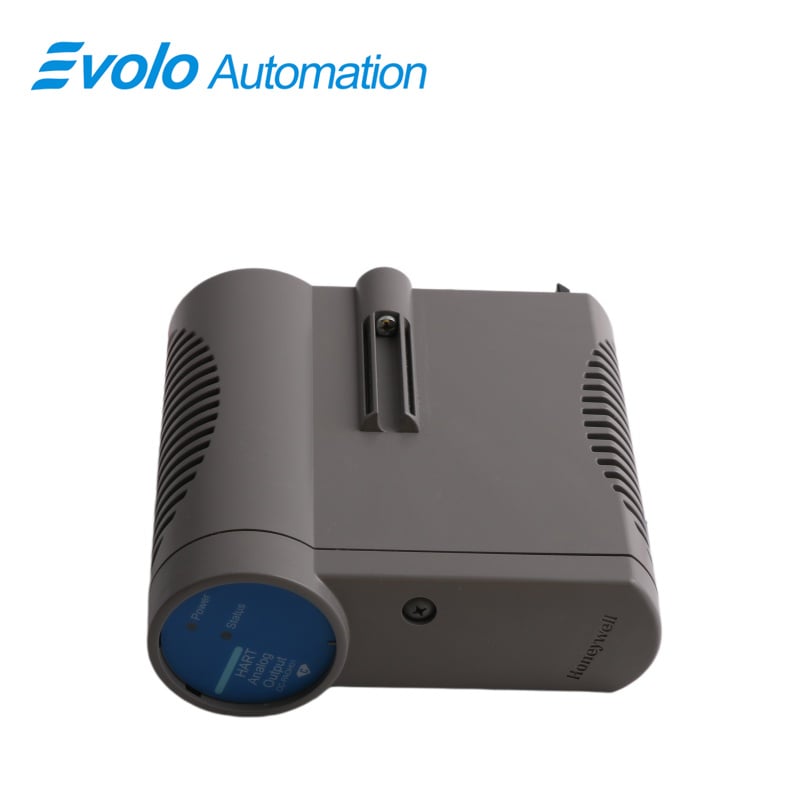

CC-PAOH01 51405039-175 High-Level Analog Output Module, China CC-PAOH01 51405039-175 High-Level Analog Output Module Manufacturers, Suppliers, Factory

Overview

Place of Origin:	USA
Brand Name:	HONEYWELL
Model Number:	CC-PAOH01 51405039-175
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Parameter	Value
Part Number	CC-PAOH01 51405039-175
Part Type	High-Level Analog Output Module (with HART)
Dimensions	5.5 x 16.2 x 14.5 cm
Weight	0.42 kg
Output Type	4–20 mA
Output Channels	16
Output Ripple	<100 mV peak-to-peak (power line frequency, across 250 Ω load)
Output Temperature Drift	0.005% of full scale / °C
Output Readback Accuracy	±4% of full scale
Output Current Linearity	±0.05% of full scale (nominal)
Resolution	±0.05% of full scale
Calibrated Accuracy (25°C)	±0.35% of full scale (including linearity)
Directly Settable Output Current Range	0 mA, 2.9 mA to 21.1 mA
Maximum Resistive Load	800 Ω
Maximum Output Compliant Voltage	16 V (24 V supply: 22–28 VDC)
Maximum Open Circuit Voltage	22 V
Response Time (DAC to output)	≤80 ms to within 1% of final value
Switchover Gap (0 mA)	10 ms max (redundancy mode)

Description

Honeywell CC-PAOH01 51405039-175 is a high-level analog output module for precise industrial process control applications in the Experion PKS control system. It provides multi-channel analog signal output used to drive field devices such as control valves, variable frequency drives, and other actuators.

Applications

Chemical Plants: Controls feed control valve opening.

Refineries: Regulates pipeline control valve signals.

Thermal Power Plants: Drives feedwater control actuators.

Water Treatment Plants: Adjusts dosing pump frequency.

Paper Mills: Controls steam heating valve opening.

Notable Features

Extensive self-diagnostics

Optional redundancy

HART-capable multivariable instruments

Multiple modems for fast control variable collection

Configurable safe-state (FAILOPT) per channel

Output read-back with mismatch alarm

Non-incendive output

Detection

FAILOPT

Series C AO module supports the FAILOPT parameter on a per channel basis. The user can configure each channel to either HOLD LAST VALUE, or SHED to a SAFE VALUE. The Output will always go to zero, the safe state, if the IOM device electronics fails.

Open-wire Detection

This Series C IO function will be able to detect and annunciate open field wire with a Channel Soft Failure indication.

FAQ

Q: What output signals and channel count are provided by the CC-PAOH01 51405039-175?
A: Provides 16-channel 4–20 mA analog current output.

Q: What are the accuracy and linearity of the CC-PAOH01 51405039-175?
A: Calibration accuracy is ±0.35% at room temperature, with current linearity of ±0.05%.

Q: What adjustable current range does the CC-PAOH01 51405039-175 support?
A: Supports 0 mA and adjustable range from 2.9 mA to 21.1 mA.

Q: What is the maximum load capacity of the CC-PAOH01 51405039-175?
A: Supports up to 800 Ω resistive load with a maximum open-circuit voltage of 22 V.

Q: What are the ripple and temperature drift characteristics of the CC-PAOH01 51405039-175?
A: Output ripple is less than 100 mV peak-to-peak, with temperature drift of 0.005%/°C.
