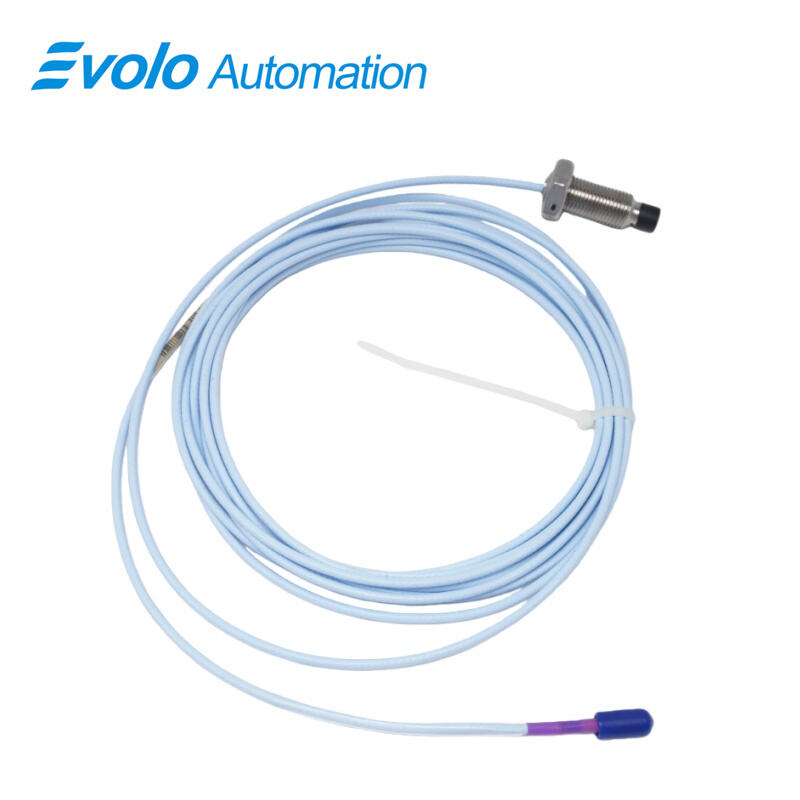

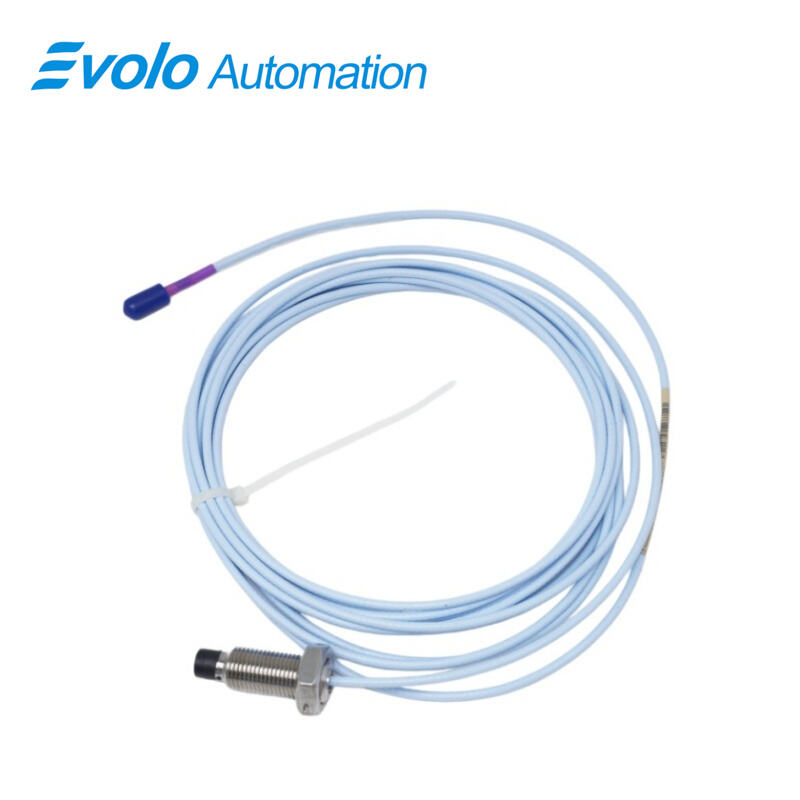

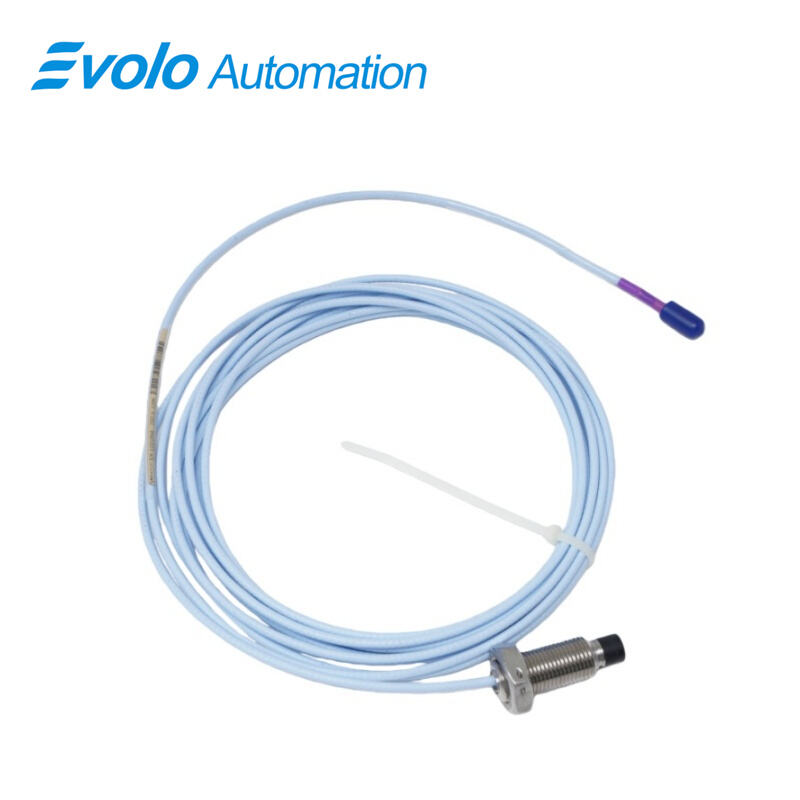

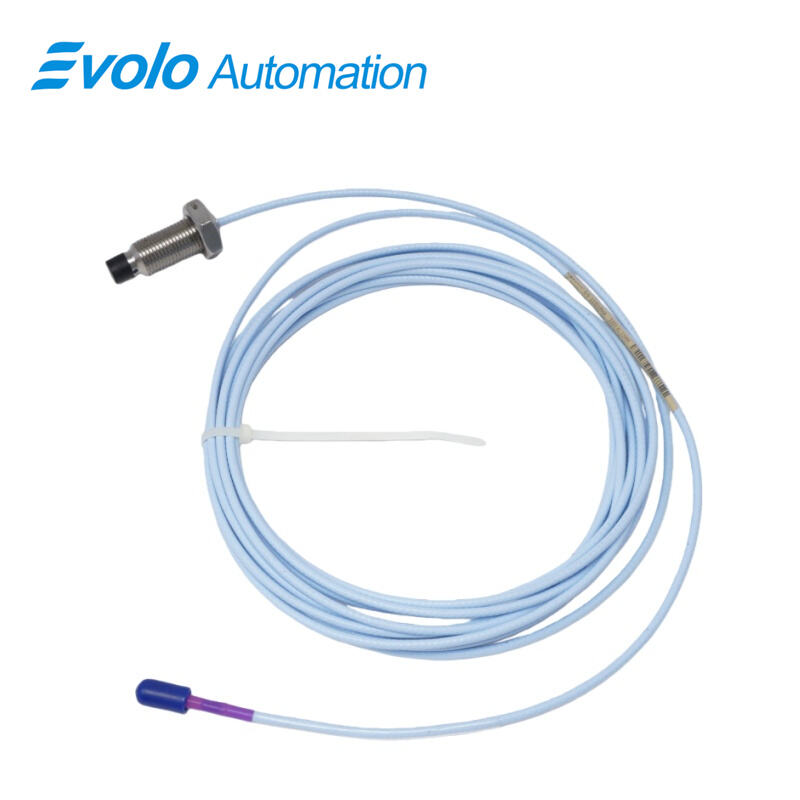

330709-000-040-50-02-00 3300 XL 11 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330709-000-040-50-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330709-000-040-50-02-00 3300 XL 11 mm Proximity Probe delivers precise non-contact vibration and displacement measurements for automated machinery. With a 40 mm overall case length, 0 mm unthreaded section, and M16 x 1.5 threaded case with 24 mm maximum thread engagement, the 330709-000-040-50-02-00 probe mounts securely for axial position, rod drop, and ramp differential monitoring. Its 11 mm tip provides extended linear range, while the 5.0-meter standard cable with miniature coaxial ClickLoc connector ensures reliable data transmission. The 330709-000-040-50-02-00 probe features 99.9% braided copper shielding, IP67 dust and water resistance, and operates from -40°C to +85°C, supporting automated control in harsh industrial environments. Compatible with 3300 XL Proximitor Sensors and extension cables, the 330709-000-040-50-02-00 probe enables tachometer, zero speed, and Keyphasor signal generation. TipLoc molded probe tip and CableLoc design provide 330 N pull strength, securing the probe tip and cable for continuous operation in industrial automation systems.

Applications

Application Axial Position Measurement on Turbine Bearings

The 330709-000-040-50-02-00 probe, with a 40 mm overall case length and M16 x 1.5 threaded case with 24 mm thread engagement, measures axial positions of turbine fluid film bearings. Its 11 mm tip extends linear measurement range, and the 5.0-meter standard cable with ClickLoc connector ensures accurate data transmission to automated monitoring systems.

Application Rod Drop Monitoring in Reciprocating Compressors

Using the 330709-000-040-50-02-00 probe, operators can detect rod drop or monitor rod positions in reciprocating compressors. The 0 mm unthreaded section allows precise insertion, while 99.9% braided copper shielding maintains signal quality in industrial automation environments.

Application Ramp Differential Expansion Tracking

The 330709-000-040-50-02-00 probe tracks ramp differential expansion in steam turbines. Its TipLoc molded probe tip and CableLoc secured cable provide 330 N pull strength, enabling continuous automated measurements without loose connections.

Application Tachometer and Zero Speed Measurement

The 330709-000-040-50-02-00 probe delivers tachometer and zero-speed signals for rotating machinery. Its IP67 rating and -40°C to +85°C operating temperature allow reliable operation in wet or dusty conditions.

Application Keyphasor Phase Reference Signal Output

The 330709-000-040-50-02-00 probe generates accurate Keyphasor signals for vibration monitoring and control systems. ClickLoc connector design ensures secure data transmission over long cable lengths.

Specifications

Competitive Advantage

Competitive Advantage Quick and Secure Installation

The 330709-000-040-50-02-00 probe mounts using M16 x 1.5 threads with 24 mm engagement, reducing setup time and ensuring precise positioning in automated machinery.

Competitive Advantage Extended Measurement Range

Its 11 mm probe tip extends the linear range compared to standard 8 mm probes, allowing the 330709-000-040-50-02-00 probe to capture precise displacement and vibration readings in industrial automation.

Competitive Advantage Reliable Signal Transmission

The 330709-000-040-50-02-00 probe uses 99.9% braided copper shielding, ClickLoc connectors, and CableLoc design to maintain consistent signal delivery over the 5.0-meter cable under industrial conditions.

Competitive Advantage Replacement for Legacy Systems

The 330709-000-040-50-02-00 probe replaces 7200-series 11 mm and 14 mm transducers, supporting complete upgrades to 3300 XL systems without interrupting automated monitoring operations.
