Overview
Place of Origin: |
USA |
Brand Name: |
Woodward |
Model Number: |
UMT1 UMT145B A3 LR20523 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
UMT1 UMT145B A3 LR20523 |
|
Product Type |
Measuring Transducer |
|
Dimensions |
20 × 15 × 10 cm |
|
Weight |
0.5 kg |
|
Voltage Measuring Rated Value (Low) |
66/115 Vac |
|
Voltage Measuring Rated Value (High) |
230/400 Vac |
|
Voltage Measuring Maximum (Low) |
150 Vac |
|
Voltage Measuring Maximum (High) |
300 Vac |
|
Voltage Measuring Rated Voltage (Low) |
150 Vac |
|
Voltage Measuring Rated Voltage (High) |
300 Vac |
|
Voltage Measuring Surge Voltage (Low) |
2.5 kV |
|
Voltage Measuring Surge Voltage (High) |
4.0 kV |
|
Measuring Frequency |
40.0 to 80.0 Hz |
|
Accuracy |
Class 0.5 |
|
Linear Measuring Range |
1.3 × Vrated |
|
Input Resistance |
0.21 MΩ |
|
Max Power Consumption per Path |
0.15 W |
|
Power Supply |
24 Vdc (18 to 30 Vdc) |
|
Intrinsic Power Consumption |
Max. 10 W |
|
Operating Temperature |
–20 to +70 °C |
|
Storage Temperature |
–30 to +80 °C |
|
Ambient Humidity |
95% non-condensing |
|
Analog Outputs Type |
Isolated |
|
Analog Output Scaling |
Freely scalable at rated value |
|
Analog Output Insulation Voltage |
1,500 Vdc |
|
Analog Output Resolution |
PWM 12-bit |
|
Analog Output Load (4–20 mA) |
Max. 500 Ω |
|
Pulse Output Type |
Transistor output |
|
Pulse Output Rated Gate Voltage |
24 Vdc |
|
Pulse Output Maximum Gate Voltage |
32 Vdc |
|
Pulse Output Minimum Gate Current |
10 mA DC |
|
Pulse Output Maximum Gate Current |
30 mA DC (0.5 Vdc) |
|
Interface Type |
Isolated |
|
Interface Insulation Voltage |
500 to 1,500 Vdc (model dependent) |
|
Wiring Type |
Screw-type terminals (1.5 mm² or 2.5 mm²) |
|
Certifications |
CE marking; UL/cUL listed (ordinary locations) |
Description

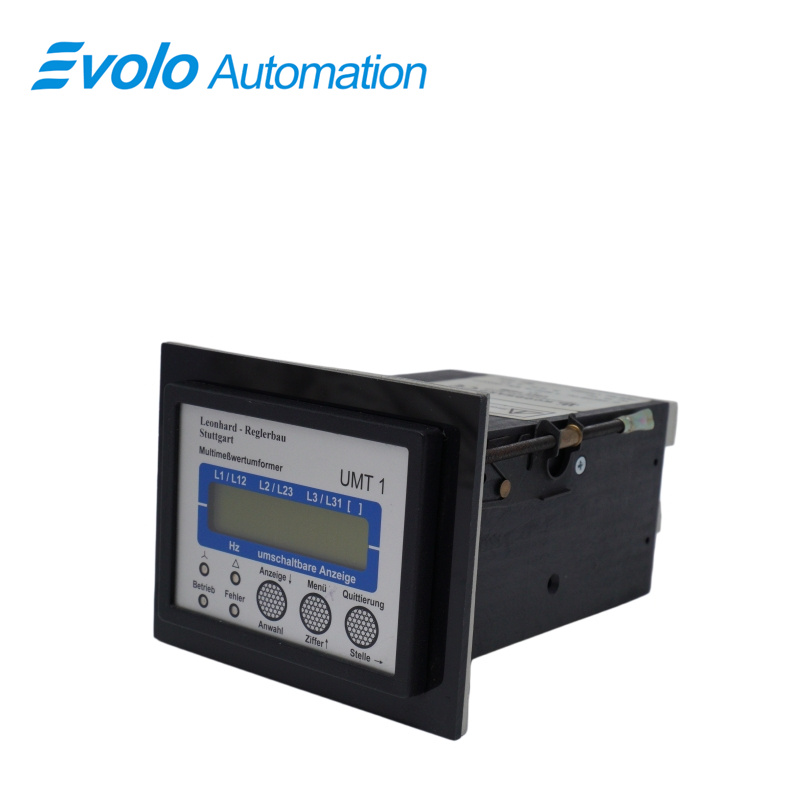

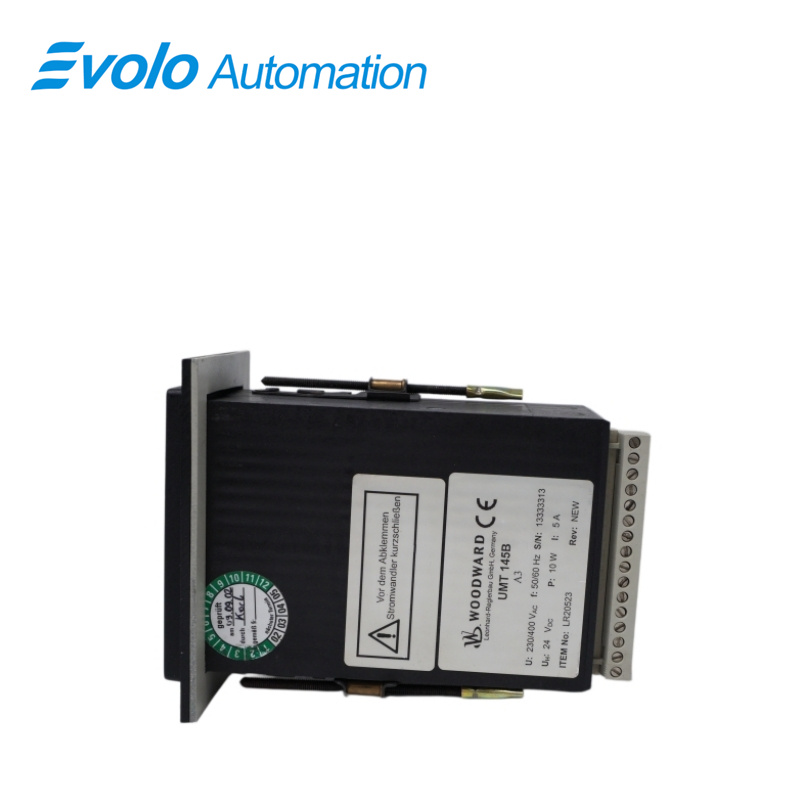

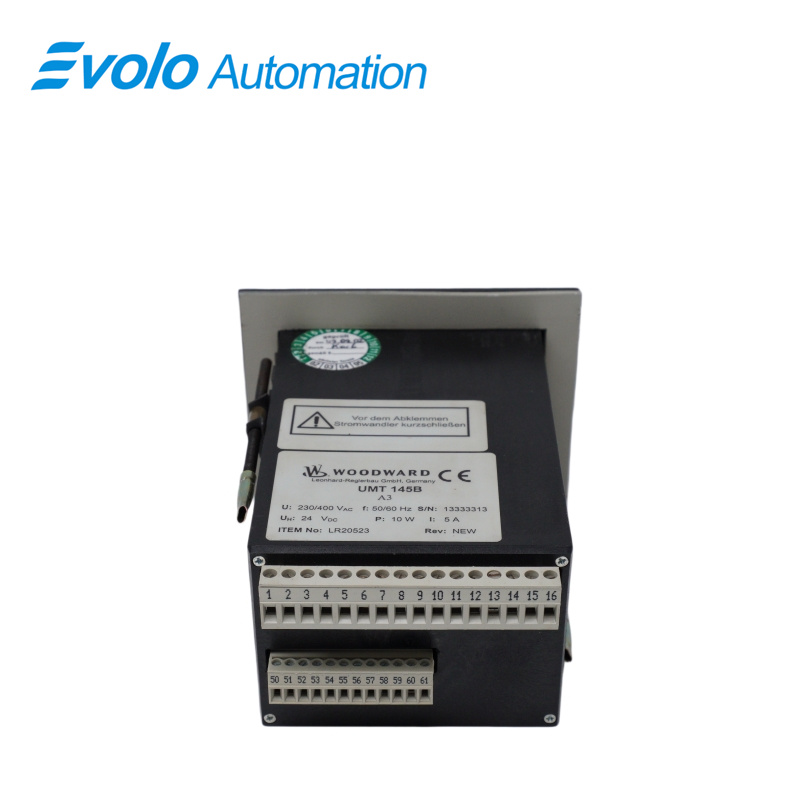

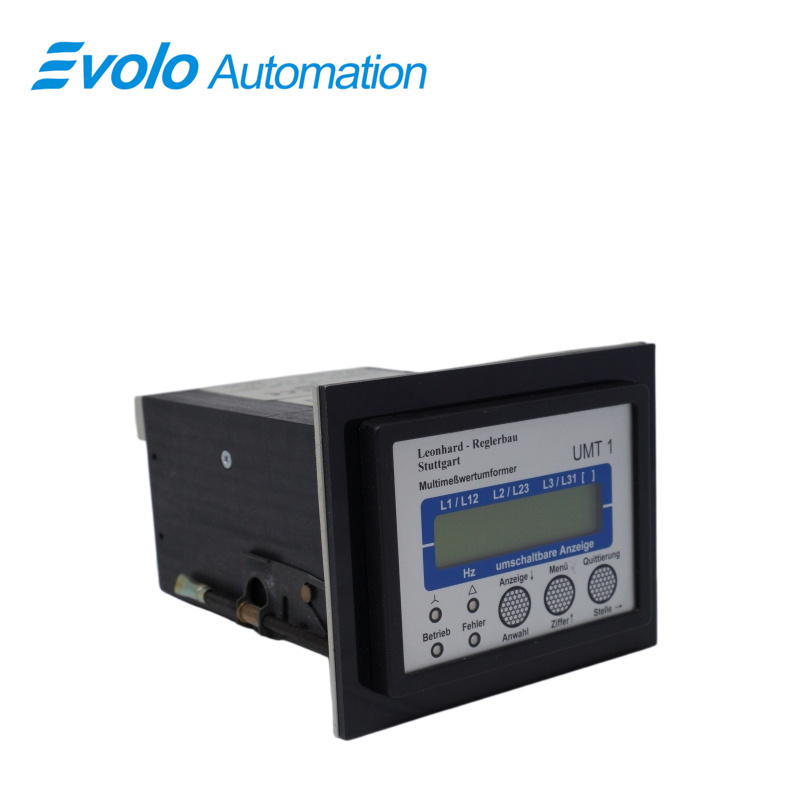

The WOODWARD UMT1 UMT145B A3 LR20523 is a measuring transformer for true RMS values. The transformer can measure an electrical three-phase system with current and voltage measuring inputs. The primary measured values are calculated and displayed on the two-line, 16 character LC Display, and also transmitted by either analog outputs or a communication interface to a higher level-control system.
Applications
Power Plants: Convert generator voltage, current, and frequency to control signals.
Substations: Monitor transformers and switchgear power factor and reactive power.
Petrochemical Plants: Acquire RMS electrical data from drives and distribution circuits.
Steel Plants: Monitor current and power in arc furnaces and rolling lines.
Water Plants: Track pump station energy use and power quality.
Commissioning Procedure
1. After wiring the unit and ensuring all voltage-measuring devices are phased correctly, apply the control system voltage (i.e. 12/24 Vdc). The "Operation" LED will illuminate.
2. After applying the measured variables, the unit will display the measured values. These values should be confirmed with a calibrated measuring instrument.
3. By simultaneously pressing the two push buttons "Digit↑" and "Cursor→", the configuration mode is accessed. After entering the access code number, the unit may be configured according to the application requirements (see the chapter regarding the parameters).
LEDs
1 "Wye",Color: Yellow--Indication of the wye voltages
If this LED is illuminated, the values indicated on the display are the wye (star) voltages (phase-neutral).
2 "Delta",Color: Yellow--Indication of the delta voltages
If this LED is illuminated, the values indicated on the display are the delta voltages (phase-phase).
3 "Operation ",Color: Green--Operation
This LED is illuminated constantly when the control unit is in the Automatic mode. If this LED is flashing, the control is in the configuration mode.
FAQ
Q: What is the measurement accuracy class of UMT1 UMT145B A3 LR20523?
A: The measurement accuracy is Class 0.5.
Q: What is the measurement frequency range of UMT1 UMT145B A3 LR20523?
A: The measurement frequency range is 40.0 to 80.0 Hz.
Q: What is the power supply of UMT1 UMT145B A3 LR20523?
A: The power supply is 24 Vdc (permitted range 18 to 30 Vdc).
Q: What is the operating temperature range of UMT1 UMT145B A3 LR20523?
A: The operating temperature range is -20 to +70°C.
Q: What is the input resistance of UMT1 UMT145B A3 LR20523?
A: The input resistance is 0.21 MΩ.
