Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
TK-IOLI01 51403427-275 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Model |
TK-IOLI01 51403427-275 |
|
Product Type |
I/O Link Interface Module |
|
Dimensions |
7 × 14 × 14.5 cm |
|
Weight |
0.4 kg |
|
Interface |
I/O Link 1.1 (for PMI0) |
|
Input Voltage |
24 VDC |
|
Number of Channels |
2 (analog I/O) |
|
Channels (Configurable) |
8 |
|
Output Signal |
4–20 mA |
|
Operating Temperature |
-20°C to +60°C |
|
Storage Temperature |
-40°C to +85°C |
|
Humidity Range |
5%–95% RH (non-condensing) |
|
Protection Class |
IP20 |
|
Power Consumption |
2.5 W |
|
Response Time |
<10 ms |
Description

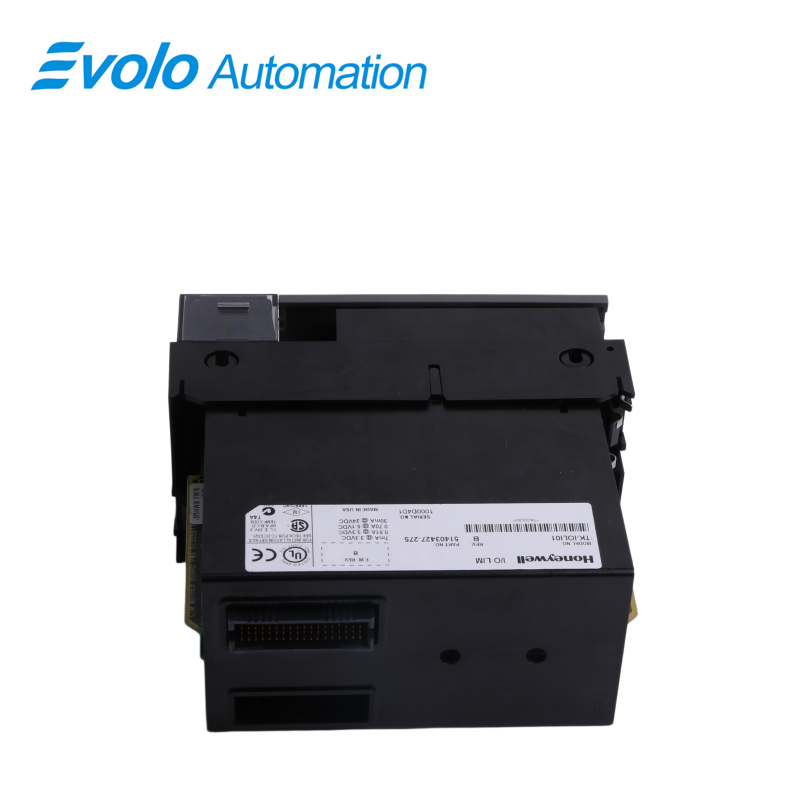

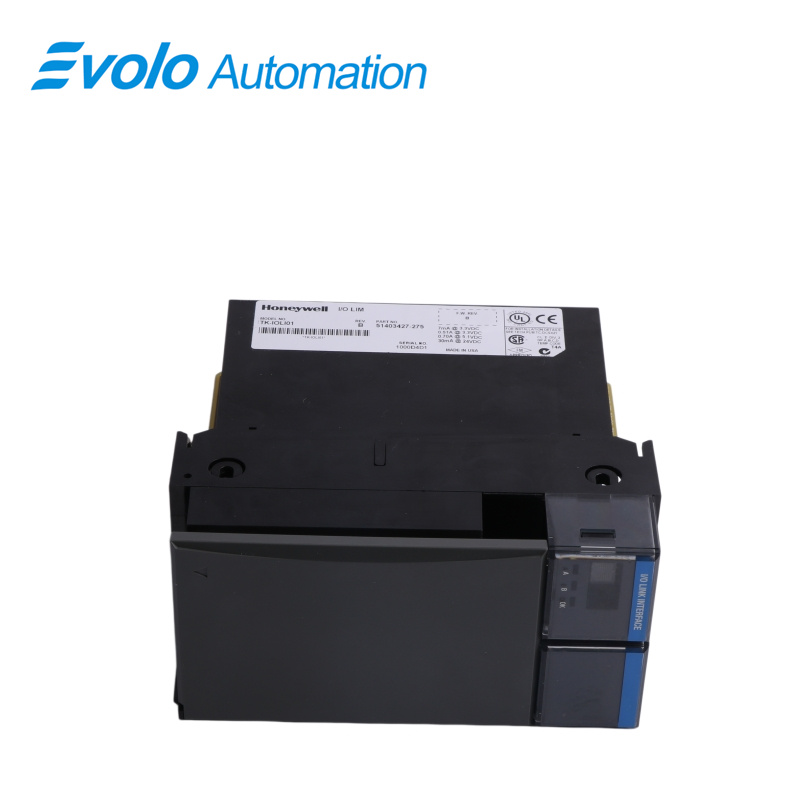

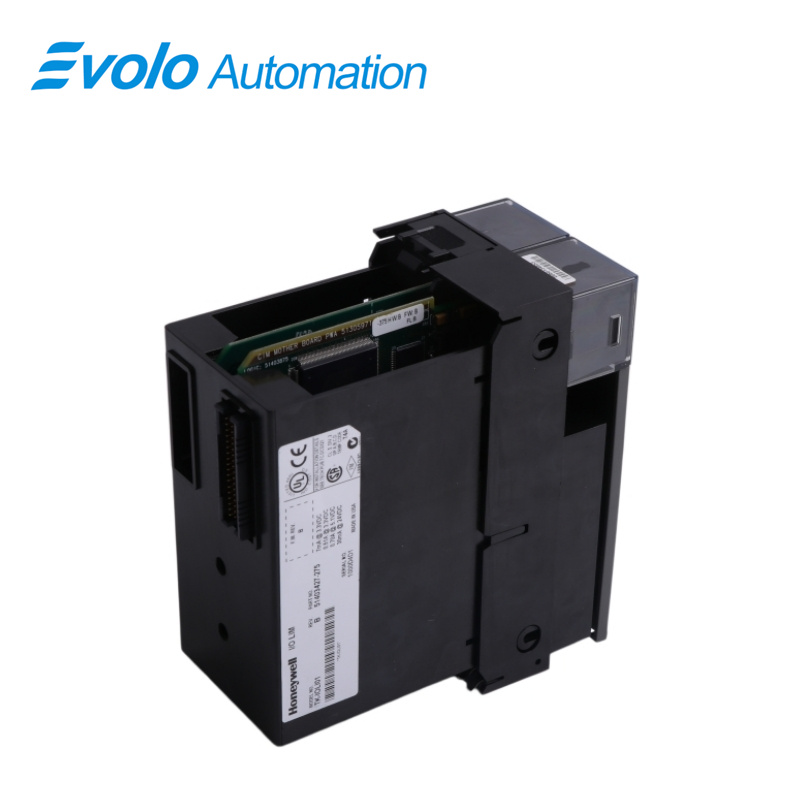

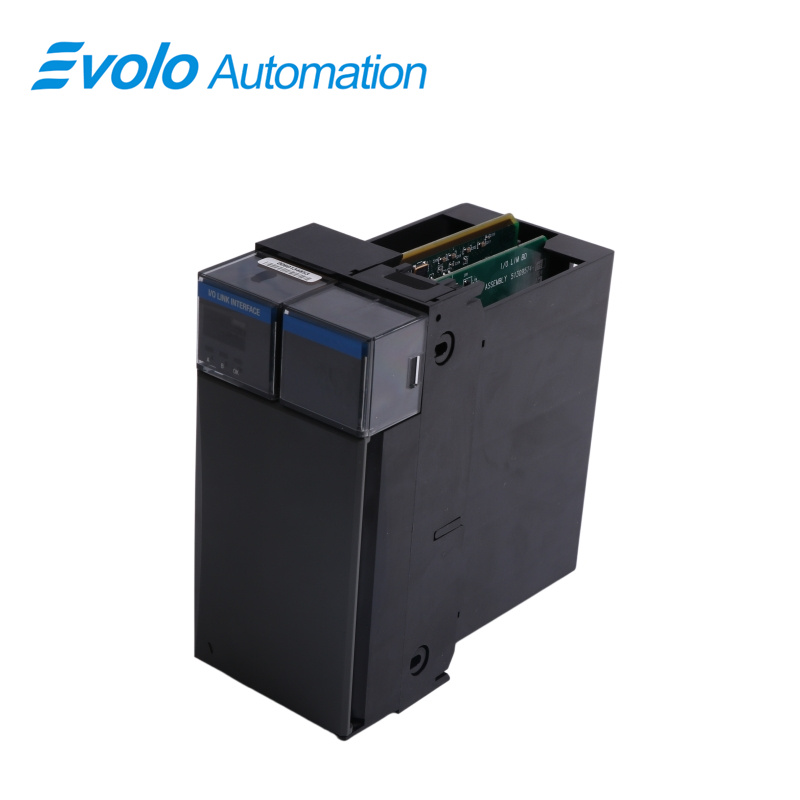

The Honeywell TK-IOLI01 51403427-275 is an I/O Link interface module used in the Honeywell Experion LS C20O control system. Its primary function is communication between I/O Link devices and the system controller. It sends status information from various devices to the main control box and simultaneously sends commands from the main control box to the respective actuators.
Applications
Power Plants: Connect remote boiler auxiliary subsystems.
Steel Mills: Link distributed I/O across rolling lines.
Paper Mills: Connect remote control cabinets to central systems.
Cement Plants: Link kiln and grinding control stations.
Water Treatment Plants: Connect remote I/O communication networks.
Features
Multi-protocol support: Supports multiple communication protocols, enabling flexible connection to different I/O modules.
High reliability: Industrial-grade design with excellent anti-interference and stability.
Modular design: Modular design for easy installation and maintenance.
Multi-channel: Provides multiple input/output channels, allowing connection to multiple devices.
Flexible configuration: Parameters can be flexibly configured to adapt to different application needs.
FAQ
Q: What interface does TK-IOLI01 51403427-275 use?
A: It uses the I/O Link 1.1 (for PMI0) interface.
Q: What is the output signal range of TK-IOLI01 51403427-275?
A: The output signal is 4–20 mA.
Q: What is the protection rating of TK-IOLI01 51403427-275?
A: The protection rating is IP20.
Q: What DC input voltage is required for TK-IOLI01 51403427-275?
A: The input voltage is 24 VDC.
Q: What is the response time of TK-IOLI01 51403427-275?
A: The response time is less than 10 ms.
