Overview
Place of Origin: |
USA |
Brand Name: |
ICS TRIPLEX |
Model Number: |
T9432 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
T9432 |
|
Product Type |
Analog Input Module |
|
Channels |
16 Channel (Dual) |
|
Dimensions |
4.2 x 12 x 16.5 cm |
|
Weight |
0.36 kg |
|
Self Test Interval |
< 1 hour (system dependent) |
|
Sample Update Interval (No Filter) |
6 ms |
|
Resolution |
0.98 µA (15-bit) |
|
Least Significant Bit (LSB) |
0.98 µA |
|
Input Current Range (Nominal) |
4–20 mA DC |
|
Input Current Range (Maximum) |
0–24 mA DC |
|
Measurement Accuracy (25 °C) |
±0.05 mA |
|
Long-Term Accuracy (1 year @ 40 °C) |
0.21% + 10 pA |
|
Long-Term Accuracy (2 years @ 40 °C) |
0.22% + 10 pA |
|
Long-Term Accuracy (5 years @ 40 °C) |
0.23% + 10 pA |
|
Temperature Drift |
(0.01% + 0.3 pA) per °C |
|
Module Supply Voltage |
Redundant +24 VDC nominal (18–32 VDC range) |
|
Power Dissipation |
4.0 W (13.6 BTU/hr) |
|
Field Loop Power Dissipation |
See TA specification (9831/2/3) |
|
Maximum Input Slew Rate |
Refer to system specification |
|
Channel Isolation |
±1.5 kVDC withstand for 1 minute |
|
Casing Material |
Non-flammable plastic |
|
Safety Integrity Structure |
1oo1D / 1oo2D / 2oo3D |
|
Supported Processor Modules |
3 |
|
Supported I/O Modules |
Up to 48 modules (8 or 16 channel types) |
|
Safety Accuracy Limit (Digital Inputs) |
1.0 VDC |
|
Safety Accuracy Limit (Analog Inputs) |
200 µA |
|
Event Resolution (Processor Internal Variables) |
1 ms |
|
Event Resolution (Digital Input Module) |
1 ms |
|
Time Stamp Accuracy |
Application scan (processor) / 10 ms (DI module) |
|
Electrical Isolation |
Channel-to-channel and channel-to-chassis |
|
Mounting Type |
Plug-in module for I/O base system |
Description

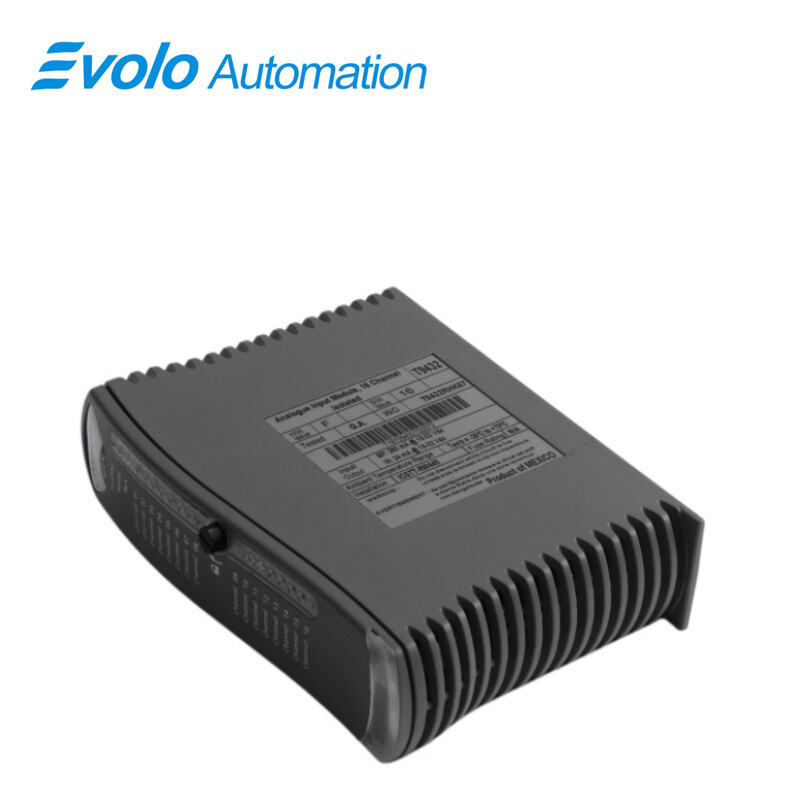

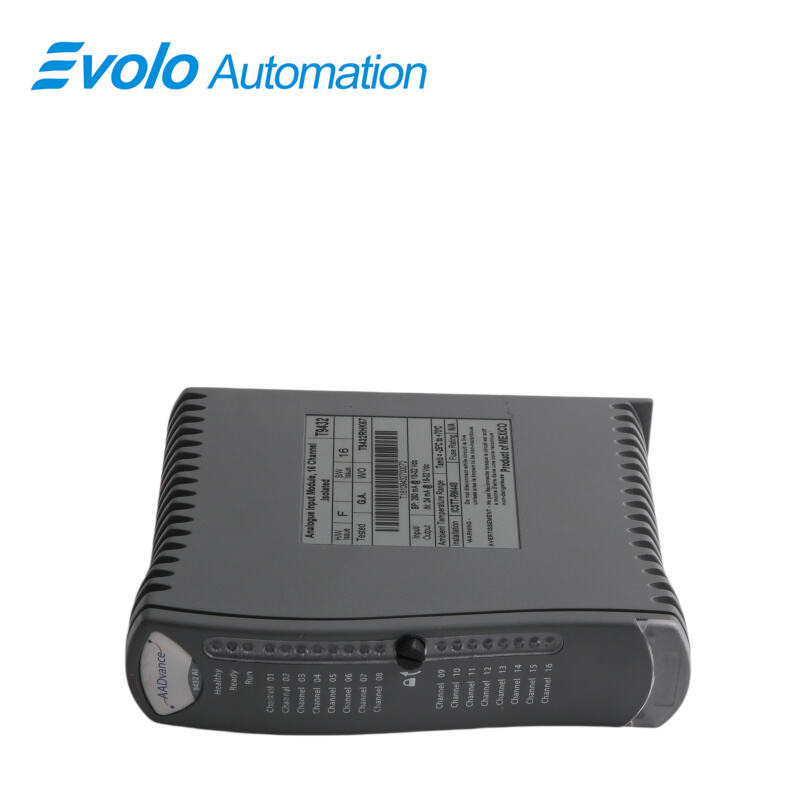

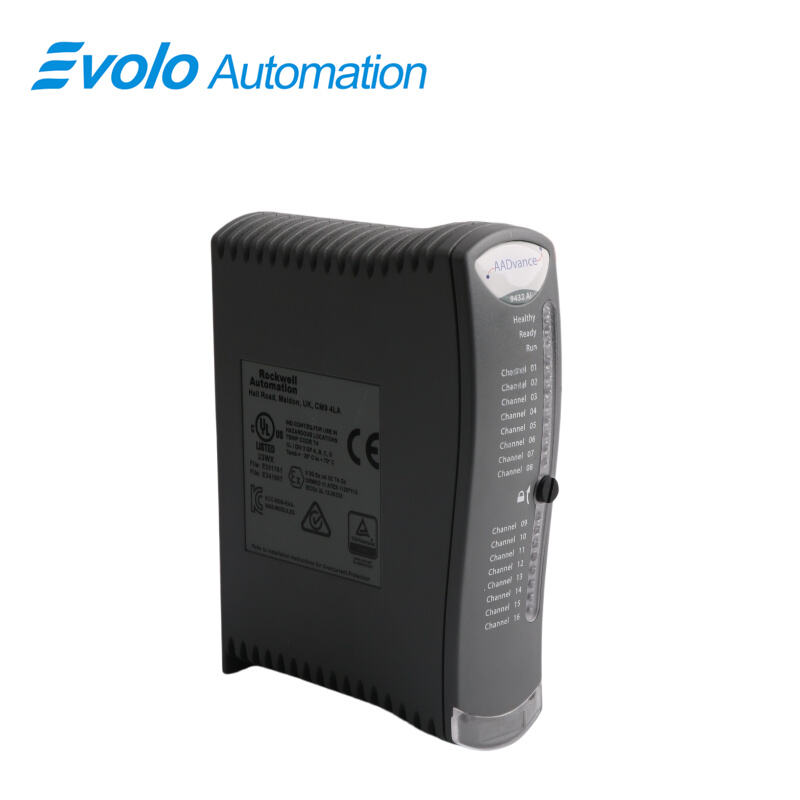

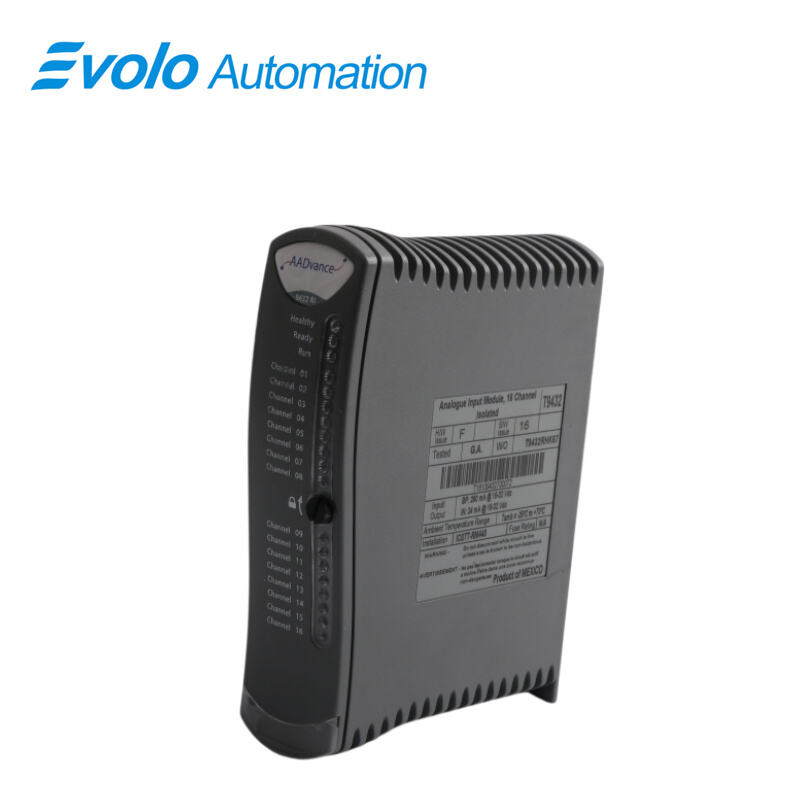

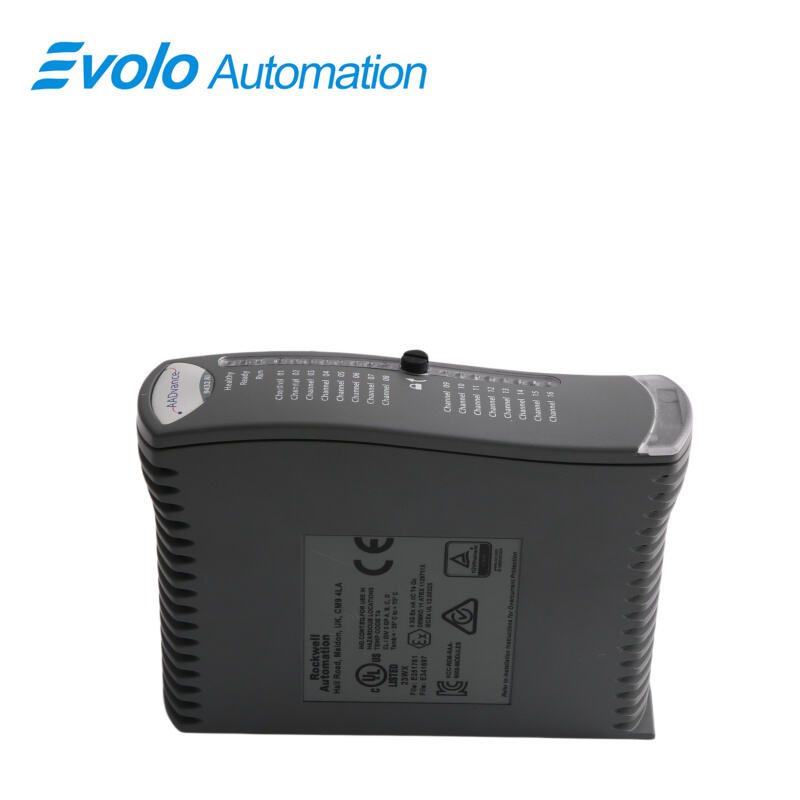

The ICS Triplex T9432 is a high-performance analog input module primarily used in industrial automation control systems. It converts analog signals (such as temperature, pressure, and flow rate) from the field into digital signals and transmits them to a host computer such as a PLC or DCS for process monitoring and control.
Applications
Features
High Channel Count: Typically features multiple analog input channels, allowing simultaneous acquisition of multiple signals and improving system efficiency.
High Precision: Offers high measurement accuracy, accurately reflecting actual values at the field.
Isolation Design: Each channel is independently isolated, effectively preventing crosstalk from interfering signals and improving system reliability.
Flexible Configuration: Can be flexibly configured to meet different application requirements, such as range adjustment and filtering.
FAQ
Q: What is the sample update interval of T9432 in no-filter mode?
A: 6 ms fast real-time sampling for signal capture.
Q: What is the power dissipation of T9432 module?
A: 4.0 W (13.6 BTU/hr) low power consumption.
Q: What input current range does T9432 support?
A: 4–20 mA rated, 0–24 mA extended range.
Q: What channel isolation does T9432 provide?
A: ±1.5 kVdc channel-to-channel and channel-to-rack isolation for 1 minute.
Q: What resolution and accuracy does T9432 achieve?
A: 15-bit resolution with ±0.05 mA accuracy at 25°C.
