Overview
Place of Origin: |
USA |
Brand Name: |
ICS TRIPLEX |
Model Number: |
T8314C |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Part Number |
T8314C |
|
Part Name |
Trusted Fibre TX/RX Unit |
|
Dimensions |
11.5 × 11 × 4.5 cm |
|
Weight |
0.3 kg |
|
Voltage Range |
18 to 32 Vdc |
|
Maximum Power Consumption |
1.7 W |
|
Transmitter Output Power |
-15 dBm minimum |
|
Receiver Sensitivity |
-28 dBm |
|
Maximum Propagation Time Difference |
80 ns |
|
Maximum Fibre Length Difference |
15 m |
|
Operating Temperature |
0°C to +60°C (+32°F to +140°F) |
|
Non-operating Temperature |
-25°C to +70°C (-13°F to +158°F) |
|
Relative Humidity |
10–95% RH (non-condensing) |
Description

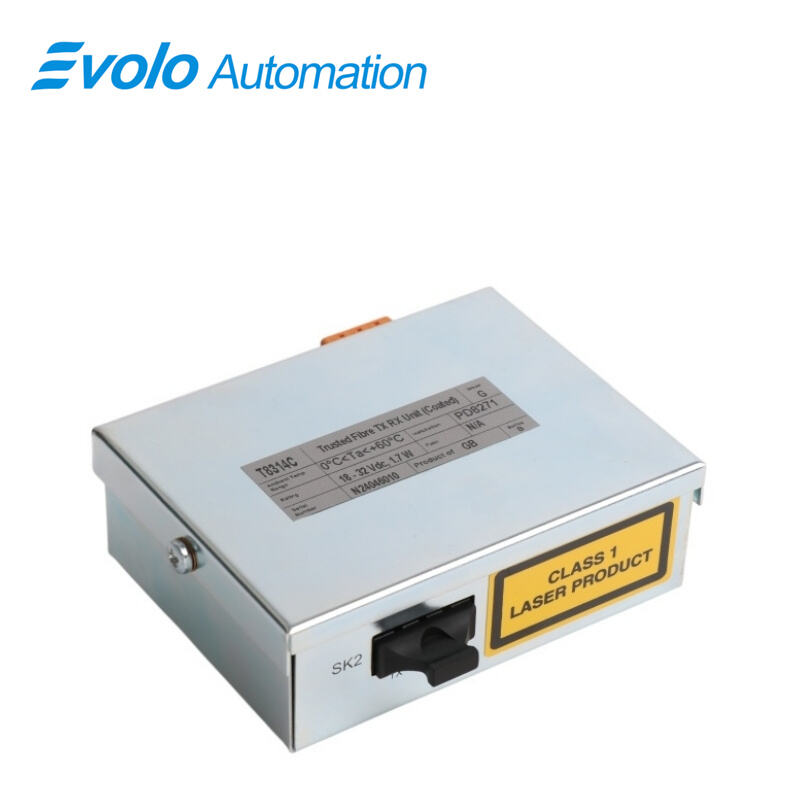

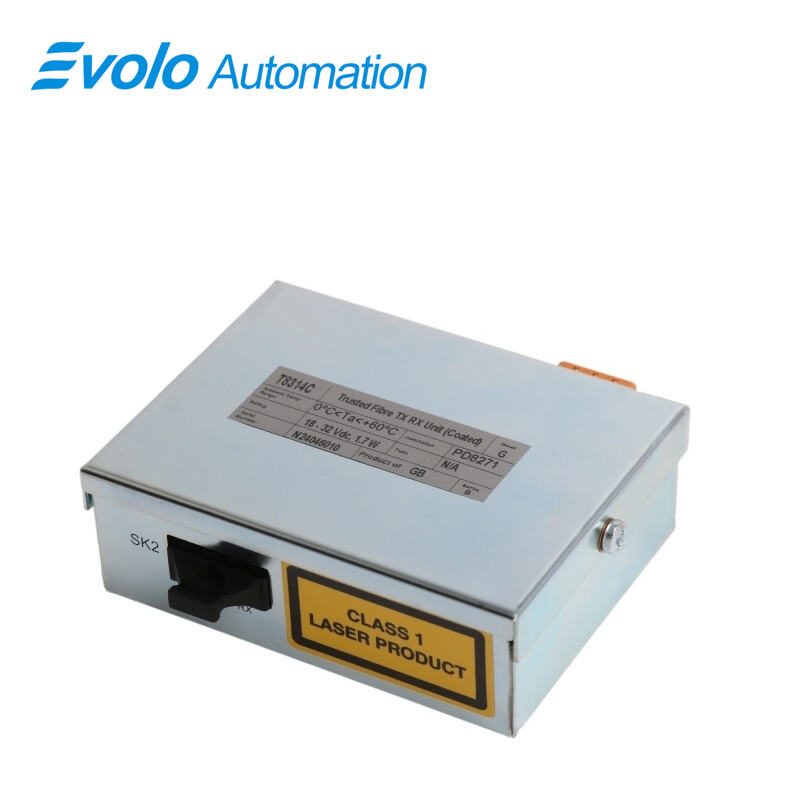

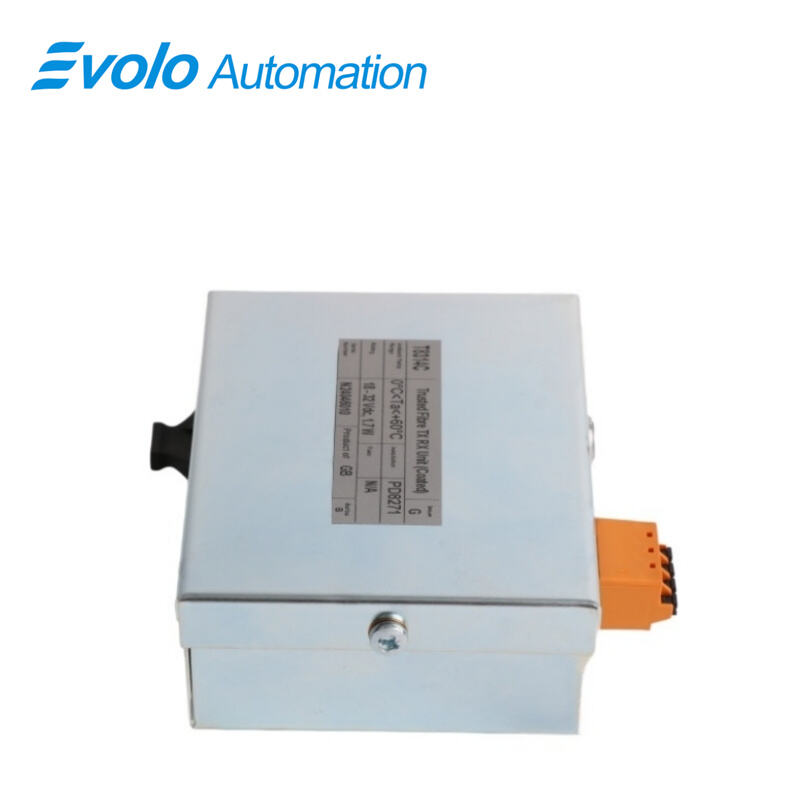

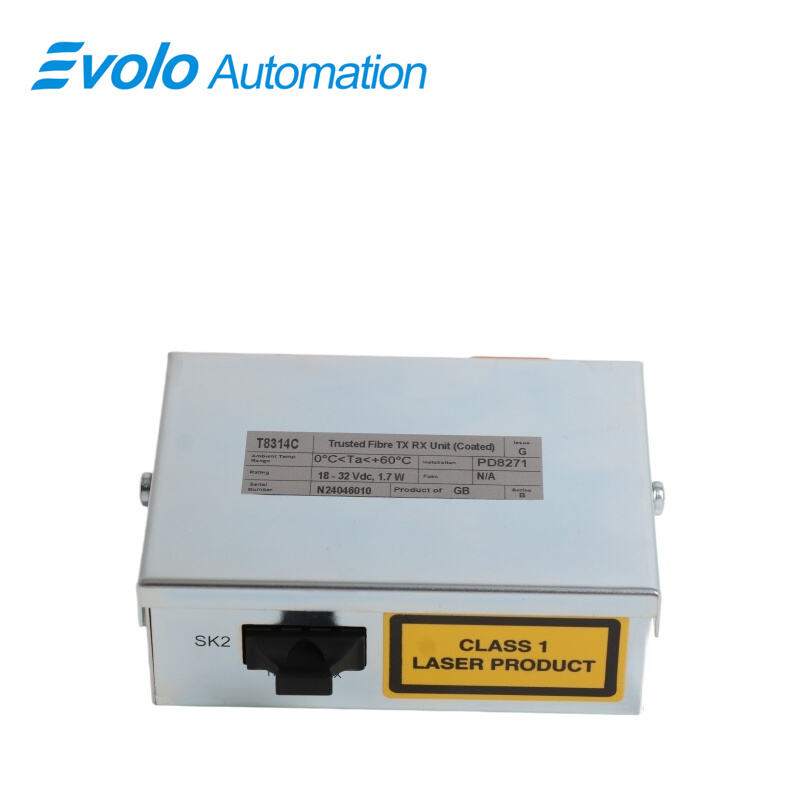

T8314C Trusted Fibre TX/RX Unit is a high-reliability industrial fibre communication module designed to extend the Trusted Expander Bus across long-distance industrial control networks, enabling remote deployment of expander chassis away from the main control system.
Applications
Petrochemical Refineries: Fiber links in remote SIS cabinets for ESD/FGS transmission with EMI resistance.
Thermal Power Plants: Low-power fiber backbone connecting distributed I/O to central control systems.
Coal Gasification Plants: Long-distance fiber links between gasifiers and control stations for stable communication.
Offshore Oil Platforms: Fiber safety networks replacing copper cables to avoid lightning and surge risks.
Water Treatment Plants: Fiber gateway linking distributed pumps and dosing systems for reliable response.
Features
Dual 24 Vdc diode ORed power supply.

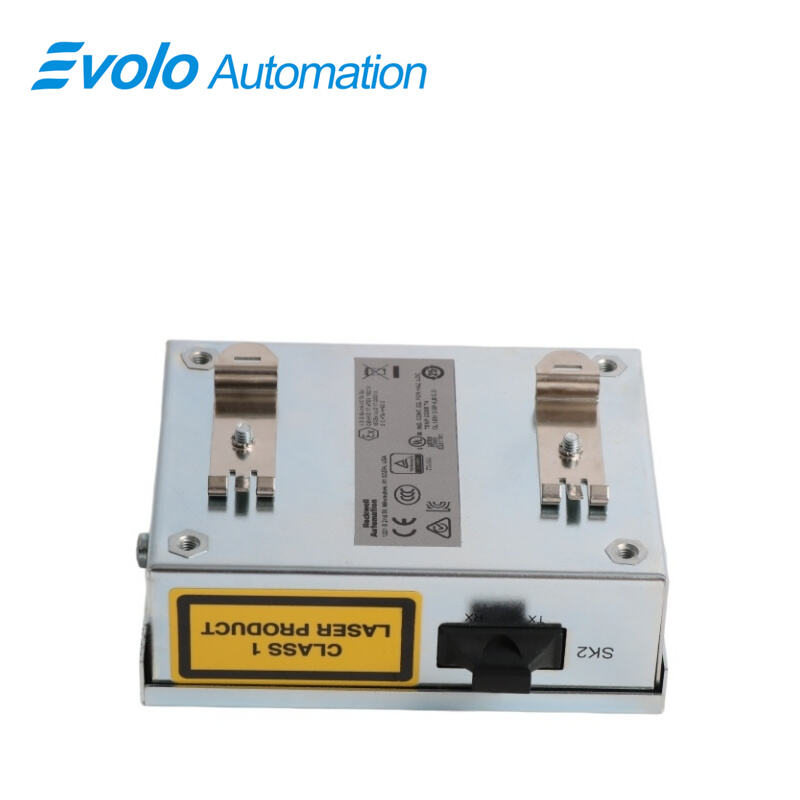

Easy installation (Din rail mounting).
Communications over a distance of 10 km.
Independent units therefore easily maintained.
Square Connector (SC) type connectors to two fibres (Tx and Rx).
Low power consumption.
FAQ
Q1: Can T8314C be DIN-rail or PLC-mounted?
A: No. It must be used only with Trusted redundant expander chassis hardware.
Q2: Can unequal fiber lengths (100 m vs 120 m) work with T8314C?
A: No. Length difference must stay within 15 m for synchronized operation.
Q3: What is power consumption of T8314C under full load?
A: Maximum power consumption is 1.7 W.
Q4: Will T8314C fail below 0°C in winter outdoor cabinets?
A: Yes. Minimum operating temperature is 0°C; heating is required below this.
Q5: Is -25 dBm optical input valid for T8314C?
A: Yes. It is within sensitivity range down to -28 dBm.
