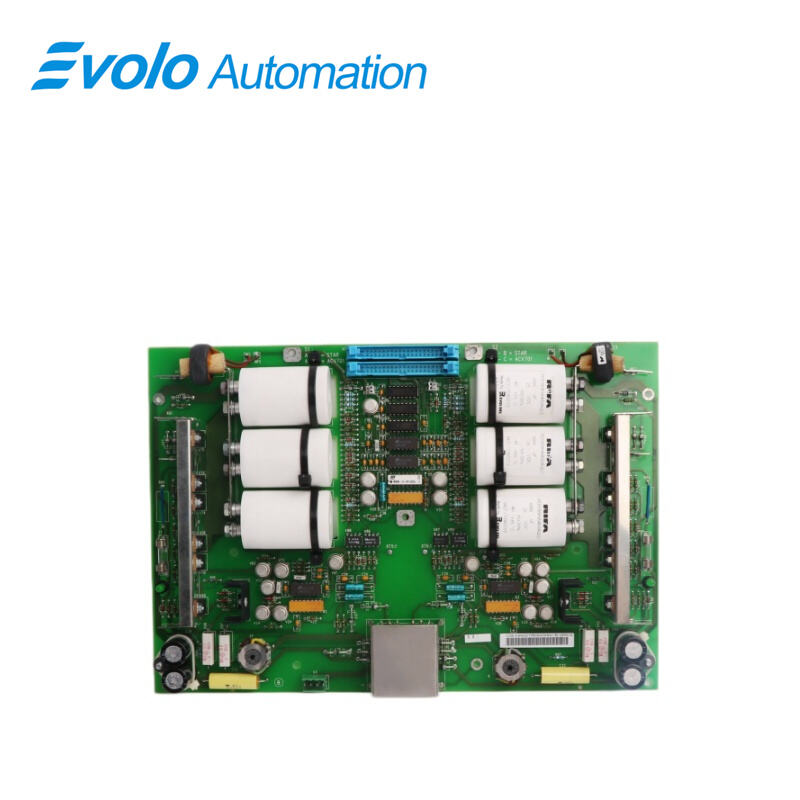

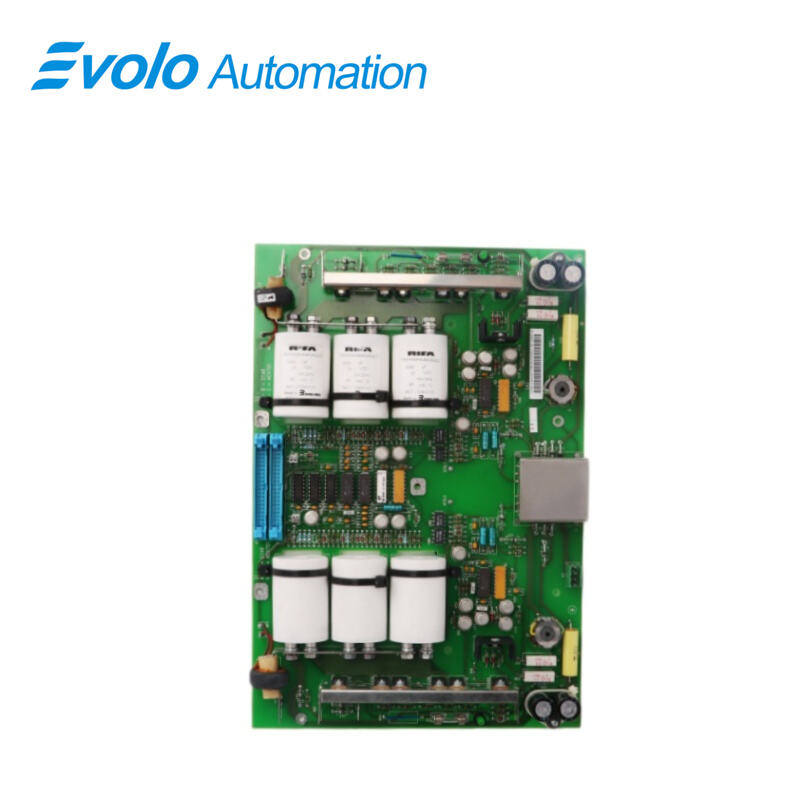

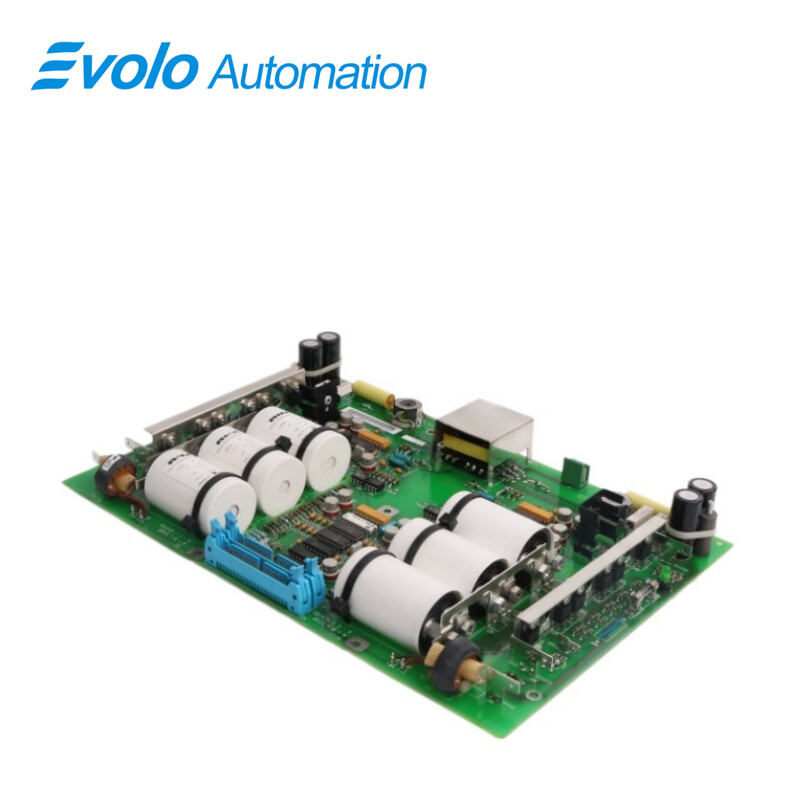

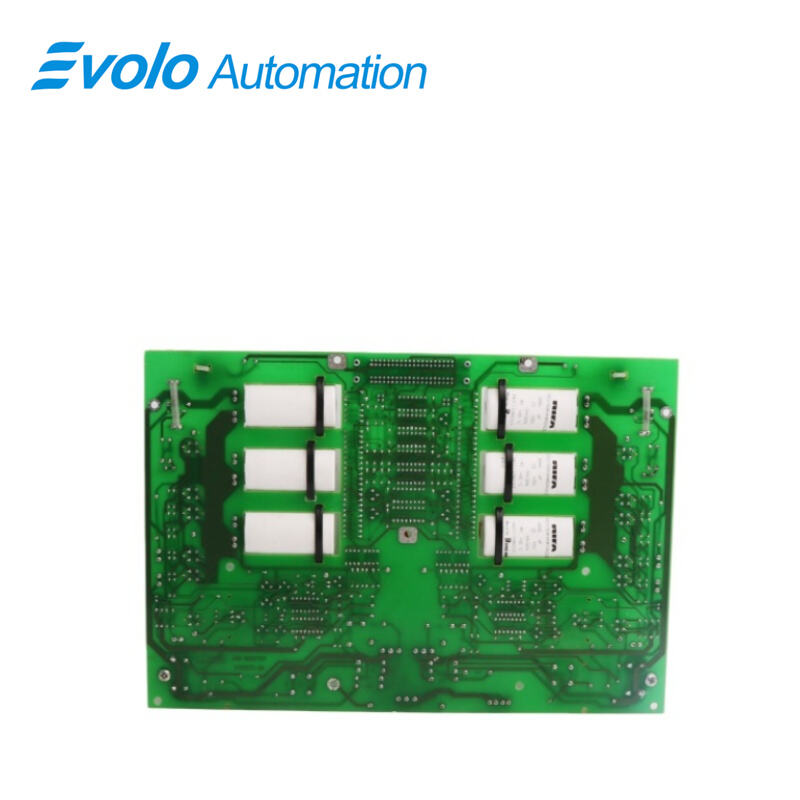

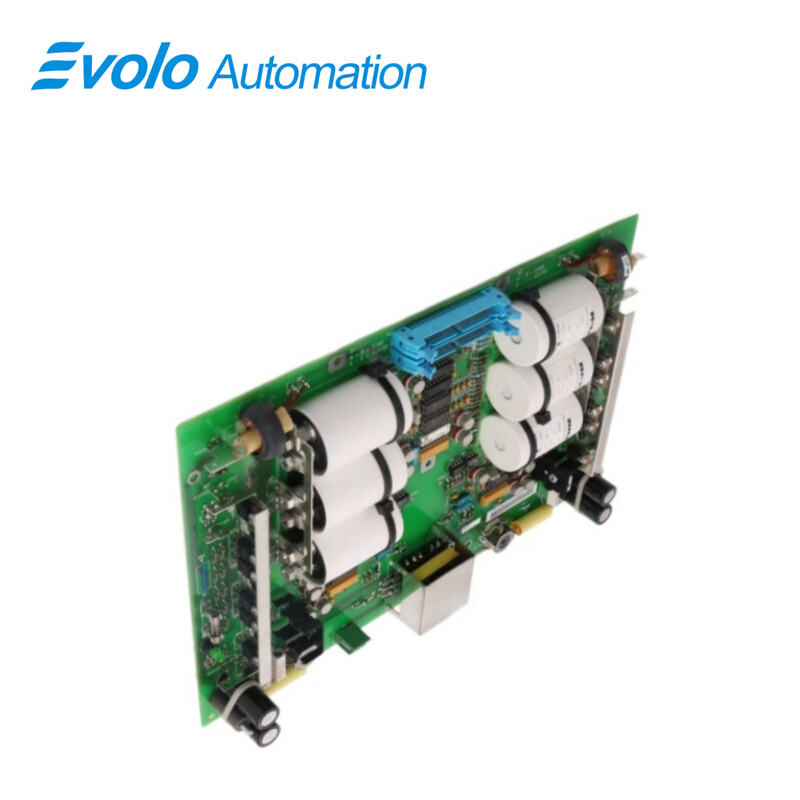

SNAT634PAC SNAT 634 PAC Pulse Amplifier Module

Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	SNAT634PAC SNAT 634 PAC
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

The ABB SNAT634PAC SNAT 634 PAC Pulse Amplifier Module is designed for high-performance applications requiring precise and reliable pulse amplification. Ideal for integration into complex industrial control systems, this module ensures optimal performance and efficiency.

Applications

Heavy-duty automated warehousing plants: Used to drive large, high-speed sorting levers or heavy-duty electromagnetic brakes, utilizing 18A current to ensure instantaneous action.

Automotive parts foundries: Control high-frequency, high-power solenoid valves in metal die-casting lines, ensuring the stability of hydraulic control pulses.

Industrial robot integration plants: Act as the power amplification hub for high-current end effectors, achieving precise torque control at 10kHz.

Intelligent power switch manufacturing plants: Responsible for the pulse triggering logic of high-capacity contactors or circuit breakers, meeting the high reliability requirements of IEC 61131-2 standards.

Woodworking/stone machinery plants: Drive high-power pulse feed motors, utilizing their robust 1.12kg structure to resist mechanical vibration interference.

Troubleshooting and Maintenance

Troubleshooting:

Frequency Response Decrease: Check the cable length at the 18A load end. Excessive cable length can cause inductive effects that limit the integrity of the 10kHz signal.

Module Unresponsive: First check the 24V DC input power supply and confirm it is a clean industrial power supply compliant with IEC standards.

Maintenance Recommendations: Due to the module's large size (32.3cm long), ensure multiple points of fixation during installation to prevent stress fatigue at the interfaces caused by industrial vibrations.

Regularly clean the heat dissipation channels around the 4.2cm thick casing to ensure effective heat dissipation during full-load operation at +60°C.

FAQ

Q1: Does SNAT634PAC SNAT 634 PAC 18A output support parallel connections?
A: Yes. Single output is strong, but total load must stay within 18A rating.

Q2: Does the 10 kHz limit of SNAT634PAC SNAT 634 PAC apply to all duty cycles?
A: Yes. It maintains stable PWM edge performance within 10 kHz range.

Q3: Does 1.12 kg weight of SNAT634PAC SNAT 634 PAC need extra DIN rail support?
A: Yes. Use reinforced DIN rail or bolt mounting for stable vertical installation.

Q4: Does 5W power consumption of SNAT634PAC SNAT 634 PAC include load power?
A: No. 5W is internal control power only; load power depends on external devices up to 18A.

Q5: Does SNAT634PAC SNAT 634 PAC need preheating at -25°C?
A: No. It supports direct cold start with industrial-grade components.
