Overview
Place of Origin: |
Sweden |
Brand Name: |
ABB |
Model Number: |
SM1006S/B12/0000/32/STD |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Model |
SM1006S/B12/0000/32/STD |
|
Product Type |
Videographic Chart Recorder |
|
Recording Type |
Videographic / Graphical |
|
Resolution |
1024 × 768 pixels |
|
Storage Capacity |
128 GB |
|
Input Channels |
32 |
|
Power Supply Voltage |
220 V AC |
|
Operating Temperature |
-20°C to +60°C |
|
Dimensions |
25 x 15 x 5 cm |
|
Weight |
2.5 kg |
Description

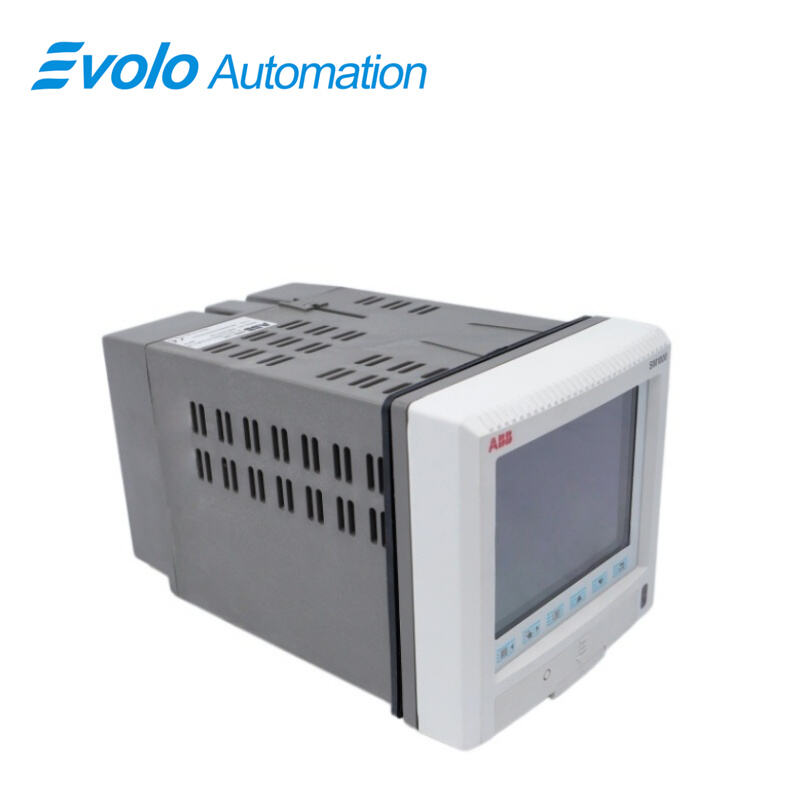

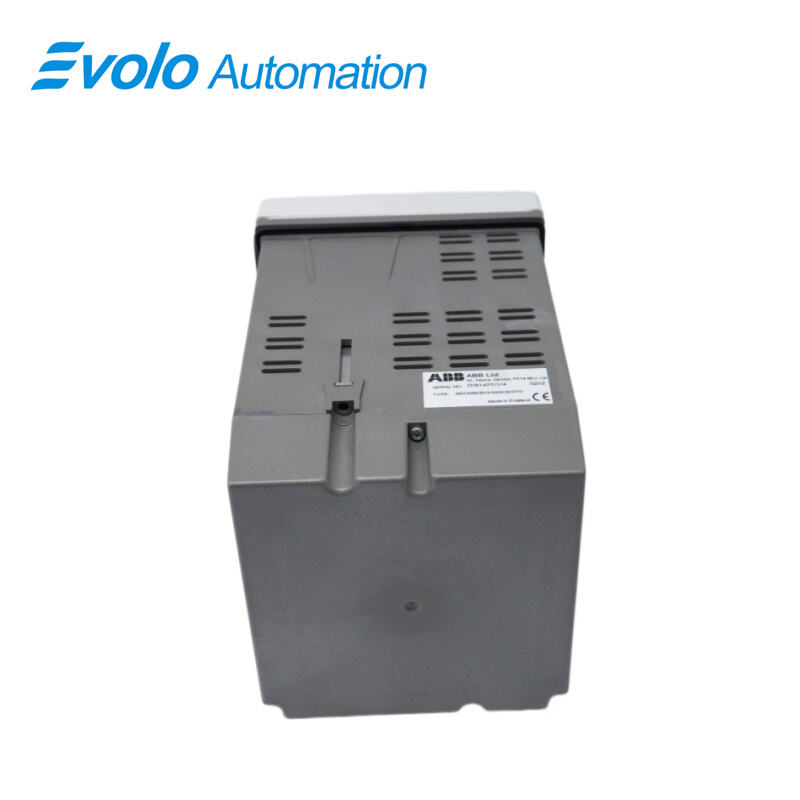

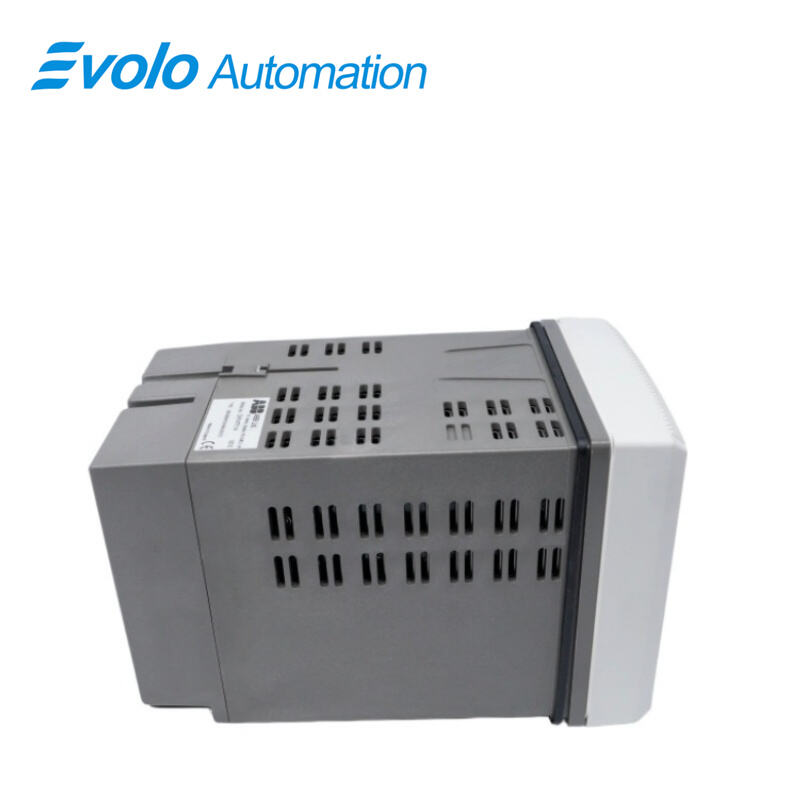

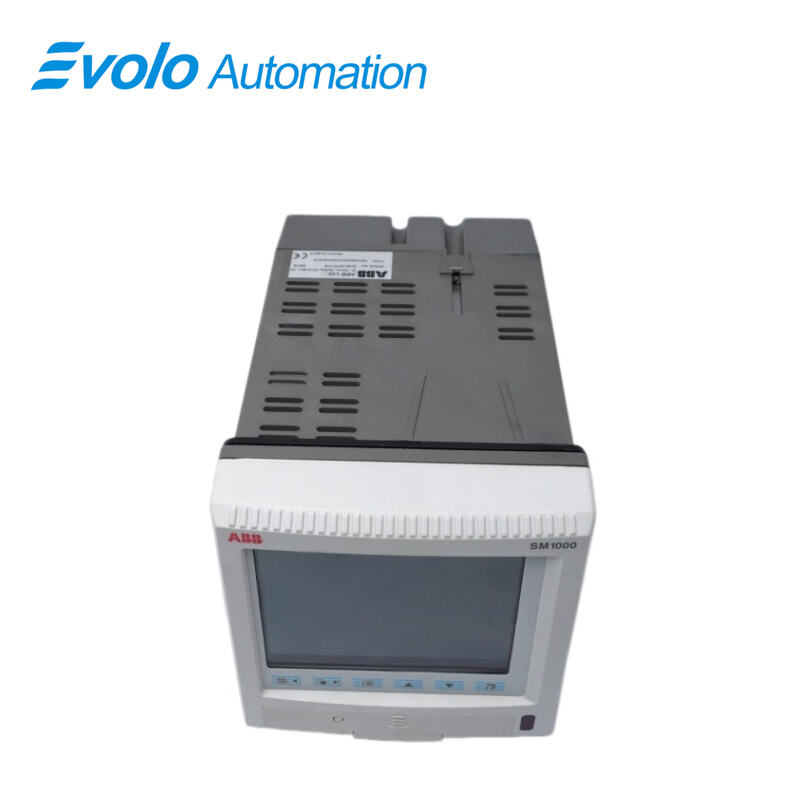

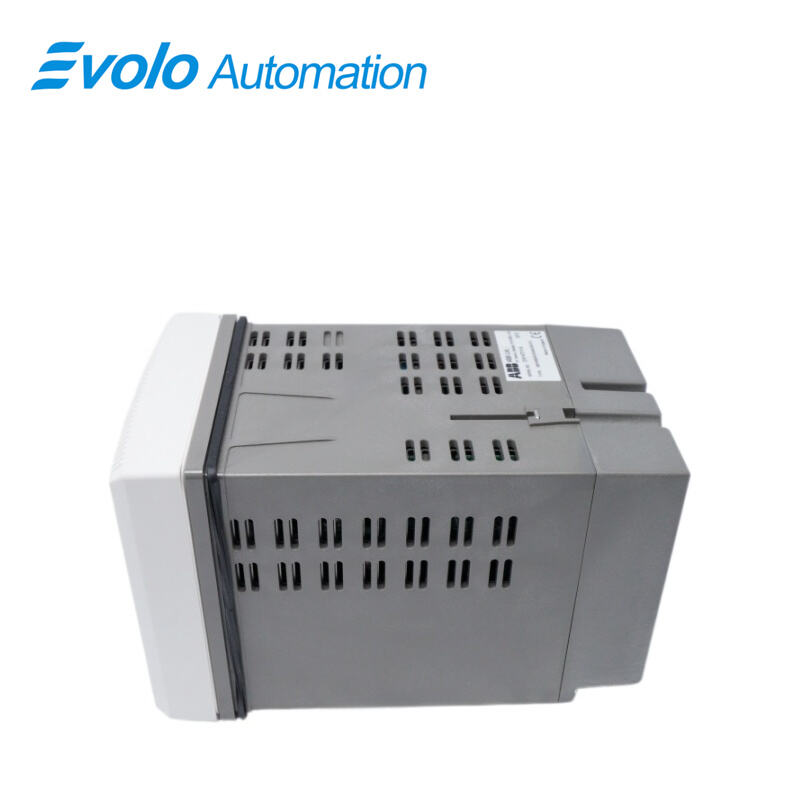

The ABB SM1006S/B12/0000/32/STD is a high-performance Video Chart Recorder suitable for industrial automation and process control. It accurately records and analyzes various data points during production, helping engineers and operators monitor equipment status in real time and improve production efficiency.
Applications
Heat treatment plants: Used for real-time recording of precise multi-point temperature profiles in quenching and tempering furnaces.
Fine chemical plants: Monitor pressure, flow rate, and level fluctuations in chemical reactors to ensure production safety.
Pharmaceutical manufacturing plants: Meet stringent regulatory requirements and validate environmental parameters during sterilization processes.
Food processing plants: Provide full-range data traceability in cold chain heating and packaging.
Coal-fired power plants: Integrated into control cabinets to record critical operating data for turbine and boiler systems.
Maintenance
Troubleshooting: If the display shows no image, please check if the 220V AC power cord is loose; if data storage is abnormal, check the remaining space of the 128GB memory or perform a system format repair.
Maintenance Recommendations: It is recommended to regularly export backup historical data via USB or network port; use a soft microfiber cloth to clean the 1024x768 high-definition screen to avoid damaging the display panel with chemical solvents.
FAQ
Q1: Does SM1006S/B12/0000/32/STD require ribbon or paper replacement?
A1: No, it is a paperless recorder with 128GB internal digital storage.
Q2: Can all 32 channels of SM1006S/B12/0000/32/STD be displayed at once?
A2: Yes, it supports multi-window display on a 1024×768 screen.
Q3: Will data be lost after power failure in SM1006S/B12/0000/32/STD?
A3: No, non-volatile memory ensures all data is retained.
Q4: How is data exported from SM1006S/B12/0000/32/STD?
A4: Via USB export or Ethernet/RS485 remote access.
Q5: Can SM1006S/B12/0000/32/STD start in -20°C environments?
A5: Yes, it supports cold start from -20°C to +60°C.
