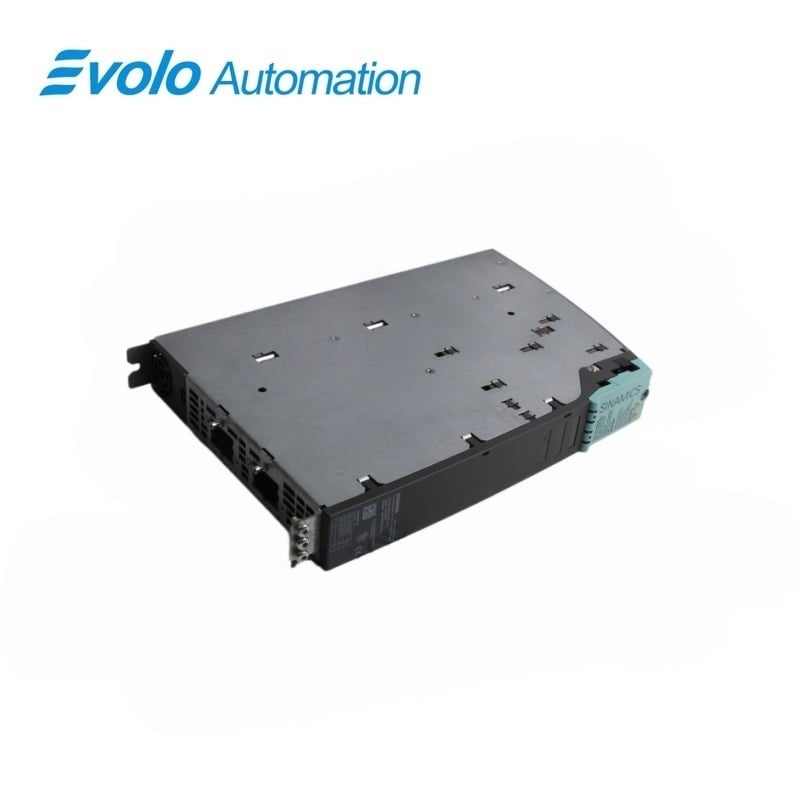

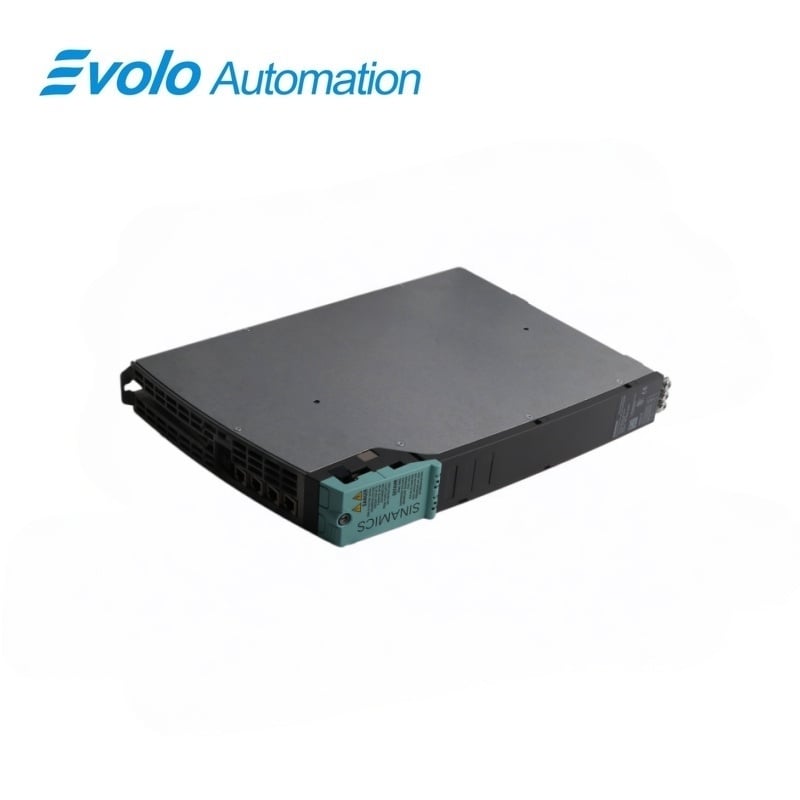

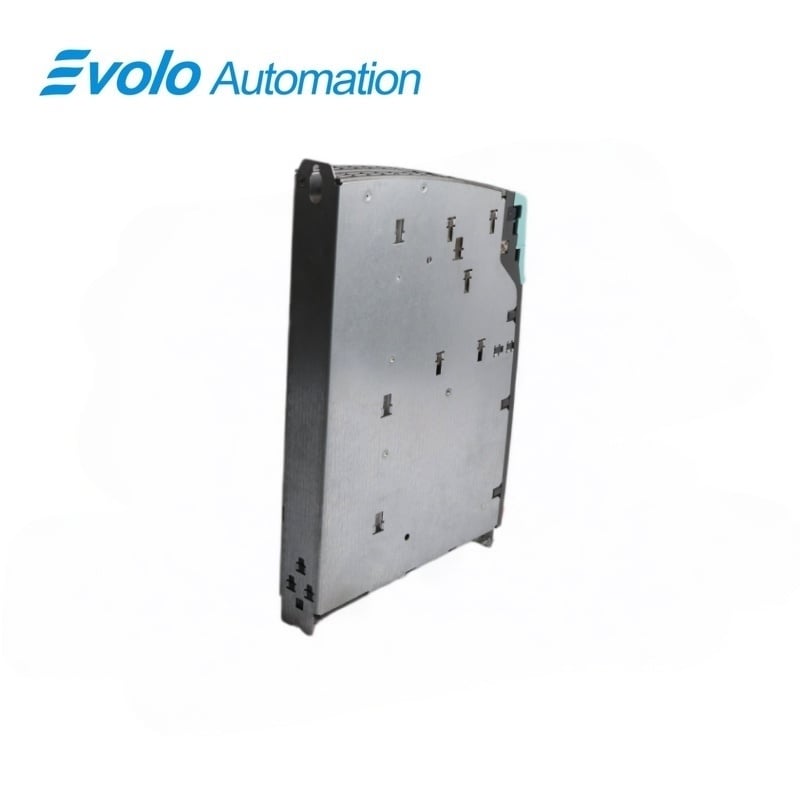

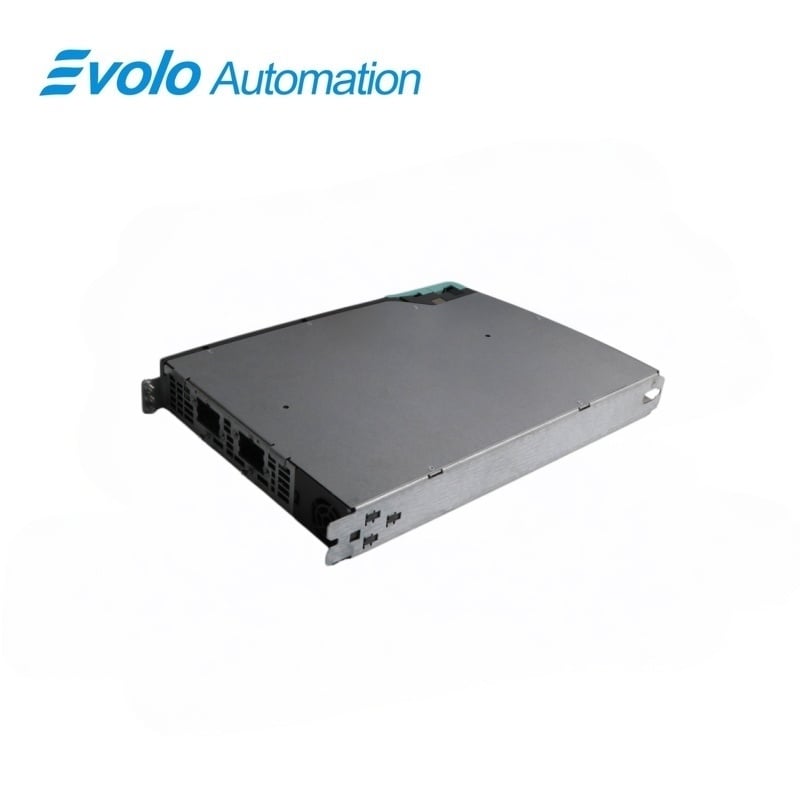

Siemens SINAMICS S120 6SL3120-1TE15-0AA4 Single Motor Module 5 A
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
6SL3120-1TE15-0AA4 Single Motor Module
Official Siemens identification and specifications for 6SL3120-1TE15-0AA4, prepared for accurate replacement matching and quotation.
At a Glance
| Article Number | 6SL3120-1TE15-0AA4 |
|---|---|
| Manufacturer | Siemens |
| Platform | SINAMICS S120 |
| Product Type | Single Motor Module, Booksize, 5 A |
| DC Link Input | 600 V DC nominal |
| Motor Output | 400 V 3 AC, 5 A |
| Cooling | Internal air cooling |
| Country of Origin | Germany |
Exact Identification
Match the complete Siemens article number 6SL3120-1TE15-0AA4.
Booksize Motor Module
5 A Single Motor Module with internal air cooling.
Compatibility Check
Verify DC-link voltage, motor current, DRIVE-CLiQ topology, safety functions, cooling and hardware version.
Product Overview
6SL3120-1TE15-0AA4 is officially identified by Siemens as a SINAMICS S120 Single Motor Module in booksize format.
The module is specified for a 600 V DC input and 400 V three-phase AC output at 5 A, with internal air cooling, optimized pulse patterns and support for extended Safety Integrated functions.
Key Functions
Single-Axis Motor Power
Supplies one motor from the SINAMICS S120 DC link.
Booksize Integration
Fits the SINAMICS S120 booksize modular drive arrangement.
Integrated Communication
Includes the Siemens-specified DRIVE-CLiQ cable for system communication.
Official Specifications
| Manufacturer | Siemens |
|---|---|
| Series | SINAMICS S120 |
| Article Number | 6SL3120-1TE15-0AA4 |
| Product Type | Single Motor Module, Booksize, 5 A |
| Product Designation | SINAMICS S120 Single Motor Module |
| Construction | Booksize |
| DC Link Input | 600 V DC nominal |
| Output Voltage | 400 V 3 AC |
| Rated Output Current | 5 A |
| Type Rating | Approx. 2.7 kW (3 hp) |
| Cooling | Internal air cooling |
| Safety Support | Extended Safety Integrated functions |
| DRIVE-CLiQ Cable | Included |
| Hardware Versions in Siemens Declaration | A, B and C |
| Net Weight | 5.440 kg |
| Country of Origin | Germany |
Frequently Asked Questions
What is 6SL3120-1TE15-0AA4?
It is a Siemens SINAMICS S120 5 A Single Motor Module.
Which construction format is used?
Siemens specifies the booksize format.
What is the DC-link input?
The official description specifies 600 V DC nominal input.
What motor output is specified?
The module provides 400 V three-phase AC output at 5 A.
How is the module cooled?
It uses internal air cooling.
Is DRIVE-CLiQ included?
The Siemens product description includes a DRIVE-CLiQ cable.
What should be checked before replacement?
Verify the full article number, hardware version, DC link, motor data, safety configuration, DRIVE-CLiQ and cooling.
Compatibility & Ordering Notes
Compatibility Checklist for 6SL3120-1TE15-0AA4
- Match the complete article number 6SL3120-1TE15-0AA4.
- Record hardware version and back up the SINAMICS drive project.
- Verify DC-link voltage, motor current and axis assignment.
- Confirm DRIVE-CLiQ topology, safety configuration and cooling airflow.
