Overview

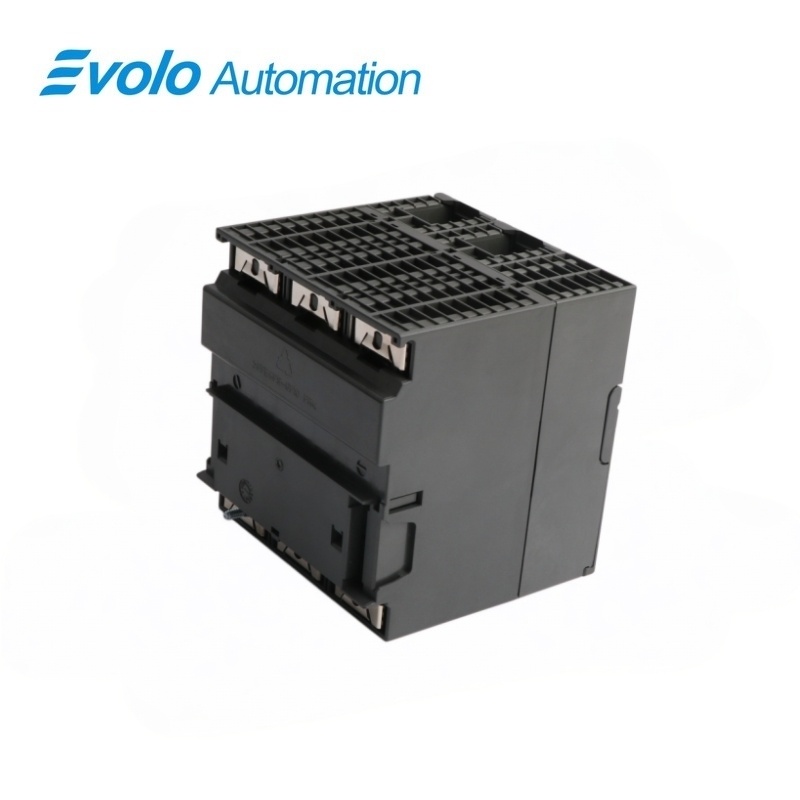

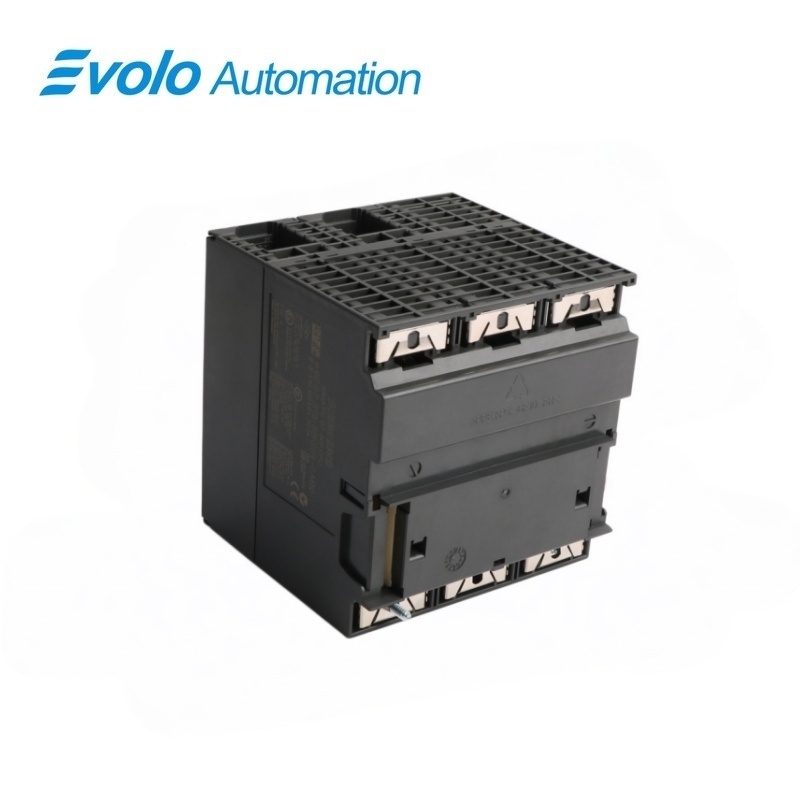

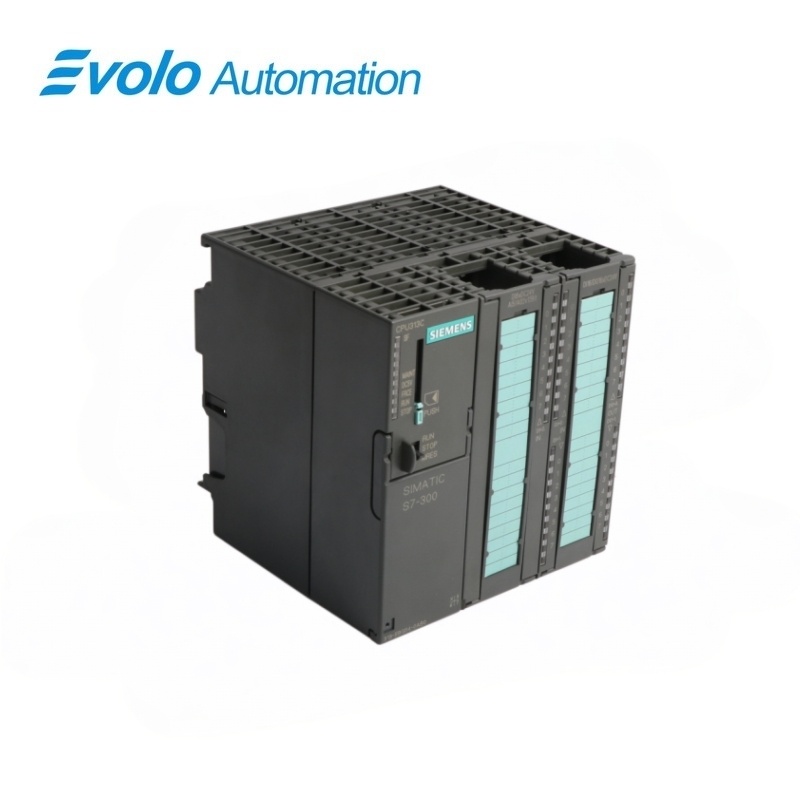

6ES7313-5BG04-0AB0 CPU 313C
Official Siemens identification and specifications for 6ES7313-5BG04-0AB0, prepared for accurate replacement matching and quotation.
At a Glance
| Article Number | 6ES7313-5BG04-0AB0 |
|---|---|
| Manufacturer | Siemens |
| Platform | SIMATIC S7-300 |
| Product Type | CPU 313C |
| Country of Origin | Germany |
Exact Identification
Match the complete Siemens article number 6ES7313-5BG04-0AB0 and the photographed hardware revision.
Work memory
Work memory: 128 KB
Configuration Check
Integrated I/O: 24 DI / 16 DO / 4 AI / 2 AO; confirm rack, connectors and revision before replacement.
Product Overview
6ES7313-5BG04-0AB0 is the Siemens SIMATIC S7-300 CPU 313C compact CPU with MPI and a mixed onboard I/O set. Unlike the CPU 313C-2 DP variants, its official configuration centers on MPI rather than an integrated DP interface.
Siemens specifies 128 KB work memory, 24 digital inputs, 16 digital outputs, four analog inputs, two analog outputs, one Pt100 channel, three 30 kHz counters, an integrated 24 V DC supply, two 40-pole front connectors and a required Micro Memory Card.
Key Functions
Mixed onboard I/O
6ES7313-5BG04-0AB0 integrates 24 DI, 16 DO, 4 AI, 2 AO and one Pt100 input for compact control applications that need both digital and analog signals.
Technology functions
Three high-speed counters rated to 30 kHz support counting and related compact-CPU functions without a separate counter module.
Memory and communication
The CPU provides 128 KB work memory, an MPI interface and operation with a SIMATIC Micro Memory Card.
Official Specifications
| Manufacturer | Siemens |
|---|---|
| Series | SIMATIC S7-300 |
| Article Number | 6ES7313-5BG04-0AB0 |
| Product Type | CPU 313C |
| Work memory | 128 KB |
| Integrated I/O | 24 DI / 16 DO / 4 AI / 2 AO |
| Official Configuration | 3 high-speed counters (30 kHz) |
| Interfaces | MPI |
| Official Configuration | SIMATIC Micro Memory Card required |
| Width | 120 mm |
| Net Weight | 0,710 Kg |
| Packaging Dimension | 13,10 x 15,20 x 12,70 CM |
| Country of Origin | Germany |
Official source: Siemens Industry Mall product data for 6ES7313-5BG04-0AB0. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
What is 6ES7313-5BG04-0AB0?
Siemens identifies it as a SIMATIC S7-300 CPU 313C compact CPU with integrated mixed I/O.
Which digital I/O is built into 6ES7313-5BG04-0AB0?
The official product description lists 24 digital inputs and 16 digital outputs.
Which analog channels does 6ES7313-5BG04-0AB0 include?
It provides four analog inputs, two analog outputs and one Pt100 channel.
What communication interface is standard on 6ES7313-5BG04-0AB0?
The official configuration lists MPI; an integrated PROFIBUS DP interface is not part of this CPU 313C designation.
How much work memory does 6ES7313-5BG04-0AB0 have?
Siemens specifies 128 KB of integrated work memory.
How many counters are integrated in 6ES7313-5BG04-0AB0?
Three high-speed counters are included, with operation up to 30 kHz.
Which hardware items must be checked with 6ES7313-5BG04-0AB0?
Confirm both 40-pole front connectors, all mixed I/O wiring, the 24 V DC supply, MPI settings and the Micro Memory Card.
Compatibility & Ordering Notes
Ordering checklist for 6ES7313-5BG04-0AB0
- Match the complete 6ES7313-5BG04-0AB0 order number.
- Check 24 DI, 16 DO, 4 AI, 2 AO and Pt100 terminal assignments.
- Verify both 40-pole front connectors and the SIMATIC Micro Memory Card.
- Confirm the MPI project settings and Siemens STEP 7 V5.5 engineering baseline.
