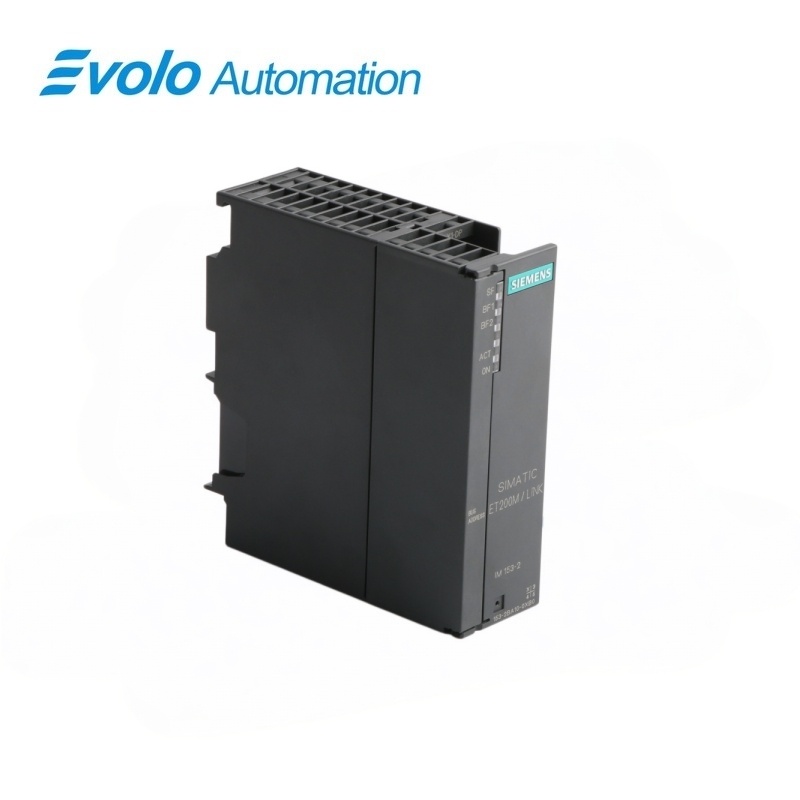

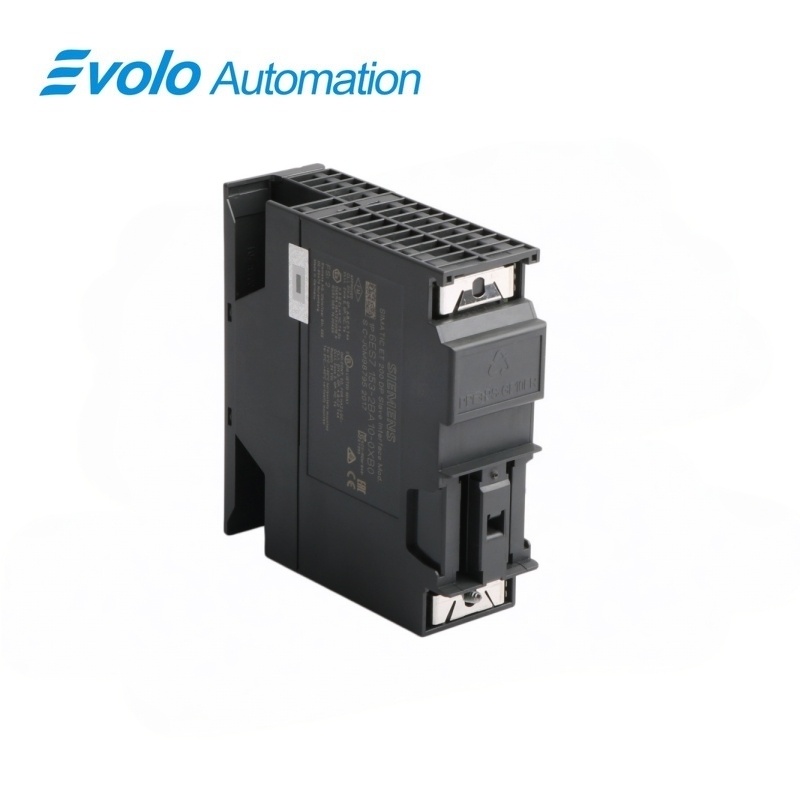

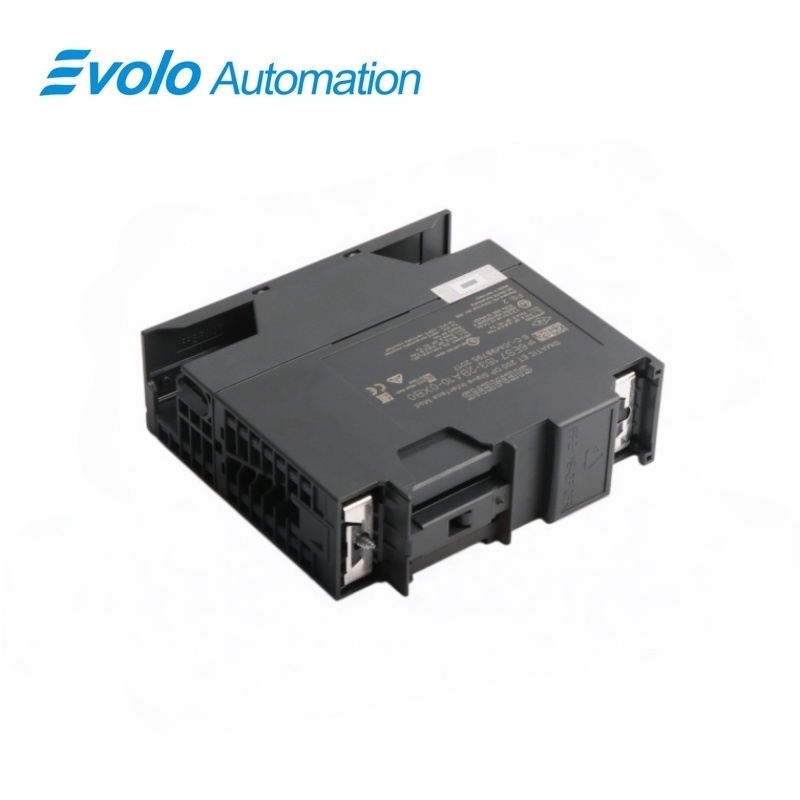

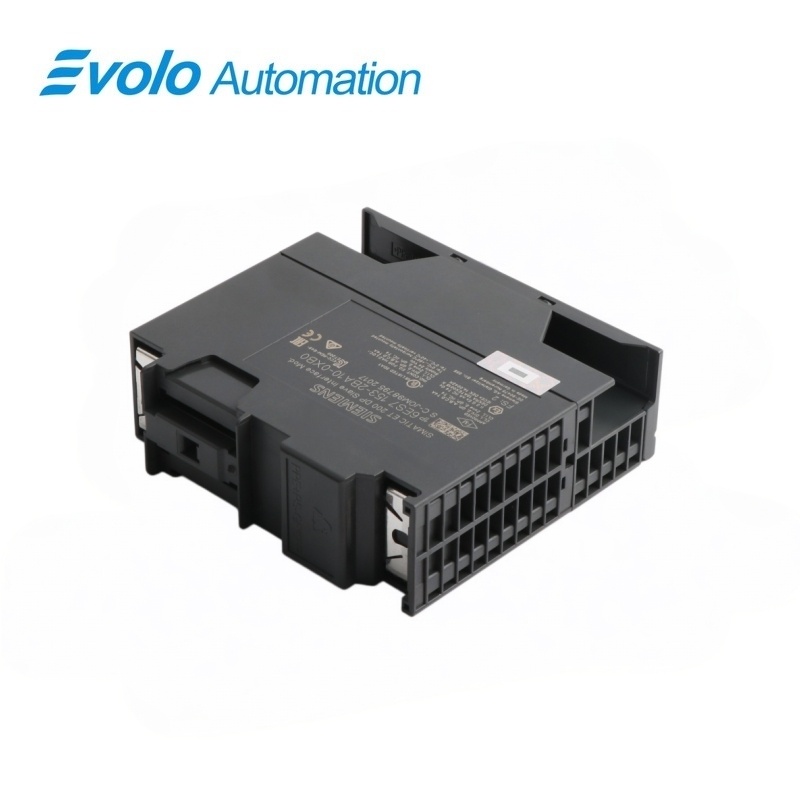

Siemens SIMATIC DP 6ES7153-2BA10-0XB0 IM 153-2 High Feature
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
6ES7153-2BA10-0XB0 IM 153-2 DP High Feature
Official Siemens identification and specifications for 6ES7153-2BA10-0XB0, prepared for accurate replacement matching and quotation.
At a Glance
| Article Number | 6ES7153-2BA10-0XB0 |
|---|---|
| Manufacturer | Siemens |
| Platform | SIMATIC ET 200M |
| Product Type | IM 153-2 DP High Feature |
| Country of Origin | Germany |
Exact Identification
Match the complete Siemens article number 6ES7153-2BA10-0XB0 and the photographed hardware revision.
Key Interface
PROFIBUS DP interface with redundancy and time-stamping functions.
Configuration Check
24 V DC supply; verify ET 200M backplane compatibility and the complete module suffix.
Product Overview
6ES7153-2BA10-0XB0 is officially identified by Siemens as SIMATIC DP connection module for ET 200M, IM 153-2 High Feature, for up to 12 S7-300 modules, with redundancy capability and time stamping suitable for isochronous operation.
The complete article number 6ES7153-2BA10-0XB0 should be matched against the installed SIMATIC ET 200M hardware, product nameplate and official Siemens system documentation. Similar modules can differ in electrical data, interfaces, accessories or hardware revision.
Key Functions
ET 200M Connection
Connects an ET 200M station with up to 12 S7-300 modules.
Redundancy and Time Stamping
Supports redundant configurations and time stamping; Siemens notes suitability for isochronous operation.
HART and 64-Channel Support
Official Siemens data records expanded HART auxiliary-variable capacity and 32 signals per slot for 64-channel modules.
Official Specifications
| Manufacturer | Siemens |
|---|---|
| Series | SIMATIC ET 200M |
| Article Number | 6ES7153-2BA10-0XB0 |
| Product Type | IM 153-2 DP HF |
| Rated Supply | 24 V DC |
| Permissible Supply Range | 20.4 to 28.8 V DC |
| Current Consumption, Max. | 650 mA |
| Modules per Station | Up to 12 S7-300 modules |
| Redundancy Capability | Yes |
| Dimensions | 40 x 125 x 117 mm |
| Technical Weight | Approx. 360 g |
| Country of Origin | Germany |
Official source: Siemens Industry Mall product data for 6ES7153-2BA10-0XB0. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
What is 6ES7153-2BA10-0XB0?
6ES7153-2BA10-0XB0 is SIMATIC DP connection module for ET 200M, IM 153-2 High Feature, for up to 12 S7-300 modules, with redundancy capability and time stamping suitable for isochronous operation.
Which Siemens system is 6ES7153-2BA10-0XB0 designed for?
6ES7153-2BA10-0XB0 is identified for the SIMATIC ET 200M platform. Verify the complete article number and installed configuration.
What interfaces or connections does 6ES7153-2BA10-0XB0 provide?
PROFIBUS DP interface with redundancy and time-stamping functions.
What should be checked before installing 6ES7153-2BA10-0XB0?
Install in the specified ET 200M station with power isolated and follow the Siemens ET 200M system manual.
How should 6ES7153-2BA10-0XB0 be matched for replacement?
Match the full article number 6ES7153-2BA10-0XB0, hardware revision, electrical data, connectors and required accessories against the installed unit.
Is 6ES7153-2BA10-0XB0 in stock?
6ES7153-2BA10-0XB0 is listed In Stock. Confirm live quantity, photographed nameplate and the required revision before payment.
What warranty is supplied with 6ES7153-2BA10-0XB0?
6ES7153-2BA10-0XB0 is supplied with the seller's stated 12-month warranty. Coverage follows the written quotation and is not a Siemens factory-warranty statement.
Compatibility & Ordering Notes
Compatibility Checklist for 6ES7153-2BA10-0XB0
- Match the complete article number 6ES7153-2BA10-0XB0 without shortening the suffix.
- Confirm the installed SIMATIC ET 200M system and hardware revision.
- Verify PROFIBUS DP interface with redundancy and time-stamping functions.
- Confirm included connectors, cables, terminal blocks, memory media or accessories in the written quotation.
