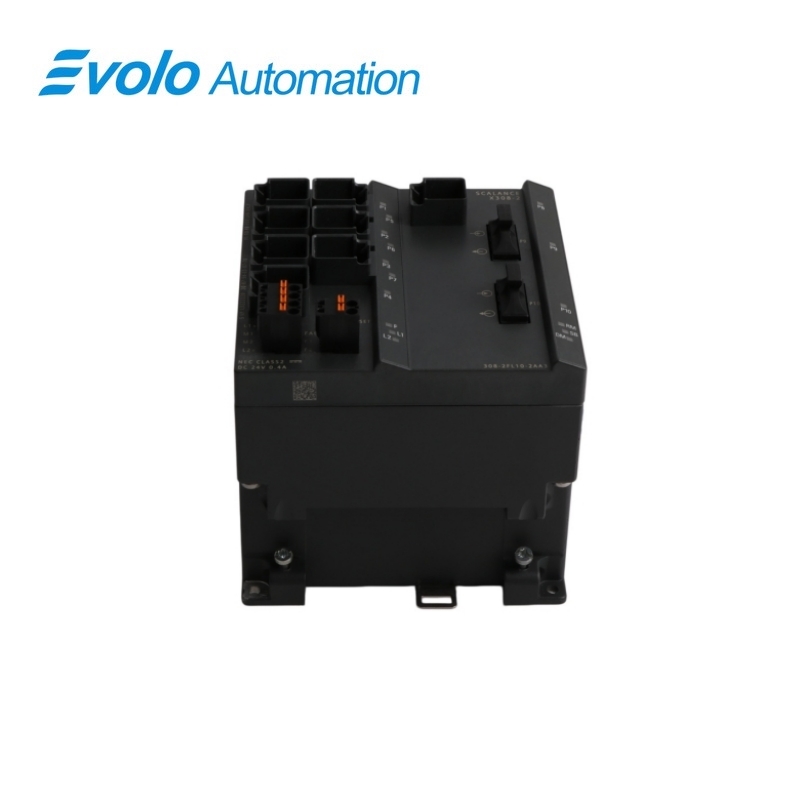

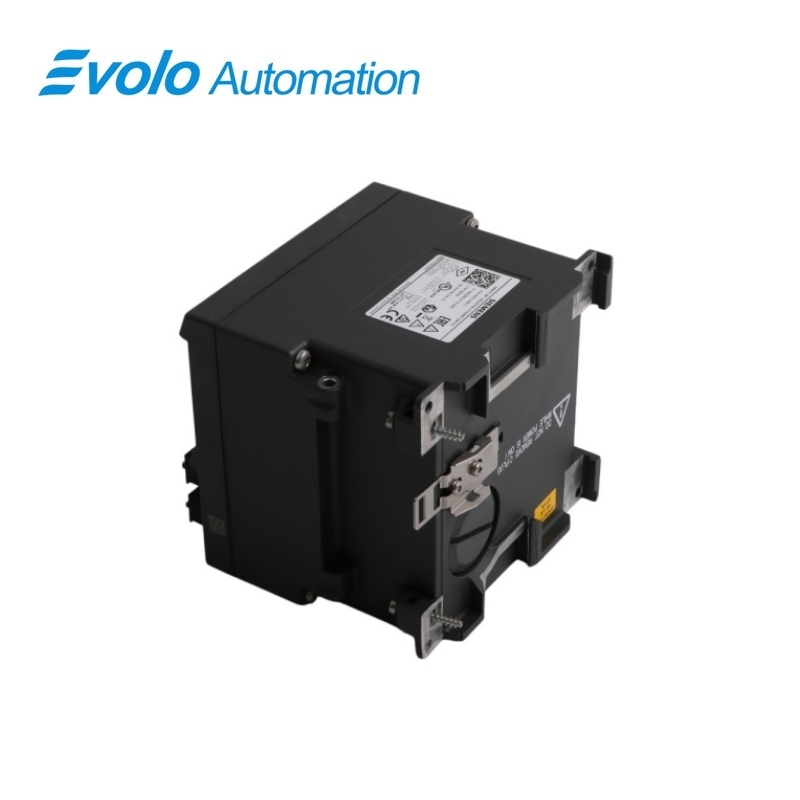

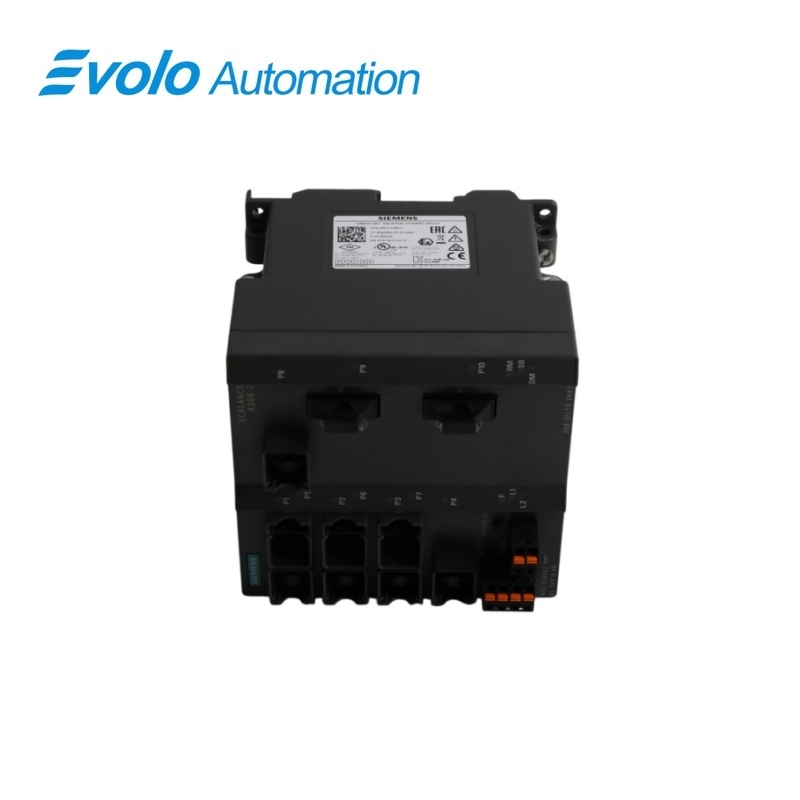

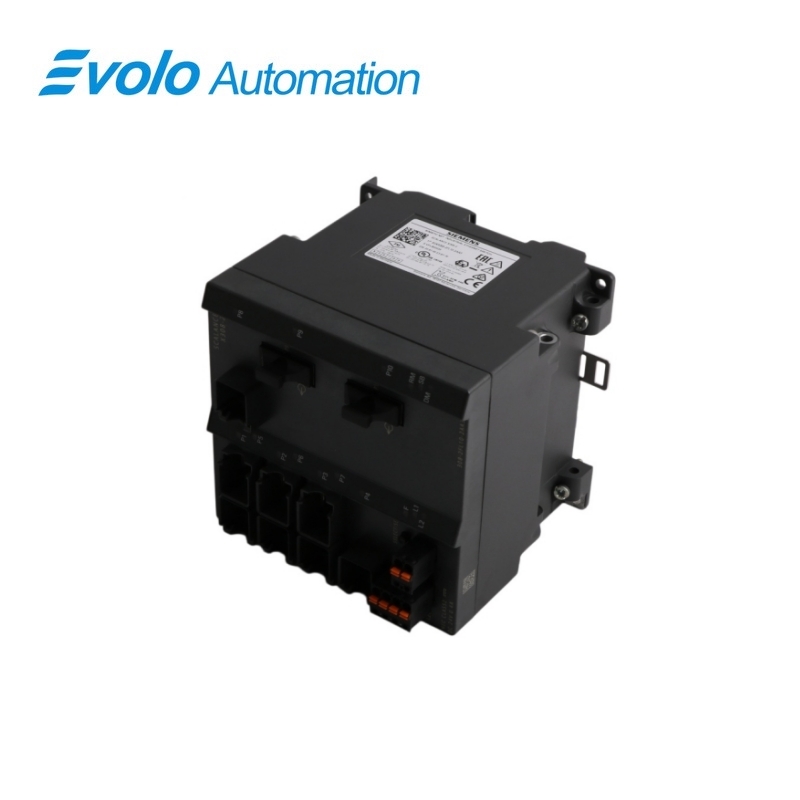

Siemens SCALANCE X308-2 6GK5308-2FL10-2AA3 Managed IE Switch
Manufacturer: Siemens
Product Family: SCALANCE X
Product Type: X308-2 Managed Plus IE Switch
Article Number: 6GK5308-2FL10-2AA3
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
6GK5308-2FL10-2AA3 SCALANCE X308-2
Official Siemens identification and technical data for the SCALANCE X308-2 managed plus Industrial Ethernet switch.
At a Glance
| Article Number | 6GK5308-2FL10-2AA3 |
|---|---|
| Manufacturer | Siemens |
| Product Line | SCALANCE X |
| Product Type | X308-2 Managed Plus IE Switch |
| Transfer Rates | 10 / 100 / 1000 Mbit/s |
Exact Identification
Match the complete Siemens article number 6GK5308-2FL10-2AA3.
Port Layout
Verify the two multimode SC ports and the RJ45 port configuration.
Configuration Check
Confirm the installed C-PLUG and network configuration before replacement.
Product Overview
Siemens identifies 6GK5308-2FL10-2AA3 as a SCALANCE X308-2 managed plus Industrial Ethernet switch.
The official product description lists two 1000 Mbit/s multimode SC ports, one 10/100/1000 Mbit/s RJ45 port and seven 10/100 Mbit/s RJ45 ports.
Siemens also specifies PROFINET IO device functionality, network management, an integrated redundancy manager and office features including RSTP, VLAN and IGMP.
Key Functions
Industrial Ethernet Ports
Two 1000 Mbit/s multimode SC ports, one 10/100/1000 Mbit/s RJ45 port and seven 10/100 Mbit/s RJ45 ports.
Managed Network Functions
PROFINET IO device, network management, integrated redundancy manager, RSTP, VLAN and IGMP are listed by Siemens.
Diagnostics
LED diagnostics, an error signaling contact and select/set pushbutton are included in the official description.
Configuration Storage
Siemens states that a C-PLUG is included in the scope of supply.
Official Specifications
| Manufacturer | Siemens |
|---|---|
| Product Brand | SCALANCE |
| Product Type | X308-2 |
| Article Number | 6GK5308-2FL10-2AA3 |
| Transfer Rates | 10 / 100 / 1000 Mbit/s |
| Multimode SC Ports | 2 × 1000 Mbit/s |
| RJ45 Ports | 1 × 10/100/1000 Mbit/s; 7 × 10/100 Mbit/s |
| Rated Supply Voltage | 24 V DC |
| Supply Voltage Range | 18 to 32 V DC |
| Maximum Current Consumption | 0.4 A |
| Rated Power Loss | 9.6 W |
| Operating Temperature | -10 to +60 °C |
| Storage Temperature | -40 to +70 °C |
| Configuration Storage | C-PLUG included |
Official source: Siemens Industry Mall product data for 6GK5308-2FL10-2AA3. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
What is Siemens 6GK5308-2FL10-2AA3?
It is the Siemens SCALANCE X308-2 managed plus Industrial Ethernet switch.
Which network ports are integrated?
Siemens lists two 1000 Mbit/s multimode SC ports, one 10/100/1000 Mbit/s RJ45 port and seven 10/100 Mbit/s RJ45 ports.
Does the switch support PROFINET?
Yes. Siemens identifies it as a PROFINET IO device.
Which managed network functions are listed?
The official description includes network management, an integrated redundancy manager, RSTP, VLAN and IGMP.
Is a C-PLUG included?
Yes. Siemens states that a C-PLUG is included in the scope of supply.
What supply voltage is specified?
The official Siemens datasheet specifies a rated supply voltage of 24 V DC with an 18 to 32 V DC range.
What should be checked before replacement?
Verify the full article number, SC fiber interfaces, RJ45 port layout, 24 V DC supply, network configuration and C-PLUG.
Compatibility & Ordering Notes
Compatibility Checklist for 6GK5308-2FL10-2AA3
Match the complete 6GK5308-2FL10-2AA3 article number.
Confirm the two multimode SC ports and eight RJ45 ports.
Verify the 24 V DC supply, signaling contact and installed C-PLUG.
Back up or document the network configuration before replacement.
