Siemens MICROMASTER 440 A5E02915323 Inverter Power Driver Board
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Hot Selling Models
- Recommended Products
Overview
- Back up the commissioned parameter set before opening the inverter.
- Label and photograph every cable and connector before removal.
- Inspect the surrounding power components and cooling path before installation.
- Perform controlled recommissioning and verify alarms, I/O and motor operation after repair.

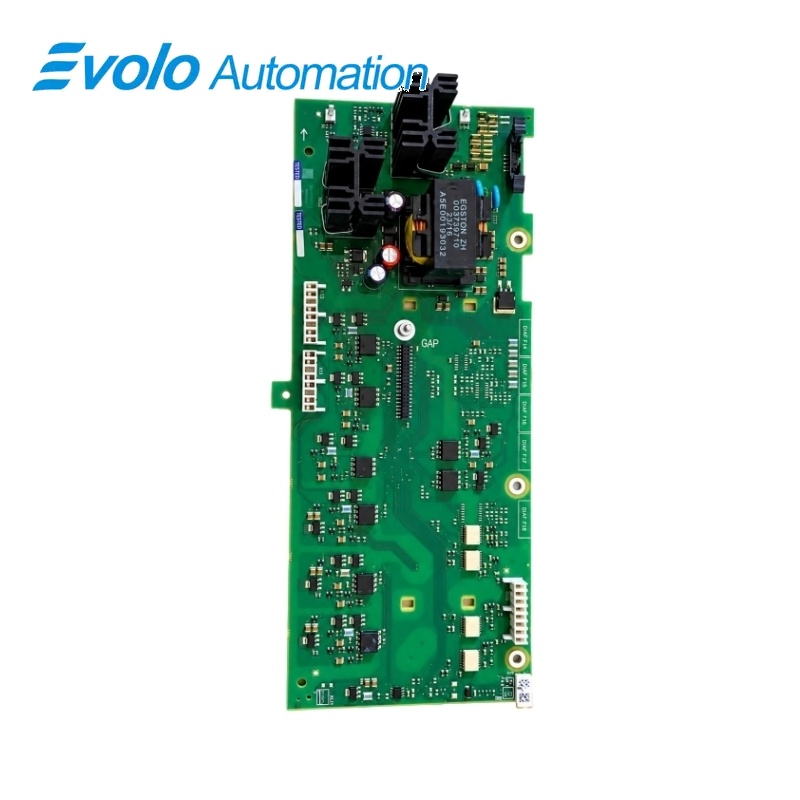

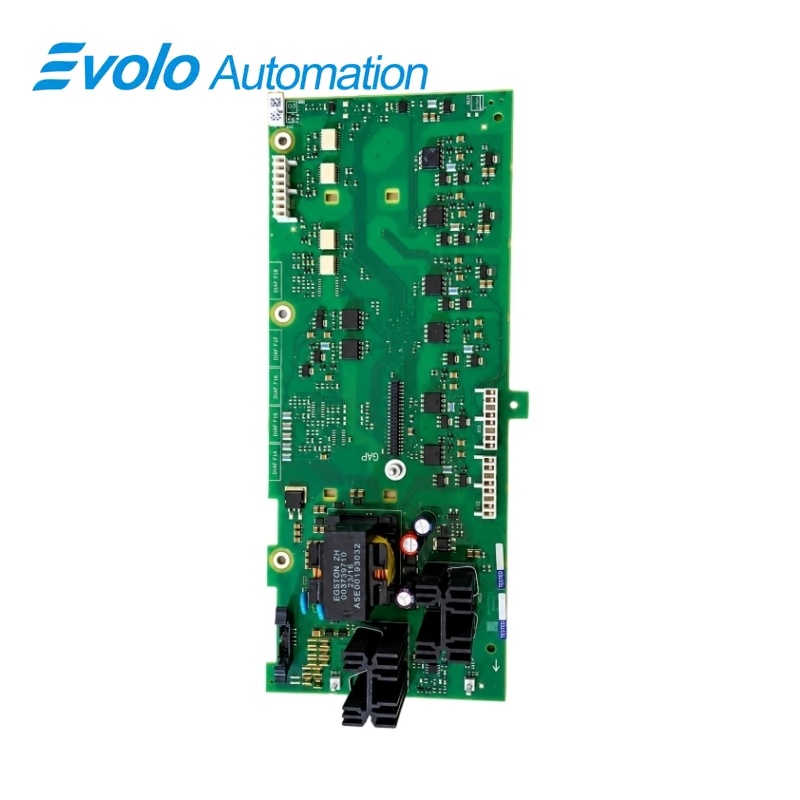

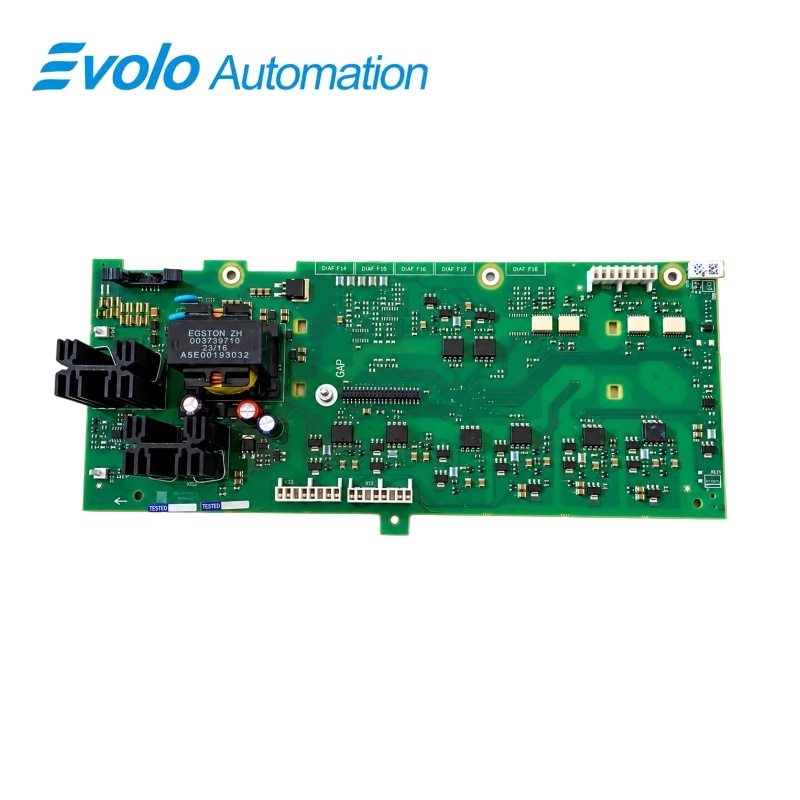

A5E02915323 MICROMASTER 440 Inverter Power Driver Board
Replacement power-driver board for service work on a matching Siemens MICROMASTER 440 inverter configuration.
At a Glance
| Brand | Siemens |
| Model | A5E02915323 |
| Product Type | Inverter power driver board |
| Core Function | Internal power and gate-drive control support |
| Compatible Series | MICROMASTER 440 service configurations |
Exact Board Match
Use the complete board number and hardware revision when selecting a replacement.
Drive Configuration
Match the host inverter voltage class, frame size, power rating and connector layout.
Service Safety
Installation belongs to qualified personnel following the MICROMASTER 440 safety procedure.
Product Overview
A5E02915323 is a Siemens inverter power driver board used in MICROMASTER 440 service and repair work. The board forms part of the internal drive electronics and must be matched to the installed inverter hardware rather than selected by the series name alone.
MICROMASTER 440 is a programmable variable-frequency drive platform supporting multiple V/f and sensorless-vector control modes, configurable digital and analog I/O, serial communication and integrated protection functions.
Key Functions
Internal Drive-Power Support
The board supports the internal power and switching-control path of a correctly matched MICROMASTER 440 inverter assembly.
Service Replacement Role
It is intended for board-level repair where the original assembly code and hardware configuration have been positively identified.
System Integration
The host drive provides programmable control modes, I/O, braking functions, communication and electronic protection around the internal board set.
Official Specifications
| Input Frequency | 47 to 63 Hz |
| Output Frequency Range | 0 to 650 Hz |
| Inverter Efficiency | 96 to 97% |
| Control Methods | Linear, parabolic and multipoint V/f control; FCC; sensorless vector control; sensorless vector torque control |
| Pulse Frequency | 2 to 16 kHz in 2 kHz steps |
| Programmable Fixed Frequencies | 15 |
| Programmable Skip Frequencies | 4 |
| Digital Inputs | 6 programmable, isolated inputs switchable for PNP or NPN logic |
| Analog Input Channels | Channel 1 supports 0 to 10 V, 0 to 20 mA or -10 to +10 V; channel 2 supports 0 to 10 V or 0 to 20 mA |
| Relay Outputs | 3 programmable outputs rated 30 V DC at 5 A resistive or 250 V AC at 2 A inductive |
| Analog Outputs | 2 programmable outputs, 0 to 20 mA |
| Serial Interface | RS-485; optional RS-232 |
| Braking Modes | DC braking, compound braking and dynamic braking |
| Protection Level | IP20 |
| Permissible Humidity and Altitude | Below 95% RH, non-condensing; up to 1000 m above sea level without derating |
Official source: Siemens MICROMASTER 440 Operating Instructions. Values describe the documented MICROMASTER 440 host-drive platform.
Frequently Asked Questions
How should I verify compatibility before installing A5E02915323?
Match the host inverter order number, voltage class, power rating, frame size, connector layout and hardware revision before fitting the board.
What electrical safety step is required before replacing A5E02915323?
Isolate the inverter from every power source and wait at least five minutes for hazardous internal voltages to discharge before opening the unit.
Can A5E02915323 be installed in any MICROMASTER 440 rating?
The board must be used only with the matching hardware configuration because voltage class, frame size and power rating determine the internal assembly.
Should drive parameters be backed up before servicing A5E02915323?
Save the existing parameter set before disassembly so the commissioned settings remain available during recommissioning.
Who should install A5E02915323 during an inverter repair?
Installation and commissioning should be performed by qualified personnel familiar with industrial drives and high-voltage safety procedures.
What should be inspected after fitting A5E02915323?
Check board seating, ribbon cables, plug connections, insulation clearances and the absence of loose hardware before restoring power.
Which operating conditions matter after replacing A5E02915323?
Keep the repaired drive within its permitted temperature, humidity and installation-altitude limits and maintain unobstructed cooling airflow.
