Siemens SIMODRIVE 611D Two-Axis High-Standard Control Board 6SN1118-0DM33-0AA2
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens · SIMODRIVE 611 digital

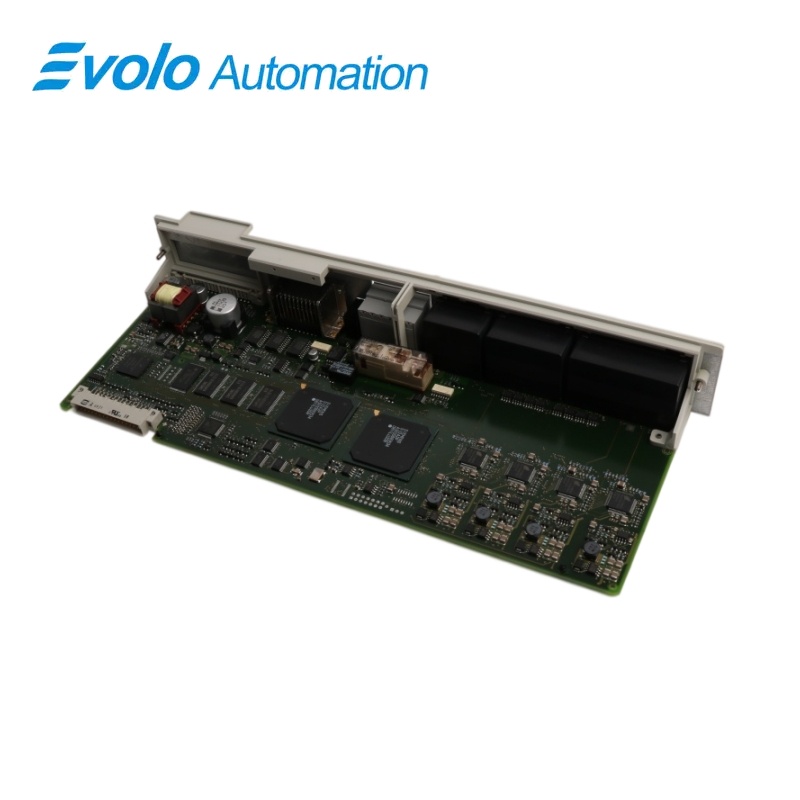

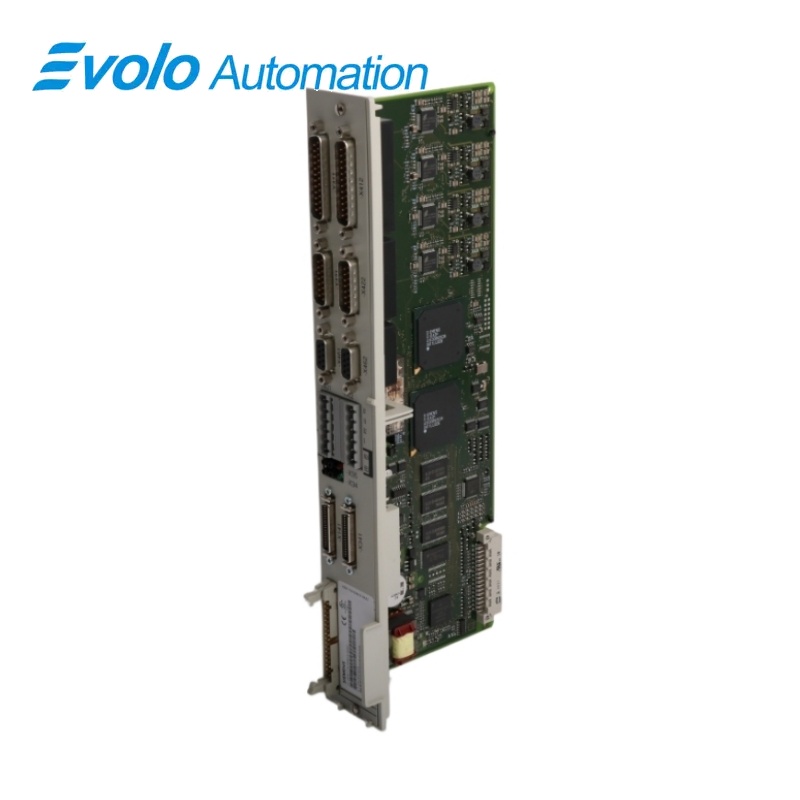

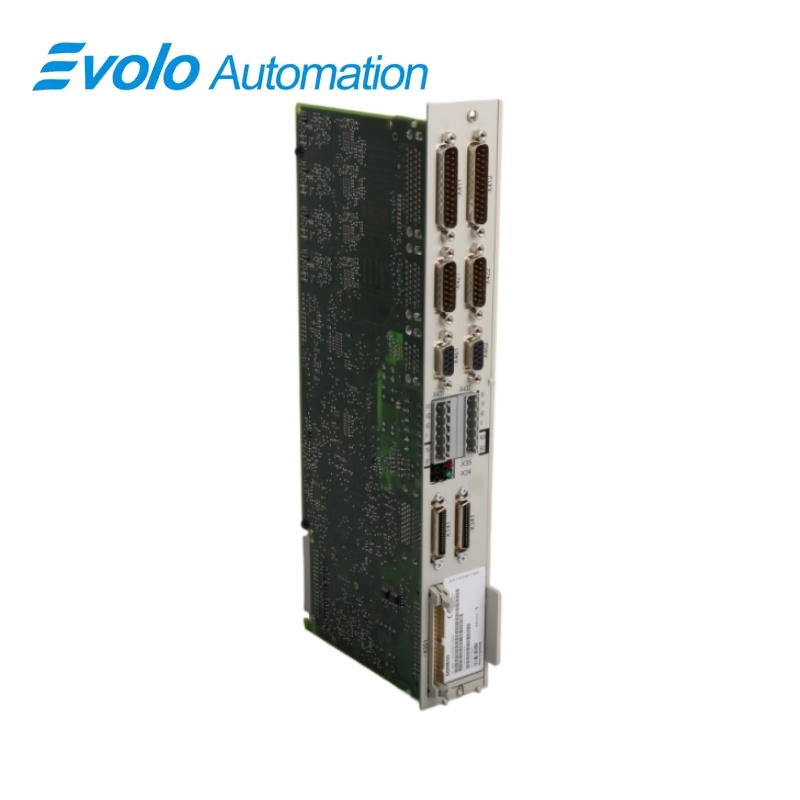

6SN1118-0DM33-0AA2 SIMODRIVE 611D Two-Axis High-Standard Control Board
This SIMODRIVE 611D high-standard control board provides positioning control for two axes and supports direct measuring systems in compatible 611 digital drive configurations.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6SN1118-0DM33-0AA2 |
| Product Type | Two-axis positioning control board |
| Core Function | Controls two positioning axes with direct measuring systems in a SIMODRIVE 611D drive system |
| Application or Compatible Series | SINUMERIK 840D and SIMODRIVE 611D installations using the two-axis high-standard platform |
Exact Identification
Match 6SN1118-0DM33-0AA2 character by character and confirm the complete SIMODRIVE 611D Two-Axis High-Standard Control Board designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
This SIMODRIVE 611D high-standard control board provides positioning control for two axes and supports direct measuring systems in compatible 611 digital drive configurations.
One board provides the documented control function for two positioning axes. The variant is intended for configurations using direct measuring systems. The published PFH value supports assessment of the applicable SINUMERIK Safety Integrated architecture.
Key Functions
Two-Axis Control
One board provides the documented control function for two positioning axes.
Direct Measuring Support
The variant is intended for configurations using direct measuring systems.
Safety Data Available
The published PFH value supports assessment of the applicable SINUMERIK Safety Integrated architecture.
Official Specifications
| Control Family | SIMODRIVE 611D |
|---|---|
| Performance Class | High Standard |
| Controlled Axes | 2 |
| Control Function | Positioning |
| Direct Measuring System | Supported |
| Compatible CNC Platform | SINUMERIK 840D |
| Safety Function Context | SINUMERIK Safety Integrated |
| PFH Value | 60 × 10^-9 per hour |
| Hardware Form | Plug-in drive control board |
| System Integration | SIMODRIVE 611 digital power modules |
Frequently Asked Questions
How many axes does 6SN1118-0DM33-0AA2 control?
It provides the documented positioning-control function for two axes.
Can 6SN1118-0DM33-0AA2 use a direct position measuring system?
Yes; this high-standard variant is specified for configurations with direct measuring systems.
Which drive family accepts 6SN1118-0DM33-0AA2?
Install it only in a compatible SIMODRIVE 611 digital power-module arrangement.
Can 6SN1118-0DM33-0AA2 be selected only by the 611D family name?
No; match the complete article number, performance class, axis count and measuring-system arrangement.
What should be backed up before replacing 6SN1118-0DM33-0AA2?
Preserve the CNC archive, drive parameters, measuring-system data and machine commissioning record.
What handling control applies to 6SN1118-0DM33-0AA2?
Use grounded ESD protection and isolate the drive system before inserting or removing the board.
What should be tested after installing 6SN1118-0DM33-0AA2?
Verify both encoder channels, axis directions, limit functions and the authorized safety acceptance test.
Compatibility & Ordering Notes
Compatibility Checklist
- Match the installed SIMODRIVE 611D hardware generation and power modules.
- Restore the approved drive and measuring-system parameters before motion testing.
- Complete the required axis and safety validation after replacement.
