Overview
Siemens · SCALANCE SC-600

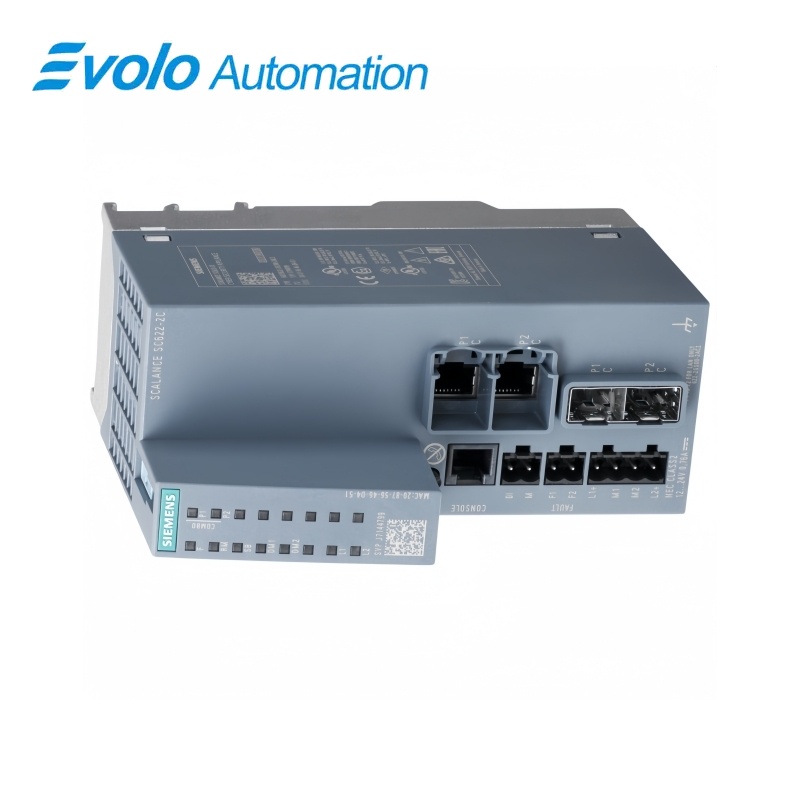

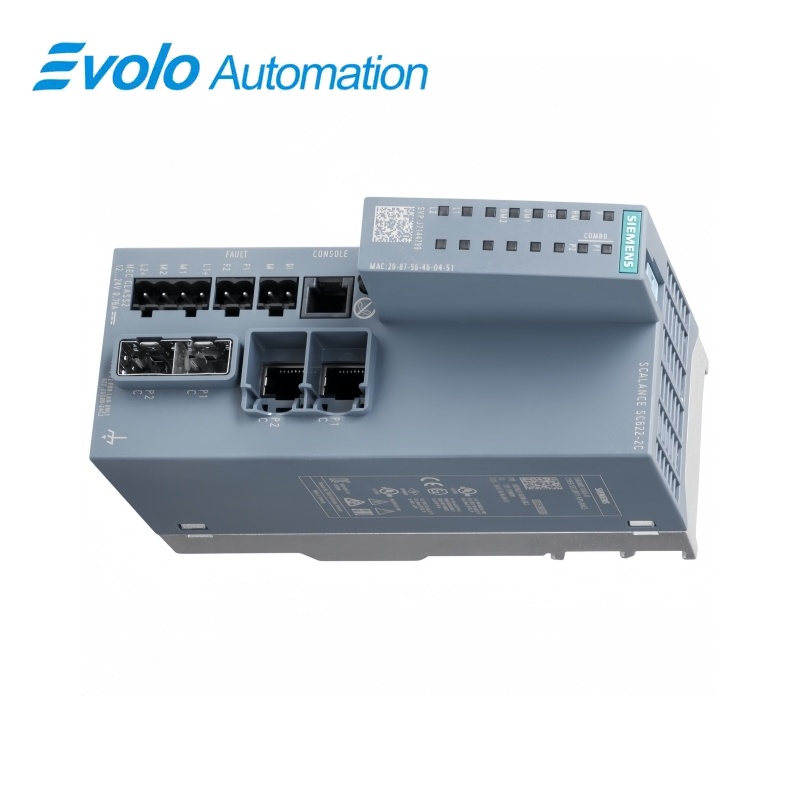

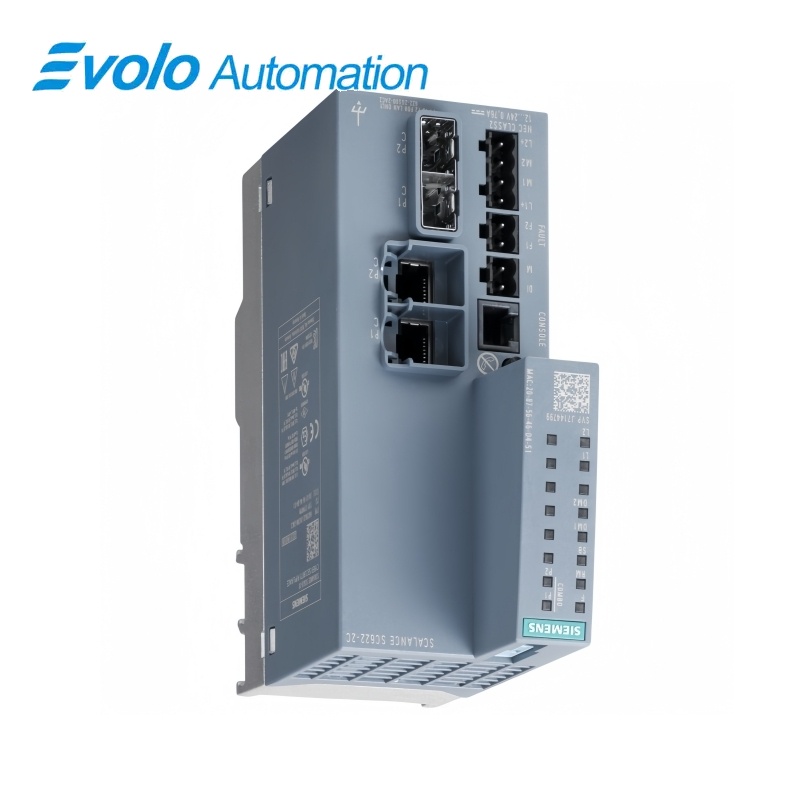

6GK5622-2GS00-2AC2 SCALANCE SC622-2C Industrial Security Appliance
The SCALANCE SC622-2C is an Industrial Security Appliance with two electrical-or-optical combo ports, firewall protection, PROFIsafe network separation, NAT/NAPT and SINEMA Remote Connect integration for industrial network segmentation.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6GK5622-2GS00-2AC2 |
| Product Type | Industrial security appliance |
| Core Function | Protects industrial communication with firewall, network separation and address-translation functions |
| Application or Compatible Series | Discrete and process networks requiring PROFIsafe separation or SINEMA Remote Connect integration |
Exact Identification
Match 6GK5622-2GS00-2AC2 character by character and confirm the complete SCALANCE SC622-2C Industrial Security Appliance designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The SCALANCE SC622-2C is an Industrial Security Appliance with two electrical-or-optical combo ports, firewall protection, PROFIsafe network separation, NAT/NAPT and SINEMA Remote Connect integration for industrial network segmentation.
Protects devices and network cells in discrete manufacturing and process-industry applications. Two ports can use Gigabit RJ45 copper or supported Gigabit SFP optical transceivers. Supports PROFIsafe network separation, NAT/NAPT and SINEMA Remote Connect.
Key Functions
Industrial Firewall
Protects devices and network cells in discrete manufacturing and process-industry applications.
Flexible Combo Ports
Two ports can use Gigabit RJ45 copper or supported Gigabit SFP optical transceivers.
Segmentation and Remote Access
Supports PROFIsafe network separation, NAT/NAPT and SINEMA Remote Connect.
Official Specifications
| Ethernet Transfer Rate | 10/100/1000 Mbit/s |
|---|---|
| Maximum Usable Network Ports | 2 |
| RJ45 Connections | 2 |
| SFP Transceiver Slots | 2, implemented as combo ports |
| Signaling Contact | 1 x 2-pole terminal block |
| Power-Supply Connection | 4-pole terminal block |
| Redundant Voltage Supply | Supported |
| Digital Input | 1 x 2-pole terminal block |
| Rated Supply Voltage | 24 V DC |
| Permitted Supply Range | 9.6 to 31.2 V DC |
| Maximum Current Consumption | 0.39 A |
| Rated Power Loss | 9.36 W |
| Removable Storage | C-PLUG supported |
| Operating Temperature | -40 to +70 °C |
| Storage and Transport Temperature | -40 to +85 °C |
| Maximum Relative Humidity | 95% at 25 °C, non-condensing |
| Degree of Protection | IP20 |
| Dimensions (W x H x D) | 60 x 145 x 125 mm |
| Net Weight | 0.58 kg |
| Firewall Data Throughput | 750 Mbit/s |
Frequently Asked Questions
Can 6GK5622-2GS00-2AC2 separate two PROFIsafe network areas?
Yes; configure the documented network-separation function and validate the complete safety communication design.
Which media can be used on the combo ports of 6GK5622-2GS00-2AC2?
Each combo port can use its RJ45 connection or a supported SFP optical transceiver, but not both at the same time.
Does 6GK5622-2GS00-2AC2 provide VPN termination?
This function scope provides firewall routing and network separation, so do not substitute it for a VPN-capable SCALANCE variant.
Can 6GK5622-2GS00-2AC2 perform address translation?
Yes; NAT and NAPT are available for the approved industrial network configuration.
How is 6GK5622-2GS00-2AC2 integrated with remote service access?
Configure its supported connection to SINEMA Remote Connect according to the plant security policy.
Which power input is required by 6GK5622-2GS00-2AC2?
Provide 24 V DC within the specified 9.6 to 31.2 V range and wire redundancy if required.
What should be preserved before replacing 6GK5622-2GS00-2AC2?
Back up the firewall rules, NAT mappings, interface addresses, routing, user access, SINEMA assignment and C-PLUG configuration.
Compatibility & Ordering Notes
Compatibility Checklist
- Use only supported SFP transceivers and remember that each electrical/optical pair is one combo port.
- Do not replace a VPN-capable SC632 or SC642 with this firewall-only function class without redesign approval.
- Preserve and validate firewall, routing, NAT and remote-connect settings before commissioning.
