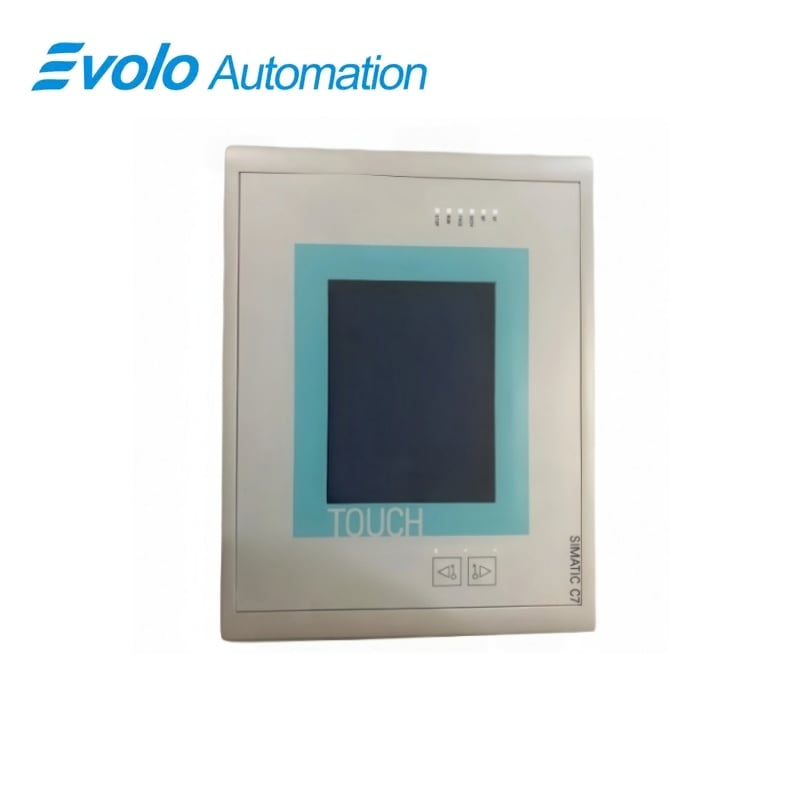

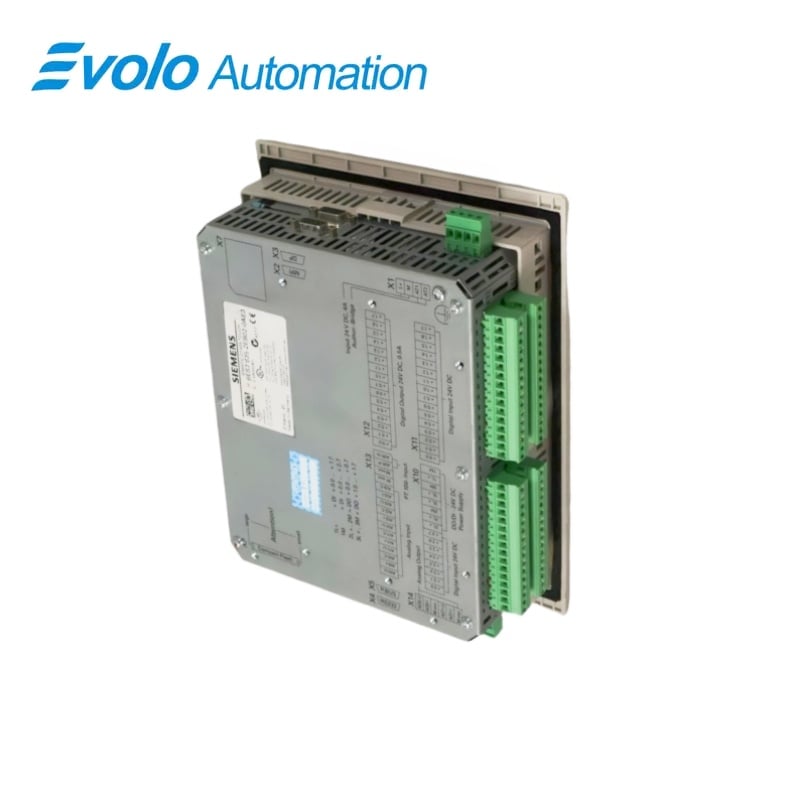

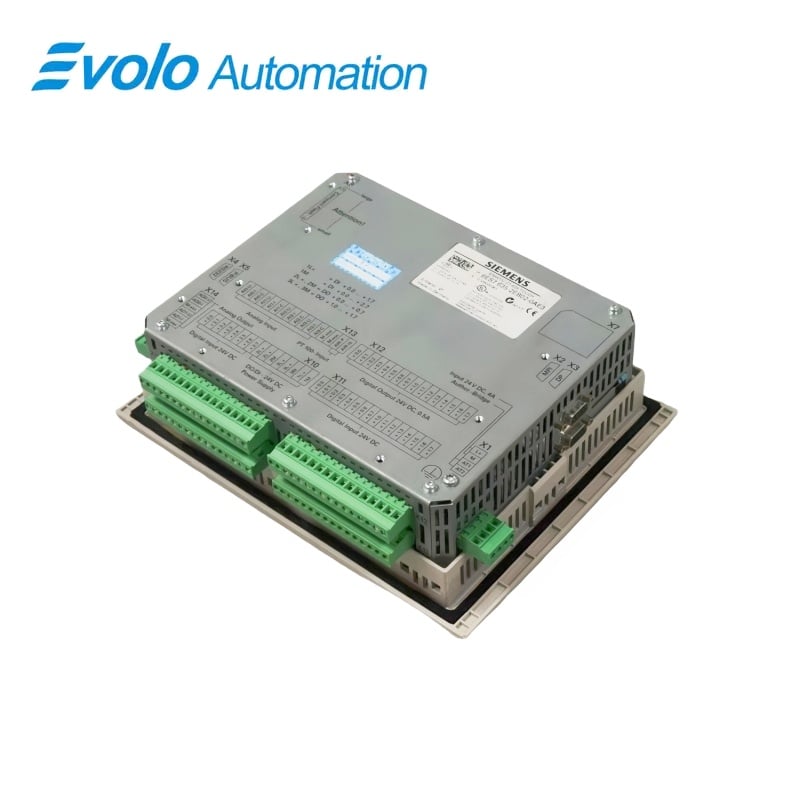

6ES7635-2EB02-0AE3 SIMATIC C7-635 Touch
Updated Siemens C7-635 Touch compact unit integrating PLC control with a touch-operated HMI.
At a Glance
| Manufacturer | Siemens |
|---|---|
| Article Number | 6ES7635-2EB02-0AE3 |
| Product Type | SIMATIC C7-635 Touch compact unit |
| Core Function | Combines S7-300-class control with touch-panel operation |
| Application / Compatible Series | Updated SIMATIC C7-635 Touch and S7-300 systems |
Match the complete article number and installed hardware version.
Check the installed MPI, PROFIBUS DP and serial connections.
Confirm the PLC and HMI project versions before replacement.
Product Overview
6ES7635-2EB02-0AE3 is officially identified by Siemens as the C7-635 Touch in the SIMATIC C7 family. C7-635 Touch complete unit combining a SIMATIC S7 CPU 314C-2 DP with a TP170B monochrome touch panel.
For replacement and quotation, compare the complete article number, hardware version, interface requirements and installed configuration.
Key Functions
Model-Specific Configuration
6ES7635-2EB02-0AE3: Integrated CPU 314C-2 DP and TP170B monochrome touch panel.
System Interface
6ES7635-2EB02-0AE3: Integrated digital and analog I/O.
Performance & Memory
6ES7635-2EB02-0AE3: MPI, PROFIBUS DP and RS 232 communications.
Replacement Control
6ES7635-2EB02-0AE3: Micro Memory Card and CompactFlash Card support.
Official Specifications
| Working Memory | 96 KB |
|---|---|
| Retentive Working Memory | 64 KB |
| CPU Firmware | V2.0.12 or later |
| Hardware Update | 0109 |
| Integrated Digital Inputs | 24 |
| Integrated Digital Outputs | 16 |
| Integrated Analog Inputs | 5 |
| Integrated Analog Outputs | 2 |
| Display Resolution | 320 x 240 pixels |
| HMI Software Platform | Windows CE |
| Programming Interface | MPI |
| Fieldbus Interface | PROFIBUS DP |
| HMI Serial Interface | RS232 |
| Memory Media | SIMATIC Micro Memory Card and CompactFlash Card |
| Direct S7-300 Expansion | 2 or 4 modules using the peripheral set |
| Remote Expansion Distance | Up to 1.5 m |
Frequently Asked Questions
How should the touch interface be commissioned on 6ES7635-2EB02-0AE3?
Load the correct HMI project, check the touch calibration and test every configured screen control before production use.
Which automation systems are compatible with 6ES7635-2EB02-0AE3?
It is designed for the C7-635 Touch platform and integrates with S7-300 automation projects using the documented hardware configuration.
What expansion limit applies when adding remote modules to 6ES7635-2EB02-0AE3?
The documented remote expansion connection is limited to 1.5 m, and the approved peripheral set must be used.
Which ports are used to transfer and communicate with 6ES7635-2EB02-0AE3?
MPI and PROFIBUS DP handle automation communication, while the HMI provides an RS232 connection for supported service tasks.
Which hardware version should engineers select for 6ES7635-2EB02-0AE3?
Select the catalog entry with CPU firmware V2.0.12 or later and hardware update 0109.
What mounting checks are important for 6ES7635-2EB02-0AE3?
Confirm panel dimensions, enclosure clearance, connector access and unobstructed front access for touch operation.
How should diagnostics be divided after replacing 6ES7635-2EB02-0AE3?
Validate PLC startup and integrated I/O first, then check HMI communication, touch response and all operator screens against the backed-up projects.
Compatibility & Ordering Notes
Compatibility Checklist for 6ES7635-2EB02-0AE3
Match the full suffix without shortening the order number.
Confirm the installed SIMATIC C7 hardware and project version.
Verify integrated digital and analog I/O, MPI, PROFIBUS DP, RS 232, Micro Memory Card and CompactFlash Card.
Confirm required memory media, connectors and accessories in the written quotation.
