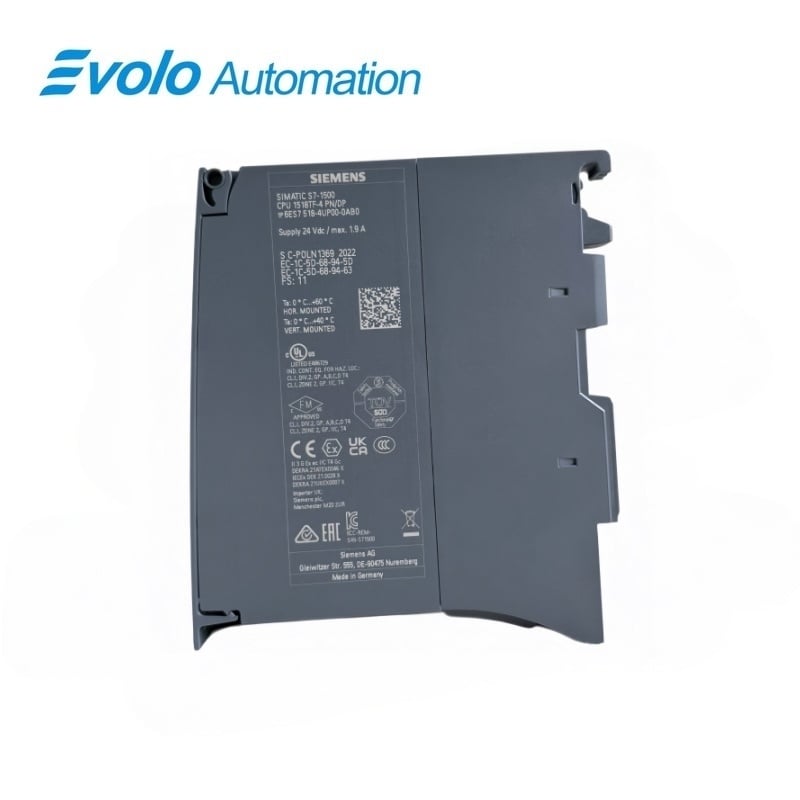

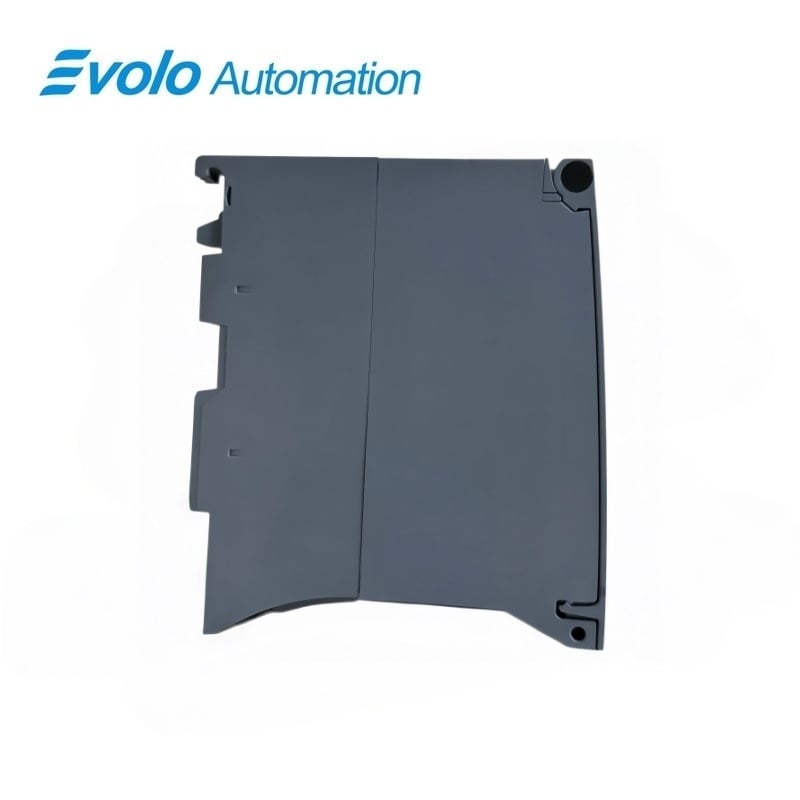

Siemens SIMATIC S7-1500 6ES7518-4UP00-0AB0 CPU 1518TF-4 PN/DP
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
SIMATIC S7-1500TF 6ES7518-4UP00-0AB0 CPU 1518TF-4 PN/DP
Technology and fail-safe CPU with 9 MB program memory, 60 MB data memory, PROFINET and PROFIBUS interfaces, and 1 ns bit performance.
At a Glance
| Article Number | 6ES7518-4UP00-0AB0 |
|---|---|
| Manufacturer | Siemens |
| Series | SIMATIC S7-1500 |
| Product Type | CPU 1518TF-4 PN/DP |
| Program Memory | 9 MB |
Match the complete article number and installed hardware.
Confirm three PROFINET interfaces and one PROFIBUS DP interface.
Verify project data and official system documentation.
Product Overview
6ES7518-4UP00-0AB0 is officially identified by Siemens as the CPU 1518TF-4 PN/DP in the SIMATIC S7-1500 family. Technology and fail-safe CPU 1518TF-4 PN/DP with 9 MB program memory, 60 MB data memory and 1 ns bit performance.
For replacement and quotation, compare the complete article number, hardware version, interface requirements and installed configuration.
Key Functions
Model-Specific Configuration
6ES7518-4UP00-0AB0: Technology and fail-safe S7-1500 CPU.
System Interface
6ES7518-4UP00-0AB0: 1 ns bit performance.
Performance & Memory
6ES7518-4UP00-0AB0: 9 MB program memory and 60 MB data memory.
Replacement Control
6ES7518-4UP00-0AB0: Three PROFINET interfaces and one PROFIBUS DP interface.
Official Specifications
| Hardware Functional Status | FS11 |
|---|---|
| Firmware Version | V3.1 |
| Data Work Memory | 60 MB |
| Load Memory, Maximum | 32 GB via SIMATIC Memory Card |
| Memory Card | 1 slot; SIMATIC Memory Card required |
| Rated Supply Voltage | 24 V DC |
| Permissible Voltage Range | 19.2 V DC to 28.8 V DC |
| Current Consumption | 1.55 A rated; 1.9 A maximum |
| Typical Power Loss | 24 W |
| CPU Processing Times | Bit: 1 ns; word: 2 ns; fixed-point: 2 ns; floating-point: 6 ns |
| CPU Blocks, Maximum | 20,000 |
| Data Block Size, Maximum | 16 MB |
| Retentive Data Area, Maximum | 768 KB |
| I/O Address Capacity | 32 KB inputs; 32 KB outputs |
| I/O Modules, Maximum | 16,384 modules/submodules |
| Communication Interfaces | 3 PROFINET interfaces; 1 PROFIBUS interface |
| Integrated Controllers | 2 IO Controllers; 1 DP master |
| Modules per Rack, Maximum | 32 (CPU + 31 modules) |
| Isochronous Operation | Distributed and central; minimum OB6x cycle 125 µs distributed and 1 ms central |
Frequently Asked Questions
Which automation applications are suited to 6ES7518-4UP00-0AB0?
It combines technology functions and fail-safe processing for demanding motion-control, standard-control and safety-related automation tasks.
How should program and data memory be allocated for 6ES7518-4UP00-0AB0?
Plan around 9 MB of working memory for the program and 60 MB for data, while also accounting for technology objects, safety data and diagnostics.
Which network connections must be mapped when integrating 6ES7518-4UP00-0AB0?
The interface set includes PROFINET IRT with a two-port switch, PROFINET RT, PROFINET basic services and PROFIBUS.
Why is a SIMATIC Memory Card required for 6ES7518-4UP00-0AB0?
The CPU requires the card for operation and project storage; use a supported Siemens card with adequate capacity for the application.
What should be retained before replacing 6ES7518-4UP00-0AB0?
Back up the TIA Portal project, safety configuration, technology objects, firmware information, memory-card contents and all network settings.
How should technology functions be checked after commissioning 6ES7518-4UP00-0AB0?
Test the configured axes and technology objects, verify timing and encoder feedback, and then validate the associated safety functions under controlled conditions.
Which communication tests are recommended after installing 6ES7518-4UP00-0AB0?
Confirm each PROFINET interface and the PROFIBUS network separately, including device names, addresses, topology, diagnostics and controller-to-device data exchange.
Compatibility & Ordering Notes
Compatibility Checklist for 6ES7518-4UP00-0AB0
Match the full suffix without shortening the order number.
Confirm the installed SIMATIC S7-1500 hardware and project version.
Verify three PROFINET interfaces and one PROFIBUS DP interface.
Confirm required memory media, connectors and accessories in the written quotation.
