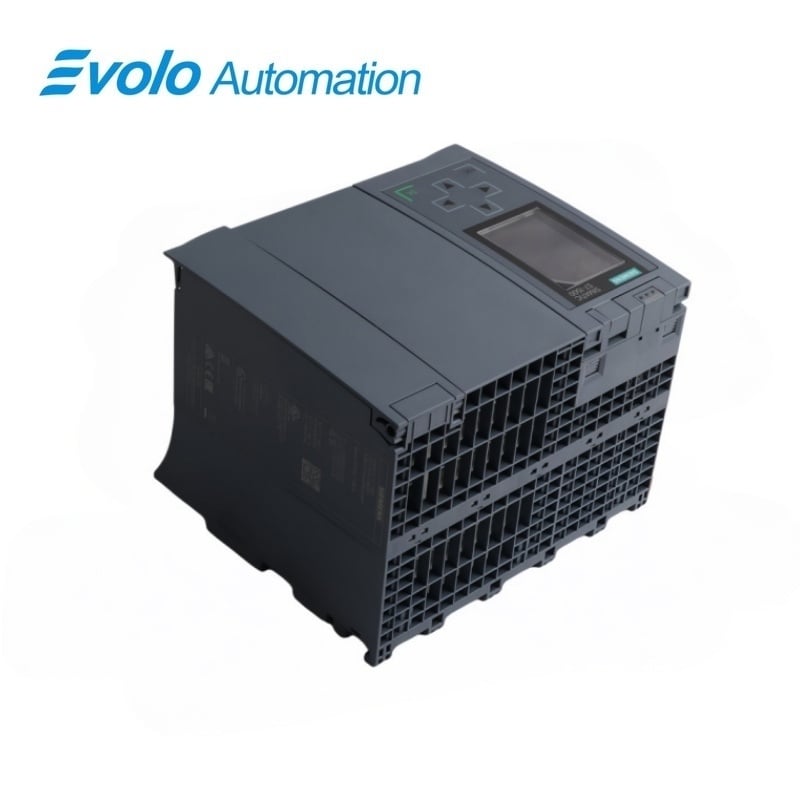

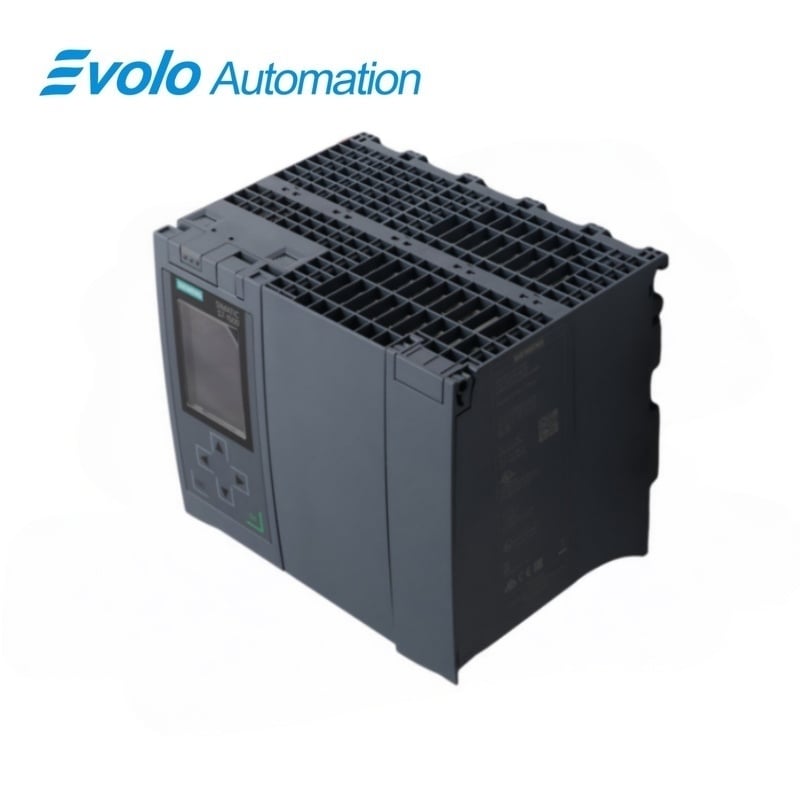

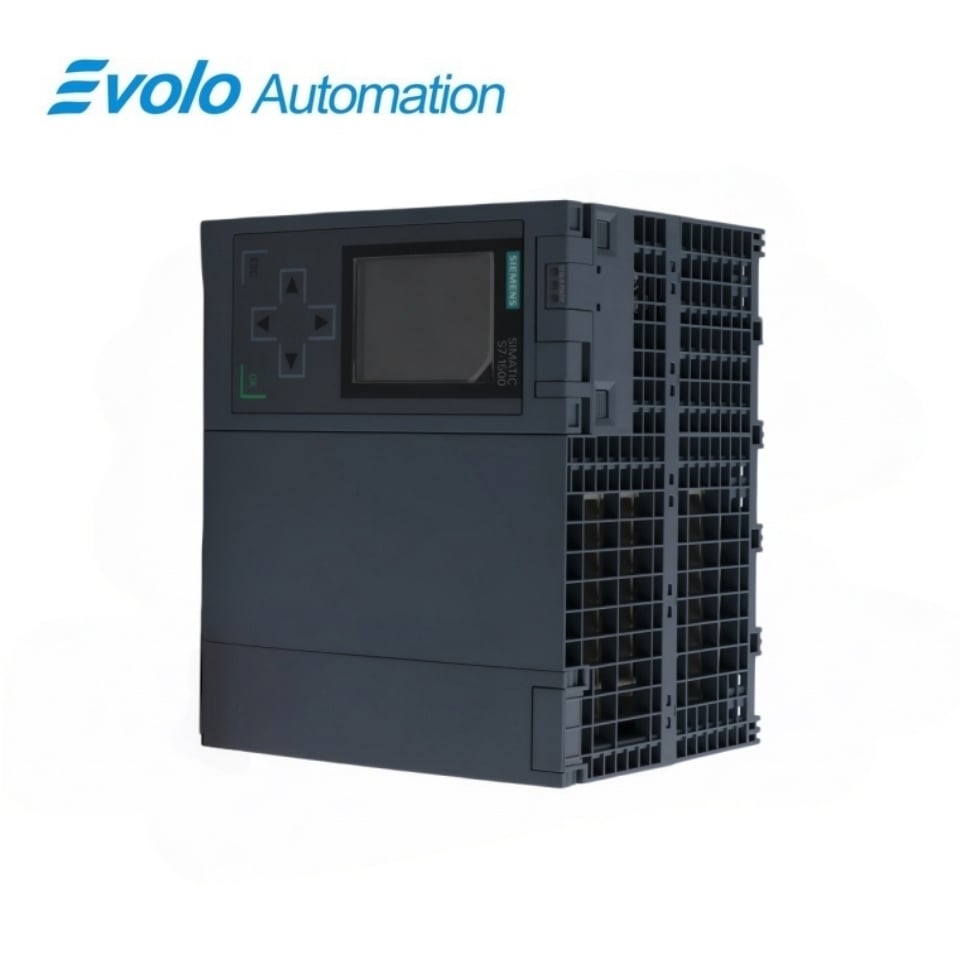

Siemens SIMATIC S7-1500 6ES7518-4FP00-0AB0 CPU 1518F-4 PN/DP
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Overview
SIMATIC S7-1500 6ES7518-4FP00-0AB0 CPU 1518F-4 PN/DP
Fail-safe CPU 1518F-4 PN/DP with 9 MB program memory, 60 MB data memory, three PROFINET interfaces, one PROFIBUS DP interface and 1 ns bit performance.
At a Glance
| Article Number | 6ES7518-4FP00-0AB0 |
|---|---|
| Manufacturer | Siemens |
| Series | SIMATIC S7-1500 |
| Product Type | CPU 1518F-4 PN/DP |
| Program Memory | 9 MB |
Match the complete article number and hardware.
Confirm three PROFINET interfaces and one PROFIBUS DP interface.
Verify project data and official system documentation.
Product Overview
6ES7518-4FP00-0AB0 is officially identified by Siemens as the CPU 1518F-4 PN/DP in the SIMATIC S7-1500 family. Fail-safe CPU 1518F-4 PN/DP with 9 MB program memory, 60 MB data memory, three PROFINET interfaces, one PROFIBUS DP interface and 1 ns bit performance.
For replacement and quotation, compare the complete article number, hardware version, interface requirements and installed configuration.
Key Functions
Model-Specific Configuration
6ES7518-4FP00-0AB0: Fail-safe S7-1500 central processing unit.
System Interface
6ES7518-4FP00-0AB0: 1 ns bit performance.
Performance & Memory
6ES7518-4FP00-0AB0: 9 MB program memory and 60 MB data memory.
Replacement Control
6ES7518-4FP00-0AB0: Three PROFINET interfaces and one PROFIBUS DP interface.
Official Specifications
| HW Functional Status | FS11 |
|---|---|
| Firmware Version | V3.1 |
| Firmware Update | Supported |
| Program Work Memory | 9 MB |
| Data Work Memory | 60 MB |
| Bit Operation Time | 1 ns |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Range | 19.2 to 28.8 V DC |
| Reverse-Polarity Protection | Supported |
| Rated Current Consumption | 1.55 A |
| Maximum Current Consumption | 1.9 A |
| Typical Power Loss | 24 W |
| Display Diagonal | 6.1 cm |
| Memory Card Slot | 1; SIMATIC Memory Card required |
| Isochronous Mode | Supported for distributed and central IO |
Official source: Siemens Industry Mall product data for 6ES7518-4FP00-0AB0. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
Which safety engineering environment is required for 6ES7518-4FP00-0AB0?
Use a TIA Portal configuration that supports the installed firmware and the required fail-safe engineering option, then validate the safety program.
How should 6ES7518-4FP00-0AB0 be connected to separate PROFINET networks?
Assign the IRT, RT and basic-services interfaces according to the topology and keep device names, IP settings and synchronization roles consistent.
Is a SIMATIC Memory Card optional for 6ES7518-4FP00-0AB0?
No. A compatible card is required for operation and must contain the validated project and safety-related configuration.
What must be preserved when replacing 6ES7518-4FP00-0AB0?
Back up the standard and safety programs, hardware configuration, F-signature records, network settings, card contents and firmware information.
Can 6ES7518-4FP00-0AB0 communicate with PROFIBUS devices?
Yes. Configure the dedicated DP interface with the correct master role, address, baud rate, device files and termination.
What power checks are needed before energizing 6ES7518-4FP00-0AB0?
Confirm a regulated 24 V DC supply within the permissible range, correct polarity, adequate current capacity and protective grounding.
What acceptance checks follow installation of 6ES7518-4FP00-0AB0?
Verify diagnostics, IO reachability, safety signatures, configured fail-safe response, network timing and the documented functional safety acceptance test.
Compatibility & Ordering Notes
Compatibility Checklist for 6ES7518-4FP00-0AB0
Match the full suffix without shortening the order number.
Confirm the installed SIMATIC S7-1500 hardware and project version.
Verify three PROFINET interfaces and one PROFIBUS DP interface.
Confirm the SIMATIC Memory Card and connectors in the written quotation.
