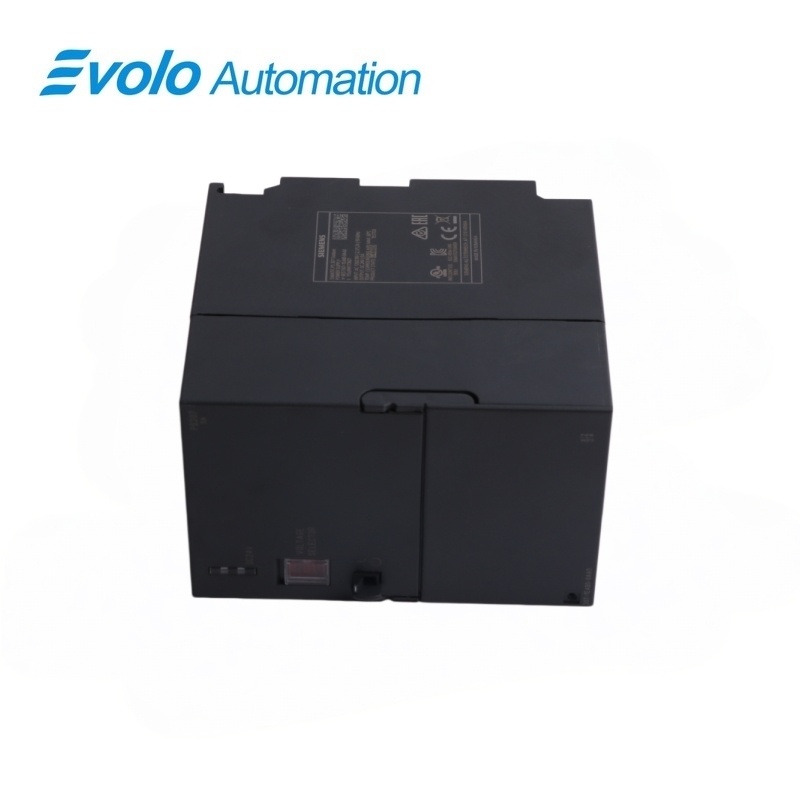

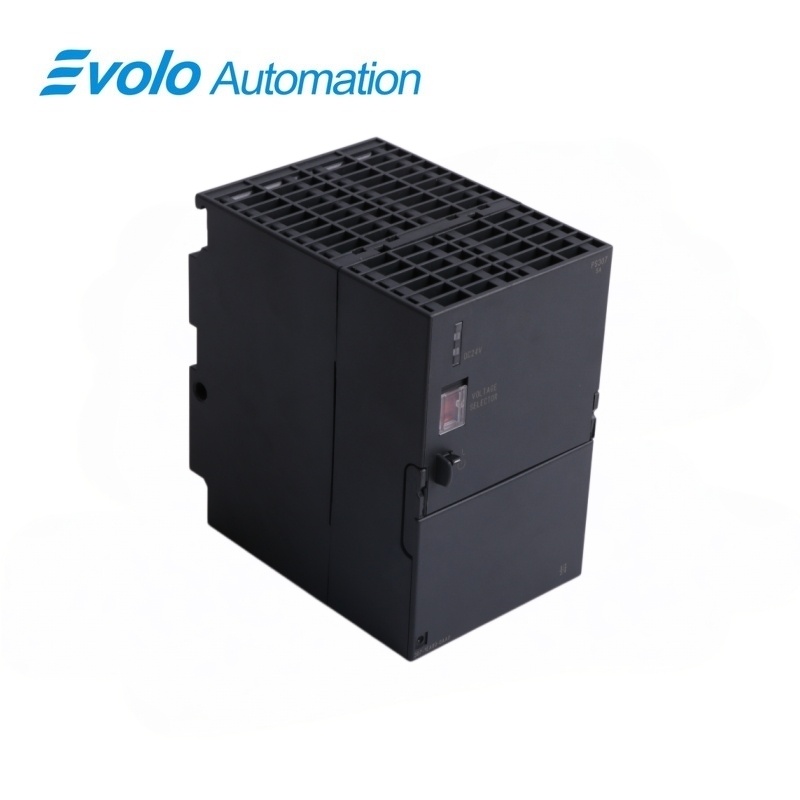

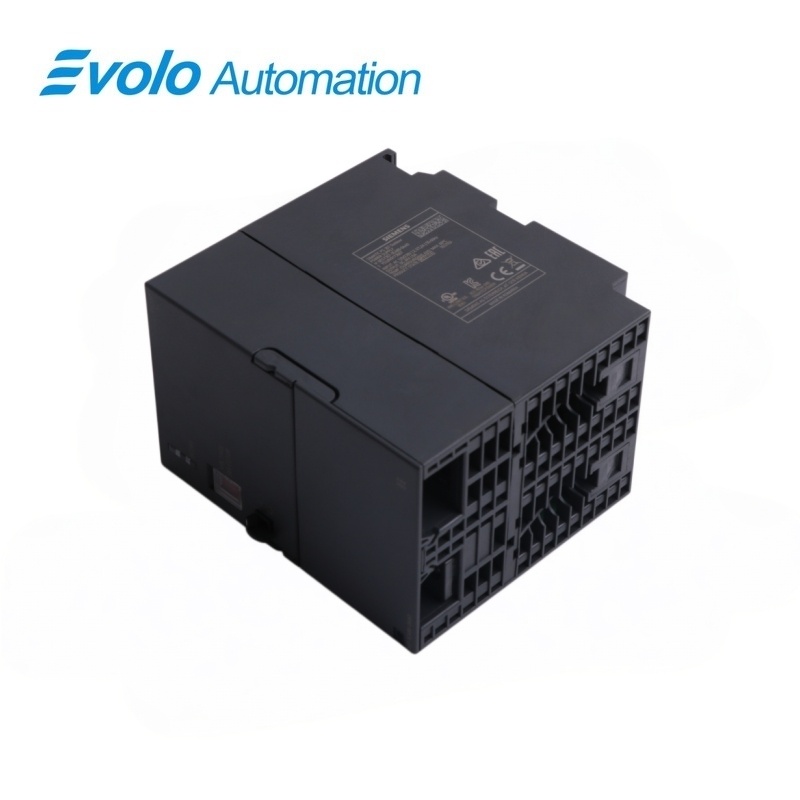

Siemens SIMATIC S7-300 6ES7307-1EA80-0AA0 PS307 24V DC 5A Power Supply
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Romania
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
6ES7307-1EA80-0AA0 PS307 24V DC 5A Power Supply
Official Siemens identification and specifications for 6ES7307-1EA80-0AA0, prepared for accurate replacement matching and quotation.
At a Glance
| Article Number | 6ES7307-1EA80-0AA0 |
|---|---|
| Manufacturer | Siemens |
| Platform | SIMATIC S7-300 |
| Product Type | PS307 24 V DC 5 A Regulated Power Supply |
| Country of Origin | Romania |
Exact Identification
Match the complete Siemens article number 6ES7307-1EA80-0AA0 and the photographed hardware revision.
Input
Input: 120/230 V AC
Configuration Check
Output: 24 V/5 A DC; confirm rack, connectors and revision before replacement.
Product Overview
6ES7307-1EA80-0AA0 is the Siemens SIMATIC S7-300 Outdoor PS307 regulated power supply. Siemens specifies a manually selected 120/230 V AC input with permitted ranges of 93–132 V AC and 187–264 V AC.
The isolated, controlled output is rated at 24 V DC and 5 A. Official Siemens technical data specifies at least 20 ms mains buffering at 93/187 V input; the Outdoor article number must be preserved when matching an installed unit.
Key Functions
Outdoor PS307 Configuration
The 1EA80 suffix identifies the Siemens Outdoor version of the SIMATIC S7-300 PS307 power supply.
Manual 120/230 V Selection
6ES7307-1EA80-0AA0 uses a device selector for the 120 V or 230 V AC input range.
Isolated 24 V DC Supply
The official rating is a controlled, isolated 24 V DC output at up to 5 A, with specified mains buffering.
Official Specifications
| Manufacturer | Siemens |
|---|---|
| Series | SIMATIC S7-300 |
| Article Number | 6ES7307-1EA80-0AA0 |
| Product Type | PS307 24 V DC 5 A Regulated Power Supply |
| Input | 120/230 V AC |
| Output | 24 V/5 A DC |
| Dimensions | 80 × 125 × 120 mm |
| Technical Weight | 0.57 kg |
| Net Weight | 0,570 Kg |
| Country of Origin | Romania |
| Product Lifecycle | PM400:Announcement of product phase-out; Product phase-out since: 01.10.2023 |
Official source: Siemens Industry Mall product data for 6ES7307-1EA80-0AA0. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
What distinguishes 6ES7307-1EA80-0AA0 within the PS307 family?
Siemens identifies 6ES7307-1EA80-0AA0 as the Outdoor version of the SIMATIC S7-300 PS307.
Which AC input ranges are allowed for 6ES7307-1EA80-0AA0?
The official limits are 93–132 V AC and 187–264 V AC.
Does 6ES7307-1EA80-0AA0 select the input range automatically?
No. Siemens specifies a selector on the device for choosing the 120 V or 230 V range.
What DC output does 6ES7307-1EA80-0AA0 provide?
It provides an isolated, controlled 24 V DC output rated at 5 A.
What mains buffering is specified for 6ES7307-1EA80-0AA0?
Siemens specifies at least 20 ms at 93/187 V input.
Is 6ES7307-1EA80-0AA0 the same as 6ES7307-1EA01-0AA0?
No. 1EA80 is the Outdoor variant and uses different official input-range and selection data, so the two article numbers must not be conflated.
What should be checked before energizing 6ES7307-1EA80-0AA0?
Verify the selector position, feeder voltage, protective-earth connection, 24 V load, cabinet environment and exact Outdoor article number.
