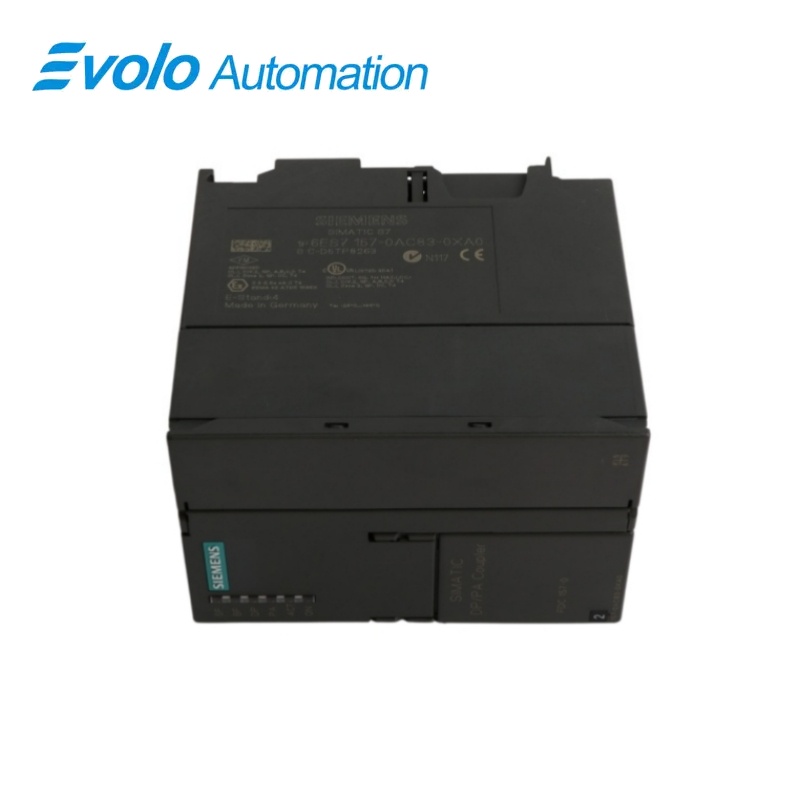

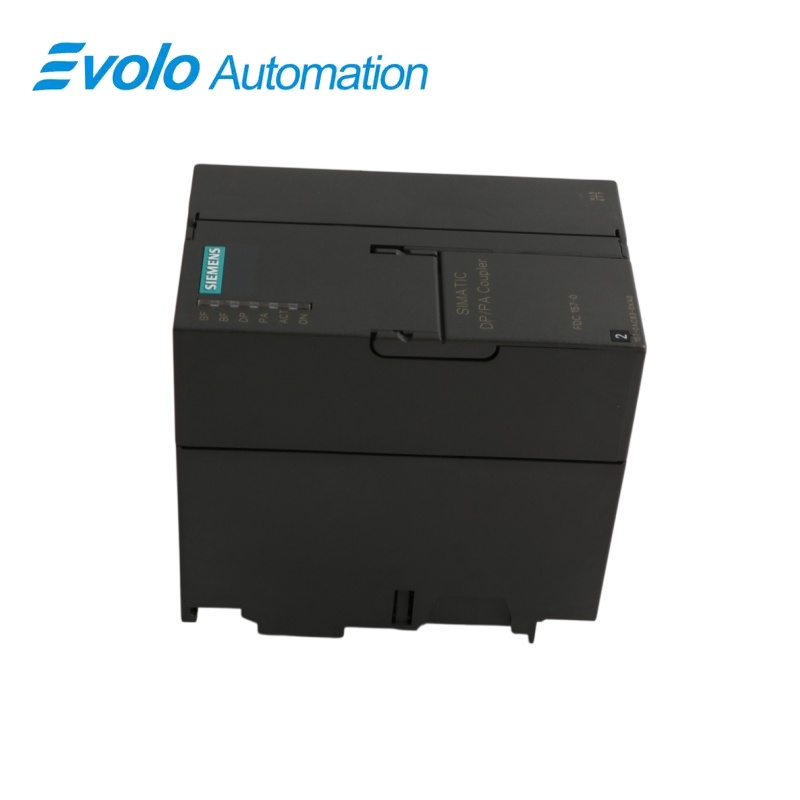

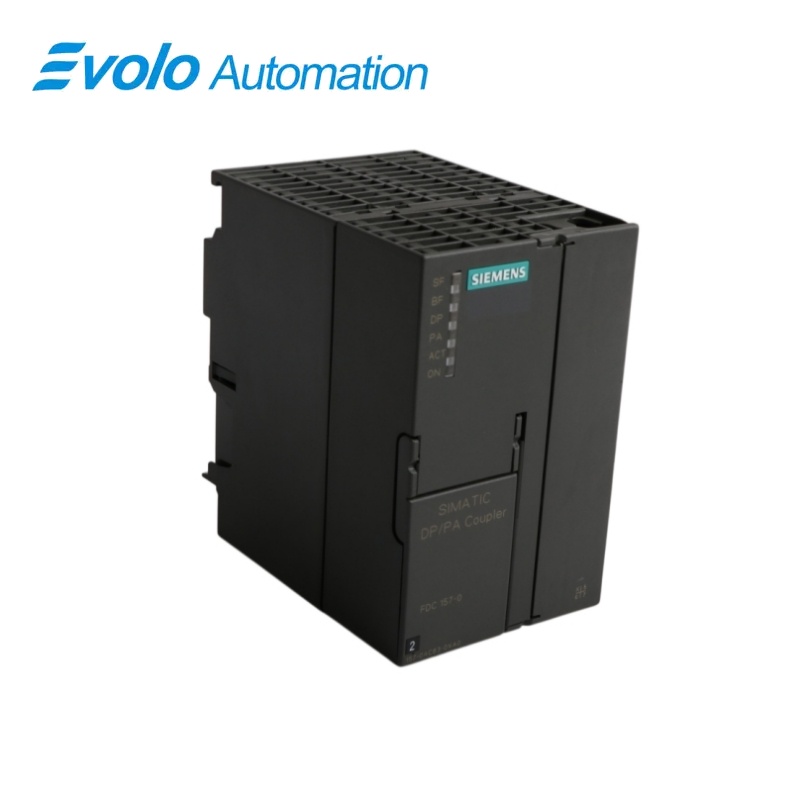

Siemens SIMATIC DP/PA Coupler FDC 157-0 6ES7157-0AC83-0XA0
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens · SIMATIC DP
6ES7157-0AC83-0XA0 SIMATIC DP/PA Coupler FDC 157-0
The SIMATIC FDC 157-0 is a non-Ex DP/PA fieldbus coupler with an integrated 31 V fieldbus supply up to 1000 mA, optional redundant operation and diagnostic capability for extended-temperature process automation installations.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6ES7157-0AC83-0XA0 |
| Product Type | Non-Ex PROFIBUS DP/PA fieldbus coupler |
| Core Function | Couples PROFIBUS DP to a powered PROFIBUS PA field segment with integrated diagnostics |
| Application or Compatible Series | DP/PA Link configurations and PROFIBUS PA process field devices |
Exact Identification
Match 6ES7157-0AC83-0XA0 character by character and confirm the complete SIMATIC DP/PA Coupler FDC 157-0 designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The SIMATIC FDC 157-0 is a non-Ex DP/PA fieldbus coupler with an integrated 31 V fieldbus supply up to 1000 mA, optional redundant operation and diagnostic capability for extended-temperature process automation installations.
Connects a PROFIBUS DP system to IEC 61158-2 PROFIBUS PA field segments. Supplies the PA segment with up to 1000 mA and monitors current and voltage limits. Supports transparent use or addressed diagnostic operation, plus coupler or ring redundancy with the specified bus module.
Key Functions
DP-to-PA Coupling
Connects a PROFIBUS DP system to IEC 61158-2 PROFIBUS PA field segments.
Integrated Segment Power
Supplies the PA segment with up to 1000 mA and monitors current and voltage limits.
Redundancy and Diagnostics
Supports transparent use or addressed diagnostic operation, plus coupler or ring redundancy with the specified bus module.
Official Specifications
| Coupler Version | FDC 157-0, non-Ex |
|---|---|
| Fieldbus Interfaces | PROFIBUS DP and PROFIBUS PA |
| PA Supply Voltage | 31 V |
| Maximum PA Current | 1000 mA |
| Default PA Current Limits | 0 to 1000 mA |
| Default PA Voltage Limits | 15.5 to 35 V |
| Maximum PA Devices per Coupler | 31 |
| Maximum Couplers per DP/PA Link | 5 |
| Maximum PA Segment Length | 1900 m |
| Diagnostic Address | 0 for transparent operation; greater than 0 for diagnostics |
| Redundant Operation | Coupler or ring redundancy supported |
| Degree of Protection | IP20 |
| Operating Temperature Class | Extended temperature range |
Frequently Asked Questions
How much fieldbus current can 6ES7157-0AC83-0XA0 supply?
The integrated PA supply supports up to 1000 mA for the connected segment.
Can 6ES7157-0AC83-0XA0 operate without diagnostic addressing?
Yes; address 0 provides transparent coupler operation without the diagnostic function.
How is diagnostic operation enabled on 6ES7157-0AC83-0XA0?
Assign a PROFIBUS address greater than zero and configure the corresponding diagnostic slave.
Can 6ES7157-0AC83-0XA0 be used in a redundant PA topology?
Yes; coupler or ring redundancy is supported with the specified redundant bus module and field distribution components.
How many PA devices can be planned behind 6ES7157-0AC83-0XA0?
Plan no more than 31 field devices and verify the segment current and voltage calculation.
What must be checked for the PA cable connected to 6ES7157-0AC83-0XA0?
Confirm segment length, cable type, terminators, load current and voltage at the most distant device.
What should be preserved before replacing 6ES7157-0AC83-0XA0?
Record the DP address, diagnostic mode, redundancy topology, PA load calculation and wiring assignments.
Compatibility & Ordering Notes
Compatibility Checklist
- Use the coupler with the specified DP/PA Link and compatible IEC 61158-2 PROFIBUS PA devices.
- For redundant operation, use the documented BM FDC/FDC redundant bus module and preserve the established topology.
- Calculate segment current, cable length and field voltage before commissioning.
