Overview

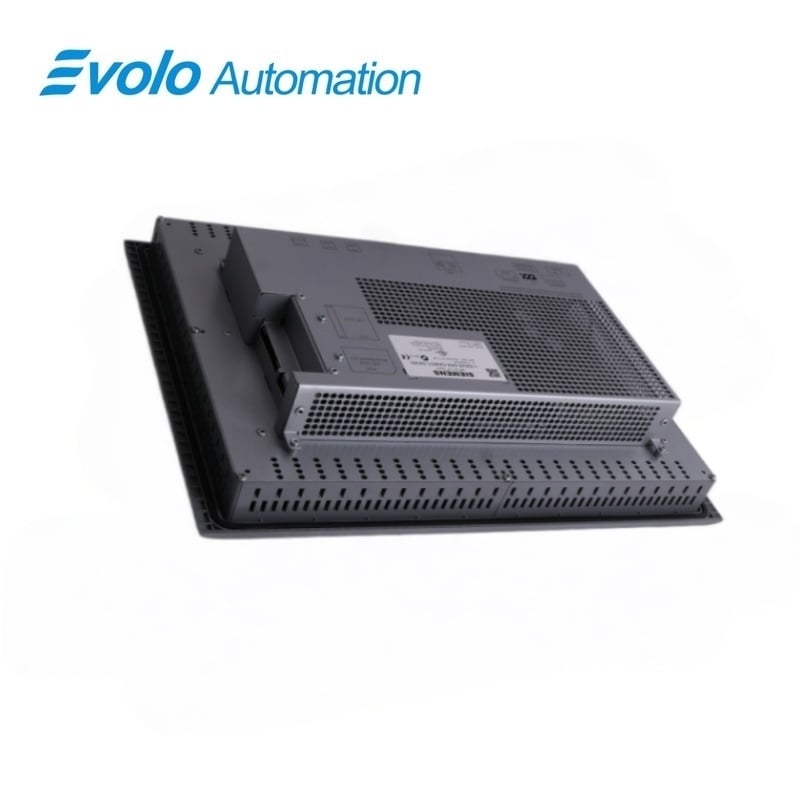

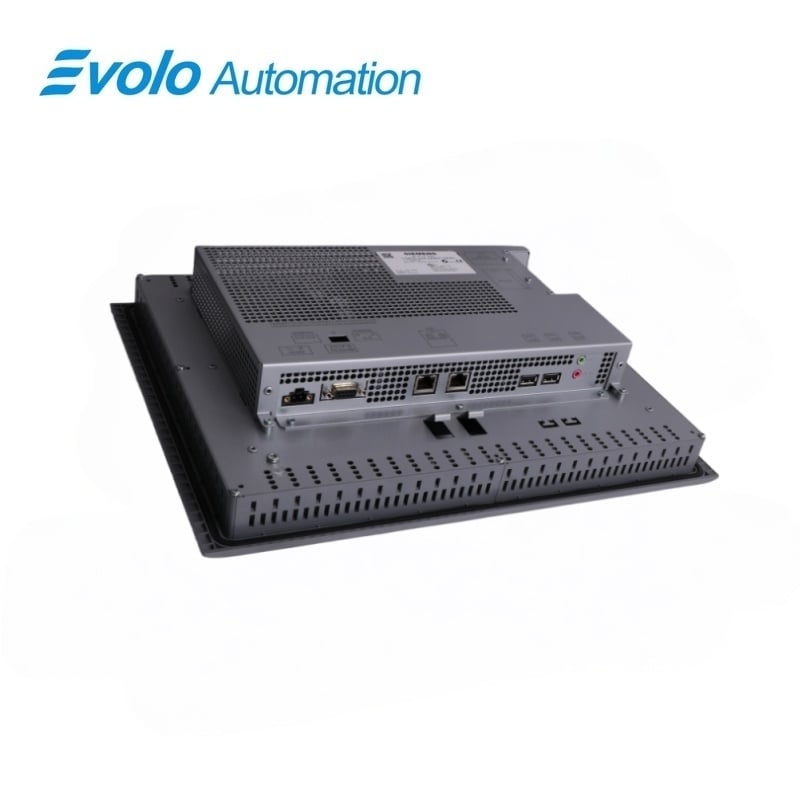

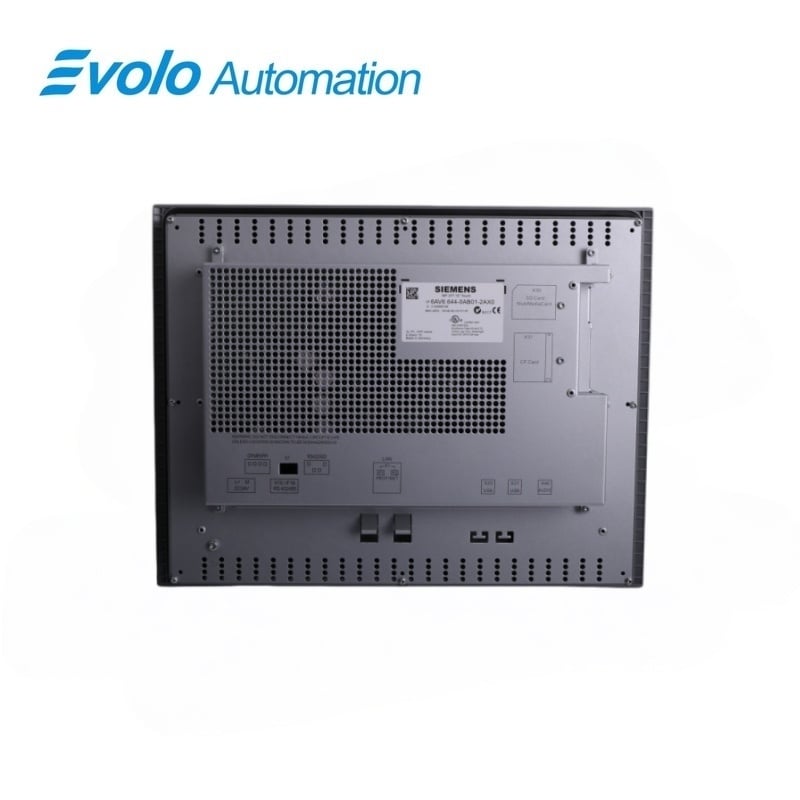

6AV6644-0AB01-2AX0 MP 377 15-inch Touch Multi Panel
Official Siemens identification and technical data for 6AV6644-0AB01-2AX0, prepared for accurate replacement matching and quotation.
At a Glance
| Article Number | 6AV6644-0AB01-2AX0 |
|---|---|
| Manufacturer | Siemens |
| Platform | SIMATIC HMI MP 377 |
| Product Type | MP 377 15-inch Touch Multi Panel |
| Official Configuration | 15-inch TFT, 1024 × 768, 65,536 colors, 12 MB configuration memory, Windows CE 5.0 |
Exact Identification
Match the complete Siemens article number 6AV6644-0AB01-2AX0 and the photographed hardware revision.
Interfaces
RS 422/485, 2 × Industrial Ethernet and 2 × USB
Configuration Check
Confirm 15-inch TFT, 1024 × 768, 65,536 colors, 12 MB configuration memory, Windows CE 5.0 before replacement.
Product Overview
6AV6644-0AB01-2AX0 is officially identified by Siemens as SIMATIC HMI MP 377 MP 377 15-inch Touch Multi Panel. 15-inch TFT, 1024 × 768, 65,536 colors, 12 MB configuration memory, Windows CE 5.0.
The complete article number 6AV6644-0AB01-2AX0 should be matched against the installed hardware, nameplate and official system documentation. Similar revisions can differ in memory, interfaces, operating system or configuration.
Key Functions
Model-Specific Configuration
6AV6644-0AB01-2AX0: 15-inch TFT, 1024 × 768, 65,536 colors, 12 MB configuration memory, Windows CE 5.0.
System Interface
6AV6644-0AB01-2AX0: RS 422/485, 2 × Industrial Ethernet and 2 × USB.
Replacement Control
6AV6644-0AB01-2AX0: verify the complete article number, hardware revision and official project documentation before replacement.
Official Specifications
| Display Technology | TFT |
|---|---|
| Screen Diagonal | 15 in |
| Display Resolution | 1024 × 768 pixels |
| Display Colors | 65,536 |
| Backlight MTBF | 50,000 h at 25 °C |
| Touch Technology | Analog-resistive |
| External Input Devices | USB mouse, keyboard or barcode reader |
| Maximum Inclination | 35° without external ventilation |
| Rated Supply Voltage | 24 V DC |
| Rated Current Consumption | 1.9 A |
| Typical Active Power | 45.6 W |
| Memory Type | Flash / RAM |
| User Data Memory | 12,288 KB |
| Operating System | Windows CE 5.0 |
| Hardware Clock | Battery-backed and synchronizable |
| Communication Capability | RS 422, RS 485 and two Industrial Ethernet connections |
| Industrial Ethernet Connections | 2 |
| Engineering Software | WinCC flexible 2007 or higher |
Official source: Siemens Industry Mall product data for 6AV6644-0AB01-2AX0. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
Which engineering software is required to restore 6AV6644-0AB01-2AX0?
Use WinCC flexible 2007 or a compatible later release and match the device image to the archived project.
How can a replacement project be transferred to 6AV6644-0AB01-2AX0?
Use a supported Ethernet, serial or storage-media transfer method and verify the transfer settings before loading.
What power supply is suitable for 6AV6644-0AB01-2AX0?
Provide a stable 24 V DC source sized for the 1.9 A rated current and the documented startup behavior.
How should touch accuracy be tested on 6AV6644-0AB01-2AX0?
Calibrate the resistive touchscreen and test the full display area, especially corners and safety-relevant controls.
Can USB peripherals be connected to 6AV6644-0AB01-2AX0?
Yes. Supported mouse, keyboard and barcode-reader devices can be used, subject to the operating-system and project limitations.
What network settings must be preserved for 6AV6644-0AB01-2AX0?
Record the Ethernet addresses, device names, controller connections, serial parameters and time-synchronization configuration.
What data should be backed up from 6AV6644-0AB01-2AX0 before removal?
Save the WinCC project, runtime image, recipes, user administration, archives, licenses and communication parameters.
Compatibility & Ordering Notes
Compatibility Checklist for 6AV6644-0AB01-2AX0
- Match the complete article number 6AV6644-0AB01-2AX0 without shortening the suffix.
- Confirm the installed SIMATIC HMI MP 377 family and hardware revision.
- Verify RS 422/485, 2 × Industrial Ethernet and 2 × USB.
- Confirm included connectors, memory media and accessories in the written quotation.
