Siemens 3RK1901-0CB01 AS-Interface K60 DIN-Rail Mounting Plate
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Hot Selling Models
- Recommended Products
Overview
- Use the standard-rail plate with the matching K60 compact module.
- Keep the yellow AS-i and black 24 V auxiliary flat cables in their designated positions.
- Fit the module and tighten its retaining screw to 1.6–1.8 N·m.
- Apply the IP67 rating to the completed screw-mounted module assembly.
- Use the 3RK1902-0AR00 seals when the flat-cable end is placed within the module.
- Keep the mounting plate and fitted module within their respective operating-temperature limits.

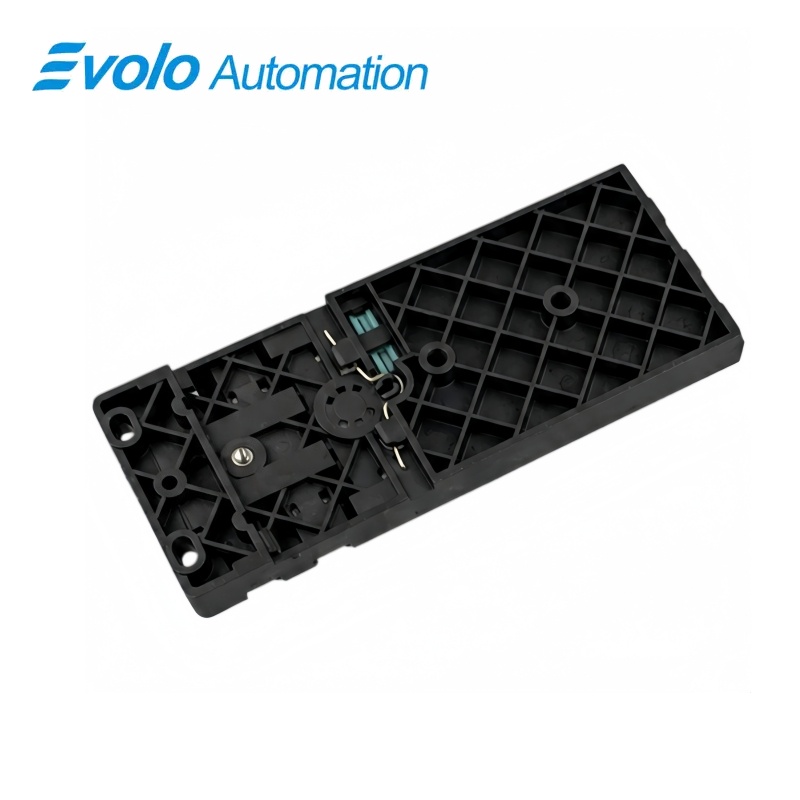

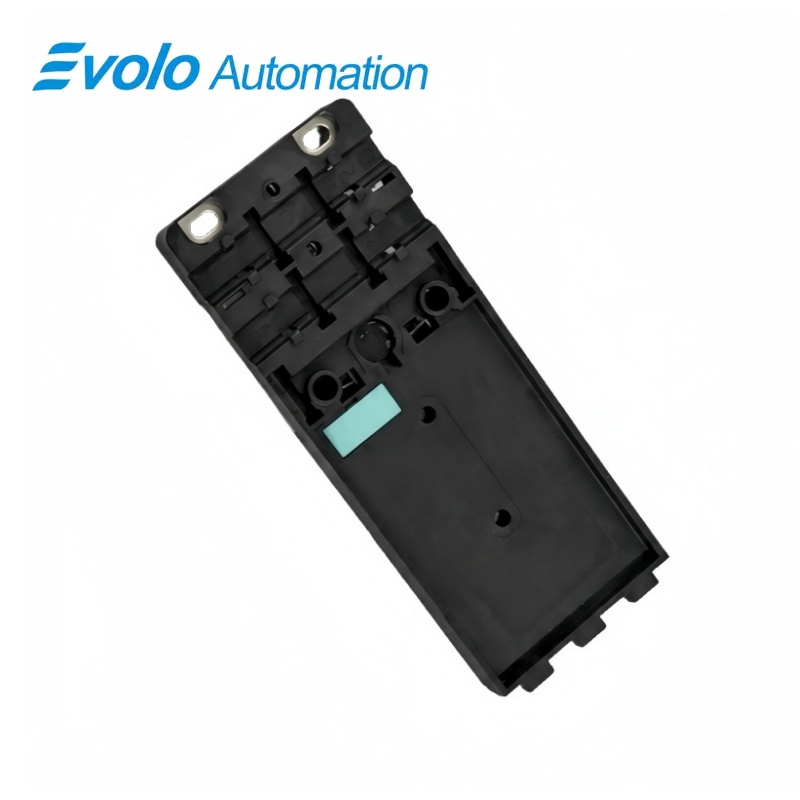

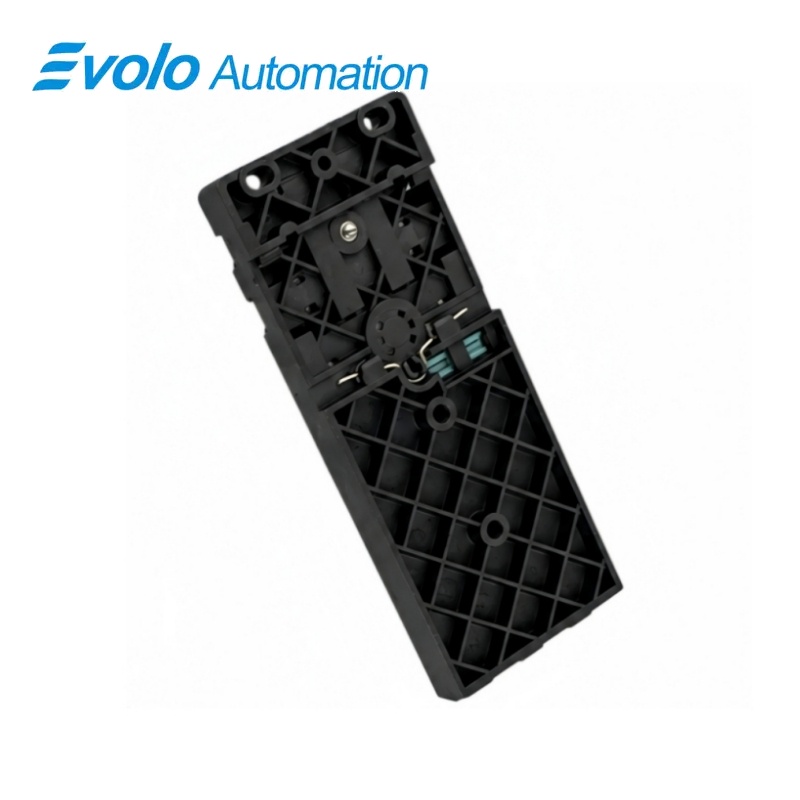

3RK1901-0CB01 AS-Interface K60 DIN-Rail Mounting Plate
A K60 rail-mounting plate for the yellow AS-i and black 24 V auxiliary flat cables, with insulation-piercing contacts and IP67 protection when assembled with the screw-mounted module.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 3RK1901-0CB01 |
| Product Type | Compact-module mounting plate |
| Core Function | Securing the field module to a standard mounting rail |
| Application | AS-Interface K60 compact modules |
Two flat-cable paths
The yellow AS-i cable and black 24 V auxiliary cable use the two cable positions.
Sealed complete assembly
IP67 applies with the K60 compact module screwed onto the mounting plate.
Cable-end accessory
A flat-cable end can be located in the module with additional 3RK1902-0AR00 seals.
Product Overview
3RK1901-0CB01 forms the standard-rail mounting base for a K60 AS-Interface compact module and accommodates the AS-i bus cable plus the separate 24 V auxiliary flat cable.
The insulation-piercing connection method works with the assembled module, while the seal arrangement and retaining screw complete the protected cable and module interface.
Key Functions
Connect the shaped cables by insulation piercing
The plate provides the interface for the yellow AS-i bus flat cable and the black 24 V auxiliary flat cable using insulation-piercing contacts.
Form the protected K60 module assembly
The stated IP67 protection applies when the K60 compact module is screwed onto the mounting plate.
Support a sealed cable end at the module
The additional 3RK1902-0AR00 sealing set allows the flat-cable end to be positioned in the module.
Official Specifications
| Flat-Cable Positions | 2: yellow AS-i bus cable and black 24 V auxiliary cable |
|---|---|
| Electrical Connection Method | Insulation piercing for AS-Interface flat cable |
| Degree of Protection | IP67 with the K60 compact module screw-mounted |
| Operating Ambient Temperature | −25 to +85 °C |
| Plate Dimensions (Width × Height × Depth) | 60 × 152 × 14.5 mm |
| Net Weight | 90.58 g |
| Module Retaining-Screw Torque | 1.6–1.8 N·m |
Frequently Asked Questions
Does the loose 3RK1901-0CB01 plate alone have the stated IP67 protection?
The IP67 rating applies with the K60 compact module screw-mounted on the plate.
Can I place the flat-cable end within the module assembled on 3RK1901-0CB01?
A cable end can be placed in the module when the additional 3RK1902-0AR00 seals are fitted.
Is the sealing set used with 3RK1901-0CB01 also suitable for a K45 mounting plate?
The specified 3RK1902-0AR00 sealing set is for K60 and cannot be used for a K45 mounting plate.
Which cable supplies the auxiliary 24 V connection through 3RK1901-0CB01?
The black flat cable carries the separate 24 V auxiliary supply, while the yellow flat cable carries AS-i.
Do I strip the flat cable for the electrical contact method on 3RK1901-0CB01?
The electrical connection uses insulation-piercing contacts for the AS-Interface flat cable.
Does an order for 3RK1901-0CB01 include the K60 input or output electronics?
The article is the mounting plate, with the K60 compact I/O module selected separately.
Can I select 3RK1901-0CB01 for a mounting location with an 80 °C ambient temperature?
The mounting plate’s operating range extends to +85 °C, while the complete assembly must also remain within the fitted module’s limits.
