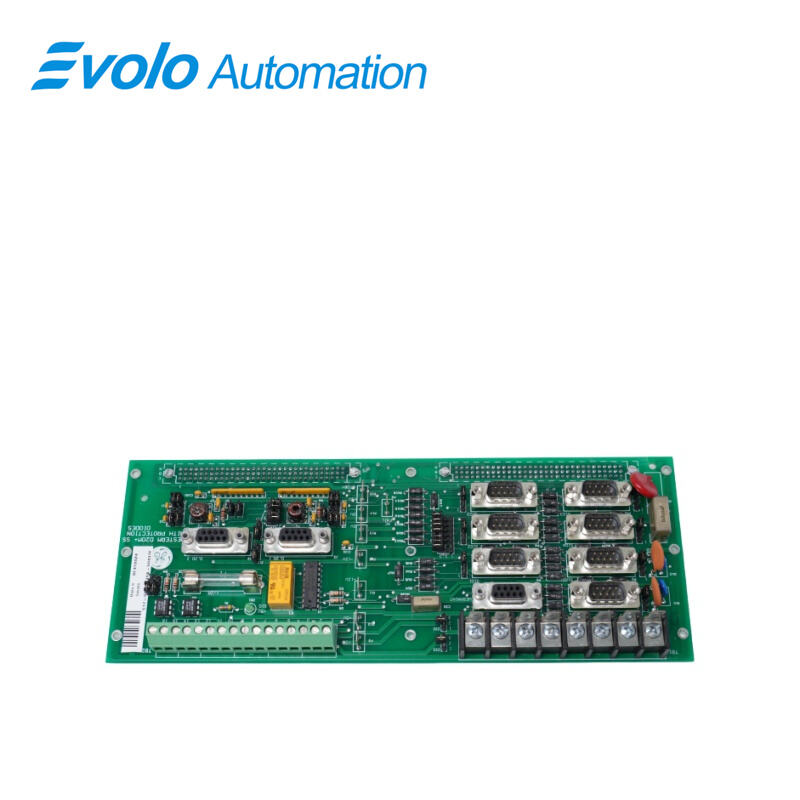

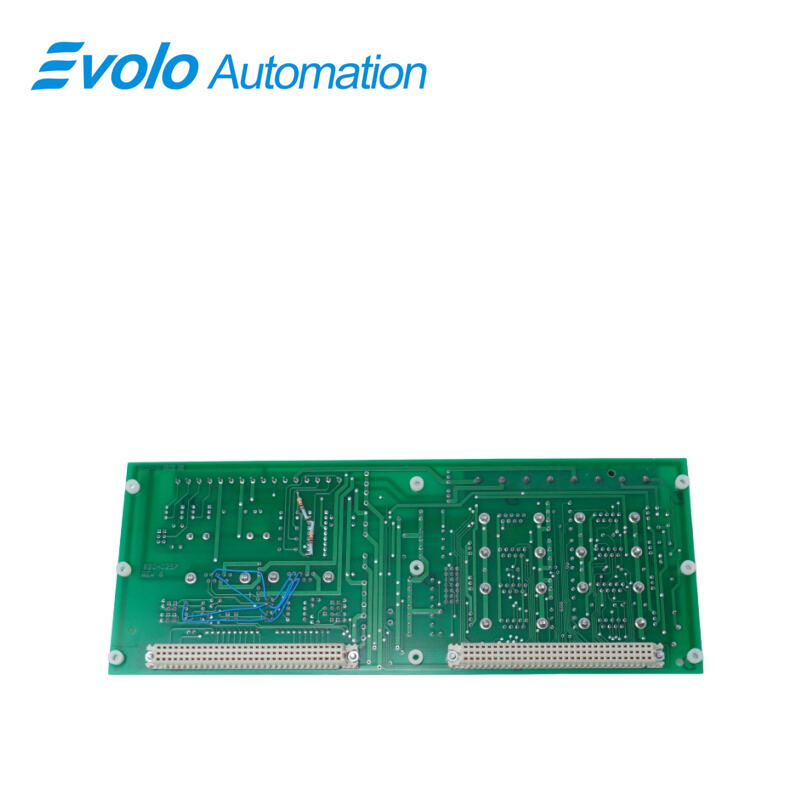

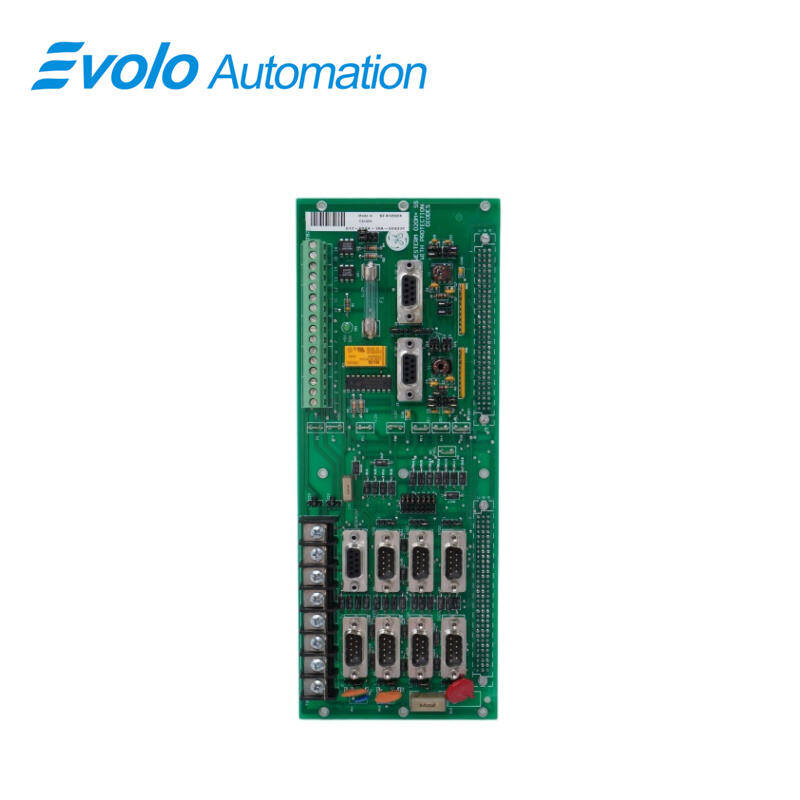

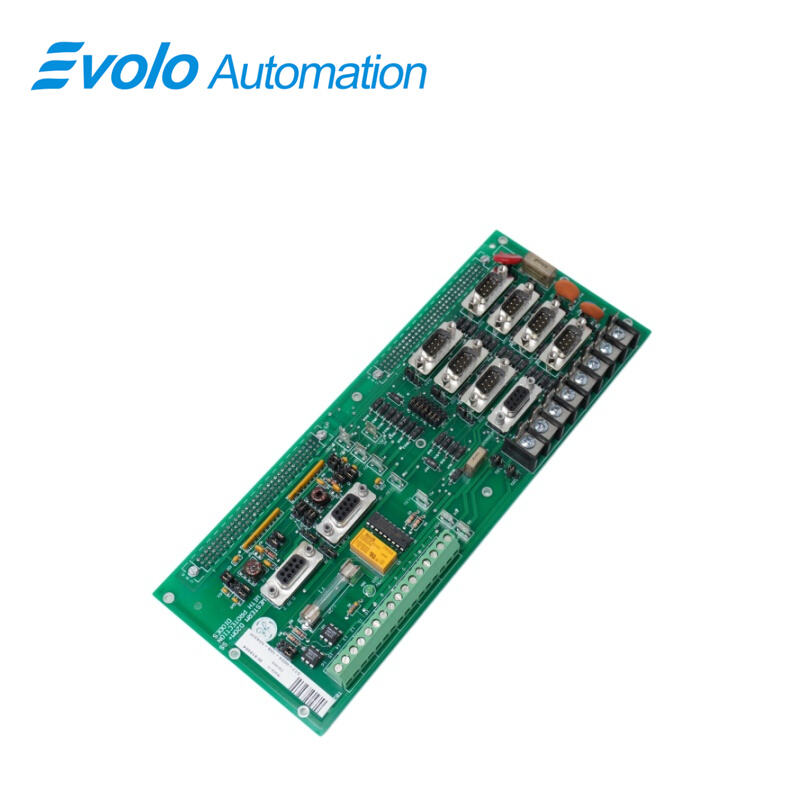

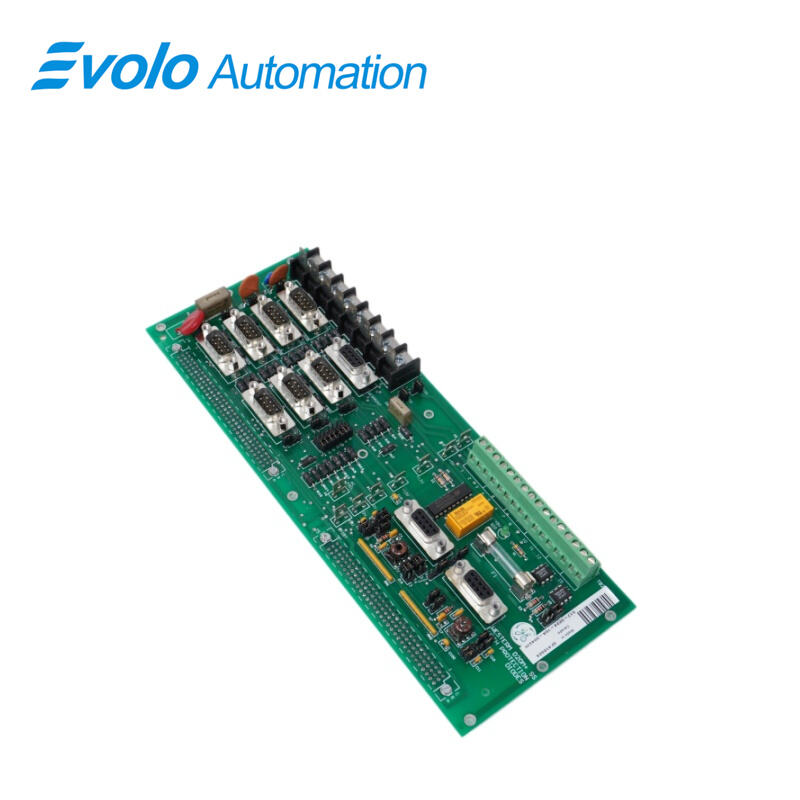

SF412024 517-0224-16A-504376 820-0297 Control Circuit Board, China SF412024 517-0224-16A-504376 820-0297 Control Circuit Board Manufacturers, Suppliers, Factory

Overview

Place of Origin:	USA
Brand Name:	GE
Model Number:	SF412024 517-0224-16A-504376 820-0297
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description	Specification
Model	SF412024 517-0224-16A-504376 820-0297
Part name	Control Circuit Board
Dimensions	18.6 x 26.1 x 4 cm
Weight	0.52 kg
Operating temperature range	-40°C to +85°C
Storage temperature range	-55°C to +125°C
Voltage range	24 VDC to 48 VDC
Interface type	Standard industrial interface

Description

This GE SF412024 517-0224-16A-504376 820-0297 Control Circuit Board is designed specifically for industrial automation control systems and is suitable for data processing and control tasks in various complex environments. It effectively improves system stability and efficiency and is widely used in multiple industrial sectors.

Applications

Heavy machinery plants: Used in power control systems of outdoor cranes and excavators, handling large temperature fluctuations and heavy operational loads.

Wind power plants: Deployed in pitch control systems inside wind turbine nacelles, using wide-temperature capability to withstand harsh high-altitude weather conditions.

Oil exploration sites: Applied in field drilling platform monitoring and control, ensuring accurate data transmission under extreme temperature variations.

Rail transit facilities: Integrated into auxiliary power control units of trains, adapting to complex voltage fluctuations with wide input range support.

Cold storage warehouses: Installed in the base controllers of automated stacker cranes, maintaining logic accuracy in long-term low-temperature environments.

Troubleshooting and Maintenance Recommendations

PCB Cleaning: Remove dust and condensation with electronic cleaner to avoid short circuits.

Power Testing: Check input voltage and ripple if frequent restarts occur.

Interface Maintenance: Regularly tighten connectors to prevent vibration-related poor contact.

ESD Protection: Wear an anti-static wrist strap during PCB repair or replacement.

FAQ

Q: Can the SF412024 517-0224-16A-504376 820-0297 operate stably in extreme outdoor cabinet temperatures?
A: It operates reliably from -40°C to +85°C, meeting all-weather industrial environment requirements.

Q: What DC power supply range is compatible with the SF412024 517-0224-16A-504376 820-0297?
A: It supports 24VDC to 48VDC, adapting to various industrial power distribution systems.

Q: What are the storage requirements for the SF412024 517-0224-16A-504376 820-0297 during downtime?
A: It maintains stable performance in storage conditions from -55°C to +125°C.

Q: Does the SF412024 517-0224-16A-504376 820-0297 support third-party industrial equipment connections?
A: Yes. It uses a standard industrial interface for broad cross-brand compatibility.

Q: Is the SF412024 517-0224-16A-504376 820-0297 suitable for compact control boxes?
A: Yes. Its optimized design allows easy installation in standard space-limited enclosures with proper heat dissipation.
