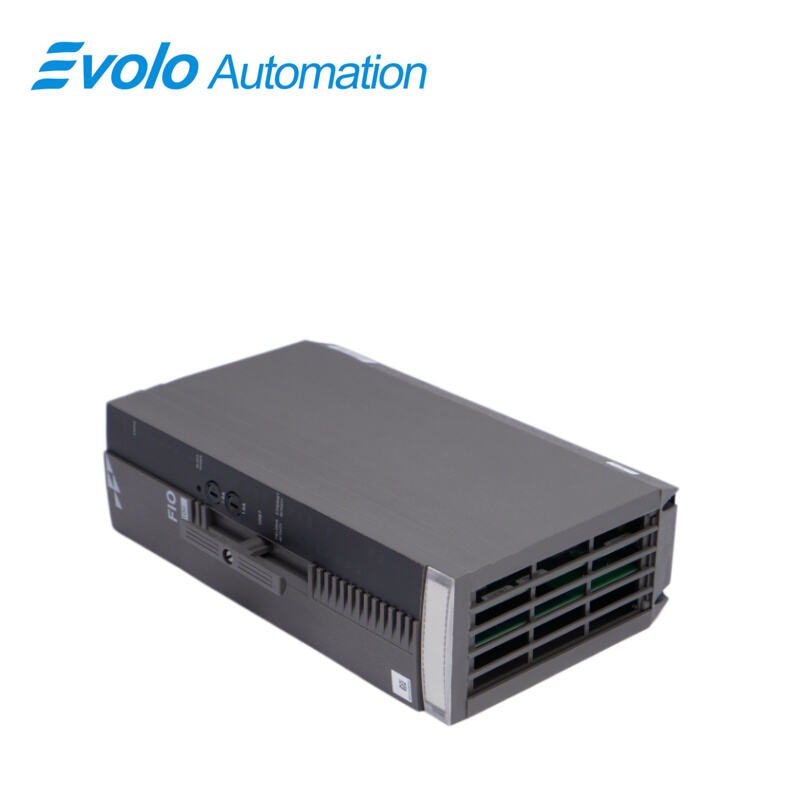

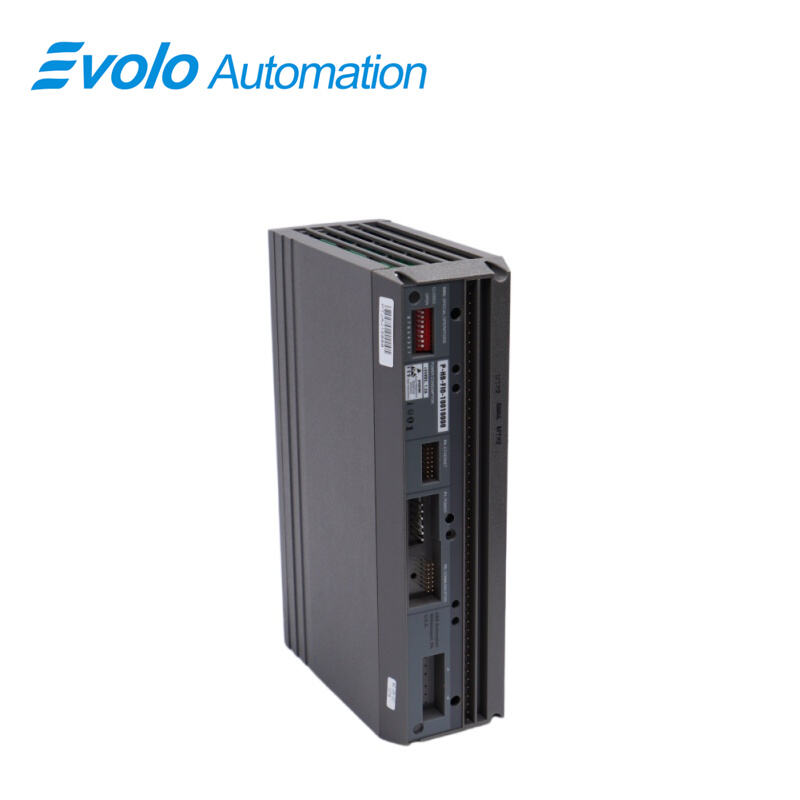

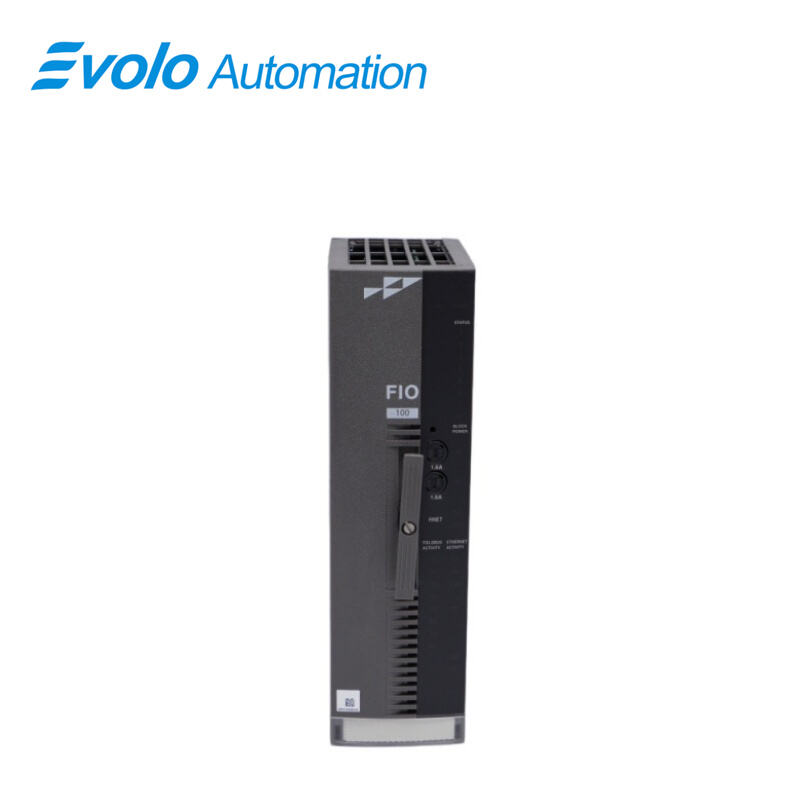

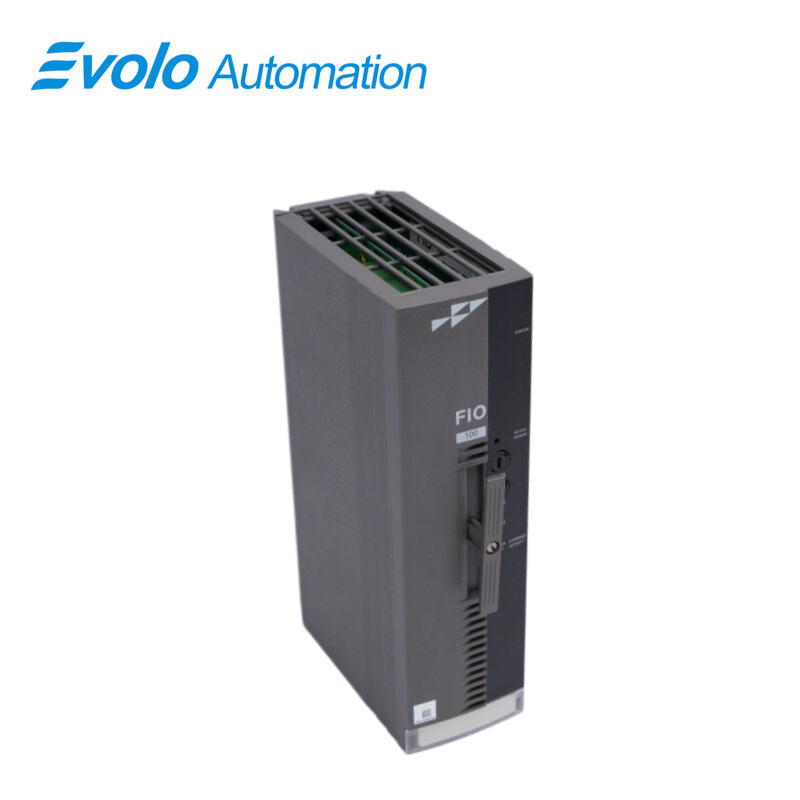

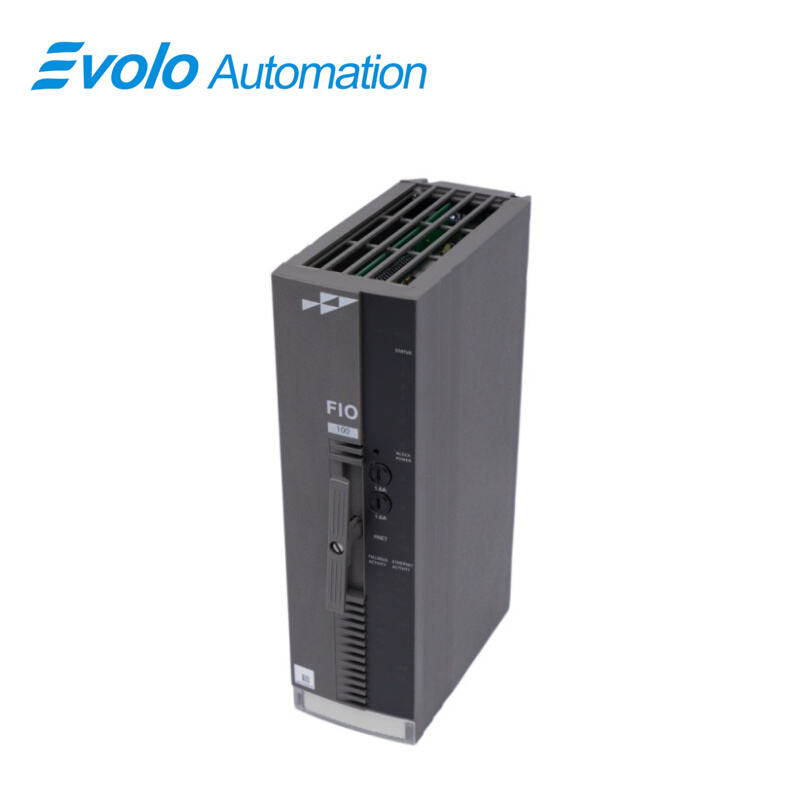

PHBFIO10010000 FIO 100 P-HB-FIO-10010000 Fieldbus I/O Module , China PHBFIO10010000 FIO 100 P-HB-FIO-10010000 Fieldbus I/O Module Manufacturers, Suppliers, Factory

Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	PHBFIO10010000 FIO 100 P-HB-FIO-10010000
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Parameter	Value
Model	PHBFIO10010000 FIO 100 P-HB-FIO-10010000
Type	Fieldbus I/O Module
Dimensions (W x H x D)	96 x 102 x 26.6 mm
Weight	0.25 kg
Power Supply	24 V DC
Communication Protocol	Profinet
Channels	16 Inputs / 16 Outputs
Channel Configuration	Software-defined (AI / AO / DI / DO per channel, no hardware change required)
Analog Resolution	16-bit
Operating Temperature	-25°C to +70°C
Storage Temperature	-40°C to +85°C
Enclosure Rating	IP20 / IP65 / IP67
Environmental Resistance	Industrial-grade protection

Description

The ABB PHBFIO10010000 FIO 100 P-HB-FIO-10010000 Fieldbus I/O Module is a cutting-edge solution designed to enhance productivity and efficiency in industrial environments. With its advanced communication protocols and flexible channel configurations, it seamlessly integrates with existing systems, offering unparalleled control and monitoring capabilities.

Applications

Smart factories: Rapidly adjust I/O types via software to adapt to flexible production.

Combined cycle power plants: Used for precise load control of gas turbines and waste heat boilers.

Modern petrochemical plants: Provide highly interference-resistant signals for monitoring complex chemical reactions.

Large-scale waste incineration plants: Handle diverse signals from environmental monitoring and automated unloading systems.

Paper processing plants: Achieve rapid feedback control in high-speed paper machine drive systems.

Troubleshooting

Configuration Mismatch: If the software is set to AO but the wiring is set to AI, the module will report an error. Check the Composer software settings.

HN800 Bus Fault: Check the communication indicator light on the base. If it is red, check the base connection and terminating resistor.

Module Overheating: Check the airflow inside the cabinet. Although this module is highly efficient, high-density wiring still requires attention to heat dissipation.

FAQ

Q: Can the base and PHBFIO10010000 FIO 100 P-HB-FIO-10010000 module be purchased separately?
A: Yes. The base is part of the fixed wiring infrastructure; if the module is damaged, only the PHBFIO10010000 FIO 100 P-HB-FIO-10010000 module needs to be replaced.

Q: Why is a terminating resistor needed at the end of the base for the PHBFIO10010000 FIO 100 P-HB-FIO-10010000 system?
A: To absorb reflected bus signals, prevent communication errors, and ensure stable data transmission across the fieldbus.

Q: Does the base of the PHBFIO10010000 FIO 100 P-HB-FIO-10010000 support redundant power supply?
A: Yes. The base is designed with dual 24V input interfaces to ensure that a single power failure does not affect I/O operation.

Q: Can different types of signals be connected to the same base in the PHBFIO10010000 FIO 100 P-HB-FIO-10010000 system?
A: Yes. With the PHBFIO10010000 FIO 100 P-HB-FIO-10010000 module, the 16 terminals can be configured for AI, AO, DI, or DO respectively.

Q: What is the maximum wire diameter supported by the base terminals of the PHBFIO10010000 FIO 100 P-HB-FIO-10010000?
A: It typically supports industrial standard wiring from 1.5 mm² to 2.5 mm² conductors.
