Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
MU-FOED02 51197564-200 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
MU-FOED02 51197564-200 |
|
Product Type: |
Fiber Optic Extender Module |
|
Dimensions: |
15 × 10 × 5 cm |
|
Weight: |
0.5 kg |
|
Mounting Type: |
DIN rail or panel mount |
|
Function: |
UCN Fiber Optic Extender (2 km / long distance I/O link extender) |
|
Power Supply: |
24 VDC |
|
Power Consumption: |
5 W (typical) |
|
Current Draw: |
0.21 A @ 24 VDC |
|
Wavelength: |
1300 nm |
|
Maximum Distance: |
10 km (long distance I/O link extender) |
|
Connector Type: |
ST-type |
|
Cable Type: |
Multi-mode or single-mode fiber |
|
Minimum Bend Radius: |
10 cm (indoor cable) |
|
Signal Loss Budget: |
13 dB (standard), 17 dB (long distance) |
|
Operating Temperature Range: |
0°C to +60°C |
|
Storage Temperature Range: |
-40°C to +85°C |
|
Relative Humidity: |
5%–95% non-condensing |
Description

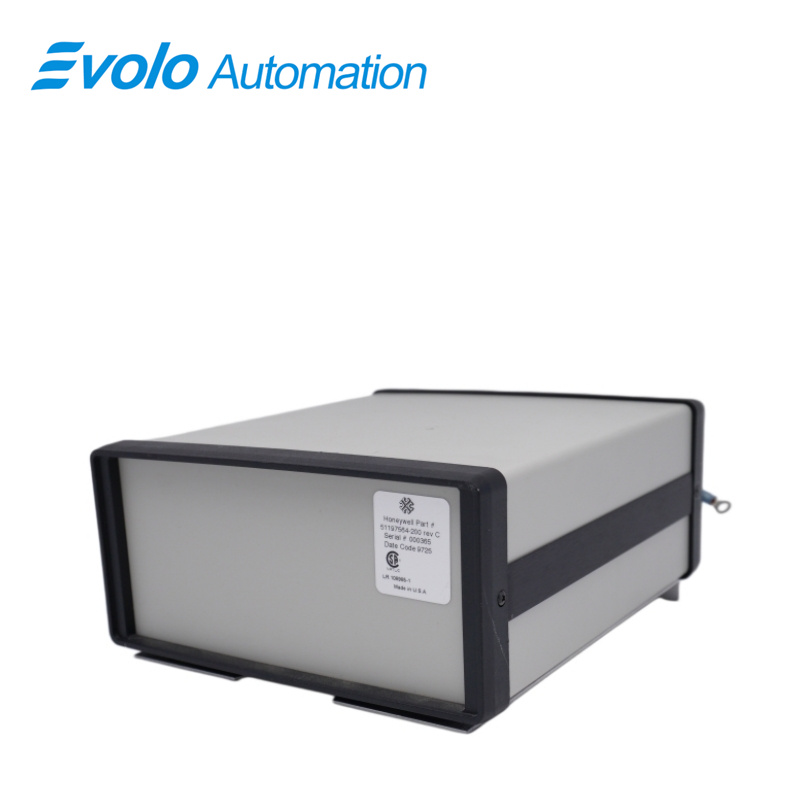

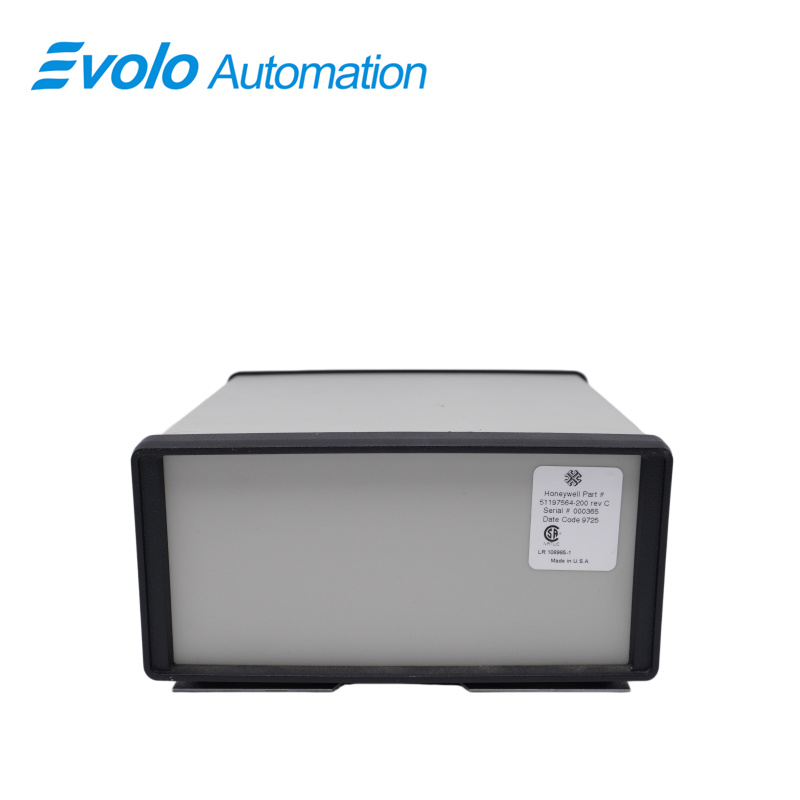

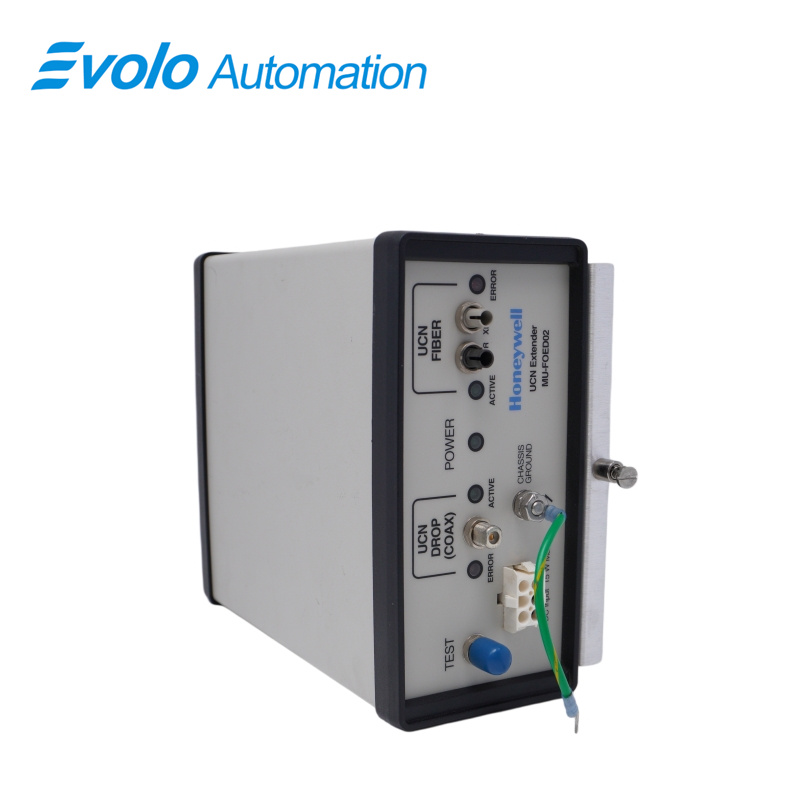

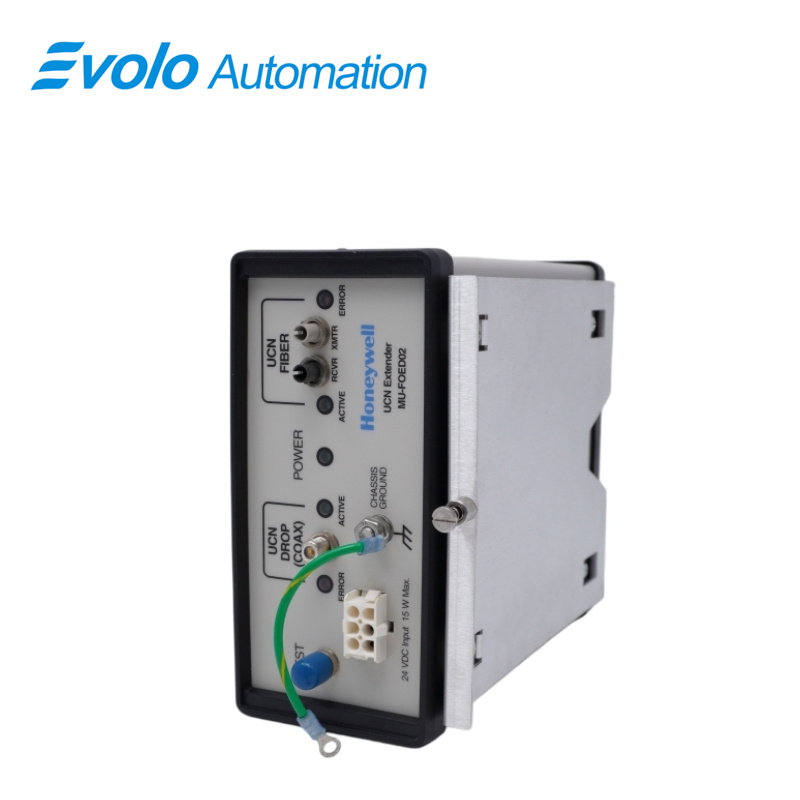

The Honeywell MU-FOED02 51197564-200 is a fiber optic extender module for the High-Performance Process Manager (HPM) subsystem, enabling long-distance I/O communication over fiber optic cables.
Applications
Petrochemical Plants: Transmit monitoring data from hazardous areas to the control room via fiber-optic cables.
Thermal Power Plants: Ensure stable signal transmission between boilers and generator control systems.
Large Chemical Plants: Extend networks across workshops and industrial zones.
Steel and Metallurgical Plants: Enable long-distance communication between production sites and control centers.
Natural Gas Processing Plants: Connect pipeline valve groups with station control systems.
Features
Extends I/O Link communication up to 10 km
Supports redundant HPMM configurations
Compatible with CE-compliant systems
Uses ST-type fiber optic connectors
FAQ
Q: What mounting methods does MU-FOED02 51197564-200 support?
A: This model supports DIN rail or panel mounting.
Q: What is the power supply voltage requirement for MU-FOED02 51197564-200?
A: Its power supply requirement is 24 VDC.
Q: What is the optical wavelength of MU-FOED02 51197564-200?
A: The optical wavelength of this model is 1300 nm.
Q: What is the maximum transmission distance of MU-FOED02 51197564-200?
A: Its maximum transmission distance is 10 km.
Q: What type of fiber optic interface does MU-FOED02 51197564-200 use?
A: It uses an ST-type interface.
