Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
MC-TAMT04 51305890-175 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
MC-TAMT04 51305890-175 |
|
Product Type: |
Low Level Input Multiplexer |
|
Dimensions: |
30.6 × 12 × 7 cm |
|
Weight: |
0.82 kg |
|
Input Channels: |
16 |
|
Resolution: |
16-bit |
|
Input Current / Voltage: |
10 VDC |
|
Network Type: |
3G |
|
Cold Junction Compensation: |
Local CJR |
|
Termination Type: |
Compression terminals |
|
Technology: |
Solid state |
|
Redundancy Support: |
Not supported |
|
Conformal Coating: |
Yes |
|
CE Compliance: |
Yes |
Description

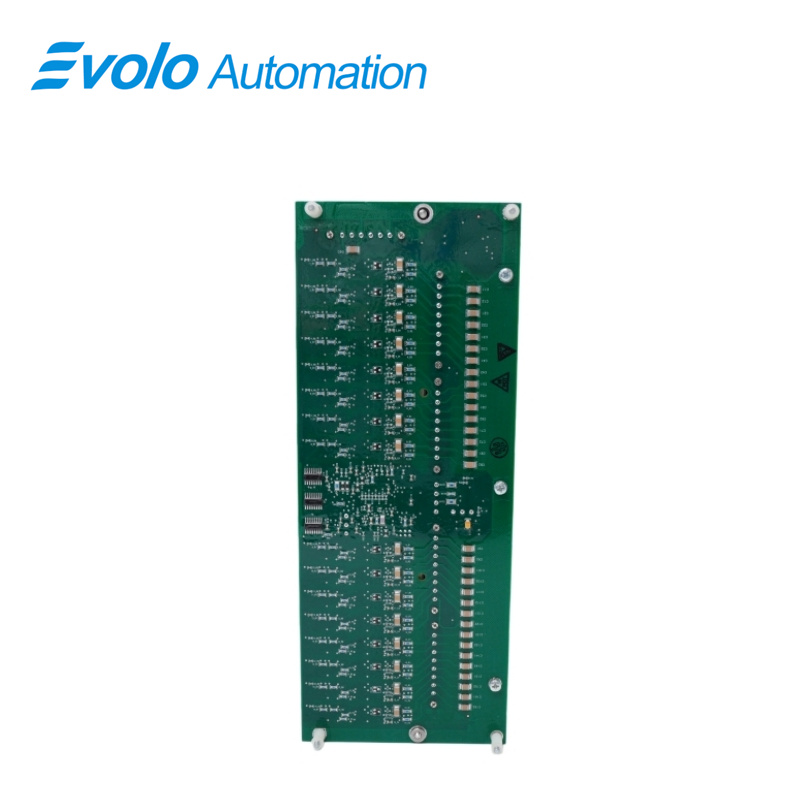

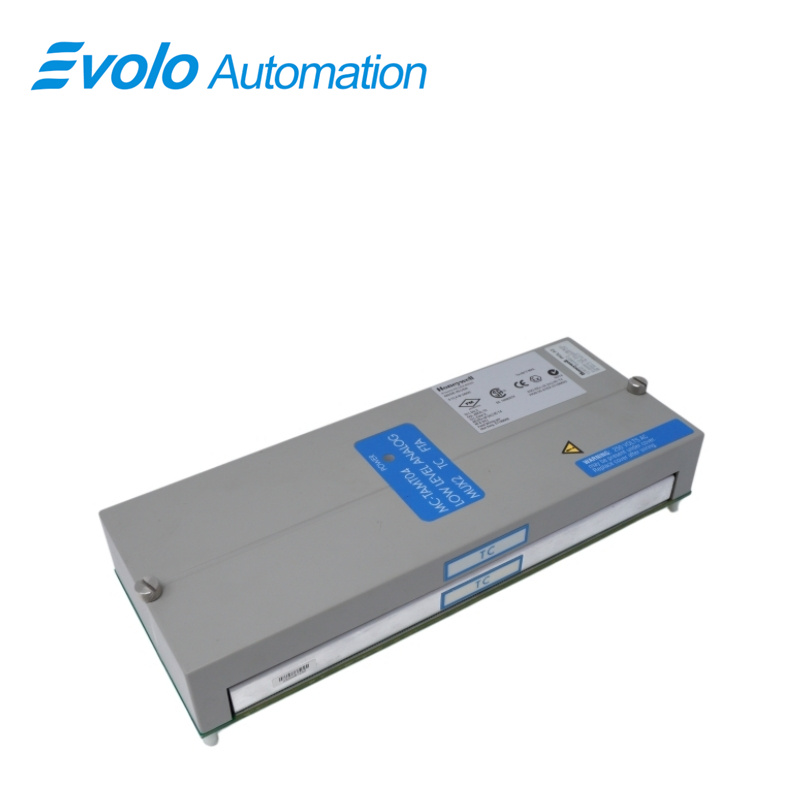

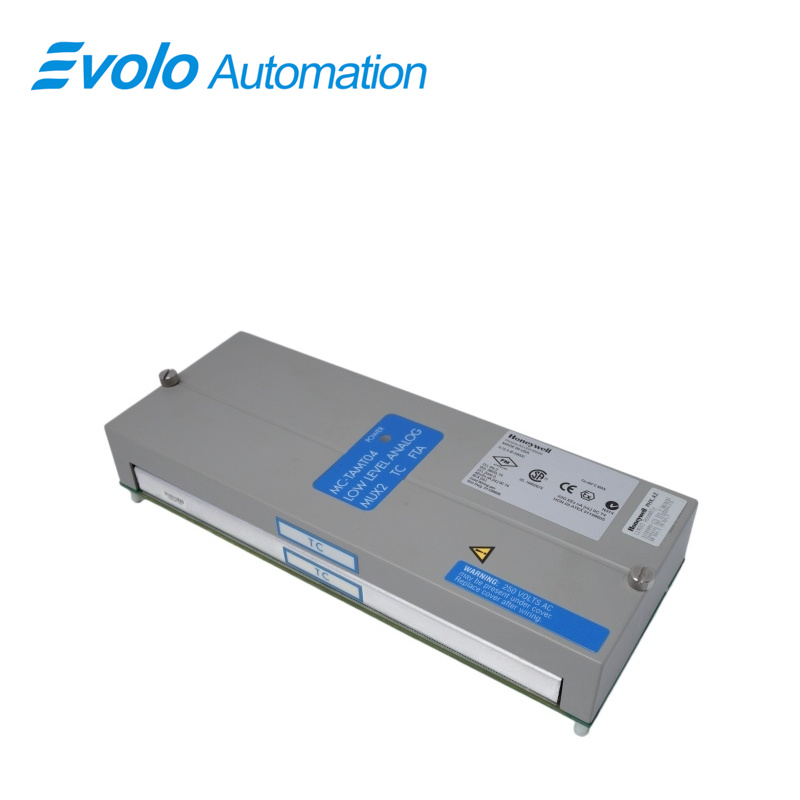

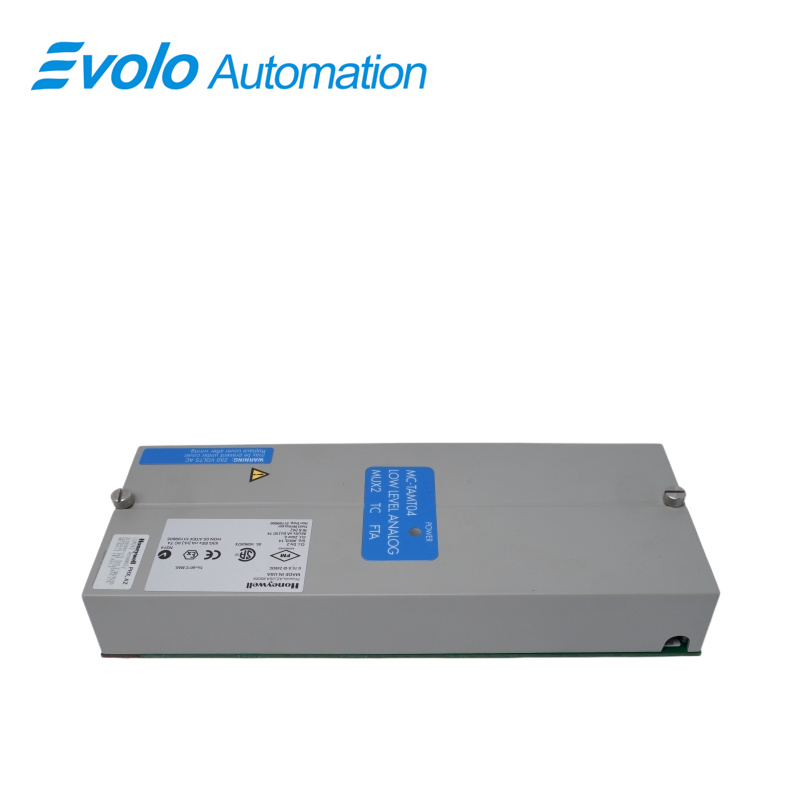

The MC-TAMT04 51305890-175 is a high-precision Low Level Input Multiplexer for industrial automation systems. It is widely used in distributed control architectures for efficient collection of temperature and low-voltage process signals.
Applications
Glass Manufacturing Plants: Collects high-temperature thermocouple signals for precise furnace temperature monitoring.
Oil and Gas Pipeline Plants: Supports remote valve control monitoring with long-distance data transmission capability.
Fine Chemical Control Plants: Monitors reactor thermal parameters with corrosion-resistant protective coating.
Combined Cycle Power Plants: Uses solid-state switching for high-frequency signal scanning without mechanical wear.
Aluminum Electrolysis Plants: Collects dense thermoelectric signals with vibration-resistant terminal connections.
Enhancement
A separate A/D per channel
Improved open thermocouple detection within one second
Improved loop resistance to allow longer thermocouple wiring to the field
They use solid-state technology, eliminating the use of mercury-wetted relays
They have on-board diagnostic capability
FAQ
Q: What are the channel count and resolution of MC-TAMT04 51305890-175?
A: The module has 16 input channels with 16-bit resolution.
Q: What are the input voltage and network type of MC-TAMT04 51305890-175?
A: Input voltage 10 VDC, network type 3G.
Q: What are the cold junction compensation method and terminal type of MC-TAMT04 51305890-175?
A: Local cold junction compensation, compression-type terminals.
Q: What technology is used and is MC-TAMT04 51305890-175 CE compliant?
A: Solid-state technology, CE compliant.
Q: Does MC-TAMT04 51305890-175 include conformal coating and support redundancy?
A: Conformal coating included, redundancy not supported.
